Axiom Supply HD Heim Joint | 3/4 in Shank x 5/8 in Bore | Left-Hand Thread | Zinc Plated | UTV

Axiom Heavy Duty Heim Joint | 3/4" Shank x 5/8" Bore | Left-Hand Thread | Zinc Plated | UTV Suspension & Steering

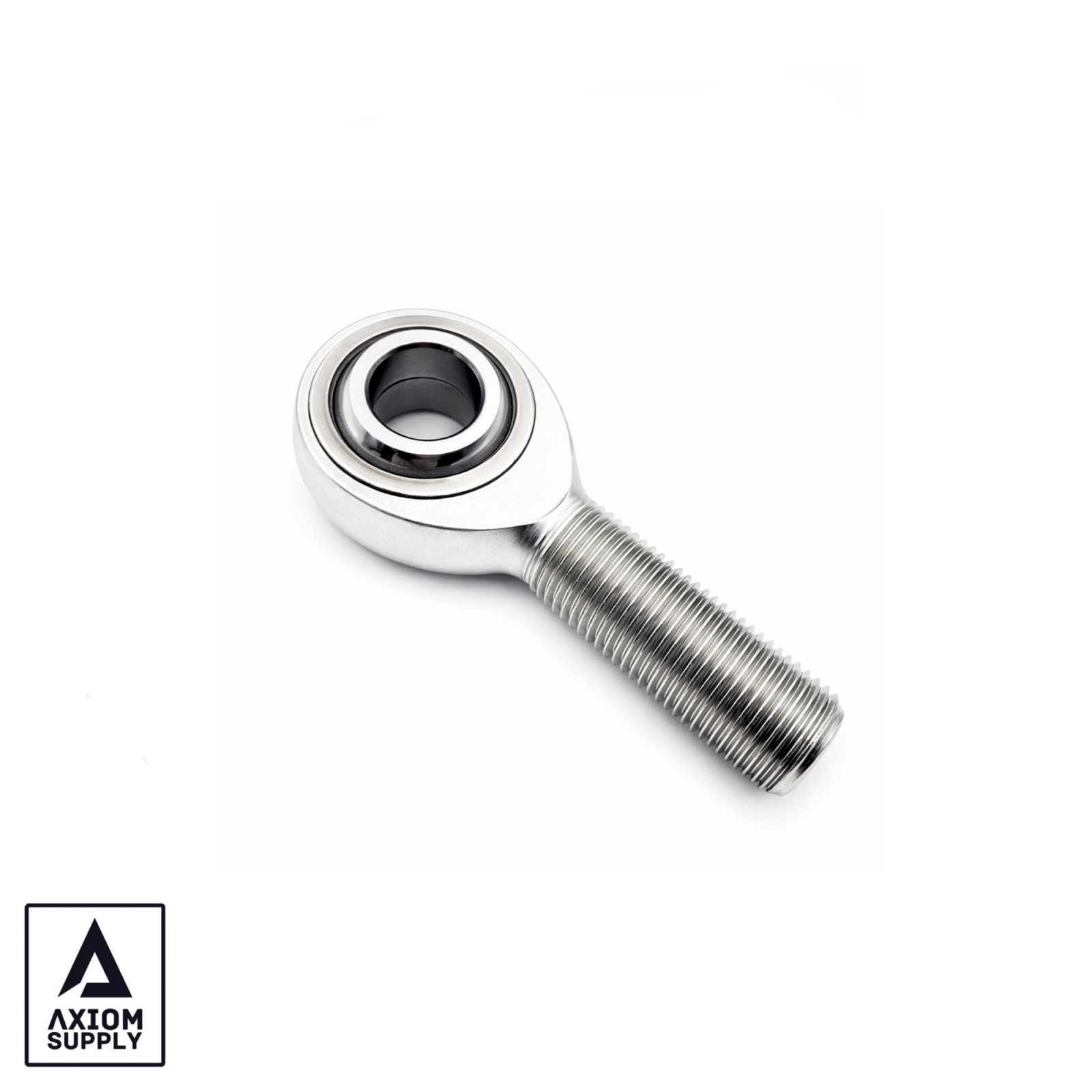

The Axiom Heavy Duty Heim Joint (SKU: JMXL10-12T-F-XXVEZ) is a high-strength spherical rod end (heim joint) for UTV suspension and steering linkage applications requiring a 3/4" shank diameter, 5/8" bore, and left-hand thread. This is a reducing joint — the 3/4" shank threads into the rod end tube while the 5/8" bore accepts a 5/8" mounting bolt or pin. Used in custom fabrication and suspension builds where the tube thread is 3/4" but the mounting hardware is 5/8". Zinc-plated finish for corrosion resistance in mud, sand, rock, and trail environments. Left-hand thread — confirm your application requires left-hand thread before ordering. High-strength housing and ball. Sold individually.

Application (OFAS Standard)

Universal fit — compatible with any UTV suspension or steering linkage application requiring a 3/4" shank, 5/8" bore, left-hand thread heim joint. Confirm all three dimensions before ordering.

Does NOT fit: Applications requiring right-hand thread — left-hand and right-hand heim joints are not interchangeable. Does not fit applications requiring a 3/4" bore — see JMXL12T-F1-XXVEZ for 3/4" x 3/4" left-hand thread. Does not fit applications requiring a 5/8" shank — see JMXR10T-F1 for 5/8" x 5/8" right-hand thread.

Axiom HD Heim Joint Selection Guide

• 5/8" Shank x 5/8" Bore — Right-Hand Thread: JMXR10T-F1
• 3/4" Shank x 3/4" Bore — Right-Hand Thread (Zinc): JMXR12T-F1-XXVEZ
• 3/4" Shank x 3/4" Bore — Left-Hand Thread (Zinc): JMXL12T-F1-XXVEZ
• 3/4" Shank x 5/8" Bore — Left-Hand Thread (Zinc): JMXL10-12T-F-XXVEZ (this listing)

Technical Specifications

• SKU: JMXL10-12T-F-XXVEZ
• Type: Spherical rod end (heim joint) — reducing bore
• Shank Diameter: 3/4"
• Bore Size: 5/8"
• Thread: Left-hand
• Finish: Zinc plated — corrosion-resistant
• Housing: High-strength metal
• Quantity: Single (sold individually)
• Weight: 7 lbs
• Application: UTV suspension arms, steering linkage, long-travel suspension, custom fabrication with 3/4" tube thread and 5/8" mounting hardware

Symptoms of a Worn Heim Joint

• Steering wander or vague on-center feel
• Clunking or knocking from suspension or steering linkage over rough terrain
• Visible play or slop in the joint when checked by hand
• Uneven or accelerated tire wear
• Vibration through the steering wheel or chassis at speed

Installation Notes

• Thread direction confirmation required: Confirm the application requires left-hand thread before ordering. Left-hand thread turns opposite to standard — do not force installation if resistance is felt. Cross-threading will damage the rod end or tube.
• Reducing bore confirmation: Confirm your mounting bolt or pin is 5/8" and your tube thread is 3/4" before ordering. If both shank and bore are 3/4", order JMXL12T-F1-XXVEZ instead.
• Why left-hand thread: Left-hand thread heim joints are paired with right-hand thread joints on opposite ends of a tie rod or suspension link. Rotating the center tube adjusts link length without removing either joint.
• Jam nut required: Secure with a left-hand thread jam nut after adjustment. Do not operate without a properly torqued jam nut — the joint will back out under vibration and load.
• Torque specs: Torque heim joint shank and jam nut to manufacturer specification for your UTV suspension or steering system.
• Inspection interval: Inspect for play, binding, or corrosion at regular service intervals. Replace immediately if play is detected.

Installation Warning

Do not install in a right-hand thread application. Do not force installation if resistance is felt — confirm thread direction first. Do not install if bore or shank dimensions do not match — incorrect dimensions cause joint failure under load. Do not operate without a properly torqued left-hand thread jam nut. Once installed, the unit is non-returnable.

What is your tube thread size (3/4") and mounting bolt size (5/8"), and confirm thread direction is left-hand — need 3/4" x 3/4" left-hand instead? See JMXL12T-F1-XXVEZ.
