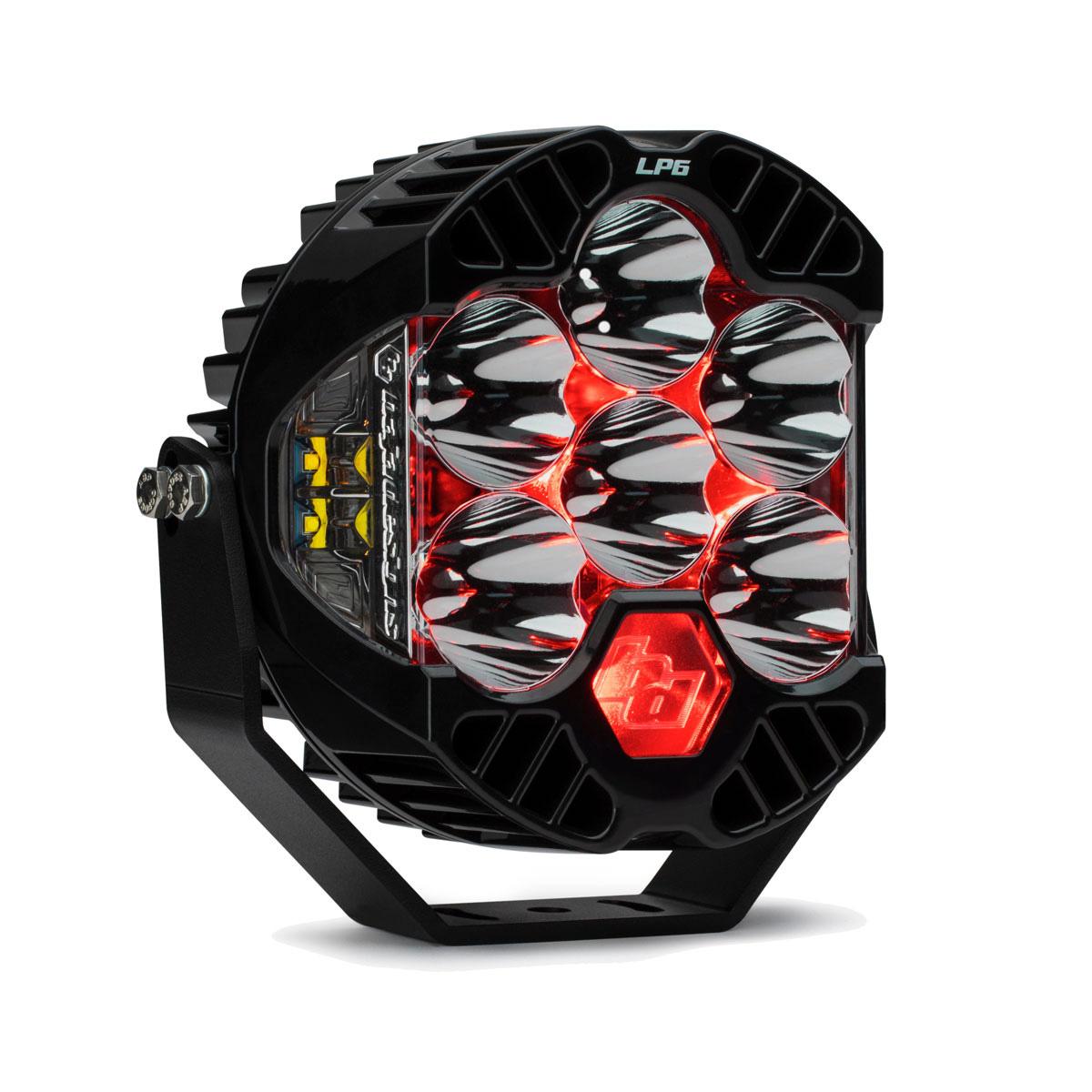

Baja Designs LP6 Pro LED Auxiliary Light Pod | Clear Lens | Driving/Combo | Red Backlight | Single

Baja Designs LP6 Pro LED Auxiliary Light Pod | Clear Lens | Driving/Combo Pattern | Red Backlight | Single Unit | SKU: BAJ270014

The Baja Designs LP6 Pro (SKU: BAJ270014) is a single high-output dual-row LED auxiliary light pod in a driving/combo optic pattern with clear lens and integrated red backlight LED strip. The LP6 Pro is the premium tier of the LP6 pod lineup — dual-row LED array in the LP6 rectangular body for maximum output. The integrated red backlight provides a secondary red LED strip for running light, chase light, or accent use — independently controlled from the main white driving/combo LEDs. This is a universal auxiliary light pod — not a headlight replacement and not a vehicle-specific bumper kit component. Sold as a single unit. Wiring harness and bracket kit sold separately — required for installation. Confirm harness and bracket compatibility for your specific application before ordering.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment with a mounting solution that accommodates the LP6 Pro rectangular pod dimensions. Typical applications include bumper auxiliary light positions, A-pillar mounts, chase truck rear-facing mounts, and any application requiring a high-output rectangular pod with integrated red running or chase light. Wiring harness and bracket kit sold separately — required for installation.

Red Backlight — Function and Use Cases

• Red backlight strip: Integrated red LED strip along the LP6 Pro pod — independently controlled from the main white driving/combo LEDs
• Chase light: Red backlight provides rear visibility for following vehicles on trail, race course, and convoy use
• Running light: Red backlight functions as a running light marker when the main white LEDs are off
• Dual-circuit wiring required: The red backlight and main white LEDs require separate wiring circuits for independent control — confirm your harness supports dual-circuit wiring

LP6 Pro vs. LP6 Auxiliary Pod vs. DOT LP6 Headlight

• LP6 Auxiliary Pod — Vehicle-Specific Kits (BAJ447671 / BAJ447671UP): LP6 pod in a vehicle-specific bumper kit for Jeep JL/JT Rubicon steel bumper. Not a universal auxiliary pod.
• DOT LP6 Headlight (BAJ180001 / BAJ180002 / BAJ187801 / BAJ187802): LP6 pod configured as a DOT-compliant primary headlight replacement. Not an auxiliary driving light.
• LP6 Pro Auxiliary Pod (BAJ270014, this listing): Universal auxiliary driving light — dual-row LP6 body, clear driving/combo, red backlight. For bumper, A-pillar, and chase applications requiring maximum LP6 output with integrated red running/chase light.

LP6 Pro vs. LP4 Pro

• LP4 Pro (BAJ290003 / BAJ290013 / BAJ297803 / BAJ297813): Smaller rectangular pod — dual-row LED, 8,750 lumens per unit, lighter weight
• LP6 Pro (BAJ270014, this listing): Larger rectangular pod — dual-row LED, higher output than LP4 Pro, larger footprint. Best when maximum rectangular pod output is the priority.

Technical Specifications

• SKU: BAJ270014
• Brand: Baja Designs
• Model: LP6 Pro
• Form Factor: Rectangular pod — dual-row LED array
• Lens: Clear — polycarbonate
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• Backlight: Red — integrated LED strip, independently controlled
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Color Temperature: 5000K — daylight white (main LEDs)
• Quantity: Single unit (1 pod)
• Weight: 5 lbs
• Wiring Harness: Sold separately — required, confirm PN with OFAS
• Bracket Kit: Sold separately — required, confirm PN with OFAS

Installation Notes

• Harness and bracket required: Wiring harness and bracket kit are sold separately — contact OFAS at 903-347-3875 to confirm the correct harness and bracket PN for your application before ordering.
• Dual-circuit wiring: Red backlight and main white LEDs require separate wiring circuits for independent control. Confirm your harness supports dual-circuit wiring before ordering.
• Rectangular mount required: LP6 Pro uses a rectangular pod body — confirm your mounting solution is designed for the LP6 Pro rectangular footprint. Round pod mounts are not compatible.
• Aim before final torque: Aim the light at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations. Red lighting may have specific legal restrictions — verify compliance before use on public roads.

Installation Warning

Do not wire without correct harness — contact OFAS to confirm harness PN before ordering. Dual-circuit wiring required for independent red backlight control. Do not use round pod mounts. Red lighting may be restricted on public roads in some jurisdictions — verify local regulations before use.

What vehicle, mounting location, and application — need the correct harness and bracket PN for LP6 Pro? Contact OFAS at 903-347-3875 to confirm before ordering.
