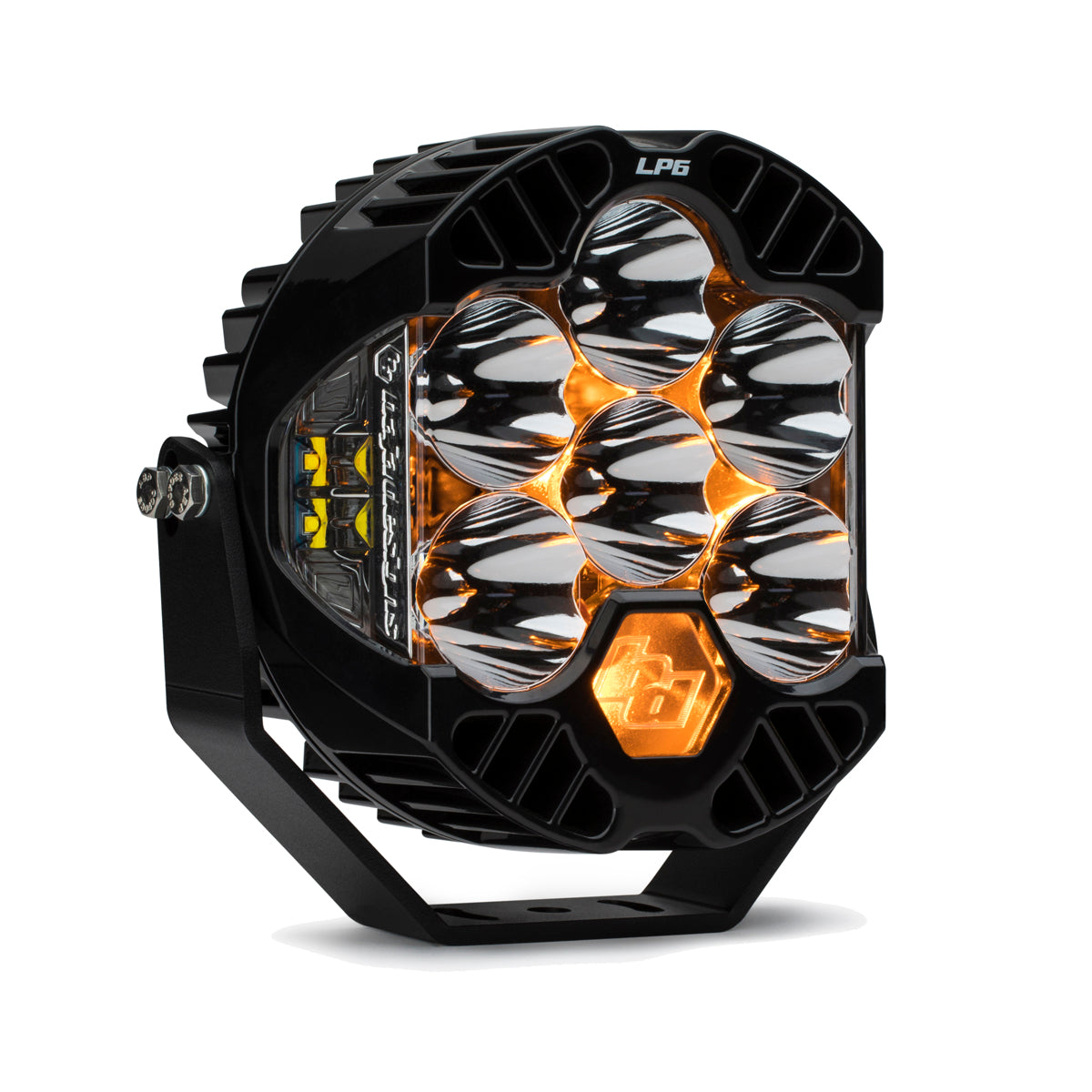

Baja Designs LP6 Pro LED Auxiliary Light Pod | Clear Lens | Spot Pattern | Single Unit

Baja Designs LP6 Pro LED Auxiliary Light Pod | Clear Lens | Spot Pattern | Single Unit | SKU: BAJ270001

The Baja Designs LP6 Pro (SKU: BAJ270001) is a single high-output dual-row LED auxiliary light pod in a spot optic pattern with clear lens. The LP6 Pro is the premium tier of the LP6 pod lineup — dual-row LED array in the LP6 rectangular body for maximum output. The spot pattern delivers maximum long-range forward throw with minimal side spread — the tightest, longest-reaching beam in the LP6 Pro lineup. Best for high-speed desert, long-range trail scanning, and any application where maximum forward reach at distance is the priority over peripheral spread. This is a universal auxiliary light pod — not a headlight replacement and not a vehicle-specific bumper kit component. Sold as a single unit. Wiring harness and bracket kit sold separately — confirm compatibility for your specific application before ordering.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment with a mounting solution that accommodates the LP6 Pro rectangular pod dimensions. Spot pattern is best suited for center-mount bumper positions, roof rack center mounts, and any location where maximum forward reach at distance is needed. Wiring harness and bracket kit sold separately — required for installation.

LP6 Pro Pattern Guide — Complete

• Spot — Clear Lens (BAJ270001, this listing): Maximum long-range forward throw, minimal side spread — best for high-speed desert, long-range trail scanning, and center-mount applications where distance reach is the priority
• Driving/Combo — Clear Lens, No Backlight (BAJ270003): Balanced long-range forward throw with wide spread — best all-around for trail, desert, and road in clear conditions
• Driving/Combo — Clear Lens, Red Backlight (BAJ270014): Balanced forward throw with wide spread plus integrated red LED backlight for running light, chase light, or accent use

Spot vs. Driving/Combo — Which Pattern

• Spot (BAJ270001, this listing): Pencil beam — maximum distance reach, minimal peripheral spread. Best for high-speed use where seeing far ahead is the priority. Not ideal as a sole light source — pair with a driving/combo pod for peripheral coverage.
• Driving/Combo (BAJ270003 / BAJ270014): Balanced beam — meaningful forward reach with wide peripheral spread. Best all-around pattern for most trail, desert, and road applications.

LP6 Pro vs. LP6 Auxiliary Pod vs. DOT LP6 Headlight

• LP6 Auxiliary Pod — Vehicle-Specific Kits (BAJ447671 / BAJ447671UP): LP6 pod in a vehicle-specific bumper kit. Not a universal auxiliary pod.
• DOT LP6 Headlight (BAJ180001 / BAJ180002 / BAJ187801 / BAJ187802): LP6 pod configured as a DOT-compliant primary headlight replacement. Not an auxiliary driving light.
• LP6 Pro Auxiliary Pod (BAJ270001, this listing): Universal auxiliary driving light — dual-row LP6 body, clear spot pattern. Maximum long-range reach for bumper and roof rack center-mount applications.

Technical Specifications

• SKU: BAJ270001
• Brand: Baja Designs
• Model: LP6 Pro — 6 inch
• Form Factor: Rectangular pod — dual-row LED array
• Lens: Clear — polycarbonate
• Pattern: Spot — maximum long-range forward throw, minimal side spread
• Backlight: None
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Color Temperature: 5000K — daylight white
• Quantity: Single unit (1 pod)
• Weight: 5 lbs
• Wiring Harness: Sold separately — confirm PN with OFAS
• Bracket Kit: Sold separately — confirm PN with OFAS

Installation Notes

• Harness and bracket required: Wiring harness and bracket kit are sold separately — contact OFAS at 903-347-3875 to confirm the correct harness and bracket PN for your application before ordering.
• Spot pattern aim critical: Spot pattern has minimal side spread — precise aim is critical. Aim the pod at the exact desired forward angle before torquing mount hardware. Misaimed spot pattern provides significantly less usable light than driving/combo.
• Rectangular mount required: LP6 Pro uses a rectangular pod body — confirm your mounting solution is designed for the LP6 Pro rectangular footprint. Round pod mounts are not compatible.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations. Verify compliance before use on public roads.

Installation Warning

Do not wire without correct harness — contact OFAS to confirm harness PN before ordering. Spot pattern aim is critical — misaimed spot provides significantly less usable light than driving/combo. Do not use round pod mounts. Auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle and mounting location — need driving/combo pattern instead of spot? See BAJ270003 (no backlight) or BAJ270014 (red backlight). Contact OFAS at 903-347-3875 to confirm harness and bracket PN before ordering.
