Baja Designs LP4 Pro LED Light Pod | Amber Lens | Driving/Combo Pattern | Single Unit

Baja Designs LP4 Pro LED Light Pod | Amber Lens | Driving/Combo Pattern | Single Unit | SKU: BAJ290013

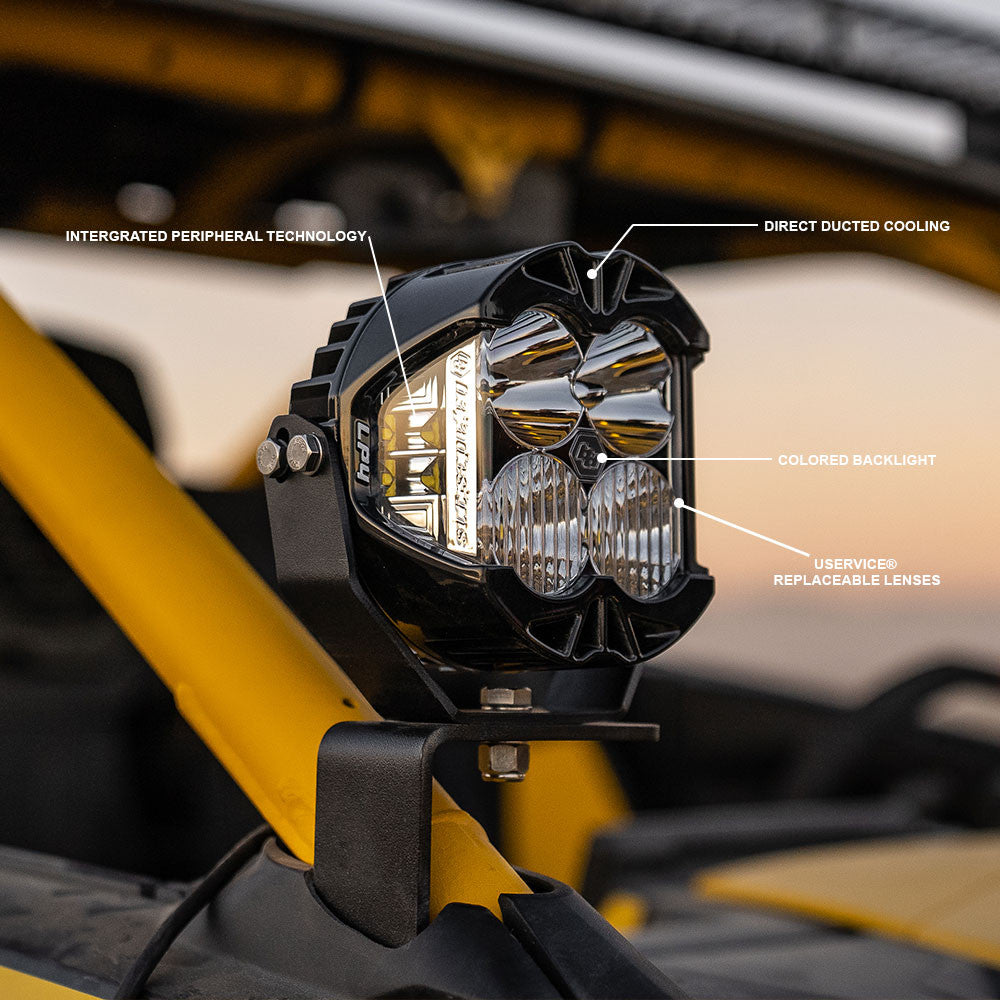

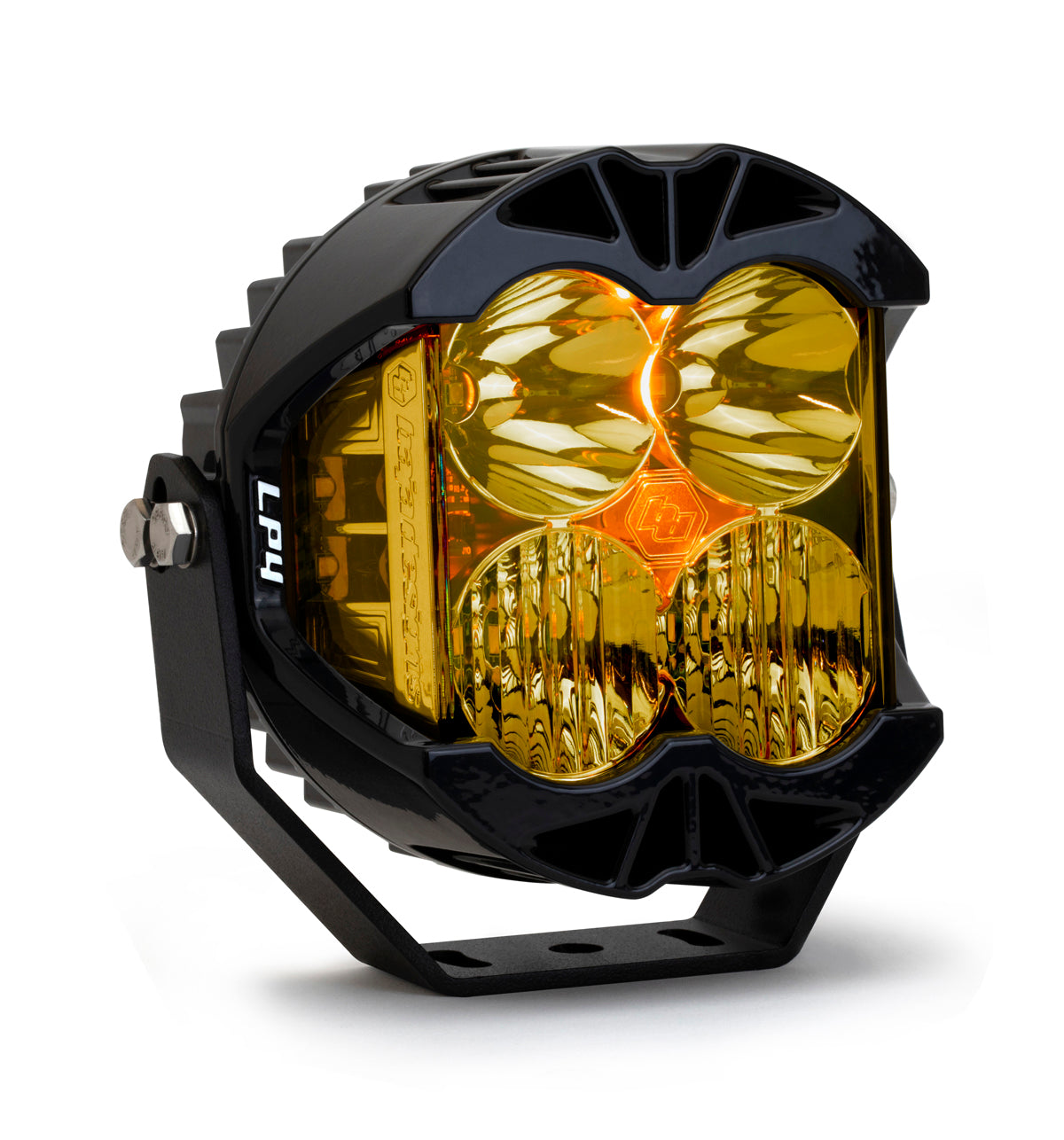

The Baja Designs LP4 Pro (SKU: BAJ290013) is a single high-output dual-row LED light pod in a driving/combo optic pattern with amber lens. This is a single unit — one LP4 Pro pod. For a pair of two LP4 Pro amber pods, order BAJ297813 instead. The LP4 Pro uses a rectangular pod form factor — distinct from the round S2, Squadron, and XL Sport pods. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation — reducing glare and improving contrast in low-visibility conditions. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread. IP69K rated. Die-cast aluminum housing. Wiring harness (640175) sold separately — required for installation.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment with a mounting solution that accommodates the LP4 Pro rectangular pod dimensions. Confirm your mount is designed for the LP4 rectangular body before ordering — round pod mounts are not compatible. Wiring harness (640175) sold separately — required for installation.

Single Unit vs. Pair — LP4 Pro Amber

• Single Unit — Amber (BAJ290013, this listing): One LP4 Pro amber pod. For asymmetric builds, replacement of a single unit, or applications requiring one pod only.
• Pair — Amber (BAJ297813): Two LP4 Pro amber pods. Better value for standard two-pod auxiliary light installations.
• Pair — Clear (BAJ297803): Two LP4 Pro clear lens pods. For clear conditions where maximum output is the priority.

LP4 Pro Form Factor — Rectangular vs. Round Pods

• Round pods (S2 Sport / S2 Pro / Squadron Sport / Squadron Pro / XL80 / XL Sport): Circular pod body — standard tube mount, bumper mount, and surface mount compatible.
• LP4 Pro (BAJ290013, this listing): Rectangular pod body — different mounting footprint. Round pod mounts are not compatible. Confirm LP4-compatible mount before ordering.

Required Accessories — Sold Separately

• Wiring Harness: PN 640175 — required for proper circuit connections. Do not use LP6 harness (640172) — different connector and circuit configuration.

Technical Specifications

• SKU: BAJ290013
• Brand: Baja Designs
• Model: LP4 Pro
• Form Factor: Rectangular pod — dual-row LED array
• Lens: Amber — polycarbonate
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Color Temperature: Amber — optimized for low-visibility conditions
• Quantity: Single unit (1 pod)
• Weight: 5 lbs
• Wiring Harness: PN 640175 — sold separately, required for installation

Installation Notes

• Harness 640175 required: Do not use LP6 harness (640172) — the LP4 Pro uses a different harness. Confirm harness PN 640175 before ordering.
• Rectangular mount required: LP4 Pro uses a rectangular pod body — confirm your mounting solution is designed for the LP4 rectangular footprint. Round pod mounts are not compatible.
• Aim before final torque: Aim the light at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Amber auxiliary lighting may have different legal status than white lights in your jurisdiction — verify compliance before use on public roads.

Installation Warning

Do not use LP6 harness (640172) — LP4 Pro requires harness 640175. Do not use round pod mounts. Amber auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

Need a pair instead of a single unit? See BAJ297813 (amber pair) or BAJ297803 (clear pair). Contact OFAS at 903-347-3875 to confirm harness 640175 and mount compatibility before ordering.
