Baja Designs S2 Sport LED Work Light Pair | Clear Lens | Driving/Combo Pattern

Baja Designs S2 Sport LED Work Light Pair | Clear Lens | Driving/Combo Pattern | SKU: BAJ547803

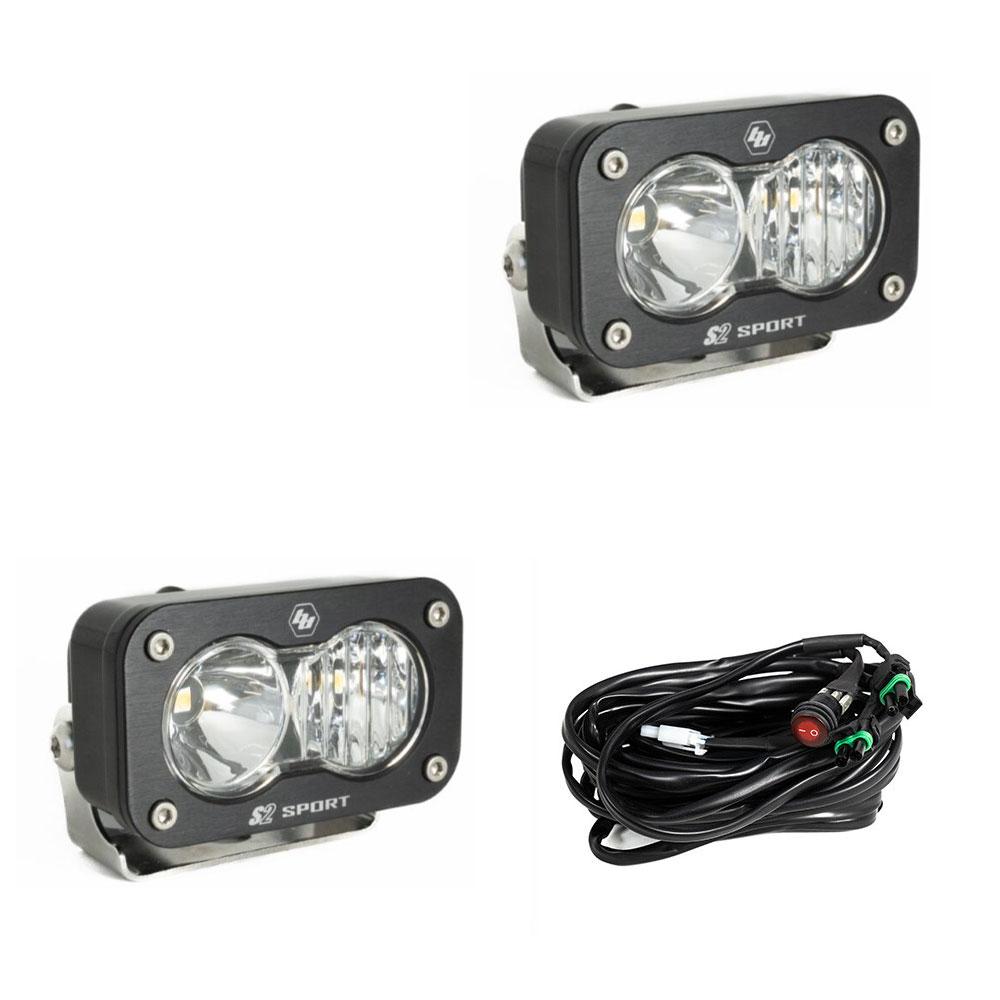

The Baja Designs S2 Sport (SKU: BAJ547803) is a pair of compact, high-output LED work lights in a driving/combo optic pattern with clear lens. The S2 Sport delivers a balanced combination of long-range driving beam and wide-angle flood spread in a single compact pod — the driving/combo pattern provides usable light both down the road and to the sides without requiring separate spot and flood pods. IP69K rated for full waterproof and dust-tight protection. Die-cast aluminum housing with polycarbonate lens. Sold as a pair. Wiring harness sold separately — confirm harness compatibility before ordering.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment using a standard 1.75" or compatible tube mount, bumper mount, or surface mount. Confirm your mounting solution before ordering. No vehicle-specific wiring harness included — a Baja Designs wiring harness or equivalent relay harness is required for proper installation.

Optic Pattern Guide

• Driving/Combo (this listing — BAJ547803): Balanced long-range driving beam with wide-angle spread — best all-around pattern for trail, road, and work use
• Spot: Maximum long-range throw — narrow beam, best for high-speed desert or highway use
• Flood: Maximum wide-angle spread — best for slow-speed trail, work, and close-range illumination

Technical Specifications

• SKU: BAJ547803
• Brand: Baja Designs
• Model: S2 Sport
• Lens: Clear — polycarbonate
• Pattern: Driving/Combo
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof and dust-tight
• Color Temperature: 5000K — daylight white
• Quantity: Pair (2 lights)
• Weight: 4 lbs (pair)
• Wiring Harness: Sold separately — required for installation

S2 Sport vs. S2 Pro

• S2 Sport: High-output LED — ideal for trail, overlanding, work, and utility use. Best value in the S2 lineup.
• S2 Pro: Maximum output — dual-row LED, higher lumen output, for demanding high-speed and competition use.

Installation Notes

• Wiring harness required: The S2 Sport pair does not include a wiring harness. A relay harness is required to protect your vehicle’s factory wiring from the LED draw. Do not wire directly to a factory switch without a relay — this will damage factory wiring over time.
• Mount confirmation: Confirm your mounting solution (bumper mount, tube mount, or surface mount) is compatible with the S2 Sport pod dimensions before ordering. Baja Designs offers vehicle-specific and universal mounting brackets separately.
• Aim before final torque: Aim the lights at the desired beam angle before torquing the mount hardware. Readjusting aim after final torque requires loosening and re-torquing.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation. Unsealed connectors in an IP69K-rated light will allow moisture intrusion at the connector and cause corrosion or failure.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations. Verify compliance with applicable laws before use on public roads.

Installation Warning

Do not wire without a relay harness — direct wiring to factory switches will damage factory wiring. Ensure connectors are fully sealed after installation. Auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle and mounting location, and do you need a wiring harness or mounting bracket — contact OFAS at 903-347-3875 to confirm the correct harness and mount for your application?
