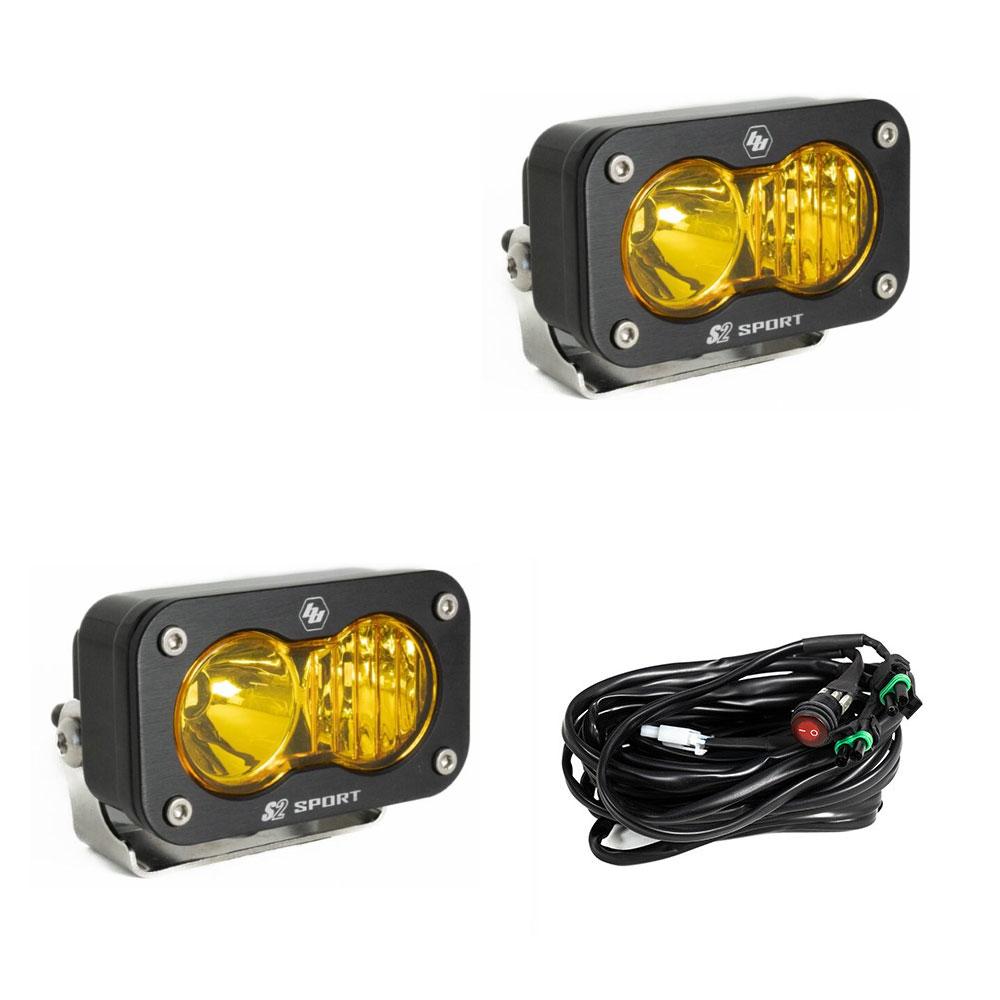

Baja Designs S2 Sport LED Work Light Pair | Amber Lens | Driving/Combo Pattern

Baja Designs S2 Sport LED Work Light Pair | Amber Lens | Driving/Combo Pattern | SKU: BAJ547813

The Baja Designs S2 Sport (SKU: BAJ547813) is a pair of compact, high-output LED work lights in a driving/combo optic pattern with amber lens. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation — reducing glare and improving contrast and depth perception in low-visibility conditions. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread — more forward reach than the wide cornering pattern (BAJ547815) while retaining the amber lens benefit for dust and fog environments. IP69K rated for full waterproof and dust-tight protection. Die-cast aluminum housing with polycarbonate amber lens. Sold as a pair. Wiring harness sold separately.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment using a standard 1.75" or compatible tube mount, bumper mount, or surface mount. Confirm your mounting solution before ordering. No vehicle-specific wiring harness included — a Baja Designs wiring harness or equivalent relay harness is required for proper installation.

Amber Driving/Combo vs. Other S2 Sport Variants

• Clear lens + Driving/Combo (BAJ547803): Maximum output in clear conditions — best all-around for trail, road, and work use when visibility is not limited by dust or fog
• Amber lens + Driving/Combo (BAJ547813, this listing): Long-range forward throw with amber lens benefit — best for dust and fog environments where forward reach is still needed
• Amber lens + Wide Cornering (BAJ547815): Maximum side spread with amber lens — best for slow-speed trail, cornering, and environments where side visibility is the priority over forward throw

Why Amber Lens

Amber lens filters blue light wavelengths that scatter in dust, fog, sand, and rain. This reduces glare and eye fatigue and improves contrast in low-visibility conditions. In clear conditions, amber lens reduces total output compared to clear lens — for clear conditions, use BAJ547803 (clear driving/combo) instead.

S2 Sport Full Optic Pattern Guide

• Driving/Combo — Clear Lens (BAJ547803): Best all-around — clear conditions, trail, road, work
• Driving/Combo — Amber Lens (BAJ547813, this listing): Long-range amber — dust, fog, precipitation with forward throw
• Wide Cornering — Amber Lens (BAJ547815): Maximum side spread amber — slow-speed trail, cornering, dust environments
• Spot: Maximum long-range throw — narrow beam, high-speed desert or highway
• Flood: Maximum wide-angle spread — slow-speed trail, work, close-range in clear conditions

Technical Specifications

• SKU: BAJ547813
• Brand: Baja Designs
• Model: S2 Sport
• Lens: Amber — polycarbonate
• Pattern: Driving/Combo
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof and dust-tight
• Color Temperature: Amber — optimized for low-visibility conditions
• Quantity: Pair (2 lights)
• Weight: 4 lbs (pair)
• Wiring Harness: Sold separately — required for installation

Installation Notes

• Wiring harness required: A relay harness is required to protect your vehicle’s factory wiring. Do not wire directly to a factory switch without a relay — this will damage factory wiring over time.
• Mount confirmation: Confirm your mounting solution is compatible with S2 Sport pod dimensions before ordering.
• Aim before final torque: Aim the lights at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Amber auxiliary lighting may have different legal status than white lights in your jurisdiction — verify compliance before use on public roads.

Installation Warning

Do not wire without a relay harness. Ensure connectors are fully sealed. Amber auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle, mounting location, and environment (dust/fog or clear) — need clear lens instead? See BAJ547803. Need maximum side spread? See BAJ547815. Contact OFAS at 903-347-3875 to confirm the right variant.
