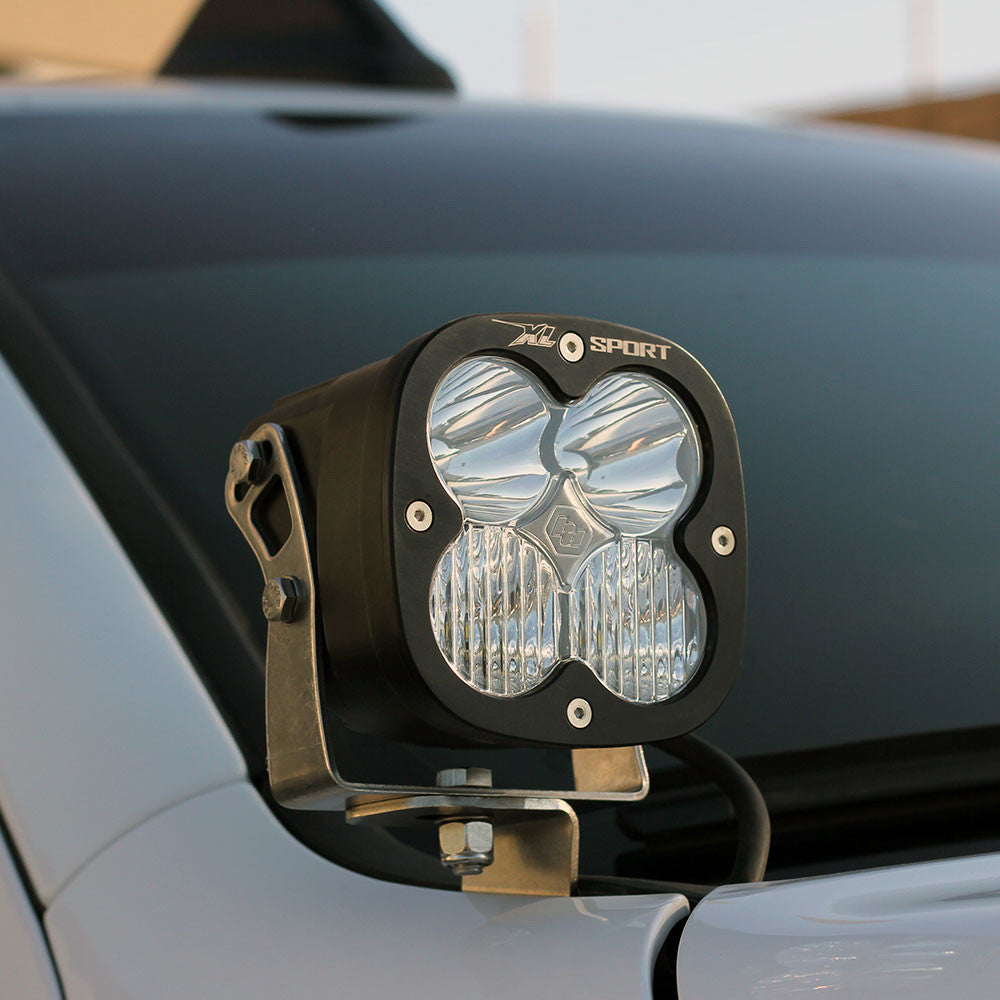

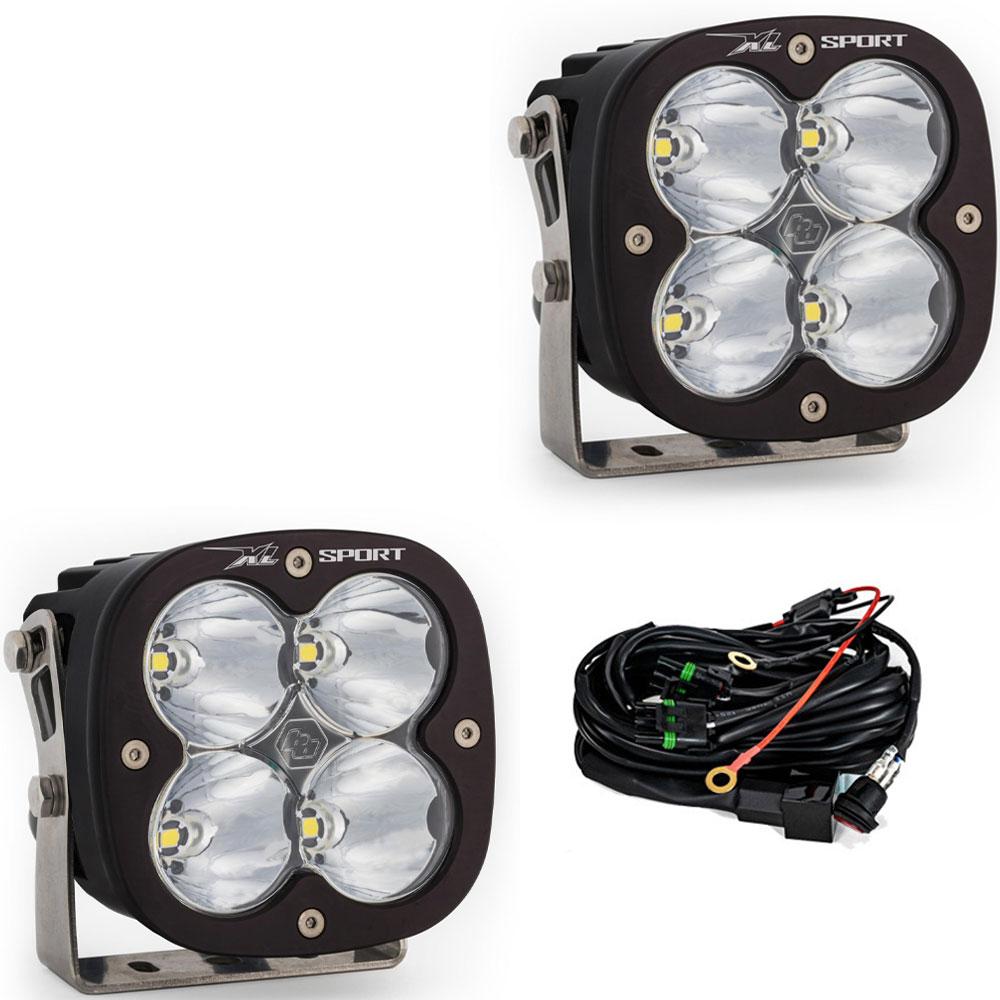

Baja Designs XL Sport LED Light Pods | Clear Lens | Driving/Combo Pattern | Pair

Baja Designs XL Sport LED Light Pods | Clear Lens | Driving/Combo Pattern | Pair | SKU: BAJ567803

The Baja Designs XL Sport (SKU: BAJ567803) is a pair of extended-length, maximum-output LED light pods in a driving/combo optic pattern with clear lens. The XL Sport is the largest pod in the Baja Designs lineup — significantly larger and heavier than the Squadron Sport, with higher output and a larger footprint designed for roof rack, chase rack, A-pillar, and any application where maximum pod output is the priority over compact size. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread — the best all-around pattern for high-speed trail, desert, and road use. Clear lens for maximum output in clear conditions. IP69K rated. Die-cast aluminum housing. Sold as a pair. Wiring harness sold separately. Confirm your mounting solution can support the XL Sport’s size and weight before ordering.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment with a mounting solution that accommodates the XL Sport pod dimensions and weight. At 10 lbs per pair, confirm your roof rack, A-pillar mount, or chase rack is structurally rated for the XL Sport load before ordering. XL Sport pods are significantly larger than Squadron Sport — do not assume Squadron Sport mounts are compatible. No vehicle-specific wiring harness included — a Baja Designs wiring harness or equivalent relay harness is required for proper installation.

Baja Designs Pod Output Hierarchy — Complete

• S1: Entry-level compact — smallest footprint, bracket included, IP67, ~3 lbs pair
• S2 Sport (BAJ547803 / BAJ547813 / BAJ547815): Mid-output compact — single-row LED, IP69K, ~4 lbs pair
• S2 Pro (BAJ487803): High-output compact — dual-row LED, IP69K, same S2 footprint, ~5 lbs pair
• Squadron Sport (BAJ557803 / BAJ557805 / BAJ557806 / BAJ557813): High-output mid-size — larger pod body, IP69K, ~5 lbs pair
• XL Sport (BAJ567803, this listing): Maximum output — largest pod body, IP69K, ~10 lbs pair. Best for roof rack, chase rack, and maximum output applications.

XL Sport vs. Squadron Sport

• Squadron Sport (BAJ557803): Mid-size pod — 5 lbs pair, multiple pattern and lens options, ideal for bumper, grille, A-pillar, and roof rack where weight and size are a consideration
• XL Sport (BAJ567803, this listing): Extended-length pod — 10 lbs pair, maximum output, larger footprint. Best for roof rack, chase rack, and applications where maximum light output is the only priority

Technical Specifications

• SKU: BAJ567803
• Brand: Baja Designs
• Model: XL Sport
• Lens: Clear — polycarbonate
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Color Temperature: 5000K — daylight white
• Quantity: Pair (2 lights)
• Weight: 10 lbs (pair)
• Wiring Harness: Sold separately — required for installation

Installation Notes

• Mount structural rating mandatory: At 10 lbs per pair, confirm your roof rack, A-pillar mount, or chase rack is structurally rated for the XL Sport load and vibration forces at speed. Undersized or improperly rated mounts can fail under load.
• Mount sizing: XL Sport pods are significantly larger than Squadron Sport — confirm your mount is sized for the XL Sport pod body and mounting tab spacing before ordering. Squadron Sport mounts are not compatible.
• Wiring harness required: A relay harness is required to protect your vehicle’s factory wiring. Confirm harness is rated for the XL Sport’s current draw before ordering.
• Aim before final torque: Aim the lights at the desired beam angle before torquing mount hardware. Driving/combo pattern should be aimed to balance forward reach and peripheral spread for your specific application and mounting height.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations. Verify compliance before use on public roads.

Installation Warning

Do not mount without confirming structural rating of your rack or mount for 10 lbs per pair plus vibration load at speed. Do not assume Squadron Sport mounts are compatible — XL Sport requires XL Sport-specific or confirmed-compatible mounts. Do not wire without a relay harness. Ensure connectors are fully sealed. Auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle, mounting location, and rack or mount — confirm your mount is structurally rated for XL Sport weight and contact OFAS at 903-347-3875 to confirm the correct wiring harness and mount for your application.
