Baja Designs Squadron Pro LED Light Pods | Clear Lens | Driving/Combo Pattern | Pair

Baja Designs Squadron Pro LED Light Pods | Clear Lens | Driving/Combo Pattern | Pair | SKU: BAJ497803

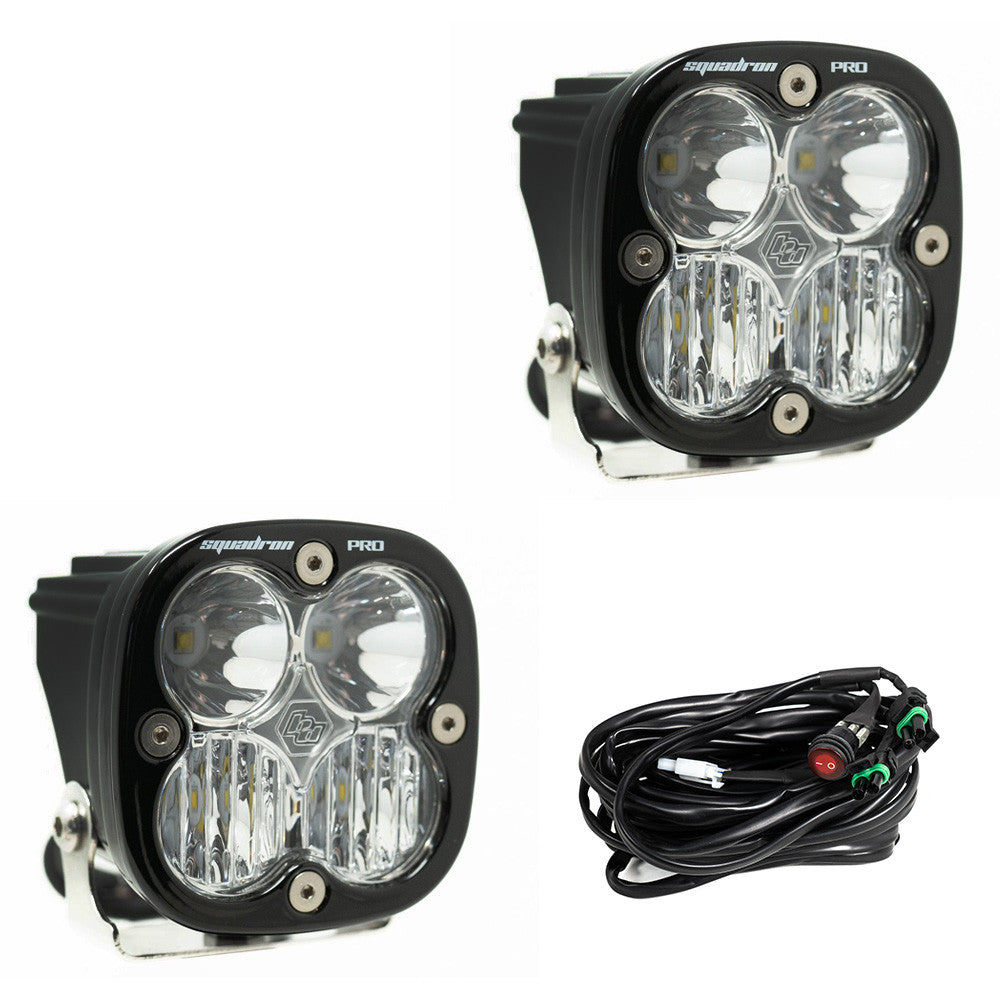

The Baja Designs Squadron Pro (SKU: BAJ497803) is a pair of high-output dual-row LED light pods in a driving/combo optic pattern with clear lens. The Squadron Pro is the premium tier of the Squadron pod lineup — dual-row LED array delivers significantly higher raw lumen output than the Squadron Sport (BAJ557803) in the same Squadron pod footprint. If you need maximum output in the Squadron body and the Squadron Sport isn’t enough, the Squadron Pro is the next step up without moving to the larger XL Sport body. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread. Clear lens for maximum output in clear conditions. IP69K rated. Die-cast aluminum housing. Sold as a pair. Wiring harness sold separately.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment using a Squadron-compatible tube mount, bumper mount, or surface mount. Confirm your mounting solution is compatible with Squadron Pro pod dimensions before ordering. Squadron Pro uses the same footprint as Squadron Sport — existing Squadron Sport mounts are compatible. No vehicle-specific wiring harness included — a Baja Designs wiring harness or equivalent relay harness is required for proper installation.

Squadron Pro vs. Squadron Sport — Same Footprint, Higher Output

• Squadron Sport (BAJ557803): Single-row LED — high output, Squadron footprint. Multiple pattern and lens options. Best value in the Squadron lineup.
• Squadron Pro (BAJ497803, this listing): Dual-row LED — significantly higher raw lumen output than Squadron Sport in the same Squadron footprint. Best when maximum output is needed without stepping up to the larger XL Sport body.

Baja Designs Pod Output Hierarchy — Complete

• S1 (BAJ387805 / BAJ387815): Entry-level compact — smallest footprint, bracket included, IP67, ~3 lbs pair
• S2 Sport (BAJ547803 / BAJ547813 / BAJ547815): Mid-output compact — single-row LED, IP69K, ~4 lbs pair
• S2 Pro (BAJ487803): High-output compact — dual-row LED, IP69K, same S2 footprint, ~5 lbs pair
• Squadron Sport (BAJ557803 / BAJ557805 / BAJ557806 / BAJ557813): High-output mid-size — single-row LED, larger Squadron body, IP69K, ~5 lbs pair
• Squadron Pro (BAJ497803, this listing): Maximum-output mid-size — dual-row LED, same Squadron body as Squadron Sport, IP69K, ~5 lbs pair
• XL Sport (BAJ567803): Maximum output extended — largest pod body, IP69K, ~10 lbs pair. Best for roof rack and chase rack maximum output applications.

Technical Specifications

• SKU: BAJ497803
• Brand: Baja Designs
• Model: Squadron Pro
• LED Array: Dual-row — higher output than Squadron Sport single-row
• Lens: Clear — polycarbonate
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Color Temperature: 5000K — daylight white
• Quantity: Pair (2 lights)
• Weight: 5 lbs (pair)
• Wiring Harness: Sold separately — required for installation

Installation Notes

• Wiring harness required: A relay harness is required to protect your vehicle’s factory wiring. Do not wire directly to a factory switch without a relay.
• Squadron Pro draw vs. Squadron Sport: The Squadron Pro dual-row LED draws more current than the Squadron Sport. Confirm your relay harness is rated for the Squadron Pro’s current draw before ordering.
• Mount compatibility: Squadron Pro uses the same footprint as Squadron Sport — existing Squadron Sport mounts are compatible. No new mount required if upgrading from Squadron Sport.
• Aim before final torque: Aim the lights at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations. Verify compliance before use on public roads.

Installation Warning

Do not wire without a relay harness. Confirm harness current rating for Squadron Pro dual-row draw before ordering. Ensure connectors are fully sealed. Auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle and mounting location — need Squadron Sport output instead? See BAJ557803. Need maximum output in a larger body? See XL Sport (BAJ567803). Contact OFAS at 903-347-3875 to confirm the right pod and harness for your application.
