Baja Designs S2 Pro LED Light Pods | Clear Lens | Driving/Combo Pattern | Pair

Baja Designs S2 Pro LED Light Pods | Clear Lens | Driving/Combo Pattern | Pair | SKU: BAJ487803

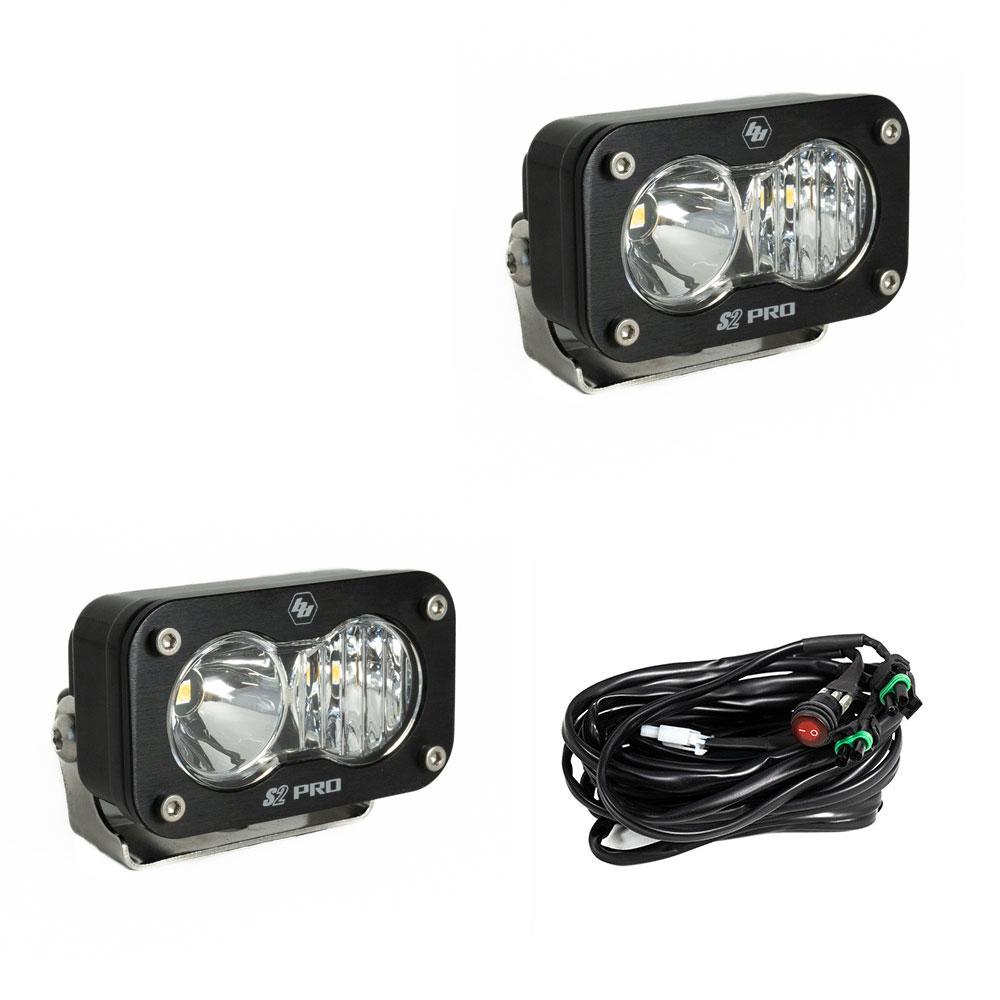

The Baja Designs S2 Pro (SKU: BAJ487803) is a pair of high-output dual-row LED light pods in a driving/combo optic pattern with clear lens. The S2 Pro is the premium tier of the S2 pod lineup — dual-row LED array delivers significantly higher raw lumen output than the S2 Sport (BAJ547803) in the same compact S2 pod footprint. If you need maximum output in a compact pod and the S2 Sport isn’t enough, the S2 Pro is the next step up without moving to the larger Squadron Sport body. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread — the best all-around pattern for trail, desert, and road use. Clear lens for maximum output in clear conditions. IP69K rated. Die-cast aluminum housing. Sold as a pair. Wiring harness sold separately.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment using a standard S2-compatible tube mount, bumper mount, or surface mount. Confirm your mounting solution is compatible with S2 Pro pod dimensions before ordering. No vehicle-specific wiring harness included — a Baja Designs wiring harness or equivalent relay harness is required for proper installation.

S2 Pro vs. S2 Sport — Same Footprint, Higher Output

• S2 Sport (BAJ547803): Single-row LED — high output, compact S2 footprint. Best value in the S2 lineup for trail, overlanding, and work use.
• S2 Pro (BAJ487803, this listing): Dual-row LED — significantly higher raw lumen output than S2 Sport in the same compact S2 footprint. Best when maximum output is needed without stepping up to the larger Squadron Sport body.

Baja Designs Pod Output Hierarchy

• S1: Entry-level compact — smallest footprint, bracket included, IP67
• S2 Sport (BAJ547803 / BAJ547813 / BAJ547815): Mid-output compact — single-row LED, IP69K, multiple pattern and lens options
• S2 Pro (BAJ487803, this listing): High-output compact — dual-row LED, IP69K, same S2 footprint as S2 Sport
• Squadron Sport (BAJ557803 / BAJ557805 / BAJ557806 / BAJ557813): Highest output — larger pod body, IP69K, multiple pattern and lens options

Technical Specifications

• SKU: BAJ487803
• Brand: Baja Designs
• Model: S2 Pro
• LED Array: Dual-row — higher output than S2 Sport single-row
• Lens: Clear — polycarbonate
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Quantity: Pair (2 lights)
• Weight: 5 lbs (pair)
• Wiring Harness: Sold separately — required for installation

Installation Notes

• Wiring harness required: A relay harness is required to protect your vehicle’s factory wiring. Do not wire directly to a factory switch without a relay — this will damage factory wiring over time.
• S2 Pro draw vs. S2 Sport: The S2 Pro dual-row LED draws more current than the S2 Sport. Confirm your relay harness is rated for the S2 Pro’s current draw before ordering.
• Mount confirmation: Confirm your mounting solution is compatible with S2 Pro pod dimensions. S2 Pro uses the same footprint as S2 Sport — existing S2 Sport mounts are compatible.
• Aim before final torque: Aim the lights at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations. Verify compliance before use on public roads.

Installation Warning

Do not wire without a relay harness. Confirm harness current rating for S2 Pro dual-row draw before ordering. Ensure connectors are fully sealed. Auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle and mounting location — need S2 Sport output instead of S2 Pro? See BAJ547803. Need a larger pod with even more output? See Squadron Sport (BAJ557803). Contact OFAS at 903-347-3875 to confirm the right pod and harness for your application.
