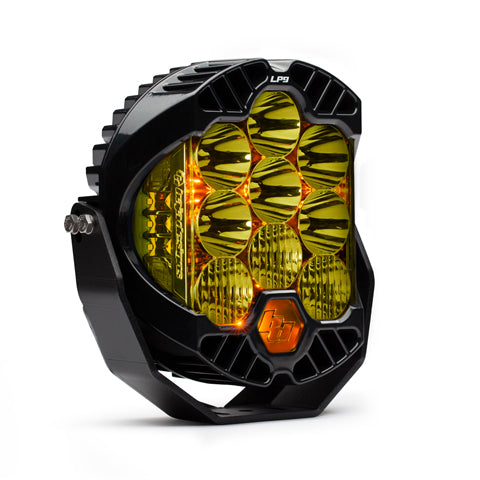

Baja Designs LP9 LED Light Pods | Amber Lens | Driving/Combo Pattern | Pair

Baja Designs LP9 LED Light Pods | Amber Lens | Driving/Combo Pattern | Pair | SKU: BAJ320013

The Baja Designs LP9 (SKU: BAJ320013) is a pair of extreme-output LED light pods in a driving/combo optic pattern with amber lens. The LP9 is the largest rectangular pod in the Baja Designs lineup — a 9-inch rectangular pod body that delivers maximum output above the LP6 Pro in a rectangular form factor. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation — reducing glare and improving contrast in low-visibility conditions. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread — maximum amber output with meaningful forward reach for high-speed desert, dusty road, and demanding off-road use. IP69K rated. Die-cast aluminum housing. Sold as a pair. Wiring harness sold separately. Confirm your mounting solution accommodates the LP9’s 9-inch rectangular pod dimensions and weight before ordering.

Application

Universal mount — compatible with any vehicle, truck, UTV, or equipment with a mounting solution that accommodates the LP9 9-inch rectangular pod dimensions. Confirm your mount is designed for the LP9 rectangular body before ordering — round pod mounts and LP4/LP6 mounts are not compatible with the LP9 footprint. No vehicle-specific wiring harness included — a Baja Designs wiring harness or equivalent relay harness is required for proper installation.

Baja Designs Rectangular Pod Hierarchy

• LP4 Pro (BAJ290003 / BAJ290013 / BAJ297803 / BAJ297813): Compact rectangular pod — dual-row LED, 8,750 lumens per unit, ~5 lbs pair
• LP6 Pro (BAJ270003 / BAJ270014): Mid-size rectangular pod — dual-row LED, higher output than LP4 Pro, ~5 lbs pair
• LP9 (BAJ320013, this listing): Largest rectangular pod — 9-inch body, extreme output above LP6 Pro, ~6.5 lbs pair. Maximum rectangular pod output in the Baja Designs lineup.

Clear vs. Amber Lens — LP9

• Amber Lens (BAJ320013, this listing): Filters blue light scatter in dust, fog, sand, and rain — best for desert, dusty trail, fog, and low-visibility environments. Reduced output vs. clear in clear conditions.
• Clear Lens: Contact OFAS at 903-347-3875 to confirm clear lens LP9 availability.

Technical Specifications

• SKU: BAJ320013
• Brand: Baja Designs
• Model: LP9
• Form Factor: 9-inch rectangular pod
• Lens: Amber — polycarbonate
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• Housing: Die-cast aluminum
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Color Temperature: Amber — optimized for low-visibility conditions
• Quantity: Pair (2 lights)
• Weight: 6.5 lbs (pair)
• Wiring Harness: Sold separately — required for installation

Installation Notes

• LP9 mount sizing mandatory: LP9 uses a 9-inch rectangular pod body — larger than LP4 Pro and LP6 Pro. Confirm your mounting solution is designed for the LP9 footprint. LP4 and LP6 mounts are not compatible.
• Wiring harness required: A relay harness is required to protect your vehicle’s factory wiring. Confirm harness is rated for the LP9’s current draw before ordering. Contact OFAS at 903-347-3875 to confirm the correct harness PN for LP9.
• Aim before final torque: Aim the lights at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Amber auxiliary lighting may have different legal status than white lights in your jurisdiction — verify compliance before use on public roads.

Installation Warning

Do not use LP4 or LP6 mounts — LP9 requires LP9-compatible 9-inch rectangular mounts. Do not wire without a relay harness. Amber auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle and mounting location — need clear lens instead of amber? Contact OFAS at 903-347-3875 to confirm LP9 clear lens availability. Need LP6 Pro output in a smaller footprint? See BAJ270003. Confirm LP9 mount compatibility and harness PN before ordering.
