Apex Chassis 2.5-Ton Steering Kit | Dana 44 Steel | 2018-2026 Jeep JL/JLU & Gladiator JT
0Low stock
0In stock, ready to ship
Buy With Confidence
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description

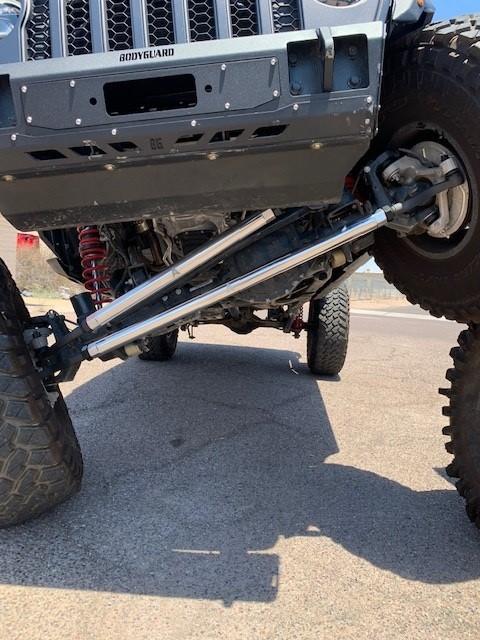

Apex Chassis 2.5-Ton Steering Kit | Dana 44 Steel Tie Rod + Drag Link | 2018–2026 Jeep Wrangler JL / JLU & 2019–2026 Gladiator JT (Standard Geometry)
The Apex Chassis KIT115-Dana44-NoFlip is a 2.5-ton heavy-duty steel tie rod and drag link assembly engineered for the 2018–2026 Jeep Wrangler JL/JLU and 2019–2026 Gladiator JT with Dana 44 front axle. Steel construction provides maximum rigidity and impact resistance under larger tire loads, lifted geometry, and repeated off-road articulation. Standard (no-flip) geometry — designed for builds running OEM or mild aftermarket knuckles without high-steer conversion. Phosphate-coated rod ends and fully serviceable joints deliver long-term durability and reduced maintenance costs.
Verified Fitment (OFAS Standard)
- Jeep Wrangler JL (2-door): 2018–2026 — Dana 44 front axle
- Jeep Wrangler JLU (4-door Unlimited): 2018–2026 — Dana 44 front axle
- Jeep Gladiator JT: 2019–2026 — Dana 44 front axle
Does NOT fit: 2007–2018 Jeep Wrangler JK/JKU (different steering geometry — see KIT150 series). Does not fit high-steer knuckle conversions — a flip kit variant is required for high-steer applications. Verify axle configuration on Rubicon trims before ordering. Does not fit 392 HEMI models with non-standard front axle configurations without verification.
Technical Specifications
- Part Number: KIT115-Dana44-NoFlip-JJSP
- Configuration: 2.5-ton tie rod + drag link assembly
- Material: Steel
- Rod Ends: Phosphate-coated high-misalignment ends
- Axle: Dana 44 front axle specific
- Geometry: Standard (no-flip) — OEM and mild aftermarket knuckle compatible
- Weight: 52.5 lbs
- Application: Lifted JL/JLU/JT builds — 2–6" lift range
Installation Notes
- Alignment required: Full front-end alignment (caster, camber, toe) mandatory after installation. Tie rod and drag link replacement directly affects toe and caster settings — do not drive until aligned.
- Torque specs: Tie rod and drag link end jam nuts — torque to manufacturer specification (verify in Apex install sheet). Castellated nuts at knuckle and pitman arm — torque to 55–75 ft-lbs and install cotter pin.
- Lift requirement: Designed for 2–6" lifted applications. Verify drag link angle on stock-height JL/JT before installation to avoid bump steer.
- High-steer caveat: This is the standard no-flip kit. If running high-steer knuckles (e.g., Dynatrac, RockJock, Synergy), a flip kit variant is required — do not substitute.
- Caster correction: On lifts exceeding 3", adjustable control arms or a caster correction kit is recommended to restore factory caster angle after installation.
- Unsprung weight note: At 52.5 lbs, this assembly adds significant unsprung weight. Verify shock valving and spring rate are appropriate for the added mass on lifted builds.
Installation Warning
Steering kit replacement directly affects steering geometry, scrub radius, bump steer, and caster settings. Do not drive the vehicle until a full front-end alignment has been completed by a qualified alignment technician. Installing the no-flip kit on high-steer knuckles will result in incorrect drag link angle and unsafe steering geometry. Once installed, the unit is non-returnable.
What is your current lift height, tire size, and are you running OEM Dana 44 knuckles or a high-steer conversion — and have you confirmed your shock valving is appropriate for the 52.5 lb unsprung weight increase?
