Clayton Off Road Transfer Case Skid Plate for 2007-2018 Jeep Wrangler JK Long Arm Kit

⚠️ IMPORTANT: This skid plate will NOT work with the factory JK cross member. A Clayton 3-piece long arm cross member (COR-2108112) or HD cross member (COR-2108212) is required.

⚠️ DRILLING REQUIRED: One 1/2" hole must be drilled on the passenger side frame to fully secure the skid plate. A new flange tab and hardware are included.

⚠️ SHIPS BARE METAL: Surface rust and cosmetic scratches during shipping are normal and are not considered damage. Not eligible for return, replacement, or compensation for cosmetic issues. Contact Clayton for a freight pallet quote to minimize cosmetic shipping damage.

Is This for You?

• You have a Clayton JK long arm kit installed (3-piece long arm cross member COR-2108112 or HD cross member COR-2108212) and need a transfer case skid plate that also completely covers and protects the long arm cross member — this 1/4" transfer case skid plate was designed specifically for the Clayton JK long arm kit. It provides maximum protection for the transfer case and completely covers and protects the Clayton JK long arm cross member as well. Bolts to the 3-piece long arm cross member, OEM gas tank mount, and stock frame mounting. Will NOT work with the factory JK cross member.
• You want a 3D Solidworks-designed, CNC laser-cut and CNC bent 1/4" steel transfer case skid plate with maximum accuracy, strength, and fit — and you understand one 1/2" hole must be drilled on the passenger side frame — designed using 3D Solidworks CAD software and CNC laser-cut and bent for maximum accuracy, strength, and fit. One 1/2" hole must be drilled on the passenger side frame to fully secure the skid plate on the passenger side. A new flange tab and hardware are included with the kit for this mounting point.
• You understand this skid plate ships bare metal and that cosmetic surface rust or scratches during shipping are normal and not eligible for return or replacement — this skid plate ships bare metal (uncoated). Surface rust and cosmetic scratches during shipping are a normal result of bare metal shipping and are not considered damage. Prime, paint, or apply your preferred finish after installation. Contact Clayton for a freight pallet shipping quote if you want to minimize cosmetic shipping issues.

The Result

• Transfer case skid plate for 2007–2018 Jeep Wrangler JK with Clayton long arm kit — 1/4" CNC laser-cut and bent steel, 3D Solidworks-designed. Provides maximum protection for the transfer case and completely covers and protects the Clayton JK long arm cross member.
• Bolts to Clayton 3-piece long arm cross member (COR-2108112) or HD cross member (COR-2108212), OEM gas tank mount, and stock frame mounting. One 1/2" hole required on passenger side frame — flange tab and hardware included. Will NOT work with factory cross member.
• Ships bare metal. Cosmetic surface rust and scratches during shipping are normal and not eligible for return or replacement. For complete underbody protection, pair with Clayton engine skid plate (COR-4108912) and gas tank skid plate (COR-4108202 or COR-4108204).

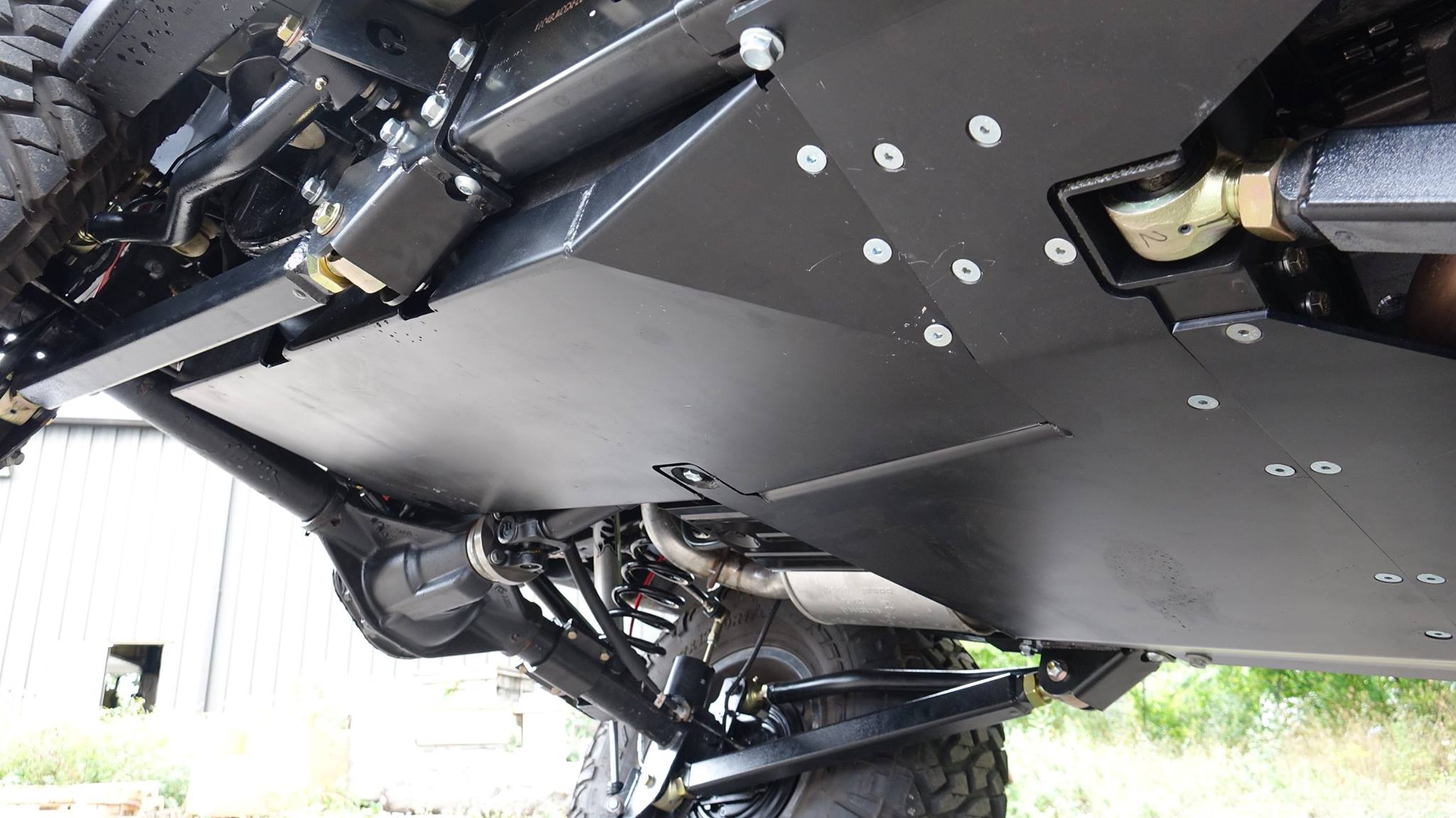

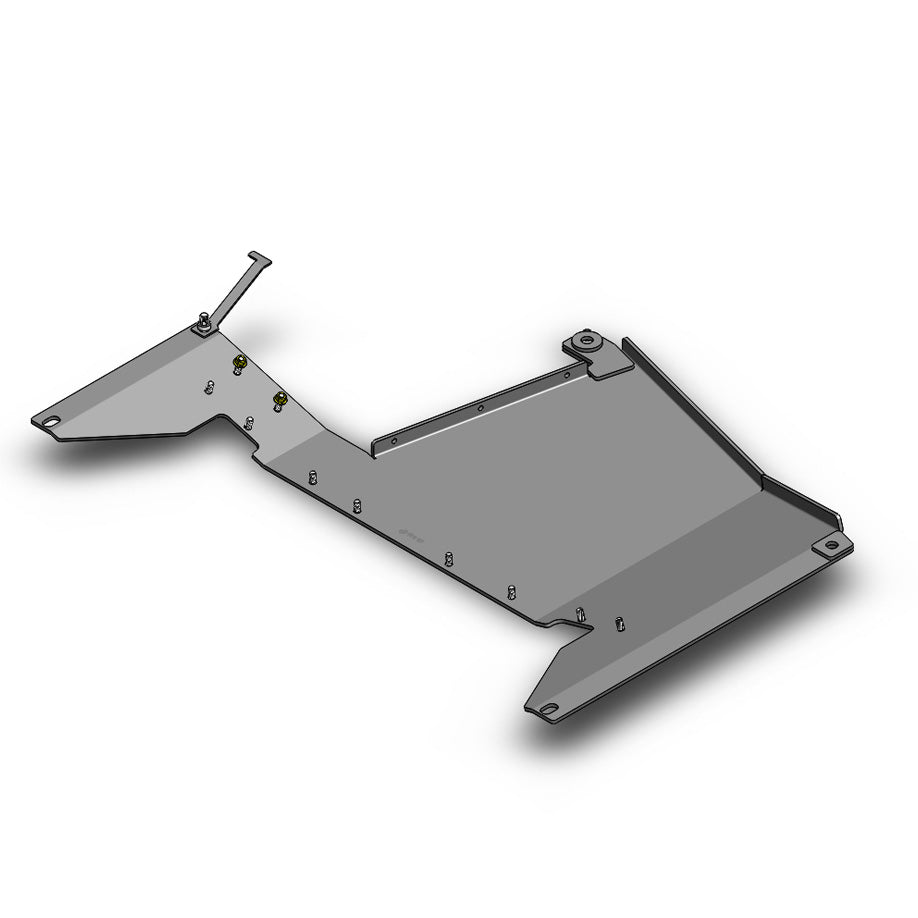

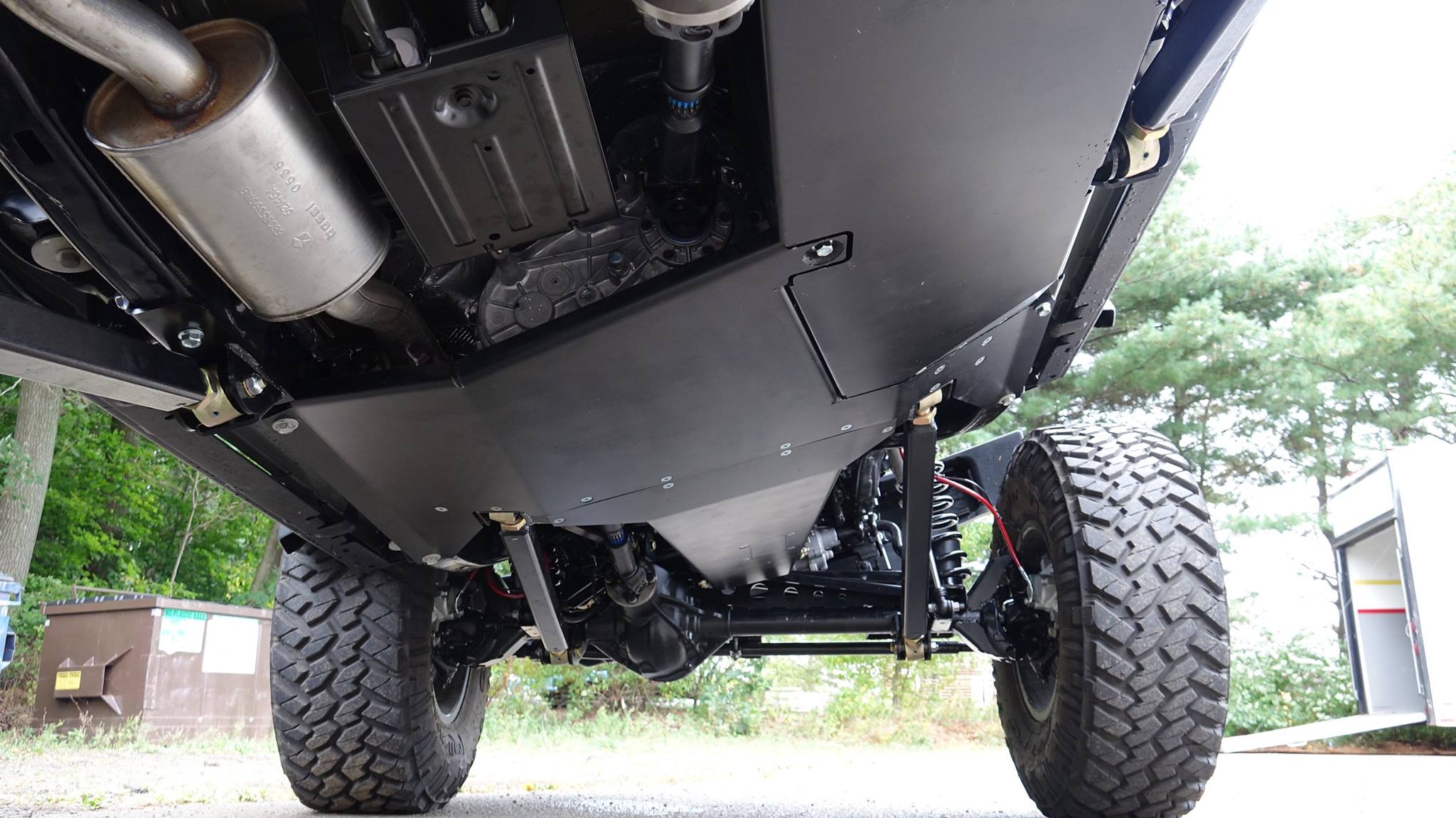

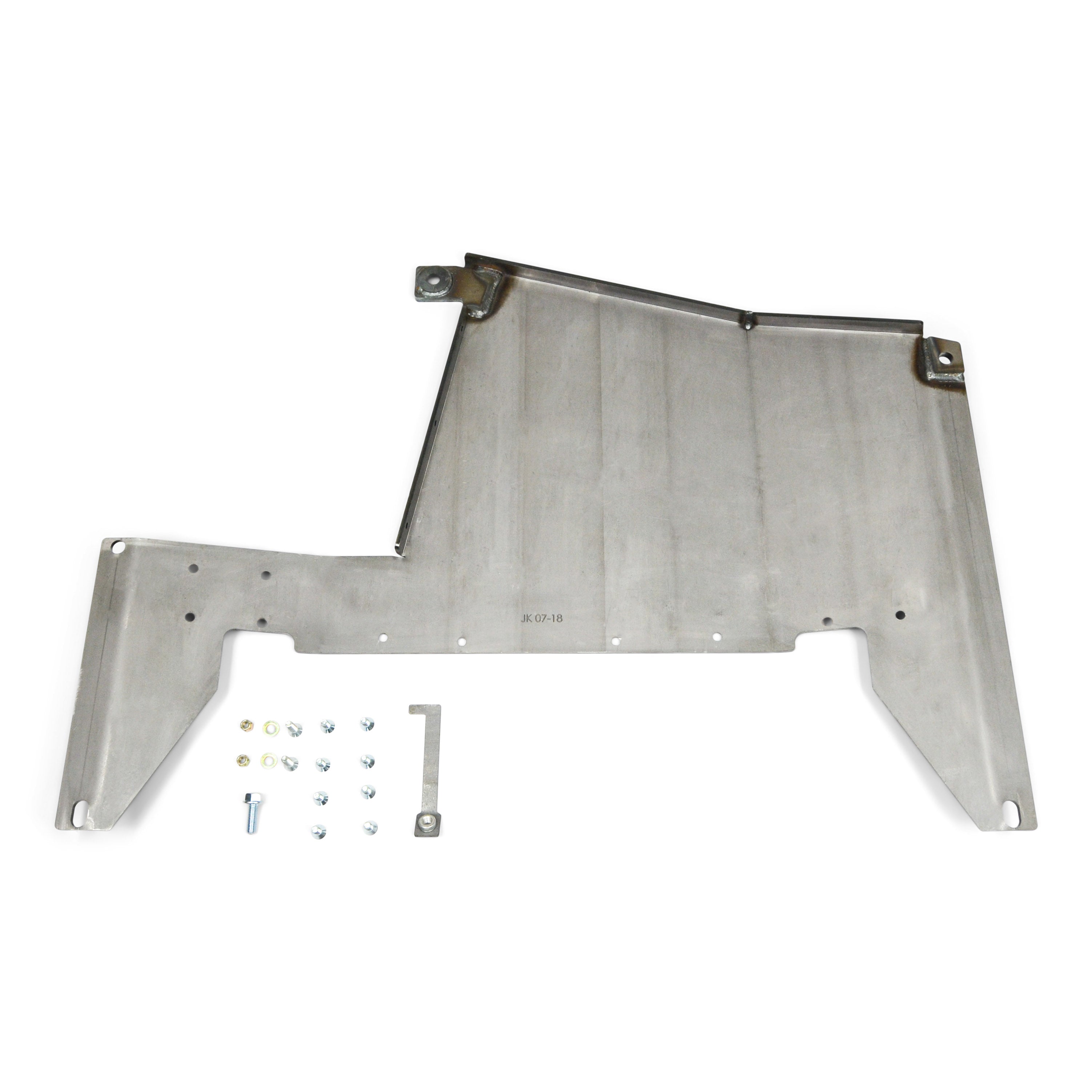

The COR-4108112 is Clayton Off Road's transfer case skid plate for the 2007–2018 Jeep Wrangler JK, designed specifically to work in conjunction with the Clayton JK long arm kit. This skid plate will not fit or function with the factory JK cross member — a Clayton 3-piece long arm cross member (COR-2108112) or HD cross member (COR-2108212) is required. The skid plate was designed using 3D Solidworks CAD software and is CNC laser-cut and CNC bent from 1/4" steel for maximum accuracy, strength, and fit. In addition to providing maximum protection for the transfer case, this skid plate completely covers and protects the Clayton JK long arm cross member. It bolts to the 3-piece long arm cross member, the OEM gas tank mount, and the stock frame mounting locations. One 1/2" hole must be drilled on the passenger side frame to fully secure the skid plate on the passenger side — a new flange tab and hardware are included with the kit for this mounting point. This skid plate ships bare metal — surface rust and cosmetic scratches during shipping are a normal result of bare metal shipping and are not considered damage, and are not eligible for return, replacement, or compensation. Prime, paint, or apply your preferred finish after installation. For complete underbody protection, pair with the Clayton engine skid plate (COR-4108912) and the gas tank skid plate (COR-4108202 for 2-Door or COR-4108204 for 4-Door).

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 2007–2018 Jeep Wrangler JK (2-Door and 4-Door) — All Trims — With Clayton Long Arm Kit (COR-2108112 or COR-2108212) Installed
❌ Does NOT fit JK with factory cross member — Clayton long arm cross member required
❌ Does NOT fit Jeep Wrangler JL (2018–2026) — different transfer case and cross member geometry
❌ Drilling required — one 1/2" hole on passenger side frame

Installation & Fabrication Notes

• Clayton long arm cross member required: This skid plate will not fit or function with the factory JK cross member. Verify the Clayton 3-piece long arm cross member (COR-2108112) or HD cross member (COR-2108212) is installed before ordering.
• This skid plate ships bare metal — prime, paint, or apply your preferred finish before or after installation to prevent rust.
• Drill one 1/2" hole on the passenger side frame at the location specified in Clayton's installation instructions before installing the skid plate.
• Install the included flange tab and hardware at the drilled passenger side frame location.
• Position the skid plate under the transfer case and long arm cross member, aligned with the 3-piece long arm cross member, OEM gas tank mount, and stock frame mounting locations.
• Bolt the skid plate to the cross member, OEM gas tank mount, stock frame mounting, and the new passenger side flange tab per Clayton's installation instructions.
• Torque all hardware to specification.
• For complete underbody protection, install the Clayton engine skid plate (COR-4108912) and gas tank skid plate (COR-4108202 for 2-Door or COR-4108204 for 4-Door).

Wheel & Tire Fitment

Compatible with standard JK wheel and tire combinations. This transfer case skid plate does not affect wheel or tire fitment directly.

Engineering Question: Do you have a Clayton long arm kit installed with the 3-piece long arm cross member (COR-2108112) or HD cross member (COR-2108212)? This skid plate will not fit the factory JK cross member — confirm your cross member before ordering. Also confirm you have drilling capability for the required 1/2" passenger side frame hole. For complete underbody protection, also order the engine skid plate (COR-4108912) and the correct gas tank skid plate for your JK (COR-4108202 for 2-Door or COR-4108204 for 4-Door).
