Clayton Off Road Steering Stabilizer High Clearance Relocation Bracket Kit for 2018-2026 Jeep Wrangler JL and Gladiator JT

Is This for You?

• Your JL or JT steering stabilizer is mounted below the tie rod and keeps getting hammered on rocks, ledges, and trail obstacles — this kit raises the stabilizer above the tie rod using a double-shear axle mount, eliminating the low-hanging target that gets destroyed on technical terrain.
• You want to relocate your stabilizer without losing access to your track bar bolt for inspection and retorque — Clayton specifically designed this bracket to clear the track bar bolt head, so you can check and retorque your track bar hardware without removing the bracket or the stabilizer.
• You're running a factory or most aftermarket stabilizers and want a bolt-on solution that doesn't require welding — the bracket clamps to the factory axle mount with Grade 8 hardware and requires only one 3/8" drill hole. Includes an upgraded Grade 8 flanged track bar bolt and top-lock nut to replace the OEM hardware at the same time.

The Result

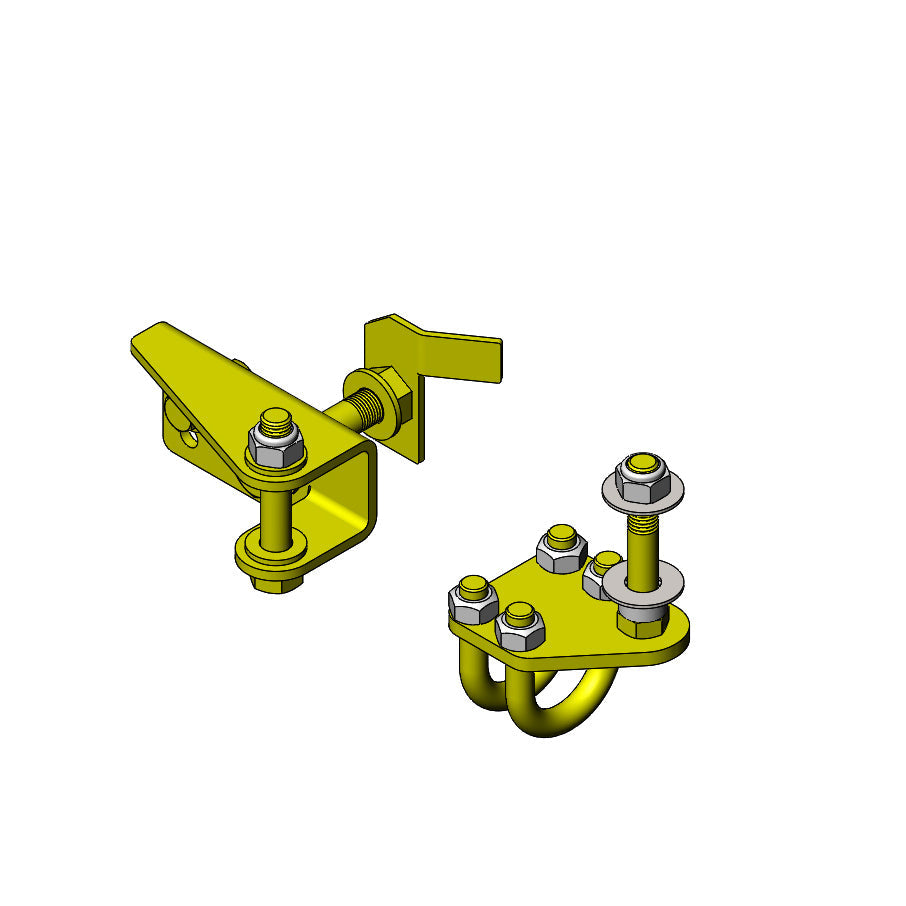

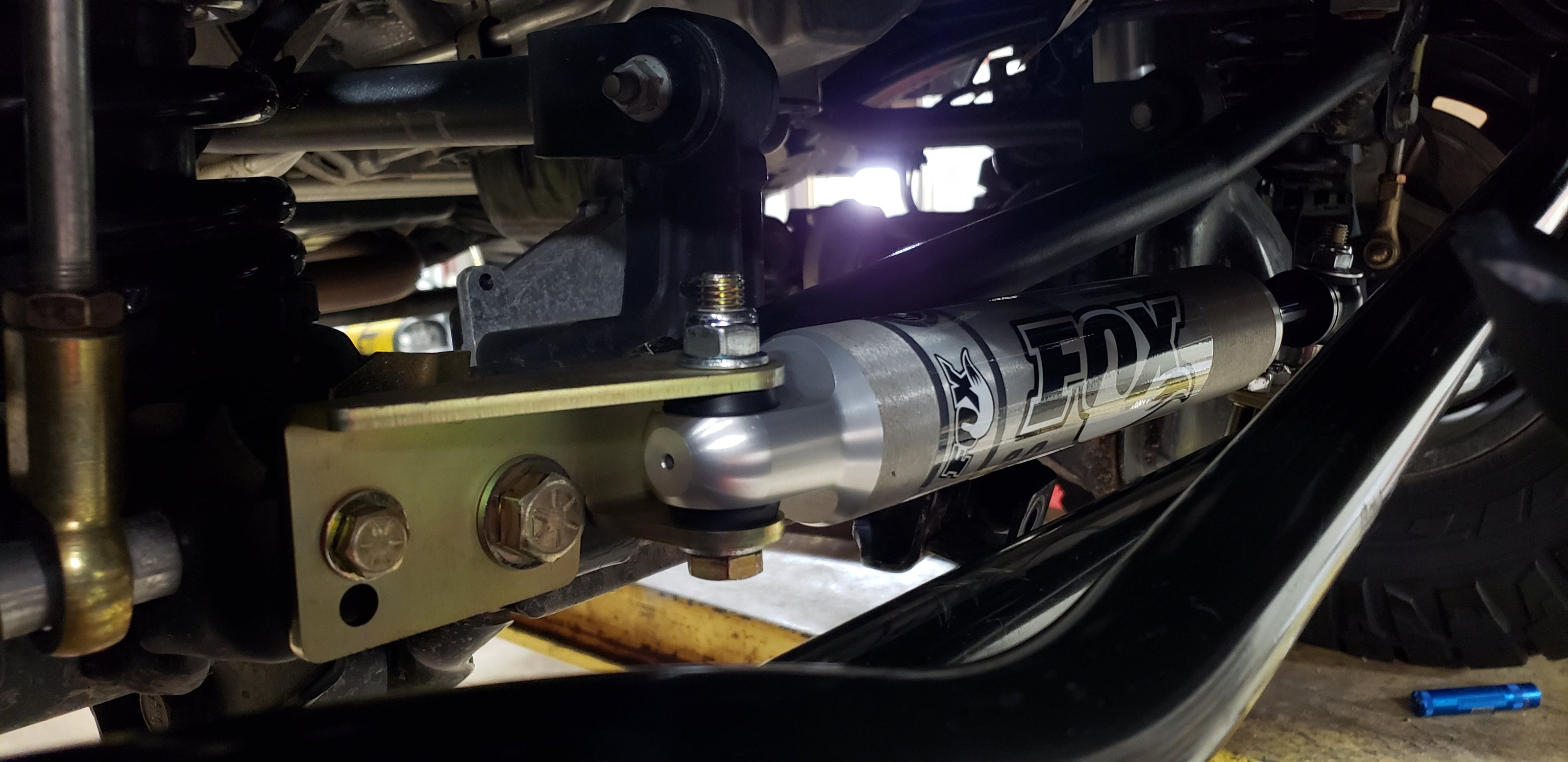

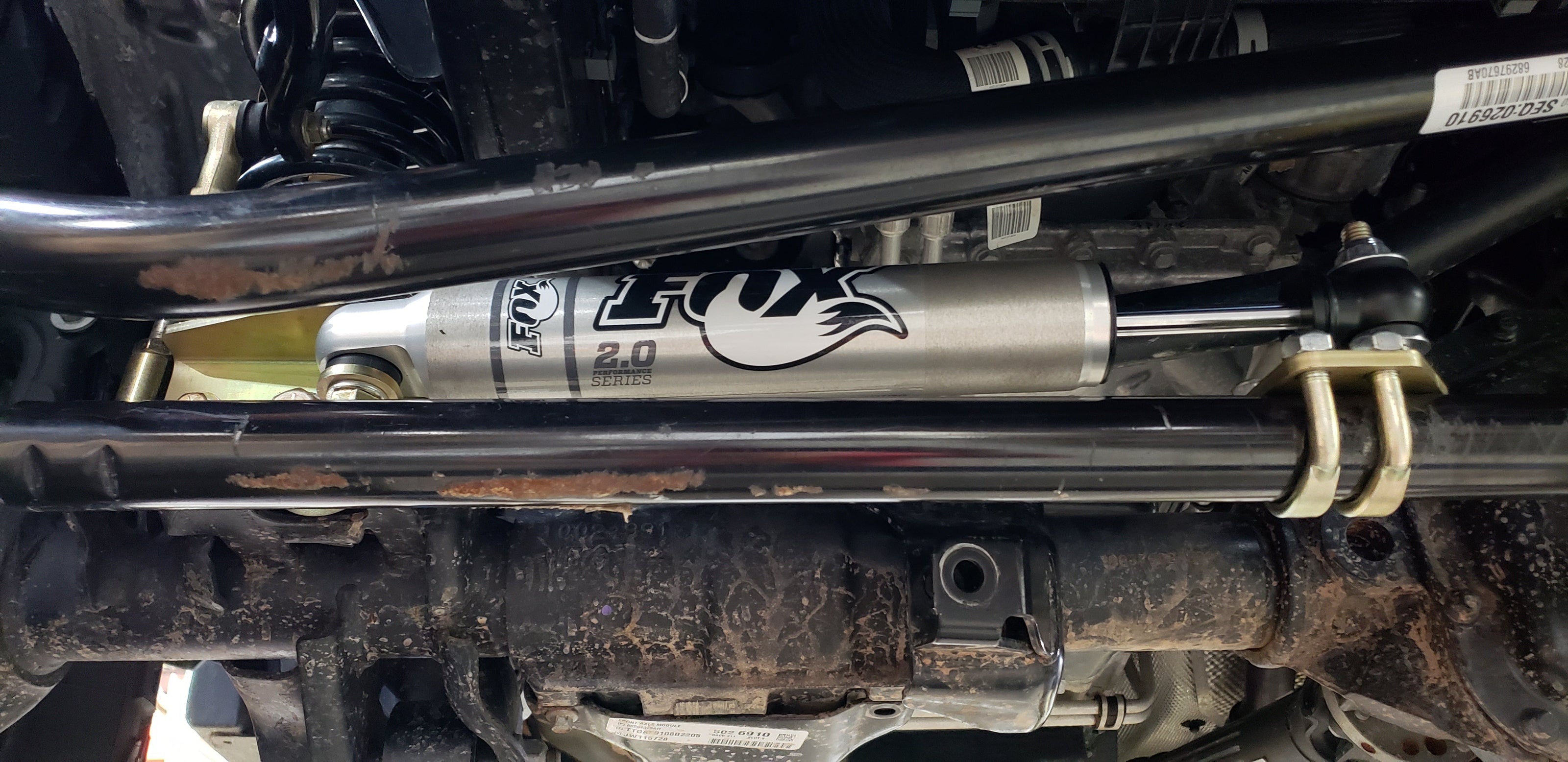

• Raised double-shear axle mount + new tie rod stabilizer mount — relocates the stabilizer above the tie rod for rock clearance, eliminates the low-mount snag point on technical terrain.
• Track bar bolt access preserved — bracket geometry clears the track bar bolt head so you can inspect and retorque without removing the bracket or stabilizer.
• Includes upgraded Grade 8 flanged track bar bolt with top-lock nut (torque spec: 146 ft-lbs) — flanged nut can't spin against the axle, top-lock deformed thread zones prevent loosening under vibration.

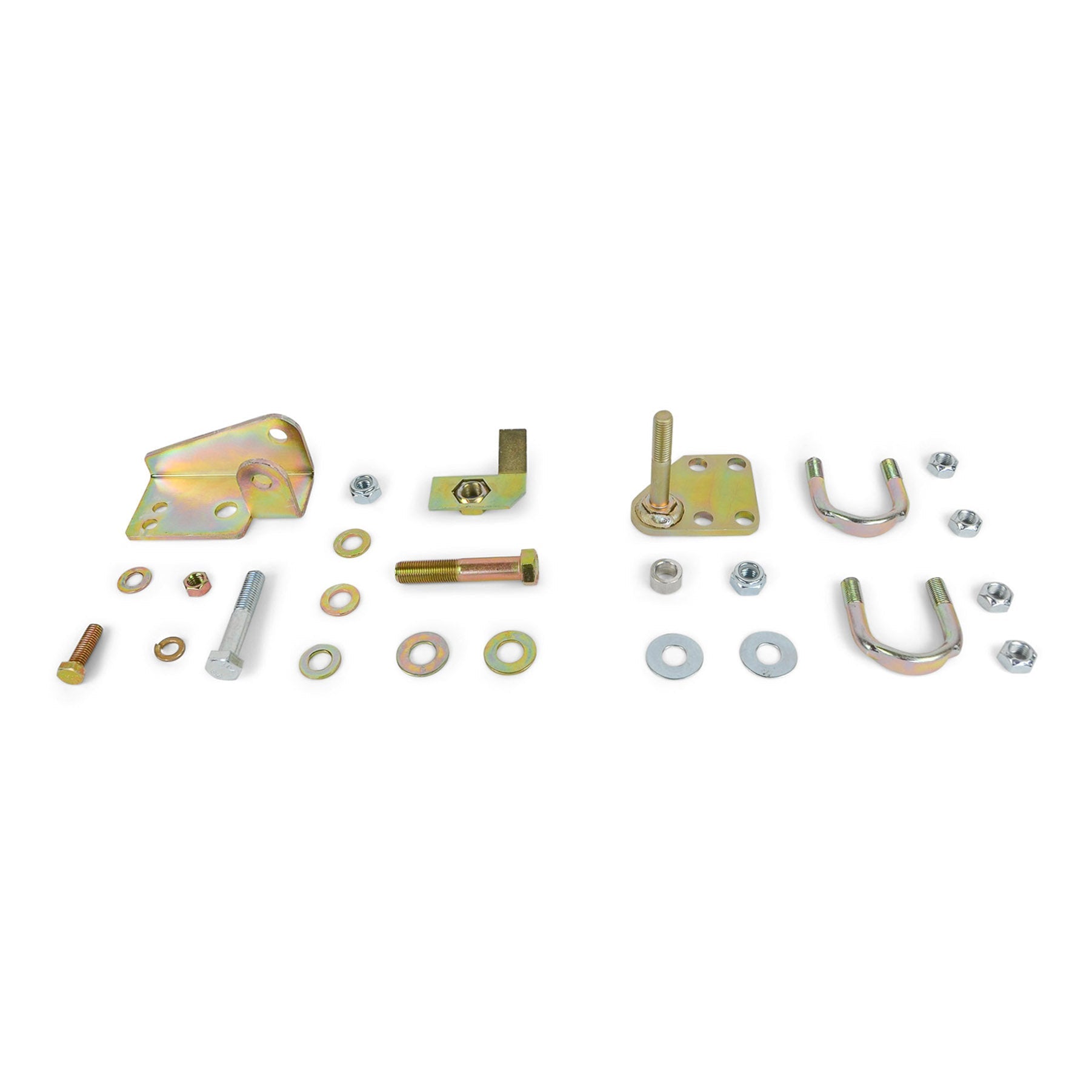

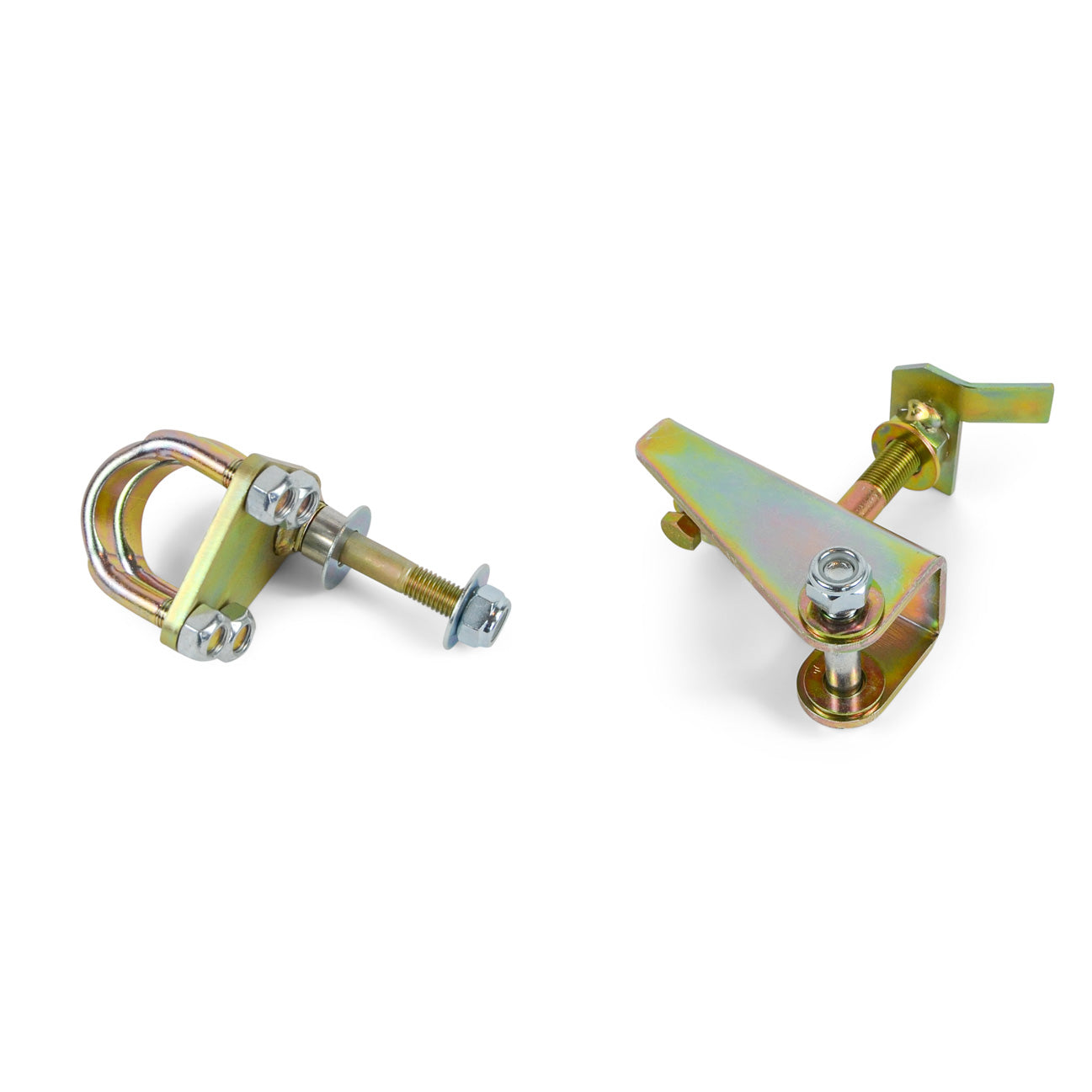

The COR-5209011 is Clayton Off Road's high-clearance steering stabilizer relocation bracket kit for the 2018–2026 Jeep Wrangler JL and Gladiator JT. The factory JL/JT steering stabilizer mounts below the tie rod — a position that exposes it to direct rock contact on technical terrain. This kit replaces the factory axle-side stabilizer mount with a raised double-shear bracket that positions the stabilizer above the tie rod, eliminating the low-mount exposure point. The bracket is CNC laser-cut and bent from 3/16" steel with a gold zinc plated finish for corrosion resistance. It clamps to the factory axle bracket using Grade 8 hardware and requires drilling one 3/8" hole in the factory axle mount for installation. A key design feature is track bar bolt access: the bracket is specifically dimensioned to clear the track bar bolt head, allowing the track bar hardware to be inspected and retorqued without removing the stabilizer bracket. The kit also includes an upgraded Grade 8 flanged track bar bolt and top-lock nut — the flanged nut contacts the axle body directly, preventing rotation and reducing the likelihood of loosening under vibration. The top-lock nut uses deformed thread zones at the crown for additional retention. Torque spec for the track bar bolt is 146 ft-lbs. Compatible with factory and most aftermarket stabilizers. Note: designed for factory tie rods — aftermarket tie rods require separate mounting brackets. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 2018–2026 Jeep Wrangler JL (2-Door) — All Trims — Factory Tie Rod
✅ Fits 2018–2026 Jeep Wrangler JL Unlimited (4-Door) — All Trims — Factory Tie Rod
✅ Fits 2020–2026 Jeep Gladiator JT — All Trims — Factory Tie Rod
❌ Does NOT fit Jeep Wrangler JK (2007–2018) — different front axle stabilizer mount geometry
❌ Does NOT fit aftermarket tie rods — factory tie rod required for included tie rod mount; aftermarket tie rods require separate mounting brackets
❌ Stabilizer not included — bracket kit only

Installation & Fabrication Notes

• Drill one 3/8" hole in the factory axle bracket before installation — this is the only modification required to the factory hardware.
• Clean the factory axle bracket contact surface before installing the double-shear bracket — remove dirt, rust, and undercoating for proper clamp load.
• Torque all Grade 8 bracket hardware to specification — refer to Clayton's installation instructions for bracket bolt torque values.
• Install the included Grade 8 flanged track bar bolt and top-lock nut in place of the OEM track bar bolt at the axle end — torque to 146 ft-lbs.
• Top-lock nut warning: will not thread to final position by hand — start by hand to confirm thread engagement, then torque with a calibrated wrench.
• Verify track bar bolt head is accessible after bracket installation — the bracket is designed to clear it, but confirm clearance before final torque.
• Verify your stabilizer's axle-end mount is compatible with the raised double-shear bracket before installation — most factory and aftermarket stabilizers are compatible, but confirm eye diameter and pin size.
• If running an aftermarket tie rod, do not use the included tie rod mount — source the appropriate bracket for your specific tie rod diameter and mount style.

Wheel & Tire Fitment

Compatible with standard JL/JT wheel and tire combinations. Stabilizer relocation does not affect wheel or tire fitment directly — verify stabilizer length and travel are appropriate for your lift height after installation.

Engineering Question: Are you running a factory tie rod or an aftermarket tie rod? The included tie rod stabilizer mount is designed for the factory JL/JT tie rod — if you've upgraded to an aftermarket tie rod, you'll need a separate tie rod mount bracket compatible with your specific tie rod diameter. Also confirm your stabilizer's axle-end eye diameter is compatible with the double-shear mount pin before ordering.
