Clayton Off Road Overland+ 4.5 Inch Short Arm Suspension Lift Kit for 1984-2001 Jeep Cherokee XJ

Is This for You?

• You're building a 1984–2001 Jeep Cherokee XJ for serious off-road use and need 4.5" of lift to run 31" tires with proper suspension geometry. This is a fabrication-involved install — drilling is required — not a bolt-on kit for a stock XJ.
• You already have or plan to source a SYE (Slip Yoke Eliminator) kit and CV-style rear driveshaft before installation. These are hard requirements at 4.5" of lift on the XJ — the kit cannot be properly installed without them.
• You want a complete Clayton Off Road suspension system with optional shock upgrade capability. Shocks are not included but Clayton recommends Bilstein 5100s as the bolt-in companion for this kit.

The Result

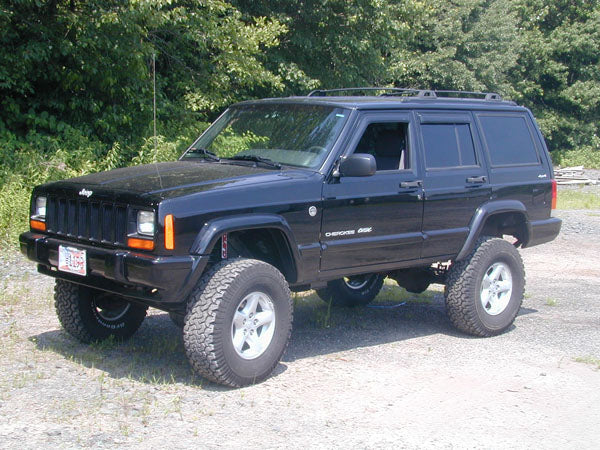

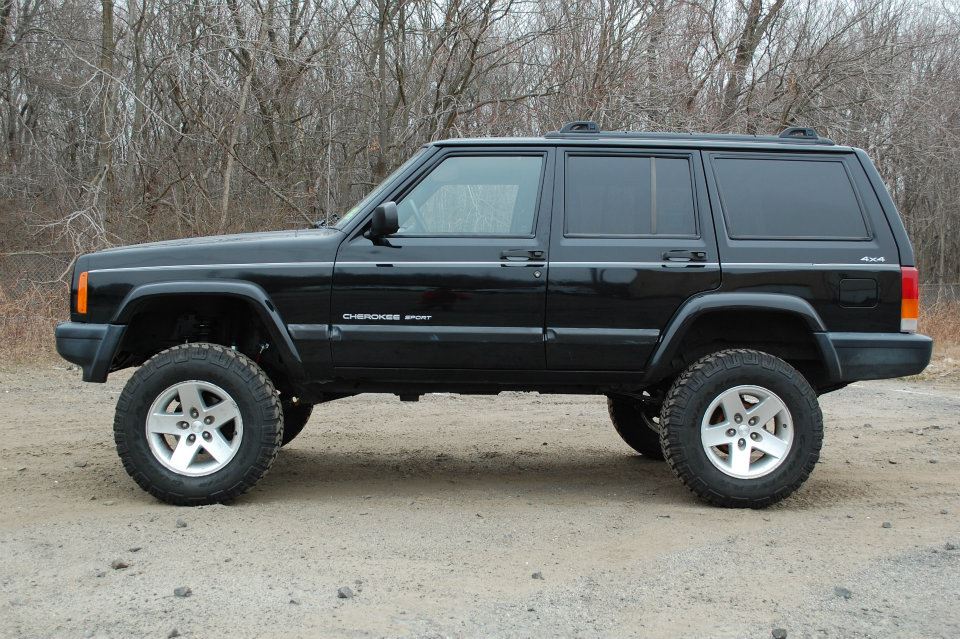

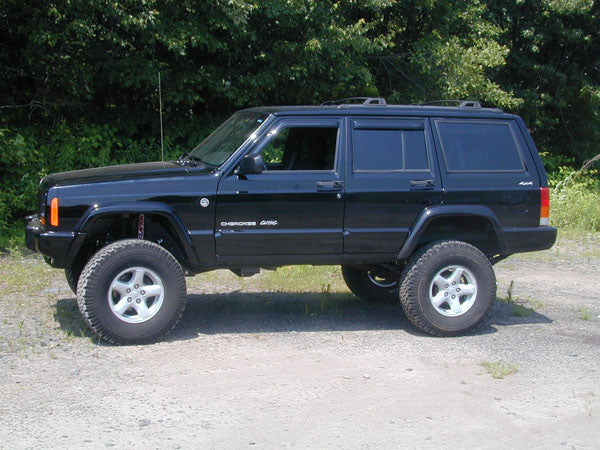

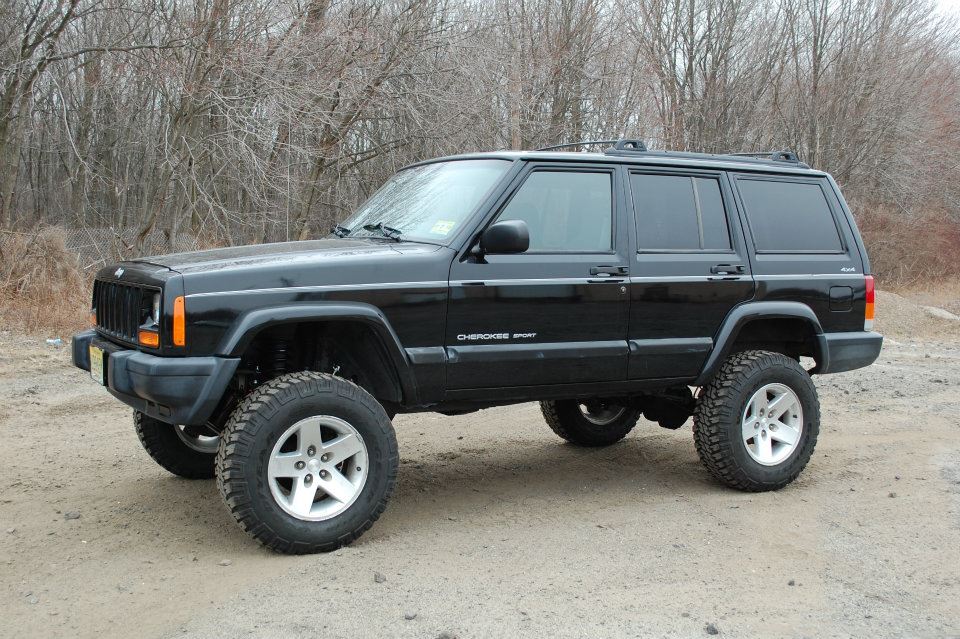

• 4.5" of lift on the XJ platform — engineered to correct suspension geometry at this lift height, not just stack spacers. Designed specifically for 1984–2001 Cherokee XJ models.
• Optimized for 31" tire fitment — the suspension geometry and lift height are calibrated for 31" tires on the XJ platform. Running significantly larger tires may require additional modifications.
• Drilling required for installation — this is a purpose-built suspension system, not a universal bolt-on. Plan for fabrication time and appropriate tooling before starting the install.

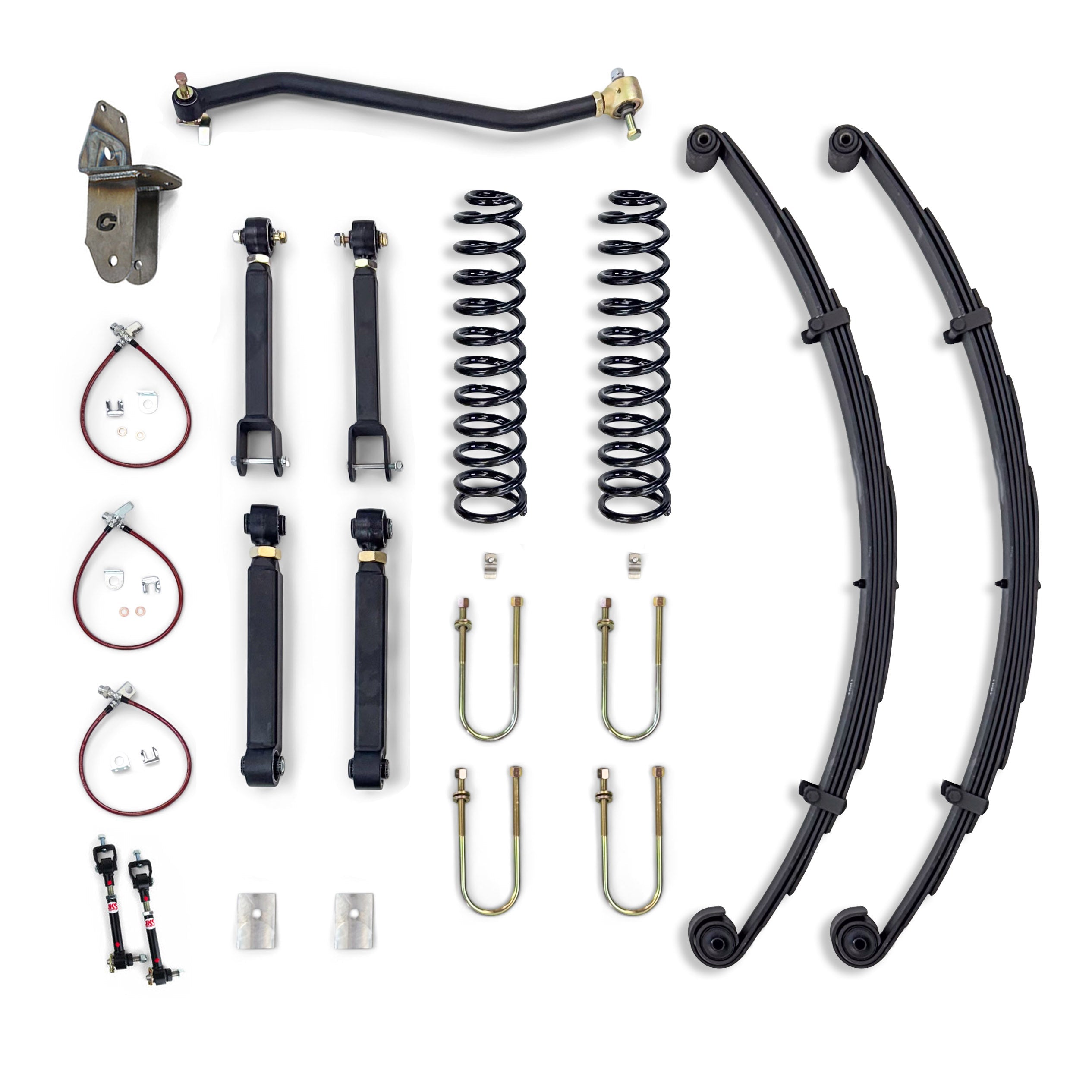

The COR-3001045 is Clayton Off Road's Overland+ short arm suspension lift kit for the 1984–2001 Jeep Cherokee XJ, configured at 4.5" of lift. This is a fabrication-involved installation: drilling is required, a SYE (Slip Yoke Eliminator) kit is required to eliminate the factory slip yoke at the transfer case output, and a CV-style rear driveshaft is required to manage the driveshaft angle at 4.5" of lift. None of these are optional — the kit will not function correctly without them. Shocks are sold separately; Clayton recommends Bilstein 5100s as the direct-fit shock for this application. Leaf springs ship bare metal in a box — surface rust and cosmetic marks from transit are expected and do not affect structural performance. If cosmetic condition is a priority, contact OFAS for freight/pallet shipping before ordering. At 182 lbs, plan your installation with appropriate lifting equipment and a second set of hands.

Audit Table

Verified Fitment (OFAS Standard)

Fits:

• ✅ 1984–1993 Jeep Cherokee (XJ) — base trim
• ✅ 1985–1988 Jeep Cherokee Chief (XJ)
• ✅ 1985–1990 Jeep Cherokee Pioneer (XJ)
• ✅ 1985–1992 Jeep Cherokee Laredo (XJ)
• ✅ 1987–1992 Jeep Cherokee Limited (XJ)
• ✅ 1989–2001 Jeep Cherokee Sport (XJ)
• ✅ 1991–1992 Jeep Cherokee Briarwood (XJ)
• ✅ 1993–1997 Jeep Cherokee Country (XJ)
• ✅ 1994–2001 Jeep Cherokee SE (XJ)
• ✅ 1996 Jeep Cherokee Classic (XJ)
• ✅ 1998–2001 Jeep Cherokee Classic (XJ)
• ✅ 1998–2001 Jeep Cherokee Limited (XJ)

Does NOT Fit:

• ❌ 2002–2007 Jeep Liberty KJ — different platform entirely
• ❌ Jeep Grand Cherokee ZJ/WJ — different platform; see COR-4104110 (ZJ) or COR-4106110 (WJ)
• ❌ Any XJ without SYE kit and CV driveshaft installed — required components, not optional

Installation & Fabrication Notes

• Drilling is required — this is not a bolt-on installation. Ensure you have appropriate drill tooling and a solid work plan before starting.
• SYE (Slip Yoke Eliminator) kit is required — must be installed at the transfer case output before the CV driveshaft can be fitted. Source and install the SYE before beginning suspension installation.
• CV-style rear driveshaft is required — the factory slip yoke driveshaft cannot be used at 4.5" of lift. Source a CV driveshaft matched to your transfer case output and axle flange before installation.

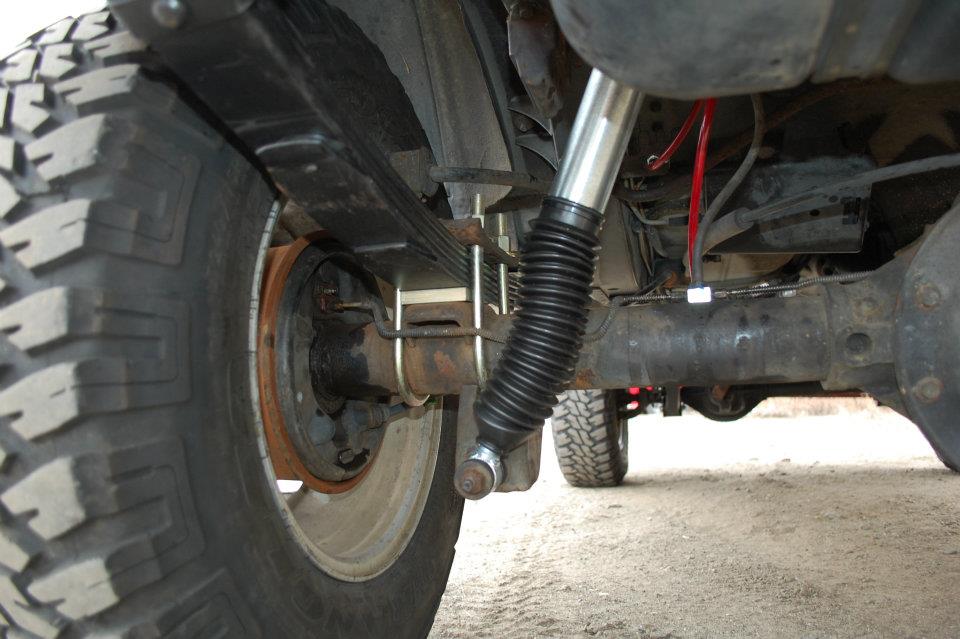

• Shocks are not included — Clayton recommends Bilstein 5100 series as the direct-fit shock for this application. Source before installation to avoid downtime.

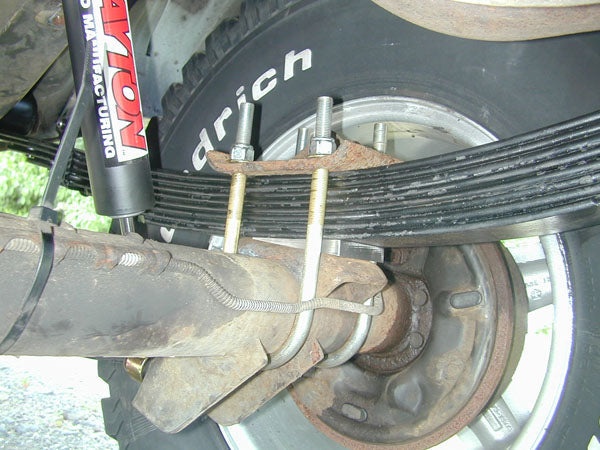

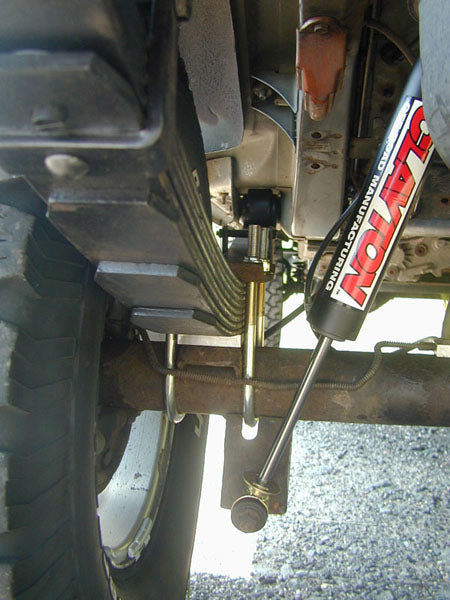

• Leaf springs ship bare metal in a box: Surface rust and cosmetic marks from shipping are expected and do not affect structural performance. Contact OFAS for freight/pallet shipping if cosmetic condition is a priority.
• Full alignment required after installation — use a shop familiar with lifted XJ geometry.
• California Prop 65 Warning: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. See P65Warnings.ca.gov.

Wheel & Tire Fitment

• 4.5" lift: Optimized for 31" tires on the XJ platform
• Running tires significantly larger than 31" may require additional modifications — verify with Clayton Off Road fitment documentation for your specific XJ build.
• Backspacing and offset affect final clearance — verify with your specific wheel spec before ordering tires.

Engineering Question: Do you have a SYE kit and CV-style rear driveshaft sourced for your XJ? These are hard requirements for this installation — the kit cannot be properly installed without them. Also confirm you have the tooling and plan for the drilling required during installation before ordering.
