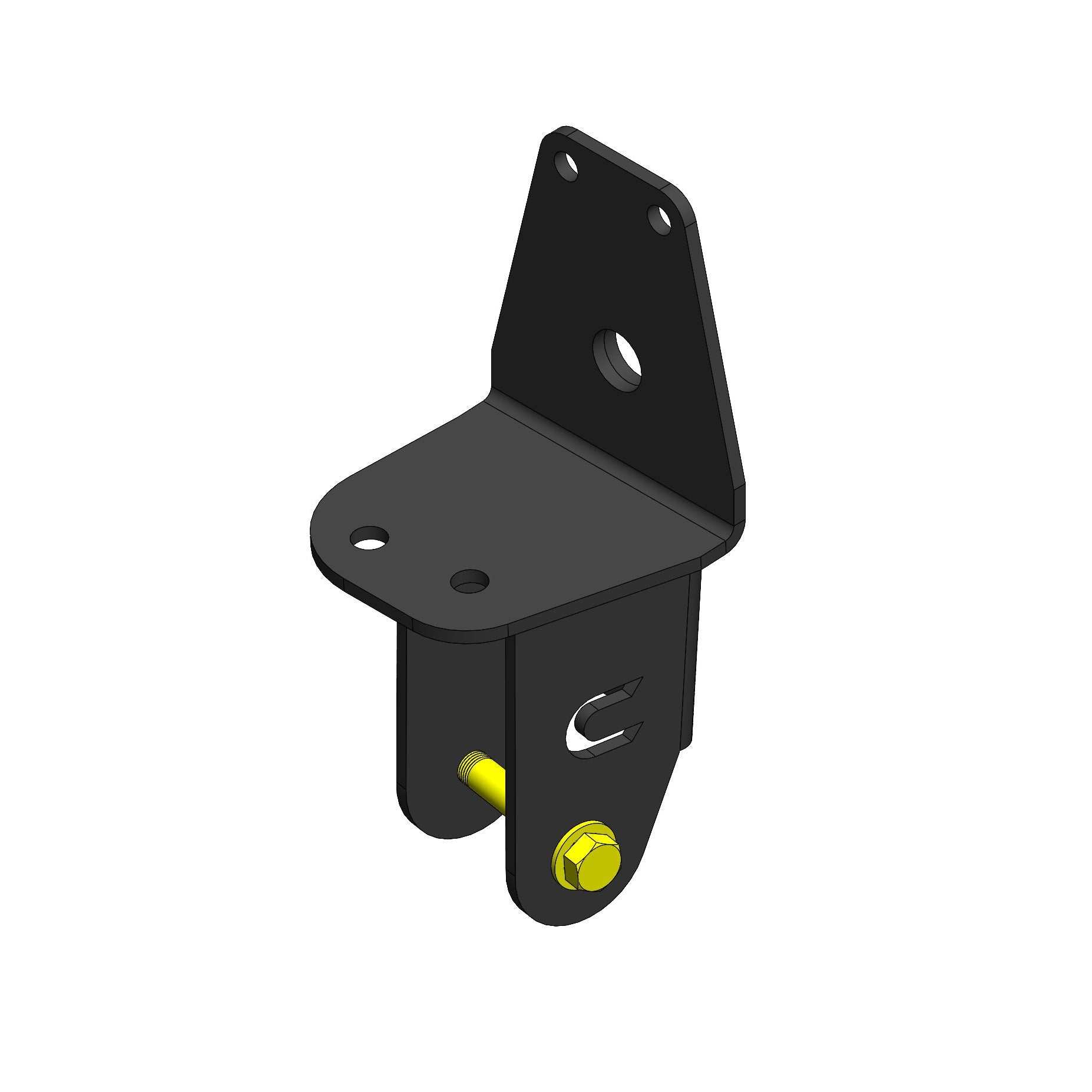

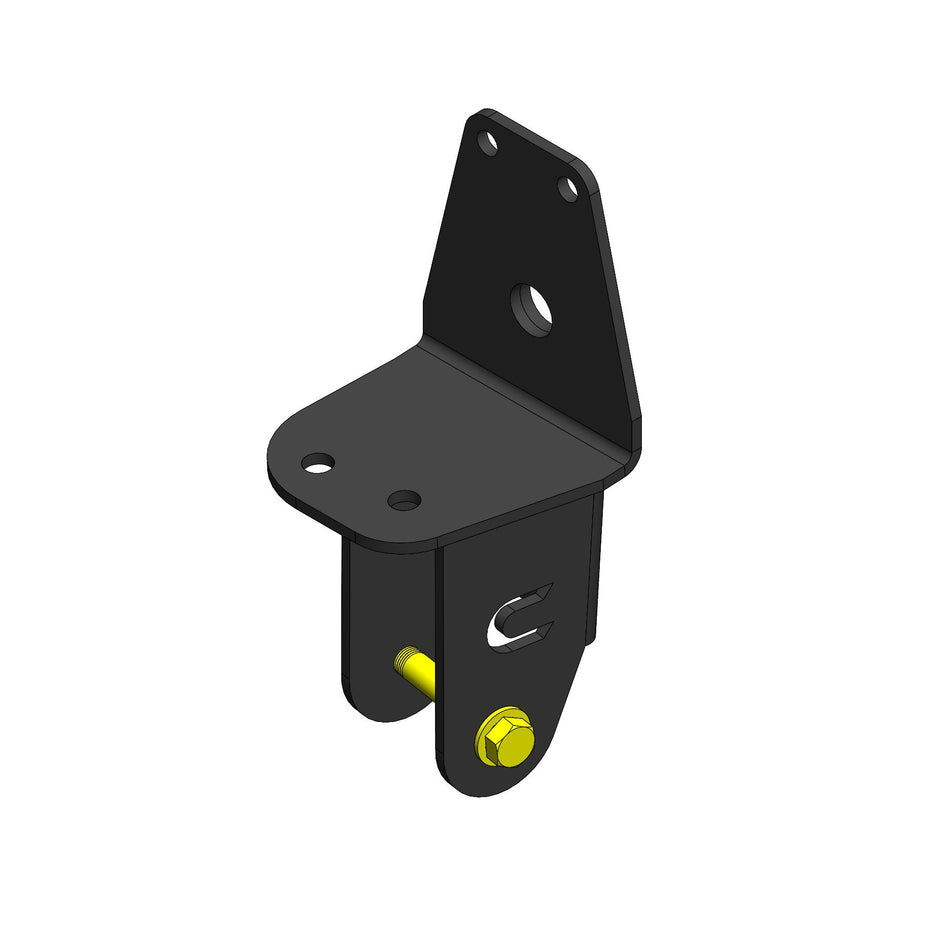

Clayton Off Road Front Track Bar OE-Height Bracket for 1984-2001 Jeep Cherokee XJ and 1993-1998 Grand Cherokee ZJ

Is This for You?

• You're running 3–6" of lift on your XJ or ZJ and already have a Clayton adjustable front track bar — you need the OE-height bracket only to put the track bar in double shear without lowering the mount height — this is the OE-height bracket sold separately, not a complete track bar kit. If you need the complete front track bar with OE-height bracket, see COR-4500502. This bracket maintains the factory track bar height position while adding the double-shear strength advantage — no drop pitman arm required at 3–6" of lift.
• You want a 1/4" CNC laser-cut and bent steel double-shear bracket designed to accept a 2.5" forged Johnny Joint with a 9/16" Grade 8 bolt, at OEM track bar height — the bracket is machined to accept a 2.5" forged Johnny Joint (2-5/8" inside width, 9/16" Grade 8 bolt). The double-shear design puts the track bar bolt in double shear, eliminating the risk of over-flexing the joint under lateral load. OE height means the stock pitman arm is compatible at 3–6" of lift.
• You want a bolt-on bracket that can be welded for added strength if desired — the bracket bolts to the OEM frame track bar mount location. Welding is optional for added strength. For the drop bracket version for 6–8" of lift (requires drop pitman arm), see COR-4500410.

The Result

• Front track bar OE-height bracket only — 1/4" CNC laser-cut and bent steel, double-shear design, 3–6" lift. Maintains OEM track bar height. Stock pitman arm compatible. Bracket sold separately.
• Designed for 2.5" forged Johnny Joint — 2-5/8" inside width, 9/16" Grade 8 bolt. Double-shear design puts track bar bolt in double shear, eliminating joint over-flex under lateral load.
• Bolts to OEM frame location. Welding optional for added strength. Made in the USA. For the complete kit, see COR-4500502. For the drop bracket version (6–8" lift), see COR-4500410.

The COR-4500400 is Clayton Off Road's front track bar OE-height bracket for the 1984–2001 Jeep Cherokee XJ and 1993–1998 Jeep Grand Cherokee ZJ, sold as a standalone bracket for customers who already have a Clayton adjustable front track bar and need the bracket separately. This bracket maintains the OEM track bar height position — unlike the drop bracket version (COR-4500410, designed for 6–8" of lift), this bracket does not lower the frame-side mount. At 3–6" of lift, the OE-height position allows the stock pitman arm to be used without modification. The bracket is CNC laser-cut and bent from 1/4" steel and bolts to the OEM frame track bar mount location. Welding is optional for added strength. The double-shear design puts the track bar bolt in double shear, eliminating the risk of over-flexing the joint under lateral load. The bracket is designed to accept a 2.5" forged Johnny Joint with a 2-5/8" inside width and a 9/16" Grade 8 bolt. For the complete front track bar kit with OE-height bracket (includes the adjustable track bar), see COR-4500502. For the drop bracket version for 6–8" of lift, see COR-4500410. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 1984–2001 Jeep Cherokee XJ — All Trims — Front Track Bar OE-Height Bracket, 3" to 6" Lift
✅ Fits 1993–1998 Jeep Grand Cherokee ZJ — All Trims — Front Track Bar OE-Height Bracket, 3" to 6" Lift
❌ Does NOT fit Jeep Grand Cherokee WJ (1999–2004) — different front track bar geometry
❌ Does NOT fit Jeep Wrangler TJ/LJ/JK/JL/JT — different front suspension architecture
❌ Not recommended for lifts above 6" — for 6–8" of lift, use the drop bracket version COR-4500410 with a drop pitman arm

Installation & Fabrication Notes

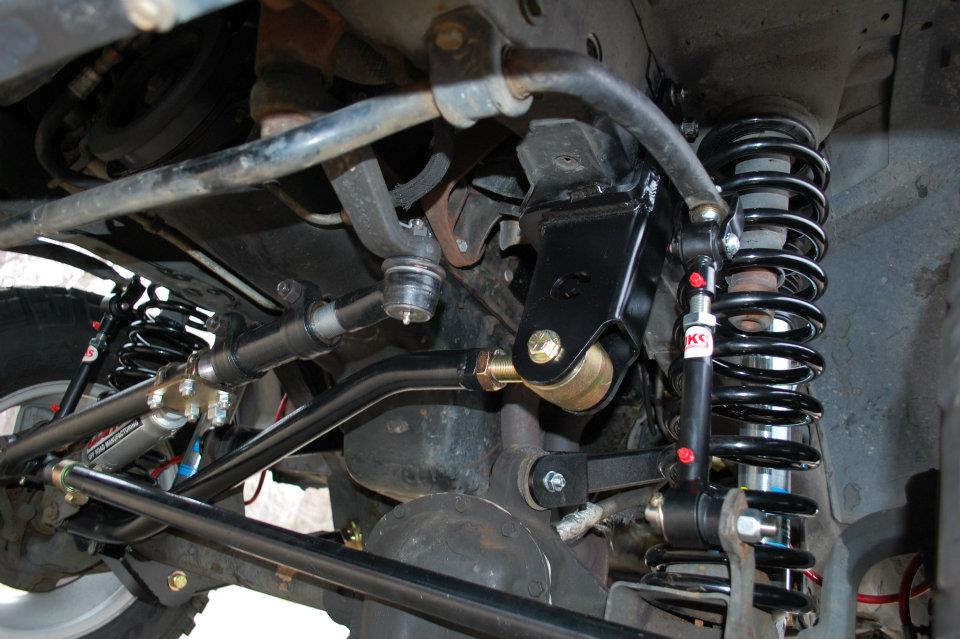

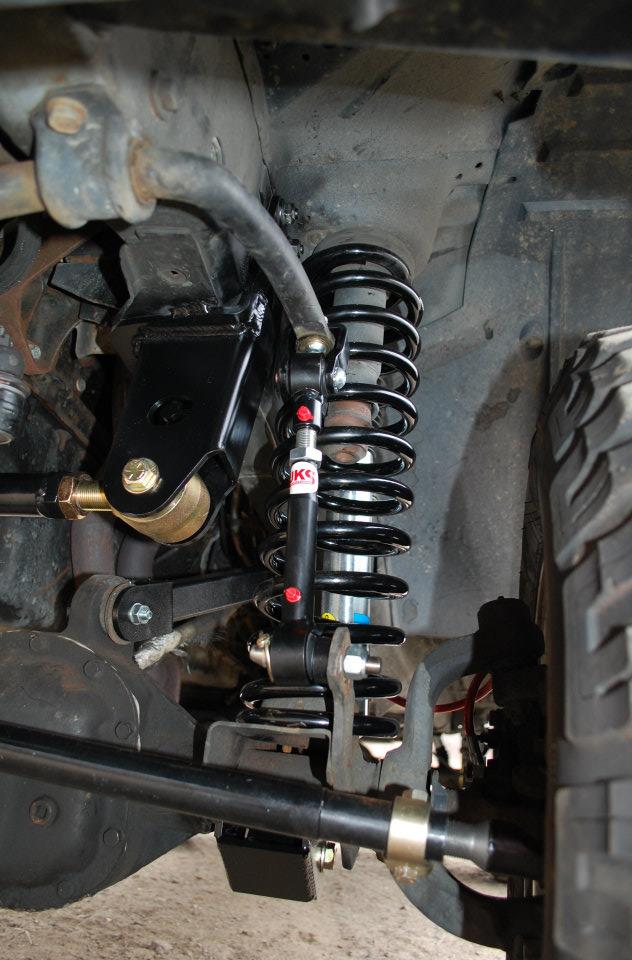

• Bolt the bracket to the OEM frame front track bar mount location using the factory bolt holes.
• Verify bracket position and angle per Clayton's installation instructions.
• Welding is optional — add welds for additional strength if desired after confirming alignment.

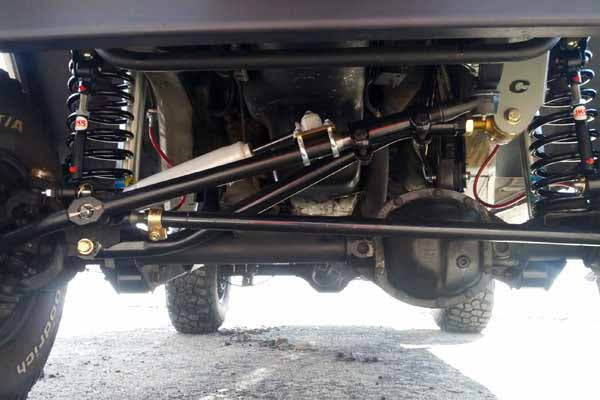

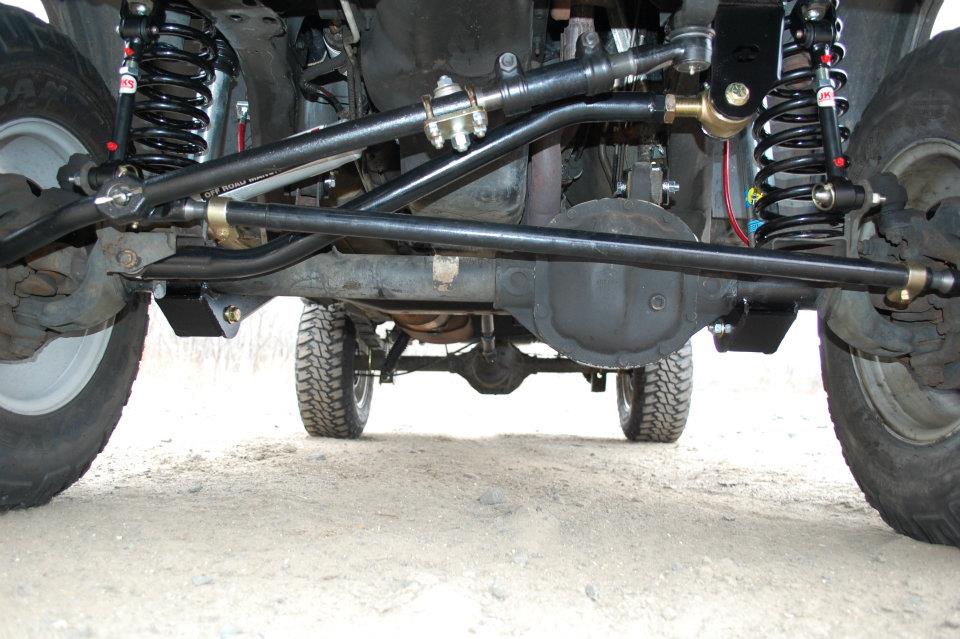

• Install the Clayton adjustable front track bar (with 2.5" forged Johnny Joint) to the bracket mount hole using the 9/16" Grade 8 bolt.
• Set the track bar length with the vehicle at ride height and the front axle centered under the vehicle.
• Stock pitman arm is compatible at 3–6" of lift — no drop pitman arm required at this lift range.
• Torque all hardware to specification at ride height.
• Verify front axle centering and have the front alignment checked after installation.

Wheel & Tire Fitment

Compatible with standard XJ and ZJ wheel and tire combinations at 3–6" of lift. Front track bar bracket position affects front axle centering and tire clearance — verify equal clearance on both sides after installation.

Engineering Question: Do you already have a Clayton adjustable front track bar with a 2.5" forged Johnny Joint, or do you need the complete kit? If you need the complete front track bar with OE-height bracket, order COR-4500502 instead. Also confirm your lift height is 3–6" — for 6–8" of lift, the drop bracket COR-4500410 is the correct choice and a drop pitman arm will be required. After installation, have the front alignment checked.
