Clayton Off Road Front Track Bar Drop Bracket for 1984-2001 Jeep Cherokee XJ and 1993-1998 Grand Cherokee ZJ

Is This for You?

• You're running 6–8" of lift on your XJ or ZJ and already have a Clayton adjustable front track bar — you need the drop bracket only to lower the frame-side track bar mount and correct track bar angles at your lift height — this is the drop bracket sold separately, not a complete track bar kit. If you need the complete front track bar with drop bracket as a kit, see COR-4500512. This bracket lowers the frame-side front track bar mount, reducing the track bar angle at 6–8" of lift on XJ and ZJ builds.

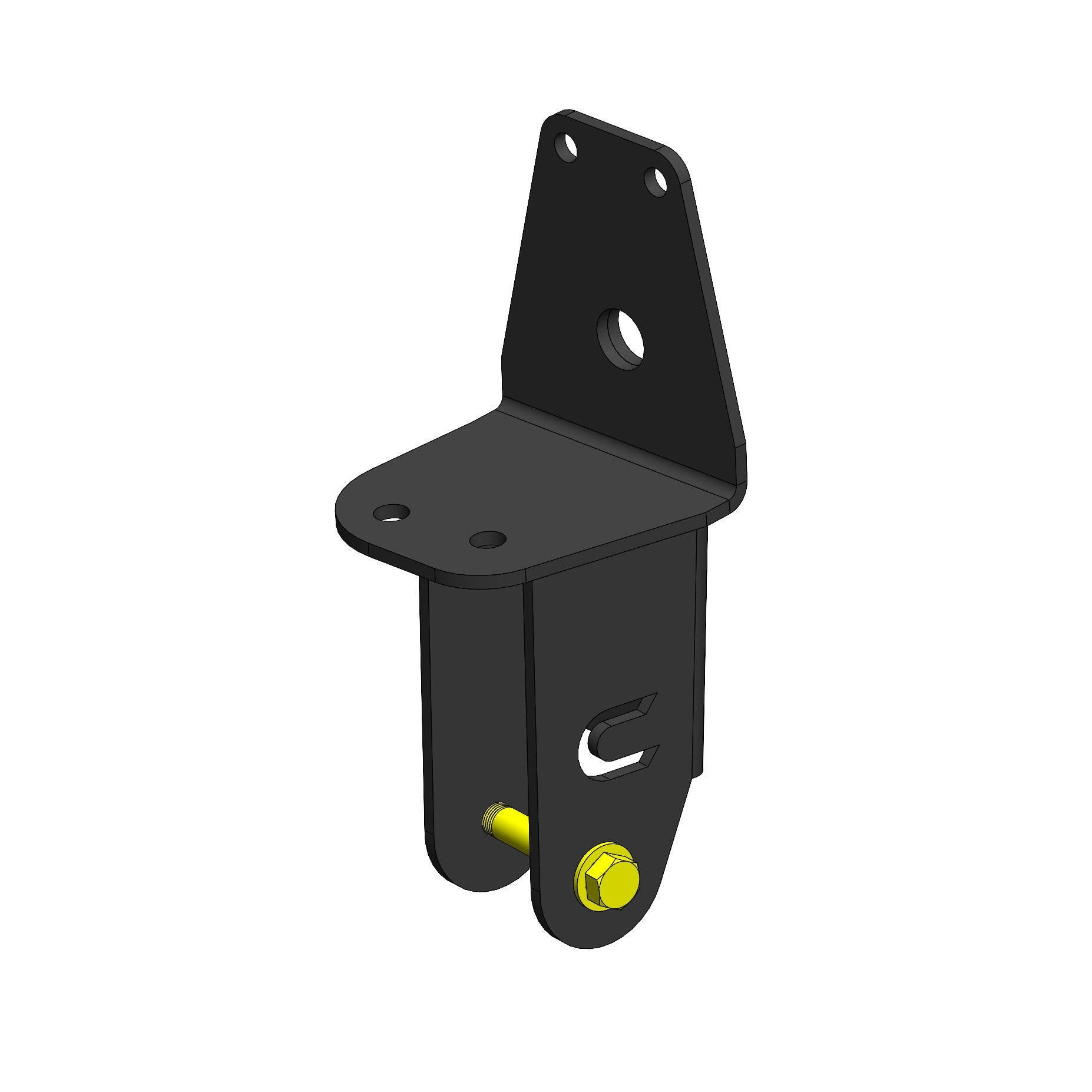

• You want a 1/4" CNC laser-cut and bent steel double-shear drop bracket designed to accept a 2.5" Currie Johnny Joint with a 9/16" bolt — the bracket is machined to accept a 2.5" Currie Johnny Joint (2-5/8" inside diameter, 9/16" bolt). The double-shear design puts the track bar bolt in double shear, eliminating the risk of over-flexing the joint under lateral load. Bolts to the OEM frame location — welding is recommended for additional strength but not mandatory.
• You understand this bracket ships bare metal and requires finishing after installation — this bracket ships bare metal (uncoated). Bolt to the OEM frame location, weld for additional strength if desired, then prime and paint or apply your preferred finish. For the complete front track bar kit with drop bracket (includes the adjustable track bar), see COR-4500512.

The Result

• Front track bar drop bracket only — 1/4" CNC laser-cut and bent steel, double-shear design, 6–8" lift. Lowers the frame-side front track bar mount to correct track bar angle at lift height on XJ and ZJ builds. Ships bare metal.
• Designed for 2.5" Currie Johnny Joint — 2-5/8" inside diameter, 9/16" bolt. Double-shear design puts track bar bolt in double shear, eliminating joint over-flex under lateral load.
• Bolts to OEM frame location. Welding recommended for additional strength. Ships bare metal — finish after installation. Made in the USA. For the complete kit, see COR-4500512.

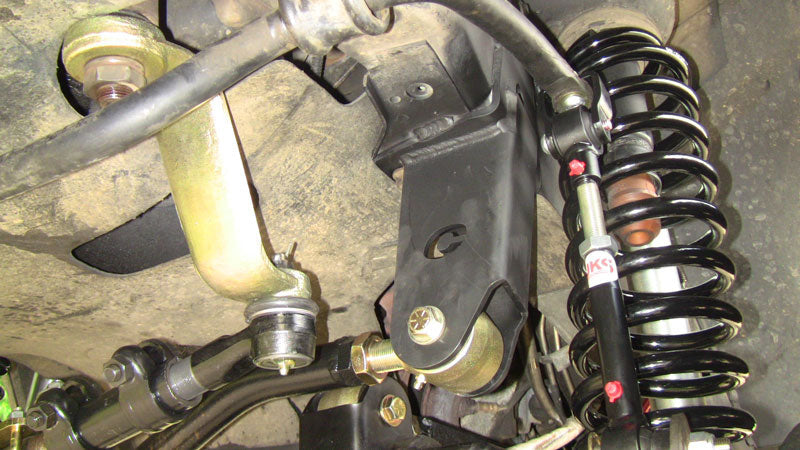

The COR-4500410 is Clayton Off Road's front track bar drop bracket for the 1984–2001 Jeep Cherokee XJ and 1993–1998 Jeep Grand Cherokee ZJ, sold as a standalone bracket for customers who already have a Clayton adjustable front track bar and need the drop bracket separately. At 6–8" of lift, the factory front track bar angle becomes steep enough that a drop bracket is required to correct the geometry. This bracket is CNC laser-cut and bent from 1/4" steel and bolts to the OEM frame track bar mount location. Welding is recommended for additional strength but is not mandatory — the bracket can be used in a bolt-only configuration. The double-shear design puts the track bar bolt in double shear, eliminating the risk of over-flexing the joint under lateral load. The bracket is designed to accept a 2.5" Currie Johnny Joint with a 2-5/8" inside diameter and a 9/16" bolt. This bracket ships bare metal — prime, paint, or apply your preferred finish after installation. For the complete front track bar kit with drop bracket (includes the adjustable track bar), see COR-4500512. For the TJ/LJ drop bracket (5/16" steel, 4–7" lift, full weld required), see COR-4500420. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 1984–2001 Jeep Cherokee XJ — All Trims — Front Track Bar Drop Bracket, 6" to 8" Lift
✅ Fits 1993–1998 Jeep Grand Cherokee ZJ — All Trims — Front Track Bar Drop Bracket, 6" to 8" Lift
❌ Does NOT fit Jeep Grand Cherokee WJ (1999–2004) — different front track bar geometry
❌ Does NOT fit Jeep Wrangler TJ/LJ (1997–2006) — TJ/LJ drop bracket is COR-4500420 (5/16" steel, 4–7" lift)
❌ Does NOT fit Jeep Wrangler JK/JL/JT — different front suspension architecture
❌ Not recommended for lifts below 6" — for 3–6" of lift on XJ/ZJ, use the OE-height bracket version COR-4500502

Installation & Fabrication Notes

• Bolt the bracket to the OEM frame front track bar mount location using the factory bolt holes.
• Verify bracket position and angle per Clayton's installation instructions before finalizing.
• Welding is recommended for additional strength — add welds after confirming alignment if desired.
• Apply primer, paint, or your preferred finish to the bare metal bracket after installation and before extended use.
• Install the Clayton adjustable front track bar (with 2.5" Currie Johnny Joint) to the drop bracket mount hole using the 9/16" bolt.
• Set the track bar length with the vehicle at ride height and the front axle centered under the vehicle.
• Torque all hardware to specification at ride height.
• Verify front axle centering and have the front alignment checked after installation.
• A drop pitman arm is recommended when running 6–8" of lift — see COR-4500512 kit notes for guidance.

Wheel & Tire Fitment

Compatible with standard XJ and ZJ wheel and tire combinations at 6–8" of lift. Front track bar drop bracket position affects front axle centering and tire clearance — verify equal clearance on both sides after installation.

Engineering Question: Do you already have a Clayton adjustable front track bar with a 2.5" Currie Johnny Joint, or do you need the complete kit? If you need the complete front track bar with drop bracket, order COR-4500512 instead. Also confirm your lift height is 6–8" — for 3–6" of lift, the OE-height bracket COR-4500502 is the correct choice. After installation, have the front alignment checked and consider adding a drop pitman arm at this lift height.
