Clayton Off Road Front Long Arm Upgrade Kit for 2004-2006 Jeep Wrangler LJ Unlimited

Is This for You?

• You're running 4–8" of lift on your LJ Unlimited and your front short arm geometry is causing harsh ride quality, limited articulation, and accelerated wear on your front control arm bushings — this front-half long arm upgrade kit replaces the short arm geometry with longer control arms and front frame brackets, reducing front suspension angles at lift height for a smoother ride and greater articulation. No welding required.
• You want Currie Johnny Joints at the front frame ends and GIIRO dual-durometer bushings at the axle ends — the Currie Johnny Joint provides 40° of unrestricted movement with Tough 88 urethane casing for shock absorption and NVH isolation; the GIIRO bushing at the axle end is maintenance-free, self-centering, and NVH-isolating for on-road comfort.
• You're upgrading from a short arm lift or replacing a failing front long arm system and want a complete front-half kit with everything included — this kit includes the front frame brackets, upper and lower adjustable control arms, and all hardware. No welding required. For the Pro Series 3-link front upgrade, see COR-4807013.

The Result

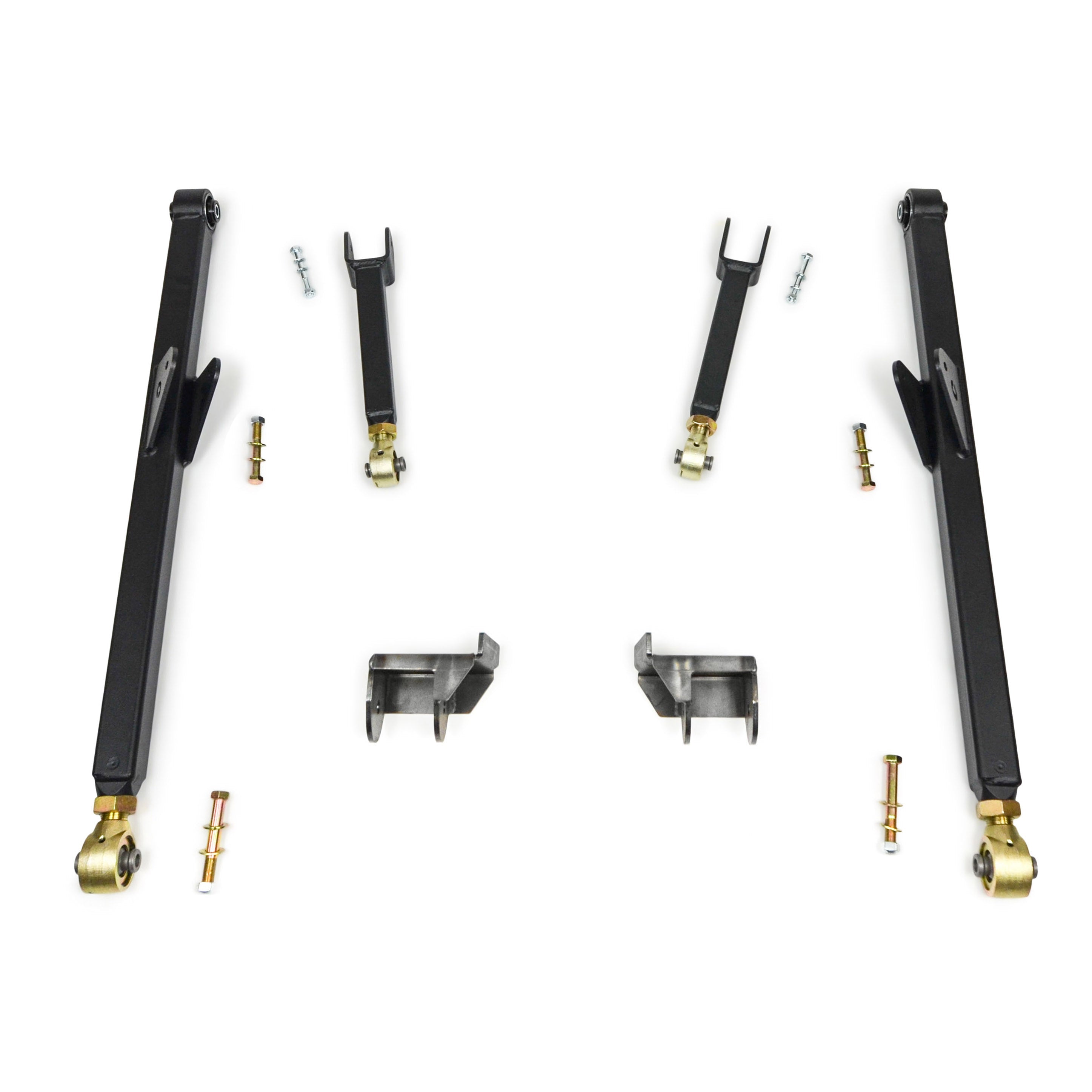

• Complete front-half long arm upgrade kit — front frame brackets, upper and lower adjustable control arms, and hardware. Full front geometry conversion for LJ builds running 4–8" of lift. No welding required.
• Currie Johnny Joints at frame ends (40°, Tough 88 urethane) + GIIRO dual-durometer bushings at axle ends — maintenance-free, NVH-isolating, self-centering. Lifetime warranty on all control arms.
• Designed for 4–8" of lift. For the Pro Series 3-link front conversion, see COR-4807013.

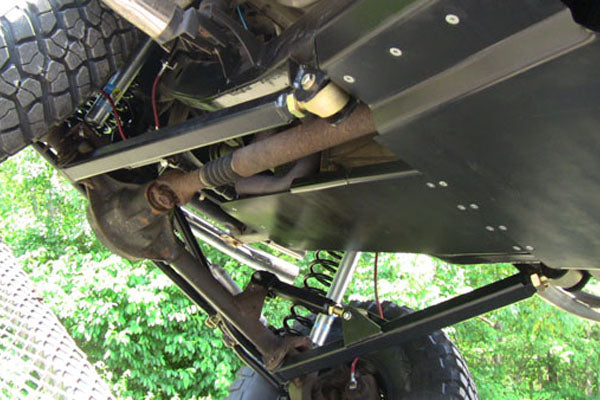

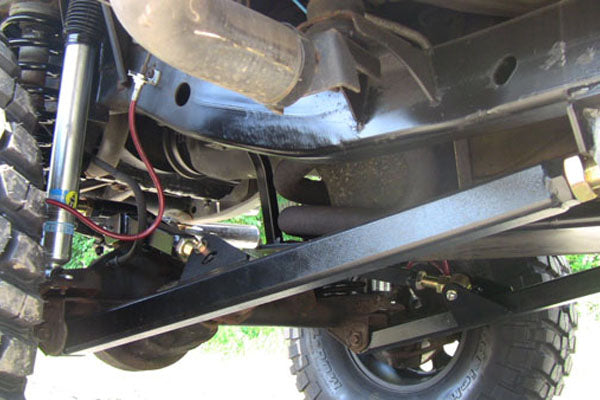

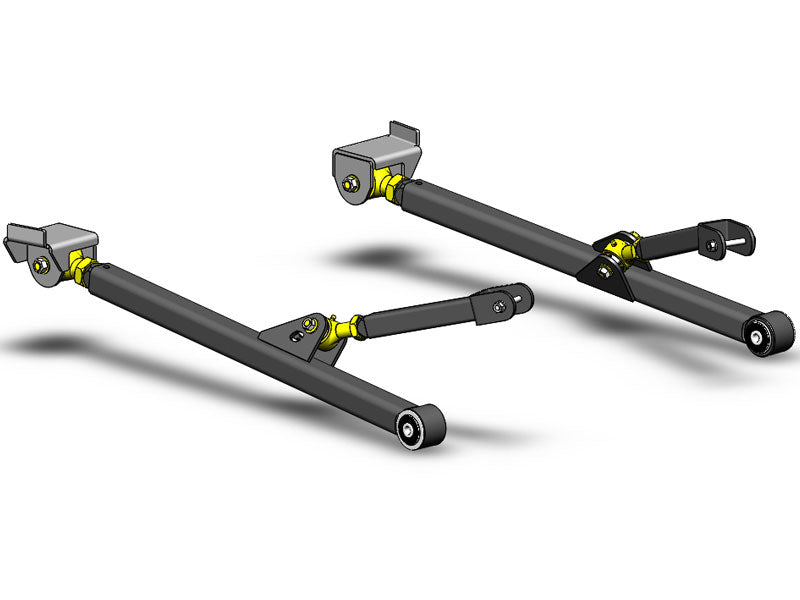

The COR-4807002 is Clayton Off Road's front long arm upgrade kit for the 2004–2006 Jeep Wrangler LJ Unlimited, designed for builds running 4–8" of lift. This is a front-half kit — it includes the front frame brackets, upper and lower adjustable control arms, and all hardware. The longer arm geometry reduces front suspension angles at lift height compared to short arm geometry, resulting in a smoother on-road ride, greater off-road articulation, and reduced wear on related components. The frame-end joints are Currie Johnny Joints — 40° of unrestricted movement with Tough 88 urethane casing for shock absorption and NVH isolation that heim joints cannot provide. The axle-end joints are GIIRO dual-durometer bushings — maintenance-free, self-centering, and NVH-isolating. The upper and lower control arms are adjustable for precise geometry tuning. No welding required. For the Pro Series 3-link front upgrade kit (which adds a single upper 3-link arm with weld-on mounts for maximum articulation), see COR-4807013. Lifetime warranty on all control arms.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 2004–2006 Jeep Wrangler LJ Unlimited — All Trims — Front Long Arm Upgrade Kit, 4" to 8" Lift
❌ Does NOT fit Jeep Wrangler TJ (1997–2006, 2-Door) — LJ Unlimited only
❌ Does NOT fit Jeep Wrangler JK (2007–2018) — different front suspension architecture
❌ Does NOT fit Jeep Wrangler JL (2018–2026) — different front suspension architecture
❌ Not recommended for lifts below 4" or above 8" — verify geometry correction requirements for your specific lift height

Installation & Fabrication Notes

• No welding required for this front long arm upgrade kit.
• Install the front frame brackets in the factory front control arm frame mount locations.
• Install the upper and lower adjustable control arms and set initial length per Clayton's geometry specifications for your lift height.
• Set caster and pinion angle with the vehicle at ride height after full installation.
• Front alignment (caster, toe) must be verified after installation — do not drive without alignment after a long arm conversion.
• Torque all control arm hardware at ride height, not at full droop or compression.
• Verify front driveshaft angle and U-joint operating angles after installation — the longer arm geometry changes the caster angle and may affect driveshaft operating angles.
• If upgrading to a 3-link front geometry at the same time, install COR-4807013 components before final alignment.

Wheel & Tire Fitment

Compatible with standard LJ wheel and tire combinations at 4–8" of lift. Front long arm geometry affects suspension travel and tire clearance — verify clearance at full droop and full compression with your specific tire size after installation.

Engineering Question: What is your current lift height on the LJ? This kit is designed for 4–8" of lift — if you're running less than 4", the long arm geometry correction may not be necessary. Also confirm your vehicle is a 2004–2006 LJ Unlimited (4-door, long wheelbase) — this kit does not fit the standard 2-door TJ or any JK/JL platform. If you want to go further and convert to a 3-link front geometry, pair this kit with COR-4807013.
