Clayton Off Road 7075 Aluminum Heavy Duty Tie Rod Bar for 1999-2004 Jeep Grand Cherokee WJ

Is This for You?

• You're tired of bending or replacing the factory WJ tie rod and drag link on the trail and want a bolt-in upgrade that won't flex under load — this bar is machined from 1-3/8" solid 7075-T651 aluminum — the same alloy used in aerospace and high-load structural applications — and is significantly stiffer and stronger than the factory stamped steel tie rod.
• You want a 100% bolt-in replacement with no cutting, welding, or fabrication — unbolt the factory tie rod and drag link, bolt this bar in using the OE-style end links, and you're done. No bracket modifications, no knuckle drilling, no frame work required.
• You're upgrading your WJ steering system and need a tie rod that accepts an aftermarket steering stabilizer — the factory WJ steering stabilizer does not work with this bar. An upgraded tie rod stabilizer mount is required, and Clayton recommends a Fox or Bilstein steering stabilizer for this application. See related items for compatible stabilizer options.

The Result

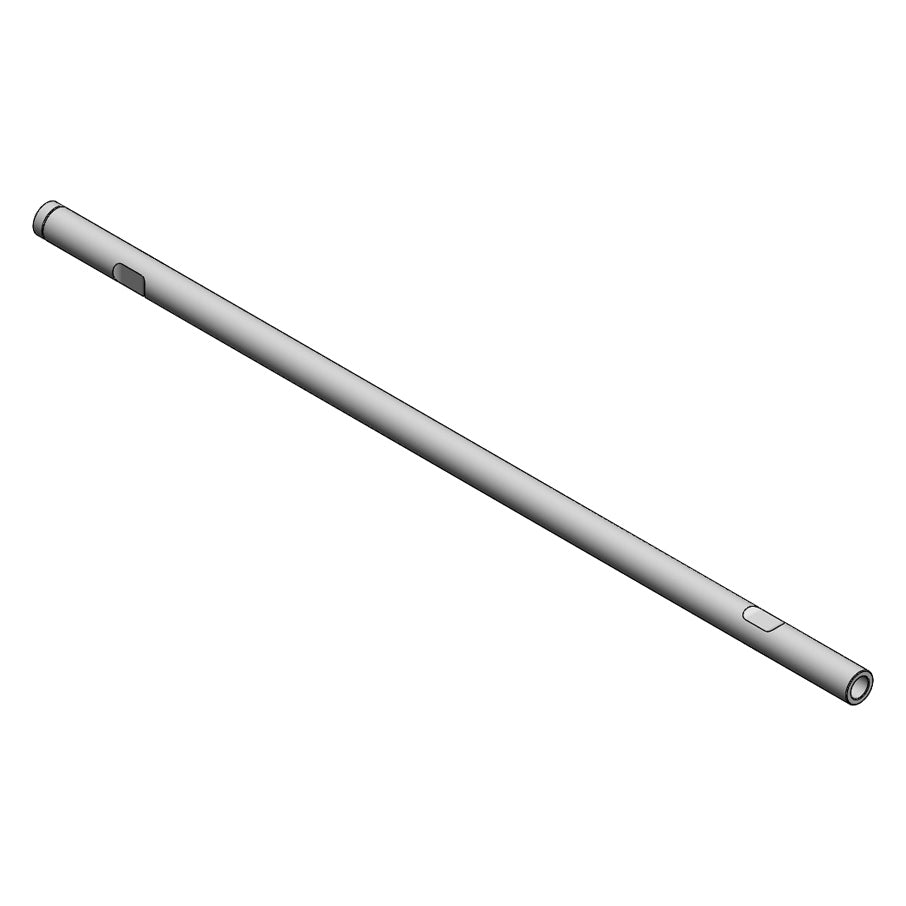

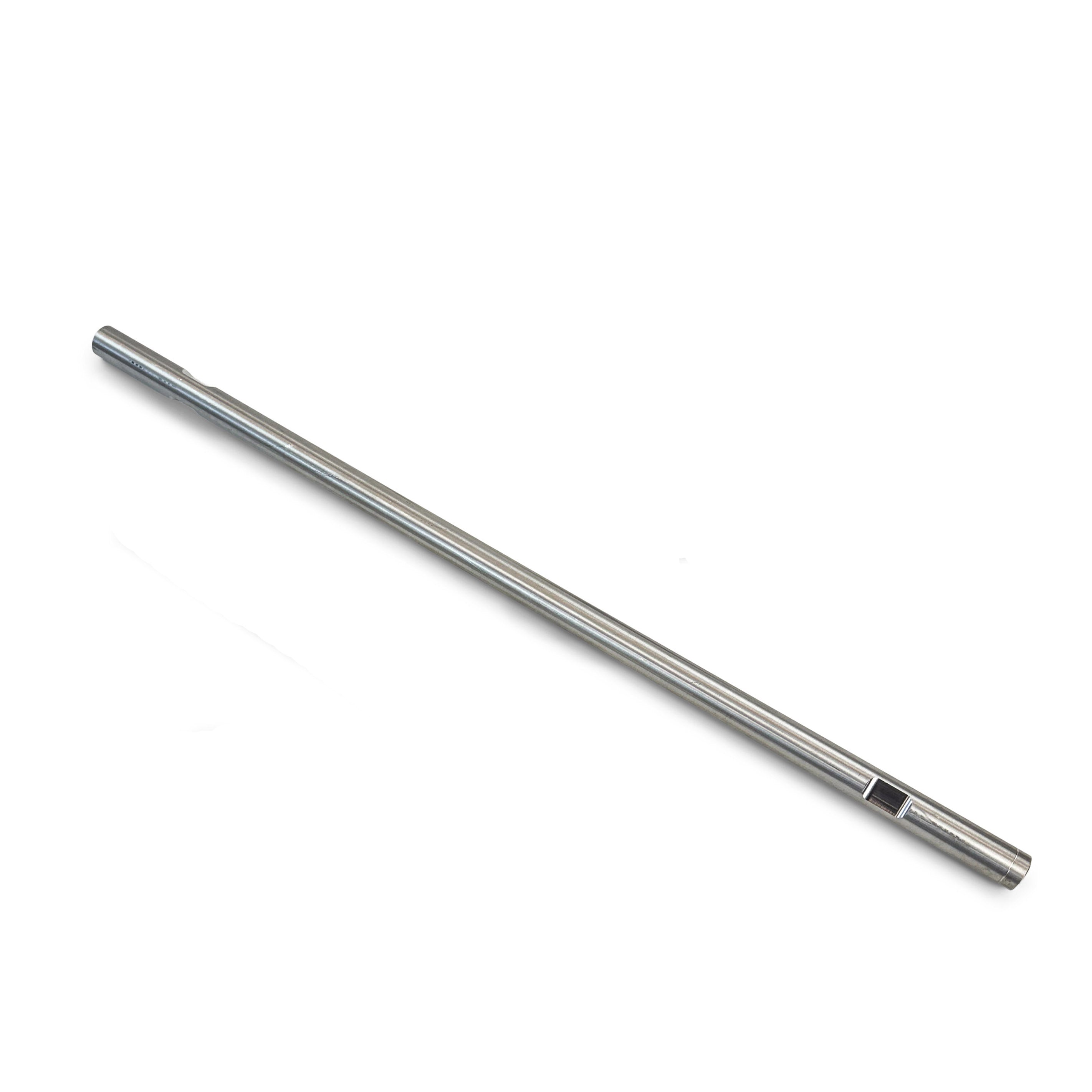

• 1-3/8" solid 7075-T651 aluminum bar — drilled and tapped for OE-style end links. Aerospace-grade alloy with higher tensile strength than factory stamped steel, resistant to the bending and flex that destroys OEM WJ tie rods under trail load.
• 100% bolt-in installation — direct replacement for the factory WJ tie rod and drag link using OE-style end links. No cutting, welding, or fabrication required.
• Requires upgraded steering stabilizer — factory WJ stabilizer is not compatible. Fox or Bilstein steering stabilizer recommended (see related items).

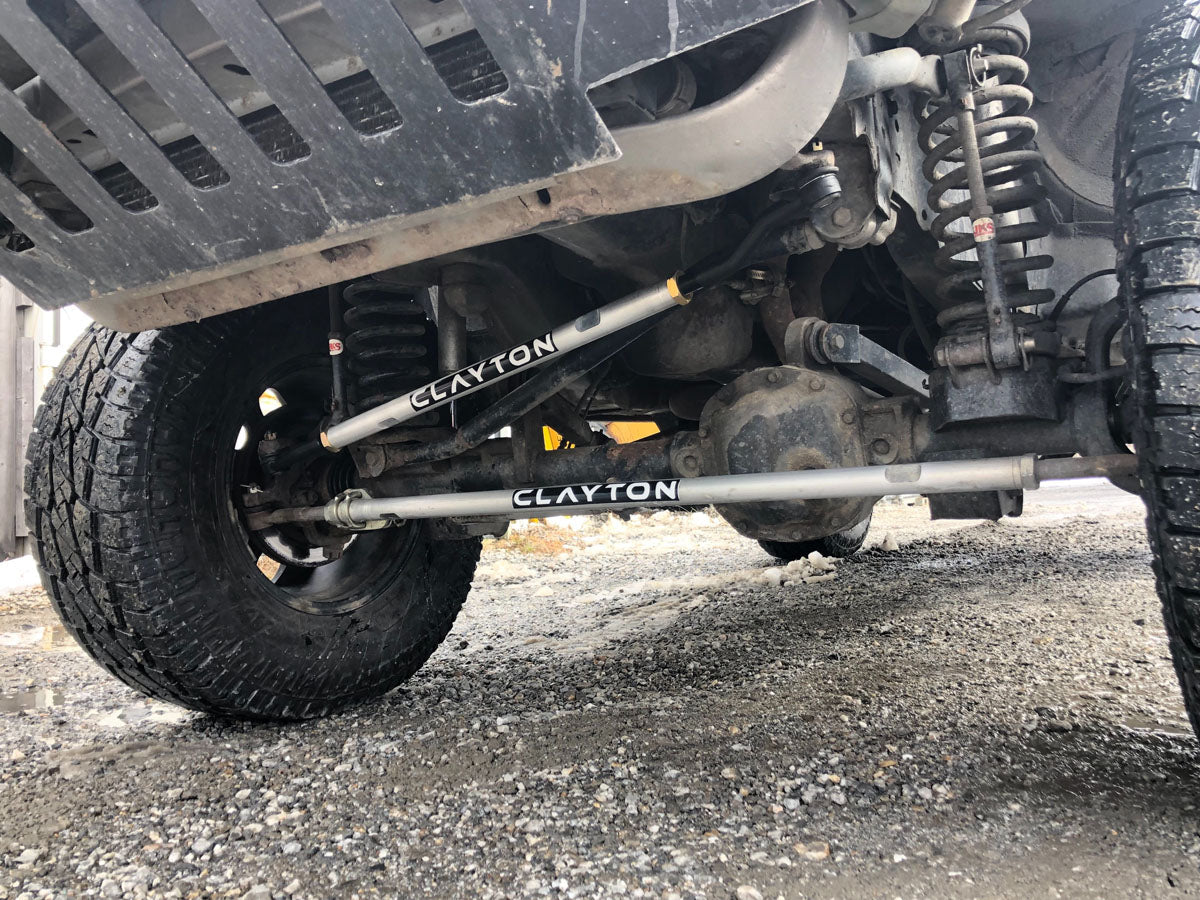

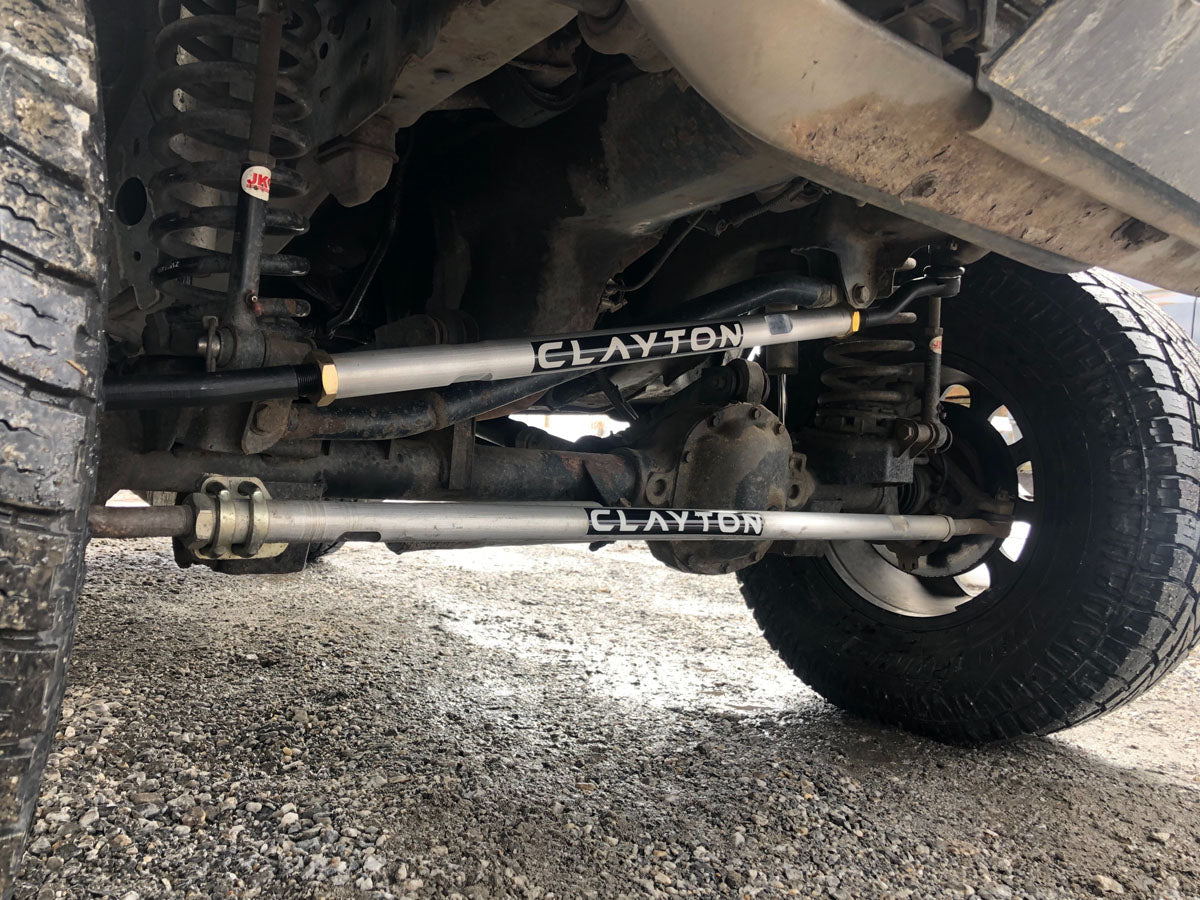

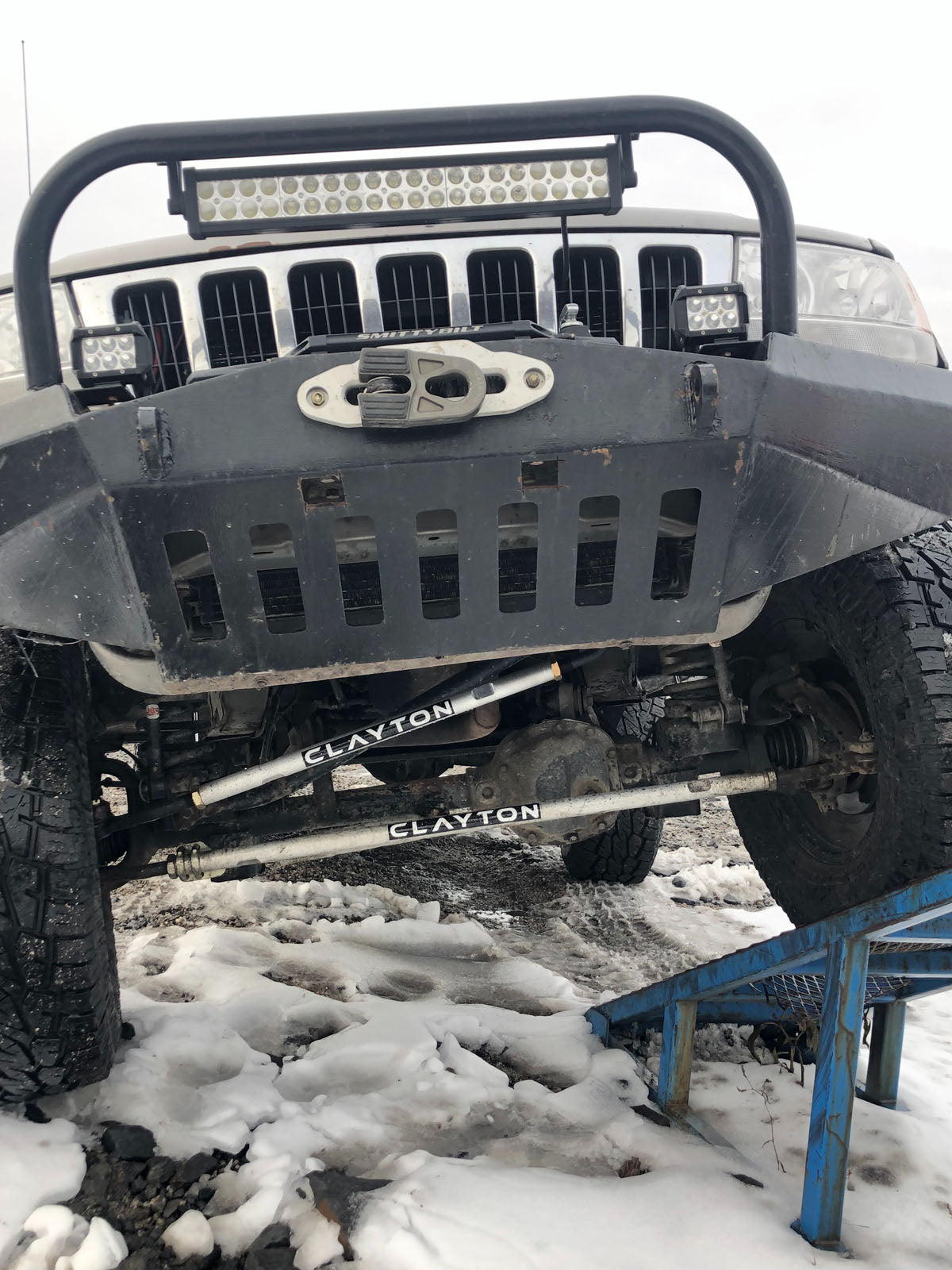

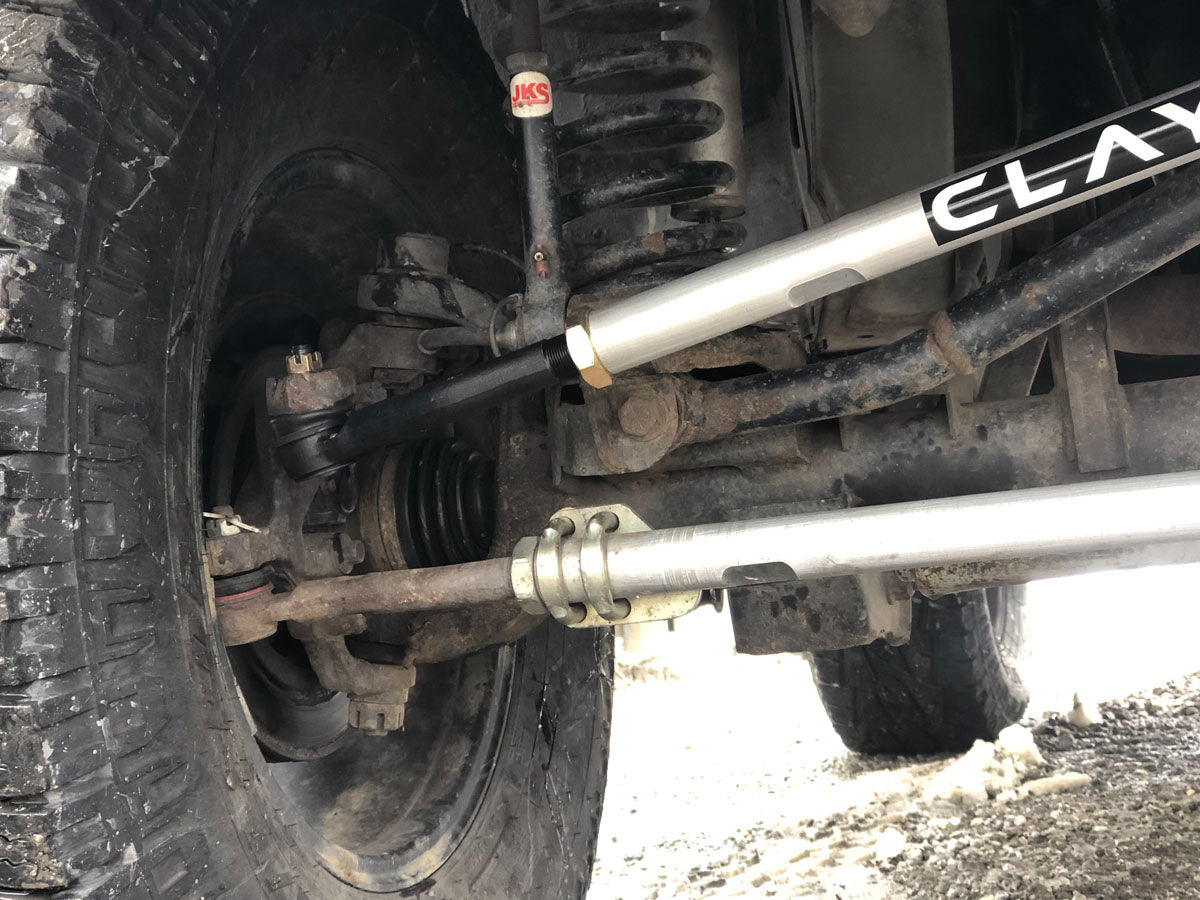

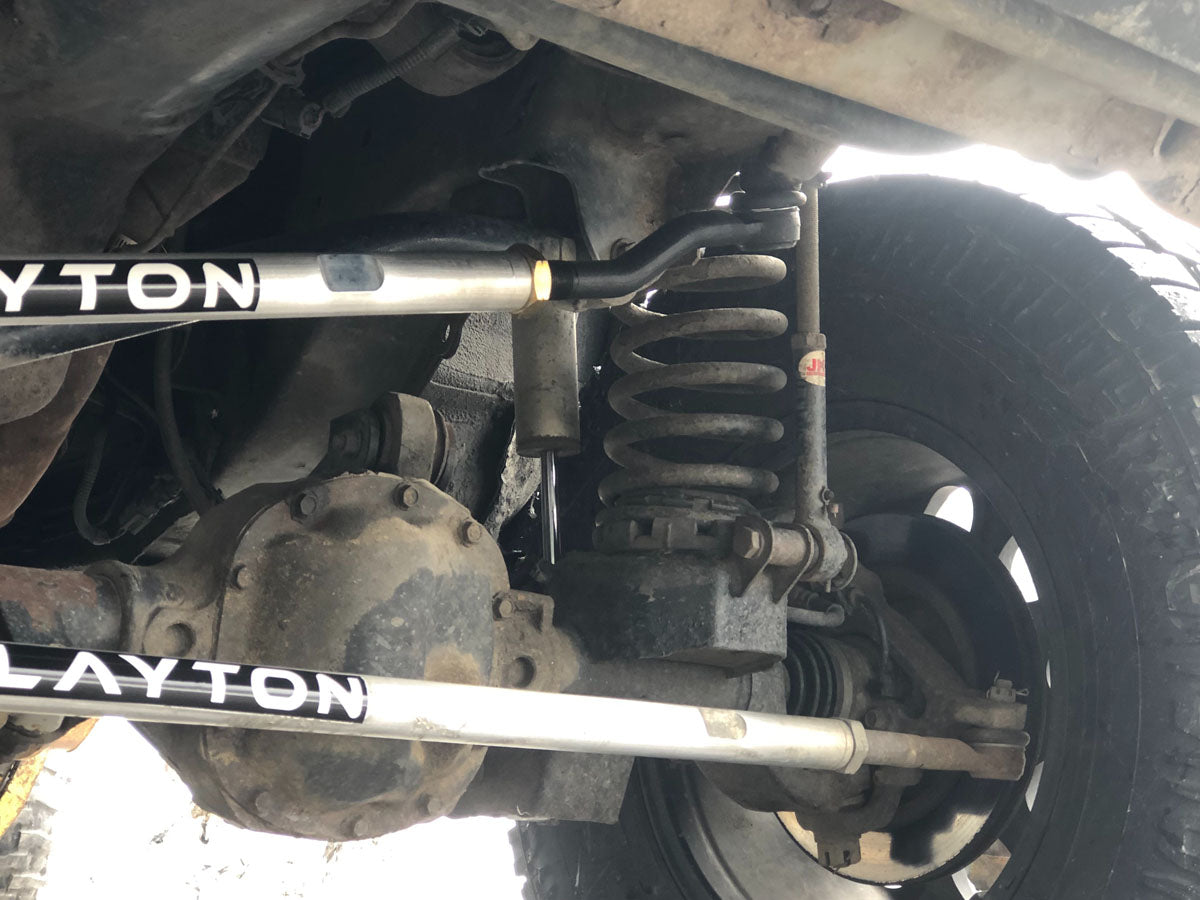

The COR-5206921 is Clayton Off Road's heavy-duty aluminum tie rod bar for the 1999–2004 Jeep Grand Cherokee WJ. The bar is machined from 1-3/8" solid 7075-T651 aluminum — a high-strength aerospace alloy with a tensile strength of approximately 83,000 PSI, significantly higher than the 6061-T6 aluminum used in many aftermarket bars and far stiffer than the factory stamped steel tie rod. The bar is drilled and tapped to accept OE-style end links, making installation a direct bolt-in replacement for the factory WJ tie rod and drag link without any bracket modification, knuckle drilling, or frame work. The 7075-T651 alloy's high strength-to-weight ratio provides the stiffness needed to resist the bending and flex that causes factory WJ tie rods to deform under trail load, while keeping weight lower than a comparable steel bar. Note: the factory WJ steering stabilizer mount is not compatible with this bar — an upgraded tie rod stabilizer mount is required, and Clayton recommends a Fox or Bilstein steering stabilizer for this application. See related items for compatible stabilizer and mount options. Sold as a single bar.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 1999–2004 Jeep Grand Cherokee WJ — All Trims — Heavy Duty Tie Rod Bar, Bolt-In
❌ Does NOT fit Jeep Grand Cherokee ZJ (1993–1998) — different front steering geometry
❌ Does NOT fit Jeep Grand Cherokee WK (2005–2010) — different front steering architecture
❌ Does NOT fit Jeep Wrangler TJ/LJ/JK/JL — different front steering geometry
❌ Factory WJ steering stabilizer NOT compatible — upgraded stabilizer mount and Fox or Bilstein stabilizer required

Installation & Fabrication Notes

• Remove the factory WJ tie rod and drag link — retain the OE-style end links if reusing, or install new end links as required.
• Install this bar in the factory tie rod and drag link position using OE-style end links — no cutting, welding, or bracket modification required.
• Do not reinstall the factory steering stabilizer — it is not compatible with this bar. Install an upgraded tie rod stabilizer mount and a Fox or Bilstein steering stabilizer before driving.
• Torque all end link hardware to OE specification at ride height.
• Front alignment (toe) must be verified after installation — the bar length is fixed; adjust toe using the end link thread engagement.
• Inspect end link thread engagement after installation — minimum thread engagement must be maintained for safe operation.

Wheel & Tire Fitment

Compatible with standard WJ wheel and tire combinations. Tie rod bar length is fixed — toe adjustment is made via end link thread engagement. Verify toe alignment after installation with your specific tire size.

Engineering Question: Have you sourced an upgraded steering stabilizer and tie rod stabilizer mount for this bar? The factory WJ steering stabilizer is not compatible — driving without a steering stabilizer on a lifted WJ with an aftermarket tie rod is not recommended. See the related items tab for Fox and Bilstein stabilizer options compatible with this bar.
