Clayton Off Road 7075 Aluminum Complete Steering System for 1999-2004 Jeep Grand Cherokee WJ

Is This for You?

• You want the complete WJ steering upgrade in one box — both bars, all end links, jam nuts, and the upgraded stabilizer mount, nothing to source separately — this is the flagship Clayton WJ steering system: complete bolt-in tie rod assembly, complete bolt-in drag link assembly, upgraded tie rod stabilizer mount, and jam nuts. Unbolt the factory steering, assemble the new links, and bolt in. No drilling, cutting, or welding required.
• You're starting fresh on WJ steering and want the highest-spec bolt-in system available — both bars are machined from 1-3/8" solid 7075-T651 aluminum with OE WJ 24mm-1.5 thread and LH/RH threading for adjustability. Compatible with stock height and lifted WJ builds.
• You already have upgraded end links and don't need new ones — if you've already upgraded your end links, order COR-5206902 (Upgrade Steering System) instead — it includes both bars, jam nuts, and the stabilizer mount and lets you reuse your existing end links at a lower price point.

The Result

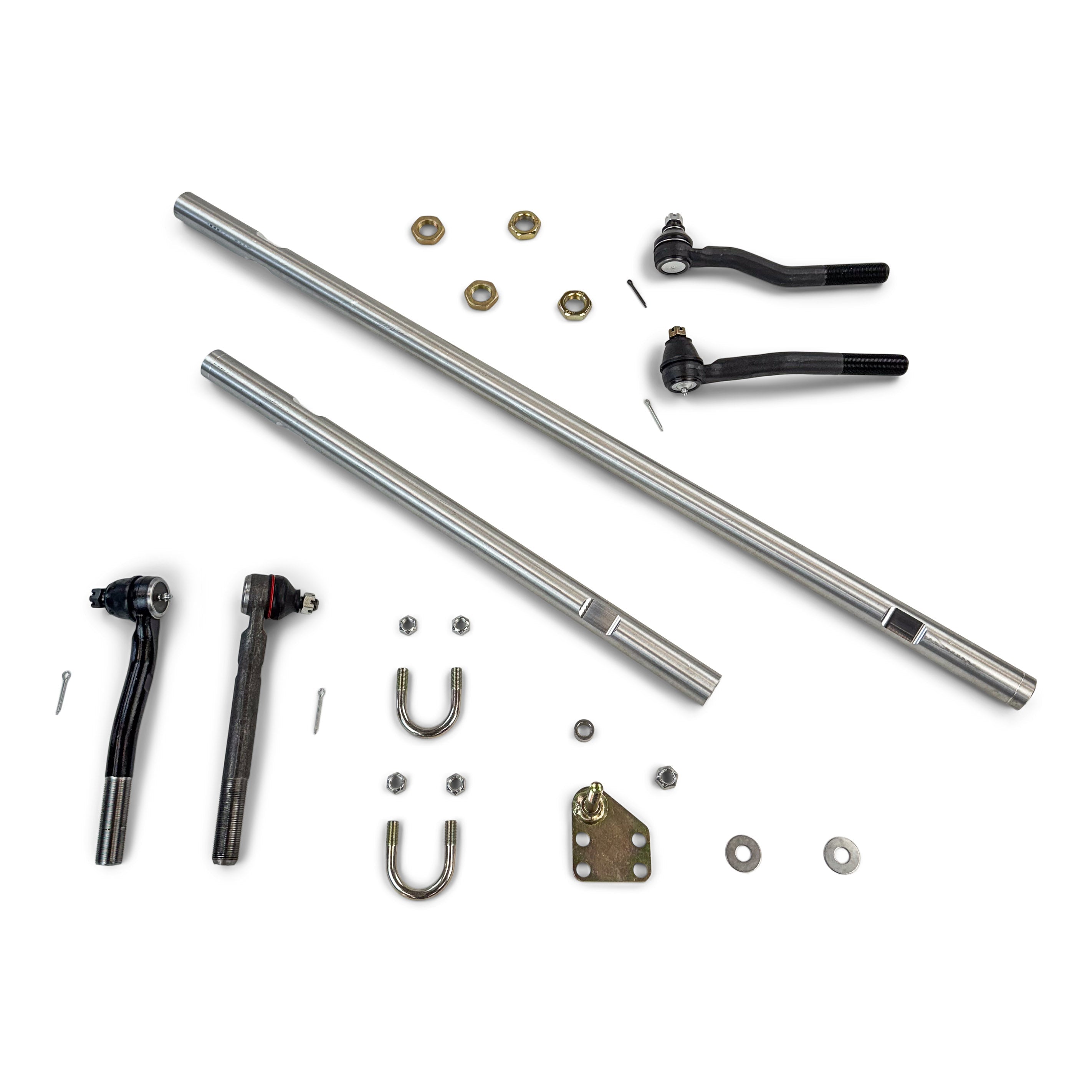

• Complete bolt-in WJ steering system — both 7075-T651 aluminum bars with OE-style end links pre-installed, upgraded tie rod stabilizer mount, and jam nuts. Everything in one kit, nothing to source separately.
• OE WJ 24mm-1.5 thread, LH/RH threaded on both bars — direct bolt-in replacement for factory tie rod and drag link with OE-style adjustability. No drilling, cutting, or welding required.
• Factory steering stabilizer NOT compatible — upgraded stabilizer mount included; Fox or Bilstein steering stabilizer required (see related items). Both non-greaseable ends noted below.

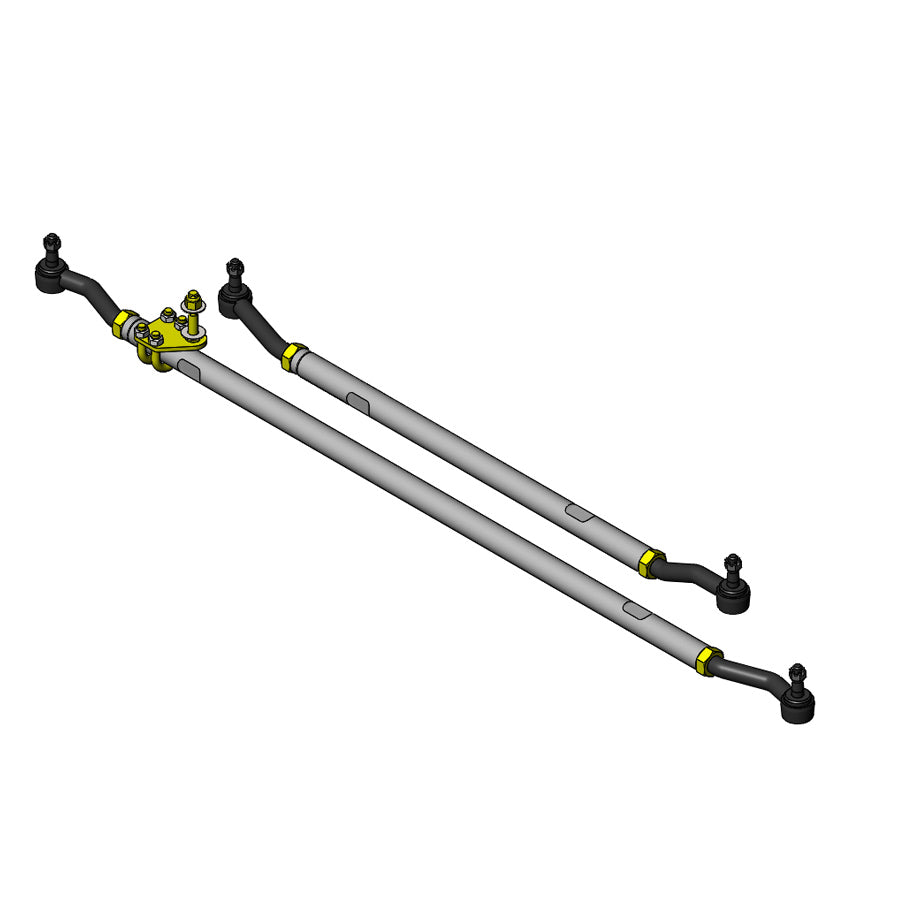

The COR-5206900 is Clayton Off Road's flagship complete steering system for the 1999–2004 Jeep Grand Cherokee WJ. This is the most complete option in the Clayton WJ steering product family — it includes the complete tie rod assembly (bar + end links), complete drag link assembly (bar + end links), upgraded tie rod stabilizer mount, and jam nuts. Both bars are machined from 1-3/8" solid 7075-T651 aluminum with OE WJ 24mm-1.5 thread pitch and LH/RH threading for length adjustability. Installation is 100% bolt-in: remove the factory tie rod and drag link, assemble the new links, and install in the factory positions. No drilling, cutting, or welding required. The upgraded tie rod stabilizer mount is included — the factory WJ steering stabilizer is not compatible with this system, and a Fox or Bilstein steering stabilizer is required before driving. Two end links in this system are non-greaseable sealed units: the pitman arm end (CRO-52088511) and the right knuckle end (CRO-52088870AA) — do not attempt to install grease fittings on these ends. Compatible with stock height and lifted WJ builds. If you've already upgraded your end links, order COR-5206902 (Upgrade Steering System) to reuse your existing ends. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 1999–2004 Jeep Grand Cherokee WJ — All Trims — Complete Steering System, Stock Height and Lifted
❌ Does NOT fit Jeep Grand Cherokee ZJ (1993–1998) — different front steering geometry and end link spec
❌ Does NOT fit Jeep Grand Cherokee WK (2005–2010) — different front steering architecture
❌ Does NOT fit Jeep Wrangler TJ/LJ/JK/JL — different front steering geometry
❌ Factory WJ steering stabilizer NOT compatible — Fox or Bilstein required before driving
❌ Already have upgraded end links? Order COR-5206902 instead

Installation & Fabrication Notes

• Remove the factory WJ tie rod and drag link assemblies.
• Assemble the new tie rod and drag link by threading the included end links onto the aluminum bars to the correct engagement depth — verify minimum thread engagement before installation.
• Install both assemblies in the factory tie rod and drag link positions — no drilling, cutting, or welding required.
• Install the included upgraded tie rod stabilizer mount.
• Do not reinstall the factory steering stabilizer — it is not compatible with this system. Install a Fox or Bilstein steering stabilizer using the included upgraded mount before driving.
• The pitman arm end (CRO-52088511) and right knuckle end (CRO-52088870AA) are non-greaseable — do not attempt to install grease fittings on these ends.
• Torque all end link and jam nut hardware to OE specification at ride height.
• Front alignment (toe, steering center) must be verified after installation.

Wheel & Tire Fitment

Compatible with standard WJ wheel and tire combinations at stock height and with a lift. Verify steering center and toe alignment after installation with your specific tire size.

Engineering Question: Have you already upgraded your WJ end links? If so, order COR-5206902 (Upgrade Steering System) instead — it includes both aluminum bars, jam nuts, and the stabilizer mount at a lower price point and lets you reuse your existing end links. Also confirm you have a Fox or Bilstein steering stabilizer ready — the factory WJ stabilizer is not compatible and the vehicle should not be driven without a steering stabilizer installed.
