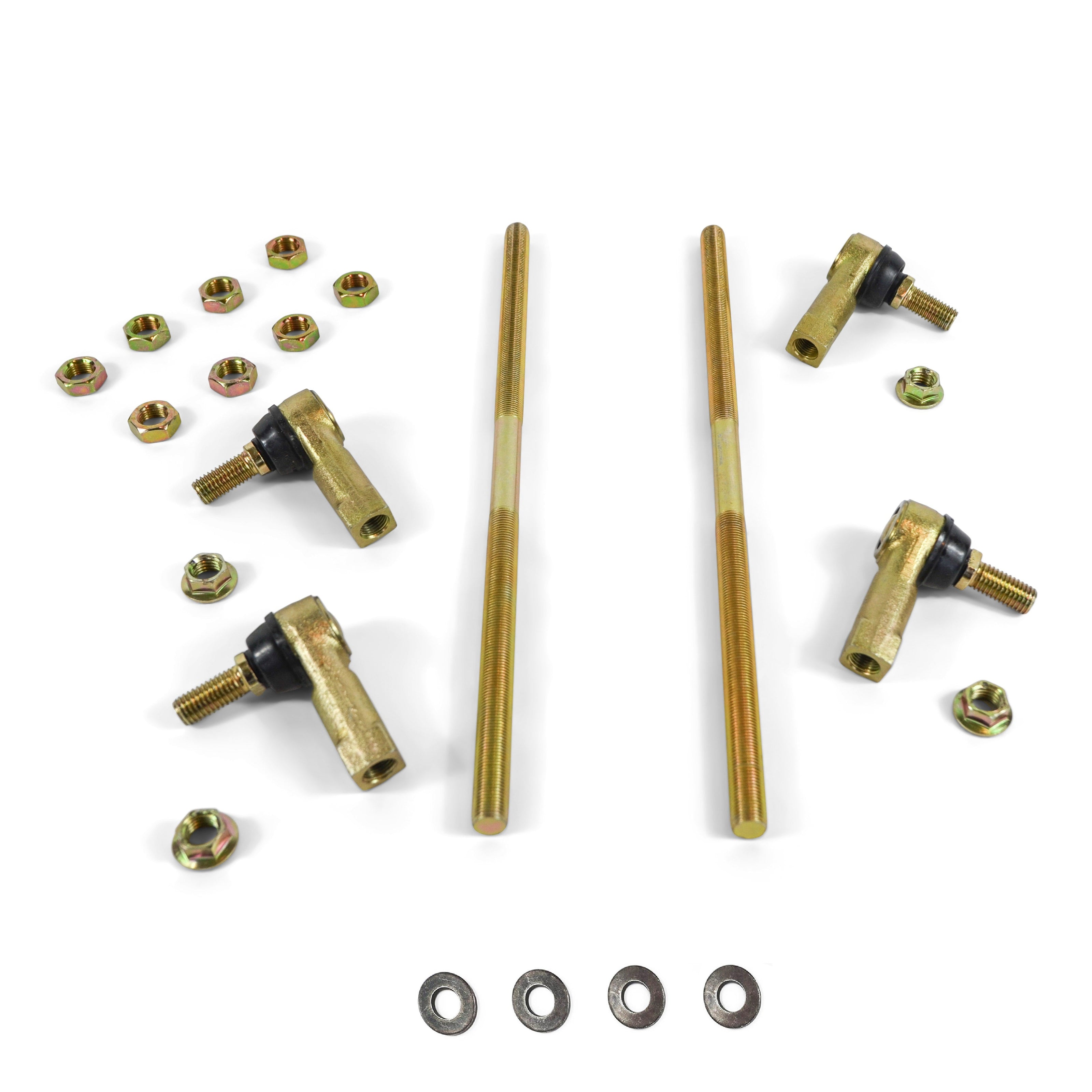

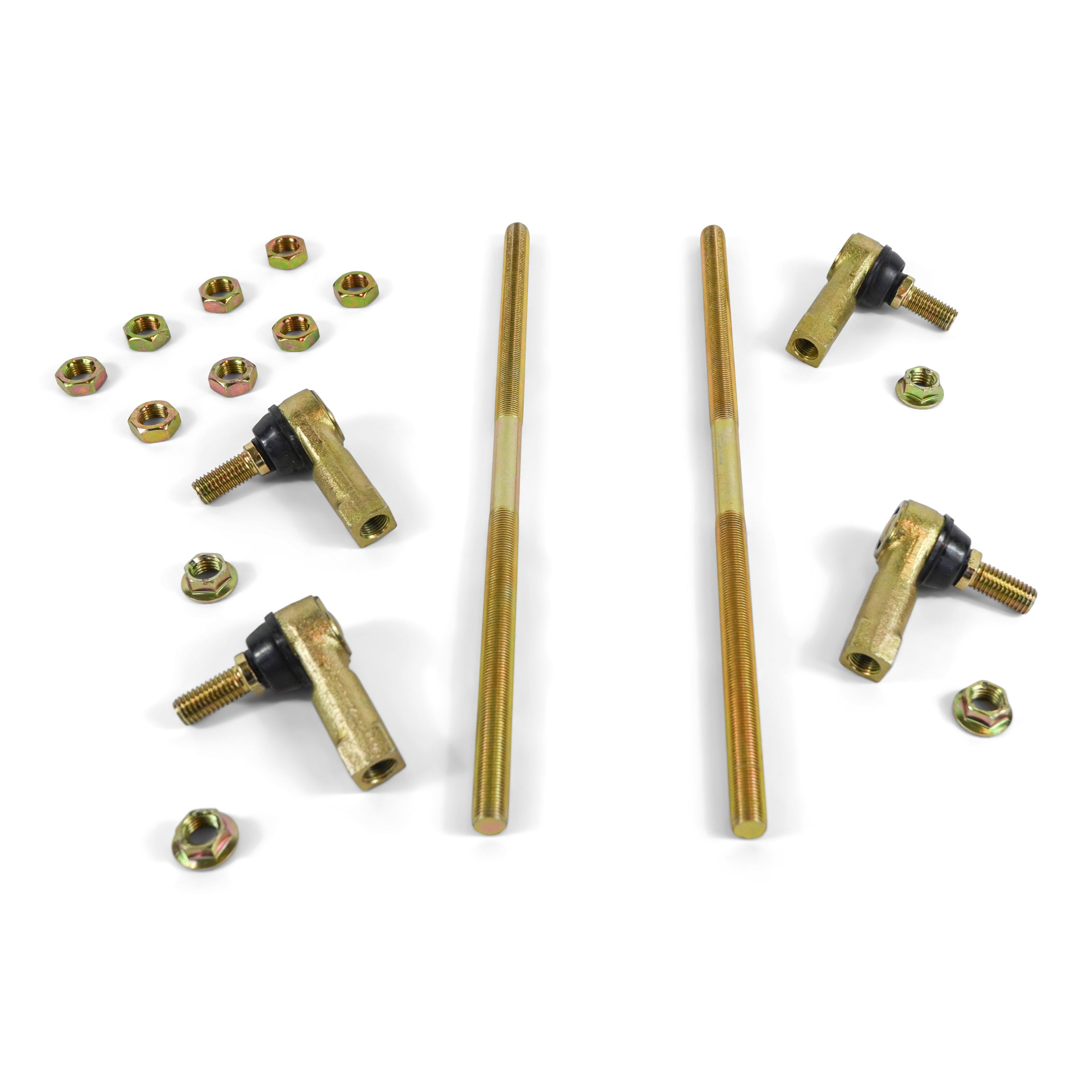

Clayton Off Road Adjustable Sway Bar End Links for 2007-2026 Jeep Wrangler JK Front/Rear and JL Rear

Is This for You?

• You're running a lift on your JL and the factory rear sway bar end links are binding or holding the sway bar at the wrong angle — these adjustable end links let you set the exact rear sway bar operating angle for your JL lift height, restoring proper geometry and eliminating the bind and premature wear that factory-length links cause on lifted builds. Note: JL front sway bar end links use a different SKU (COR-5109100).
• You're running a lift on your JK and need adjustable end links for the rear sway bar, the front sway bar, or both — this single SKU (COR-5109110) covers all three JK positions: rear sway bar end links and front sway bar end links. One part number, three applications on the JK platform.
• You want tension-free rod ends with 45° of misalignment capacity for reduced wear and maximum articulation — the adjustable rod end design provides tension-free articulation through the full suspension travel range, reducing wear on the sway bar, frame mount, and related components compared to factory rubber bushings at incorrect angles.

The Result

• Multi-application adjustable sway bar end links — JL rear (2018–2026), JK rear (2007–2018), and JK front (2007–2018). One SKU covers all three positions.

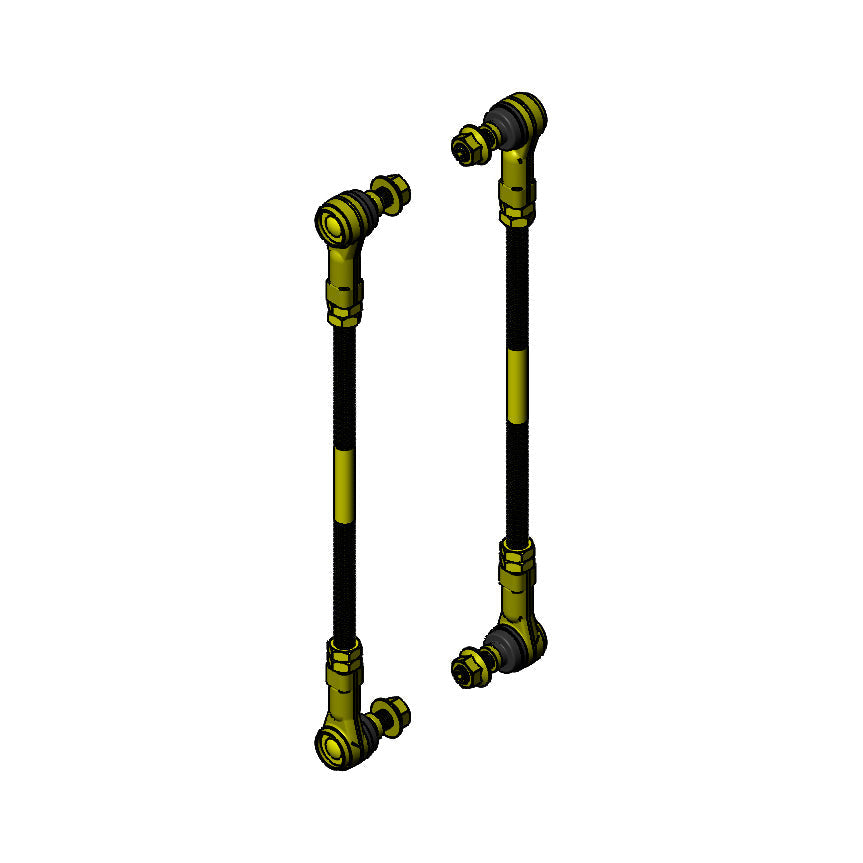

• Tension-free rod ends with 45° of mounting alignment — variable length design lets you dial in the correct sway bar operating angle for your specific lift height on any of the three applications.
• Zinc plated for corrosion resistance. Bolt-in installation. Sold as a pair. Compatible with Clayton 1.5", 2.5", 3.5", and 4.5" lift kits and other lift heights within the adjustment range.

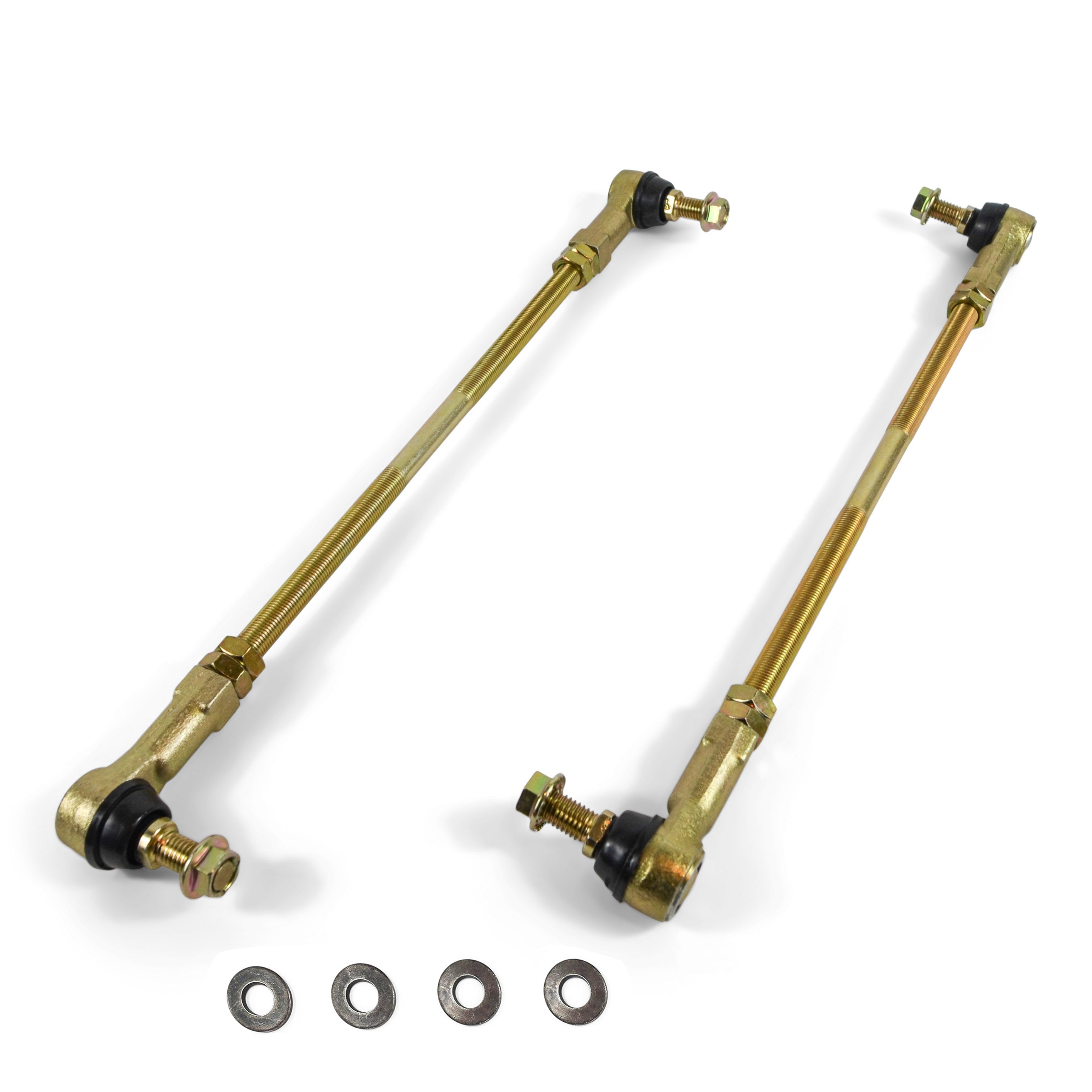

The COR-5109110 is Clayton Off Road's adjustable sway bar end link set covering three applications: the rear sway bar on the 2018–2026 Jeep Wrangler JL, and both the front and rear sway bar positions on the 2007–2018 Jeep Wrangler JK. The factory end links are a fixed length designed for stock ride height — when the vehicle is lifted, the end links are too short to allow the sway bar to reach its correct operating angle, causing bind, premature wear on the sway bar bushings and frame mounts, and reduced suspension travel. These adjustable end links correct the geometry by allowing the length to be set precisely for the installed lift height. The rod ends provide tension-free articulation with 45° of mounting alignment capacity, reducing wear on the sway bar, frame mount, and related components. Zinc plated for corrosion resistance. Bolt-in installation. Sold as a pair. Compatible with Clayton 1.5", 2.5", 3.5", and 4.5" lift kits and other lift heights within the adjustment range. Note: JL front sway bar end links use a separate SKU — COR-5109100.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 2018–2026 Jeep Wrangler JL (2-Door and 4-Door) — Rear Sway Bar End Links Only
✅ Fits 2007–2018 Jeep Wrangler JK (2-Door and 4-Door) — Rear Sway Bar End Links
✅ Fits 2007–2018 Jeep Wrangler JK (2-Door and 4-Door) — Front Sway Bar End Links
❌ Does NOT fit JL front sway bar position — JL front requires COR-5109100
❌ Does NOT fit Jeep Gladiator JT — JT rear sway bar end links use COR-5110110
❌ Does NOT fit Jeep Wrangler TJ/LJ (1997–2006) — different sway bar end link geometry

Installation & Fabrication Notes

• Identify your application before installation: JL rear, JK rear, or JK front — the installation position determines the correct length setting.
• Remove the factory sway bar end links from both the frame/sway bar mount and the sway bar itself.

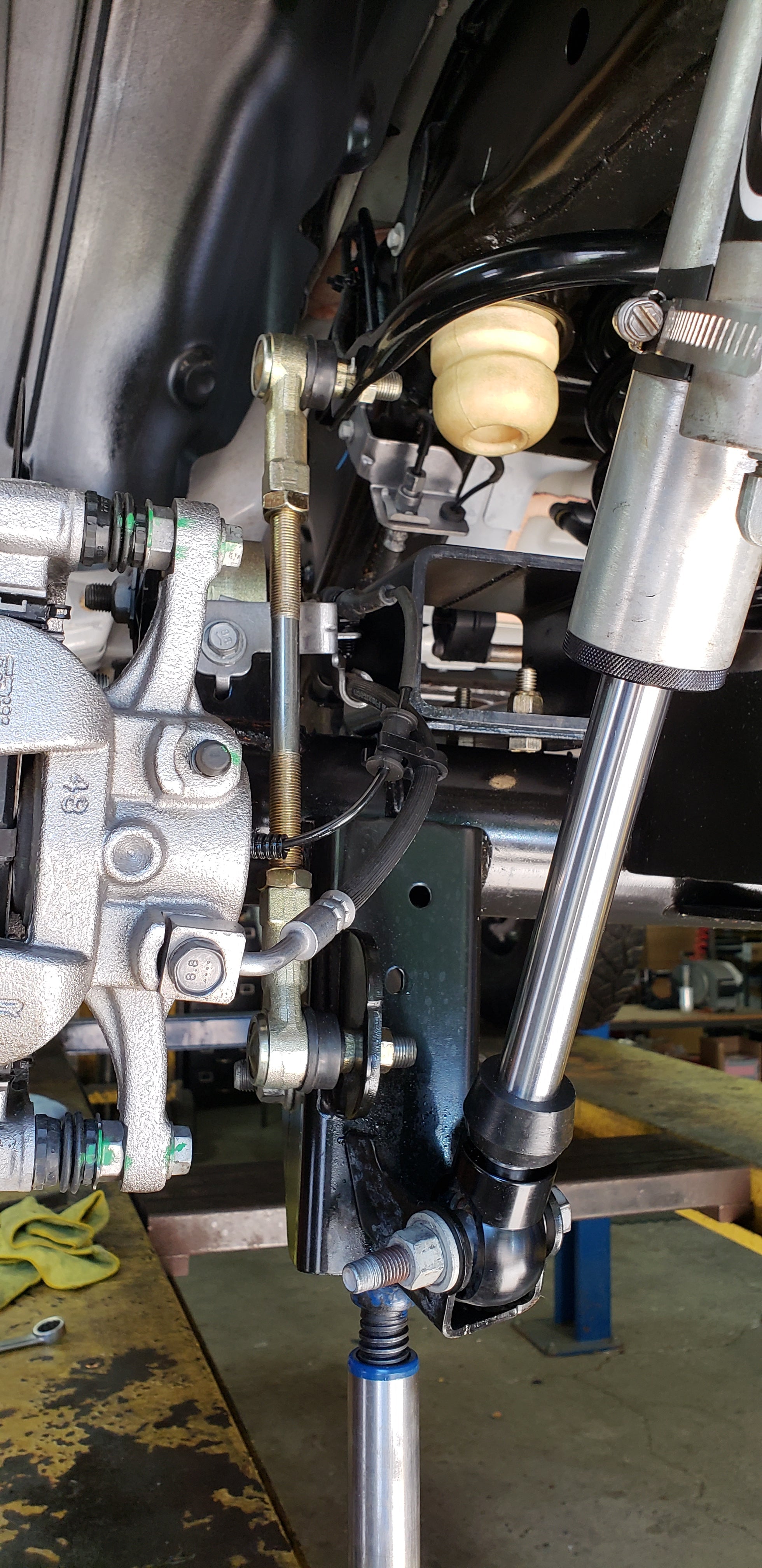

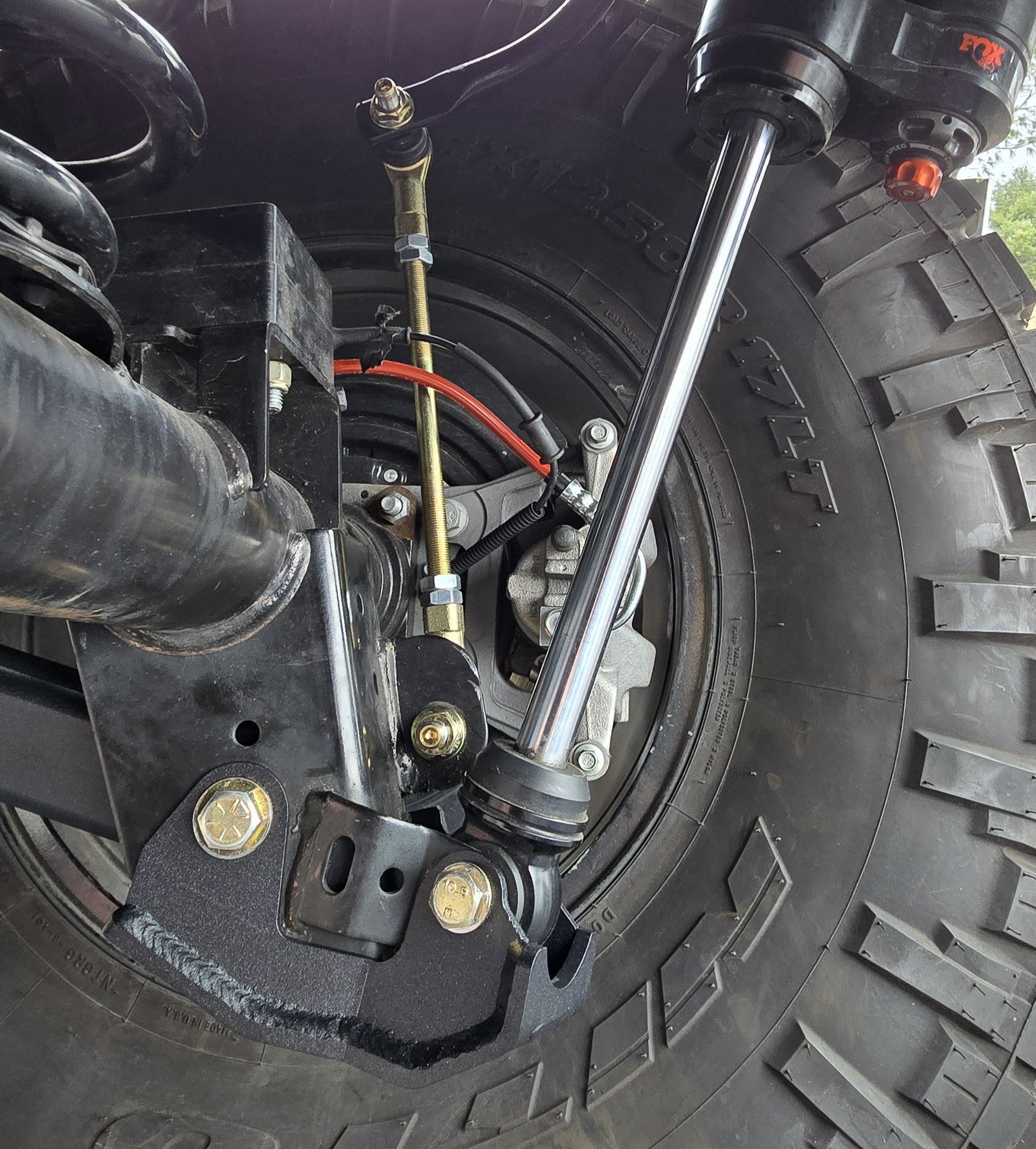

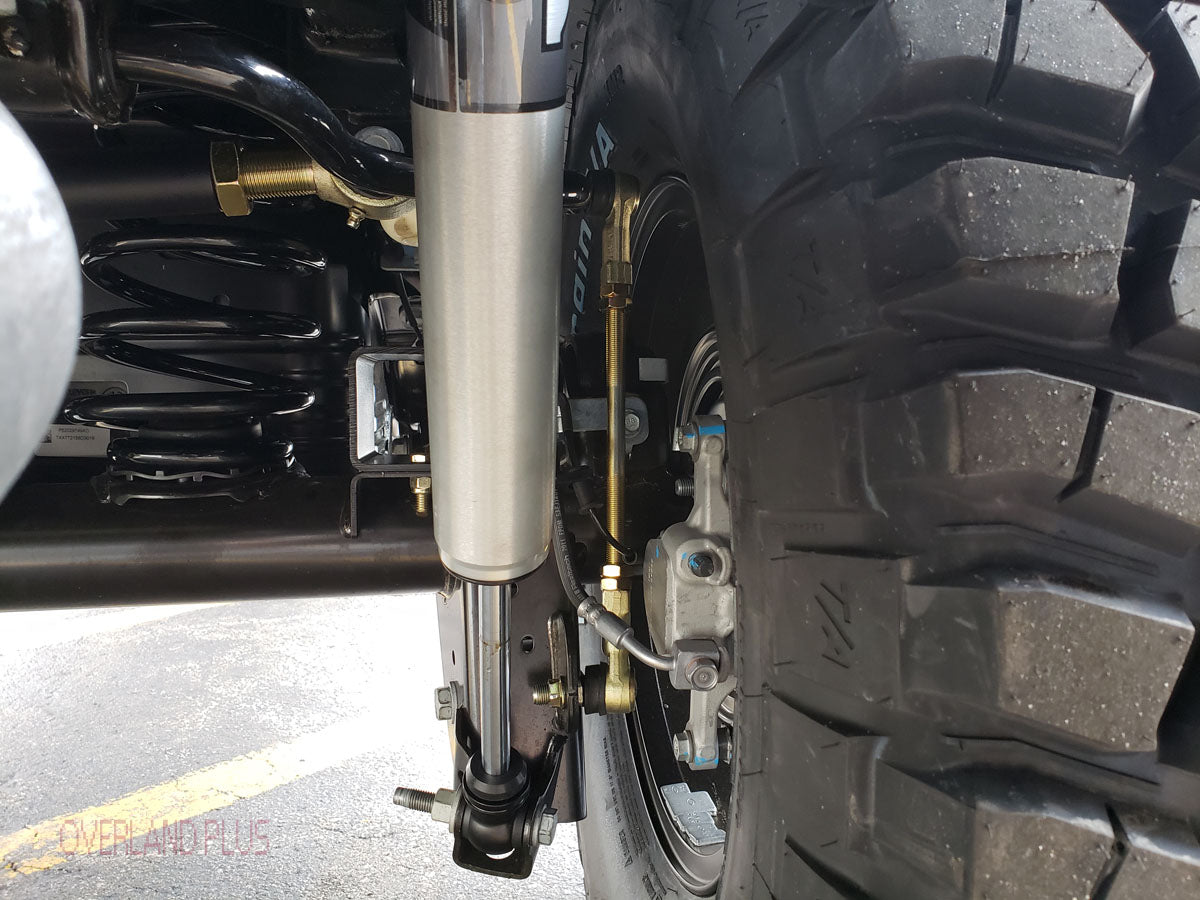

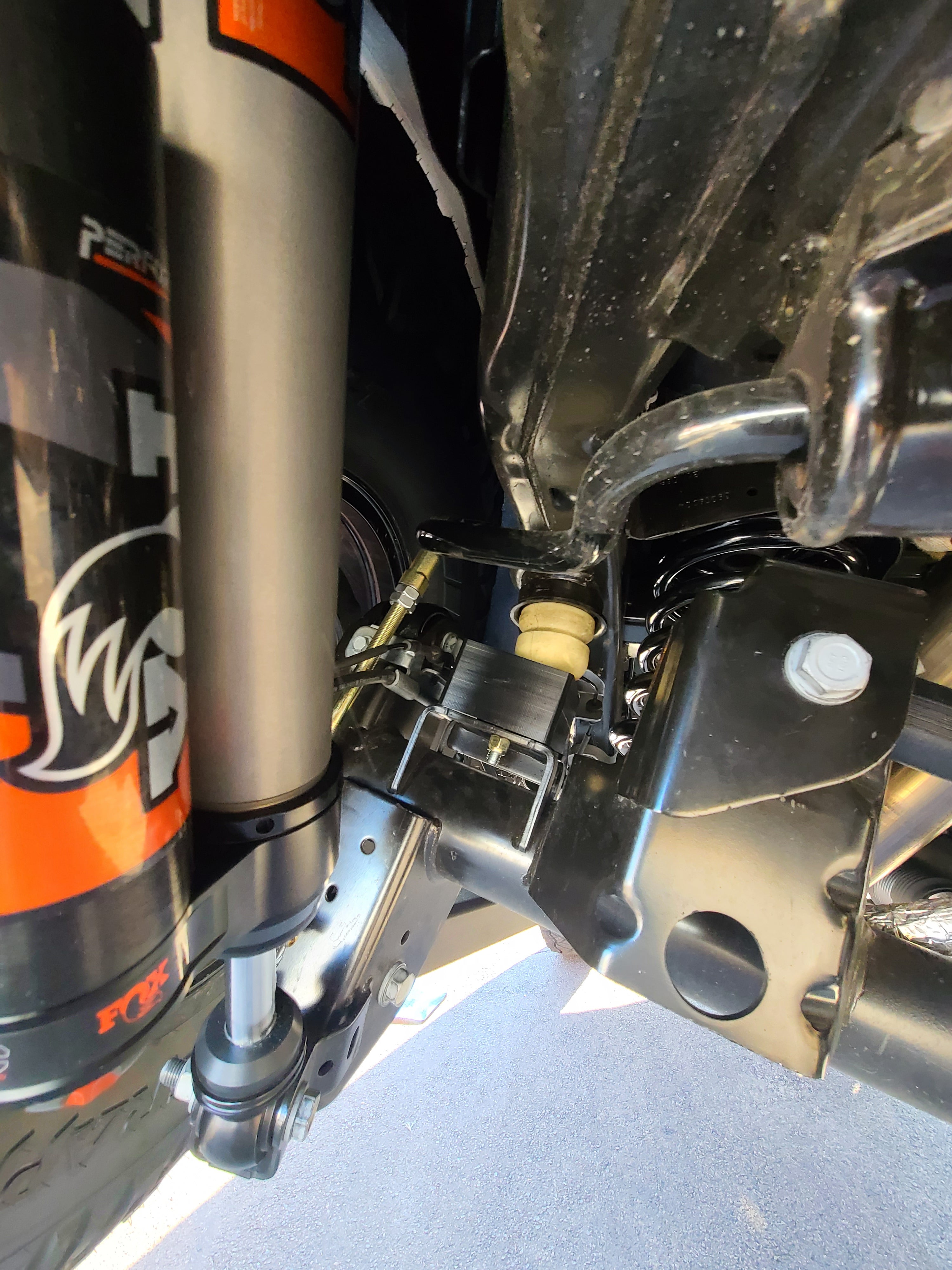

• Install these adjustable end links in the factory positions — bolt-in, no modification required.

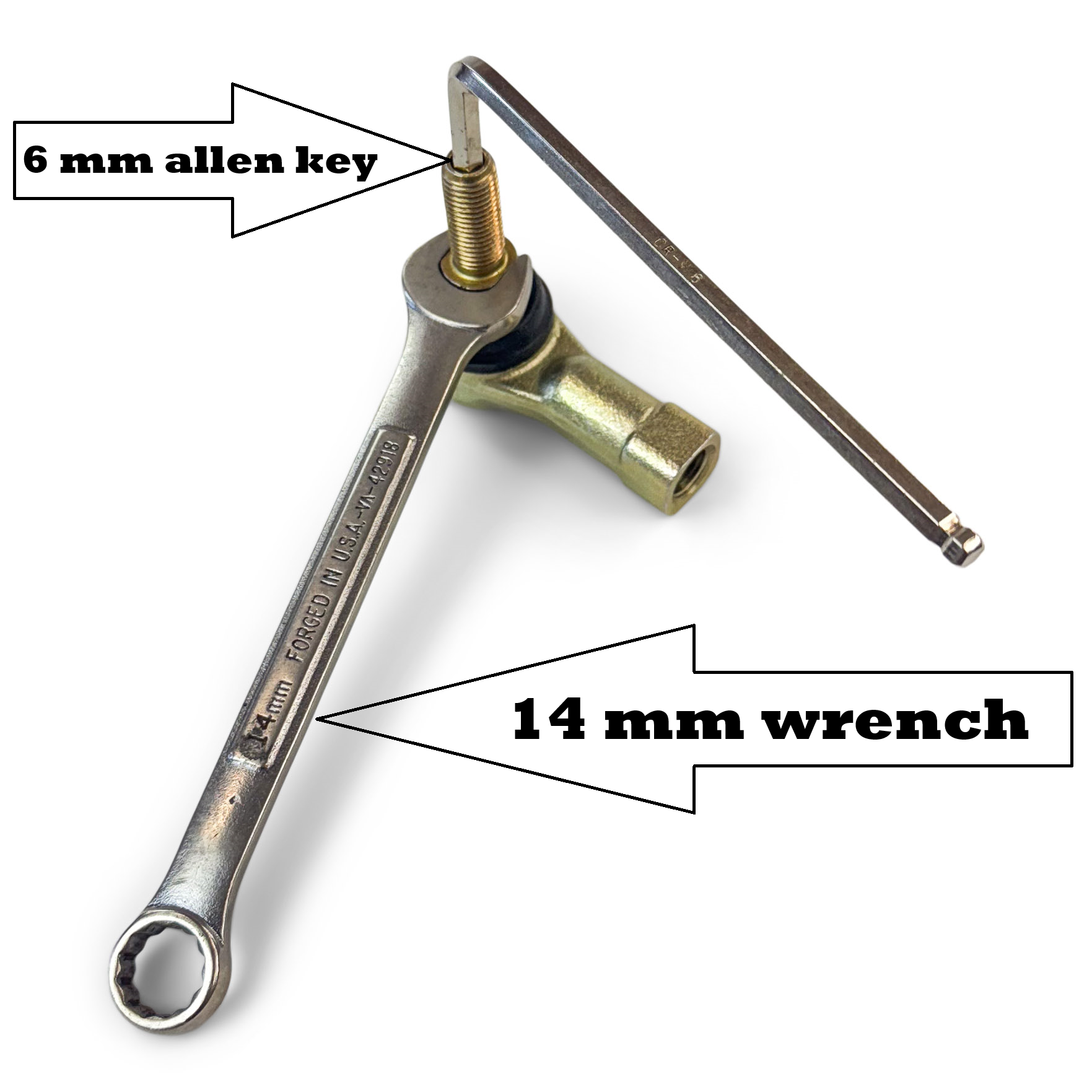

• Set the end link length with the vehicle at ride height and the suspension at the correct static position — adjust until the sway bar is at its correct operating angle with no preload or bind.
• Torque all hardware to specification at ride height.
• Verify full suspension travel (droop and compression) with no end link binding or over-extension after installation.
• If installing on JK front and rear simultaneously, set both positions at ride height before final torque.

Wheel & Tire Fitment

Compatible with standard JK and JL wheel and tire combinations. Sway bar end link length affects roll stiffness and suspension travel — verify correct operating angle and full travel clearance after installation with your specific lift height and tire size.

Engineering Question: Which position are you installing these on — JL rear, JK rear, or JK front? If you're upgrading the JL front sway bar end links, you need COR-5109100 instead. If you're upgrading the Gladiator JT rear, you need COR-5110110. Confirm your platform and position before ordering.
