Clayton Off Road Adjustable Rear Track Bar for 1997-2006 Jeep Wrangler TJ and LJ Unlimited

Is This for You?

• You're running at least 4" of lift on your TJ or LJ and need an adjustable rear track bar to re-center the rear axle or correct the rear track bar angle after installing a relocation bracket — this adjustable rear track bar is designed for TJ/LJ builds running 4" or more of lift. It is the companion piece to the COR-4500500 rear track bar relocation bracket (SYE kit builds) and is required for LJ Unlimited builds using that bracket due to the LJ's longer wheelbase and different rear driveshaft angle.
• You want a forged GIIRO dual-durometer bushing adjuster and a bent-design 1-3/8" x 5/16" DOM track bar with maximum clearance for the TJ/LJ rear axle — the forged GIIRO adjuster provides maintenance-free, dual-durometer NVH isolation while allowing full articulation. The bent design provides maximum clearance for the TJ/LJ rear axle and differential cover at all suspension travel positions.
• You want a bolt-in rear track bar with no cutting or drilling required, using OEM rear track bar bolts — installs using the factory rear track bar bolt locations with no modification required. No cutting or drilling. Lifetime warranty. Made in the USA.

The Result

• Adjustable rear track bar for 4"+ of lift — 1-3/8" x 5/16" DOM tubing, bent design for maximum clearance, forged GIIRO adjuster. Re-centers the rear axle and corrects rear track bar angle on TJ/LJ builds at 4" or more of lift.
• Forged GIIRO dual-durometer bushing adjuster — maintenance-free, NVH-isolating, full articulation. Bolt-in installation using OEM rear track bar bolts — no cutting or drilling required.
• Designed to pair with COR-4500500 rear track bar relocation bracket (SYE kit builds). Required for LJ Unlimited builds using COR-4500500 due to wheelbase and driveshaft angle differences. Lifetime warranty. Made in the USA.

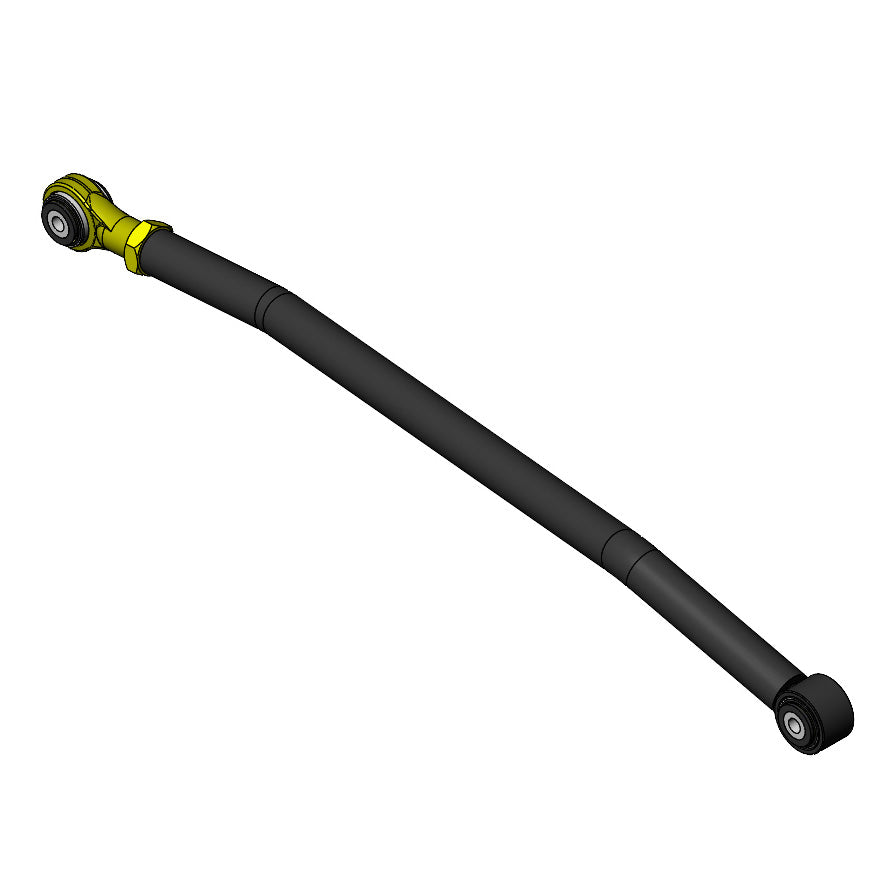

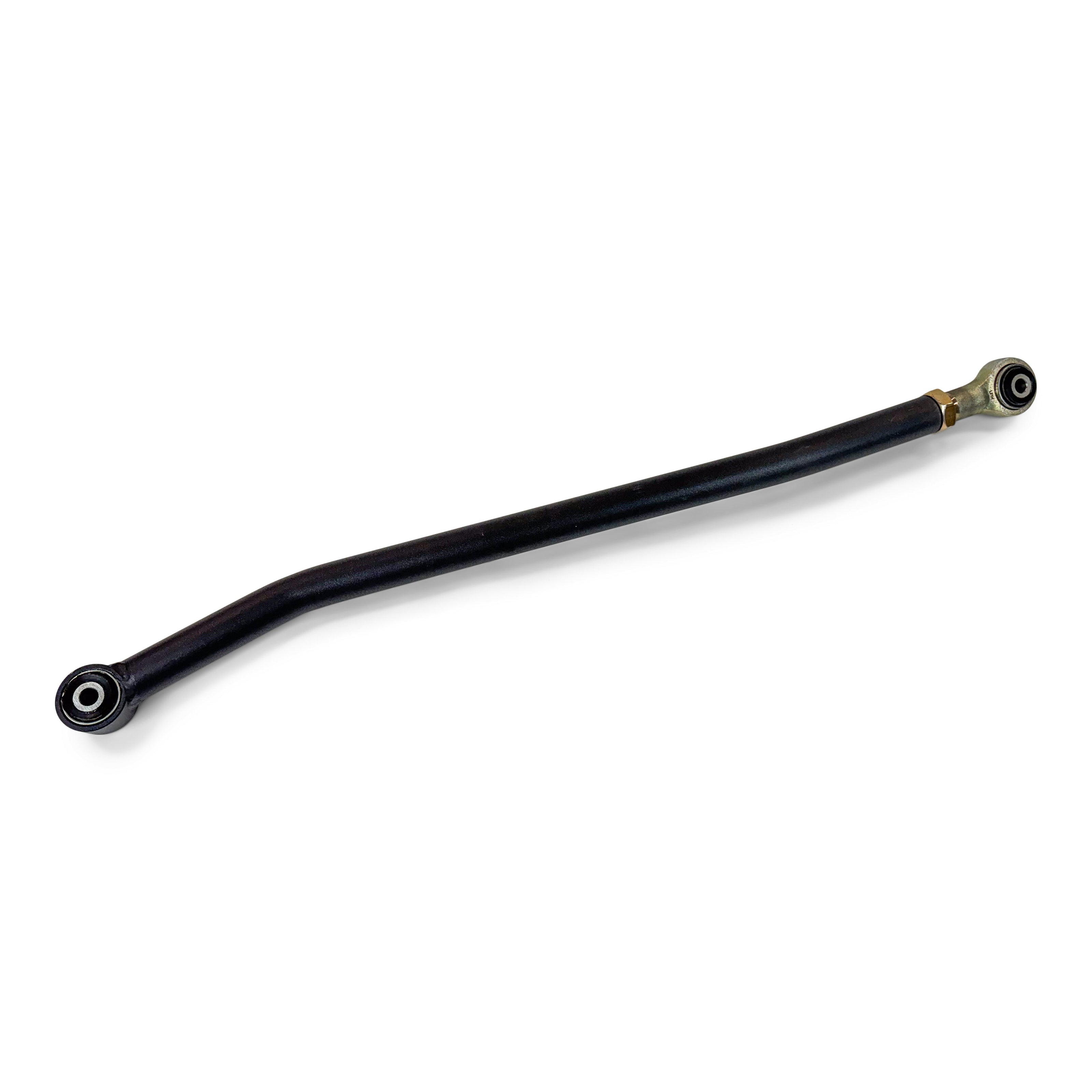

The COR-4500210 is Clayton Off Road's adjustable rear track bar for the 1997–2006 Jeep Wrangler TJ and LJ Unlimited, designed for builds running 4" or more of lift. This track bar is the companion piece to the COR-4500500 rear track bar relocation bracket, which is designed for TJ/LJ builds with a slip yoke eliminator (SYE) kit and CV-style rear driveshaft. For LJ Unlimited builds using the COR-4500500 bracket, this adjustable rear track bar is required — the LJ's longer wheelbase and different rear driveshaft angle mean the fixed-length stock track bar cannot properly account for the angle and length change introduced by the relocation bracket. This track bar can also be used independently on any TJ or LJ running 4" or more of lift to correct rear axle lateral offset. The bar is constructed from 1-3/8" x 5/16" DOM tubing with a bent design for maximum clearance around the TJ/LJ rear axle and differential cover. The adjuster uses a forged GIIRO dual-durometer bushing — maintenance-free, NVH-isolating, and allowing full articulation. Installs using OEM rear track bar bolts with no cutting or drilling required. Lifetime warranty. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 1997–2006 Jeep Wrangler TJ (2-Door) — All Trims — Rear Track Bar, Adjustable, 4"+ Lift
✅ Fits 2004–2006 Jeep Wrangler LJ Unlimited (4-Door) — All Trims — Rear Track Bar, Adjustable, 4"+ Lift — Required When Using COR-4500500
❌ Does NOT fit Jeep Wrangler JK (2007–2018) — different rear track bar geometry
❌ Does NOT fit Jeep Wrangler JL (2018–2026) — different rear suspension architecture
❌ Not recommended for lifts below 4"

Installation & Fabrication Notes

• No cutting or drilling required — bolt-in installation using OEM rear track bar bolts.

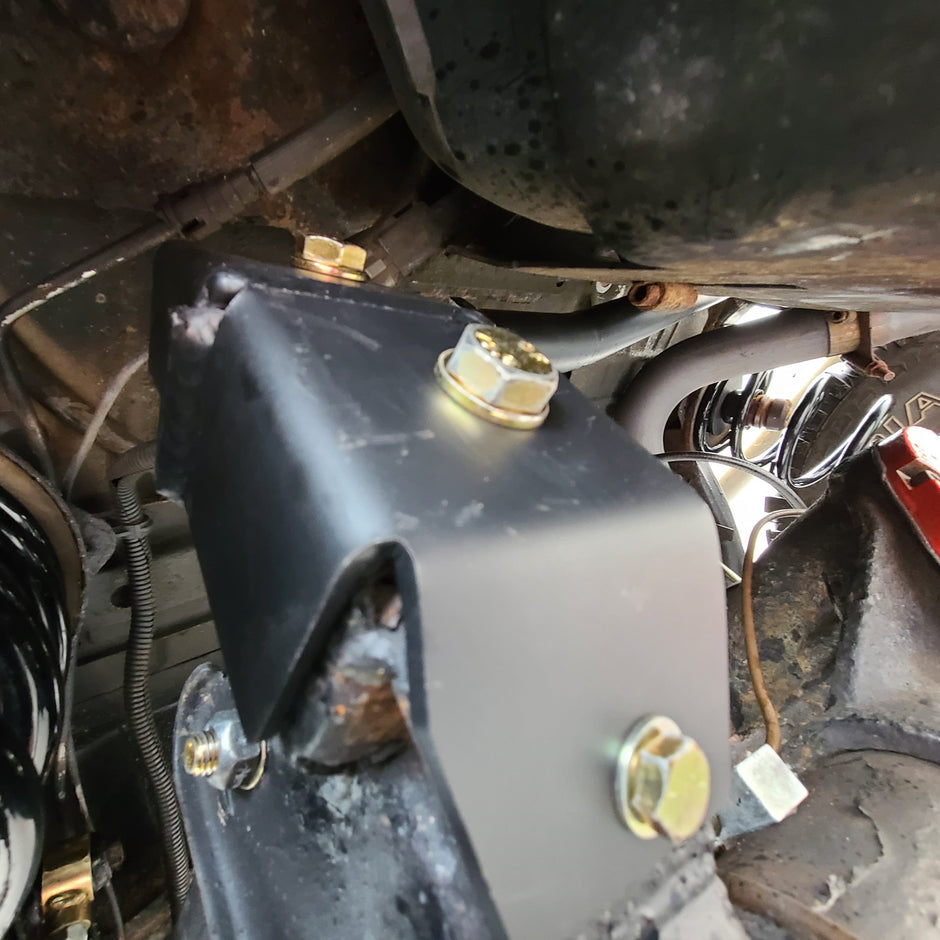

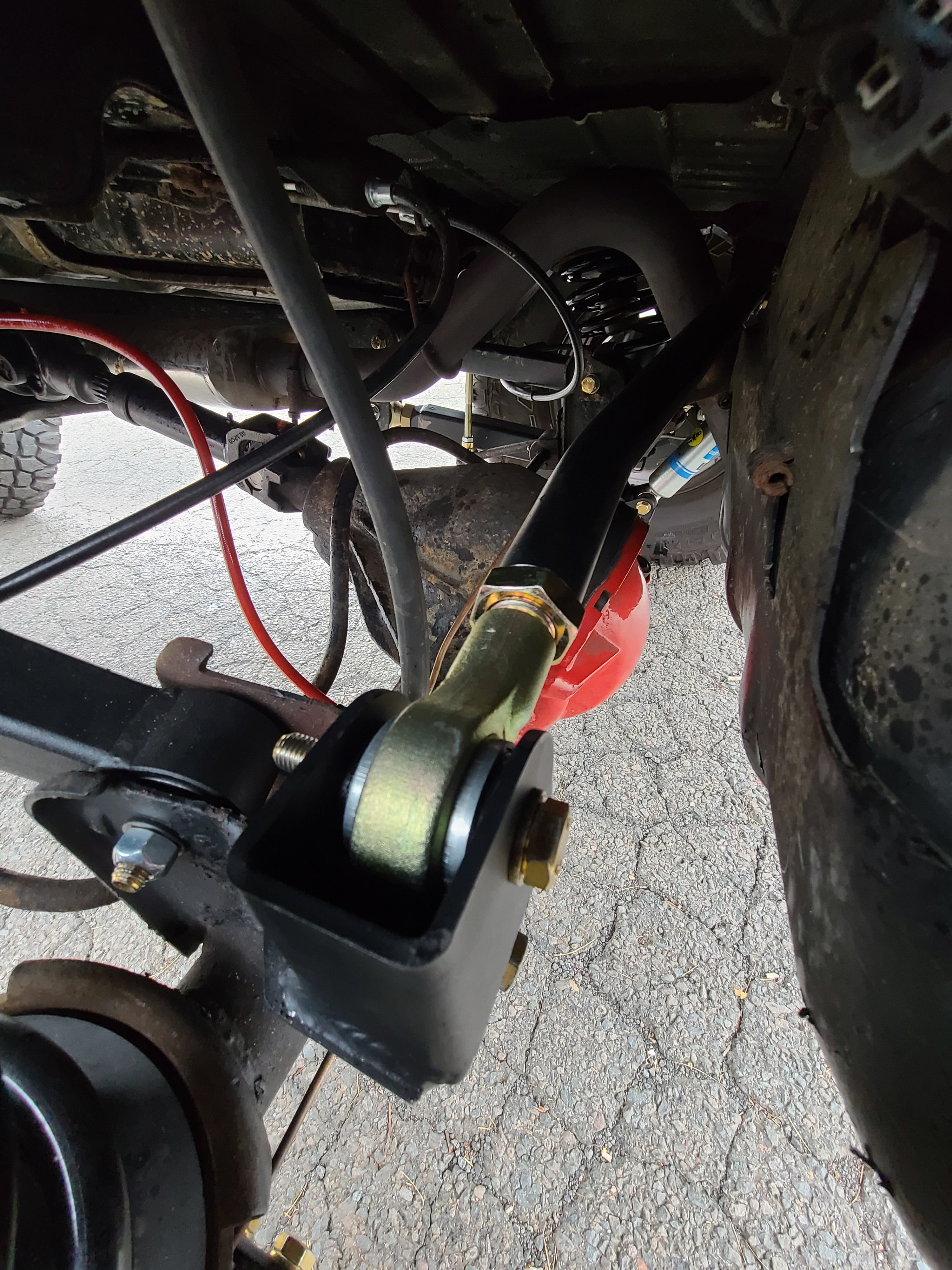

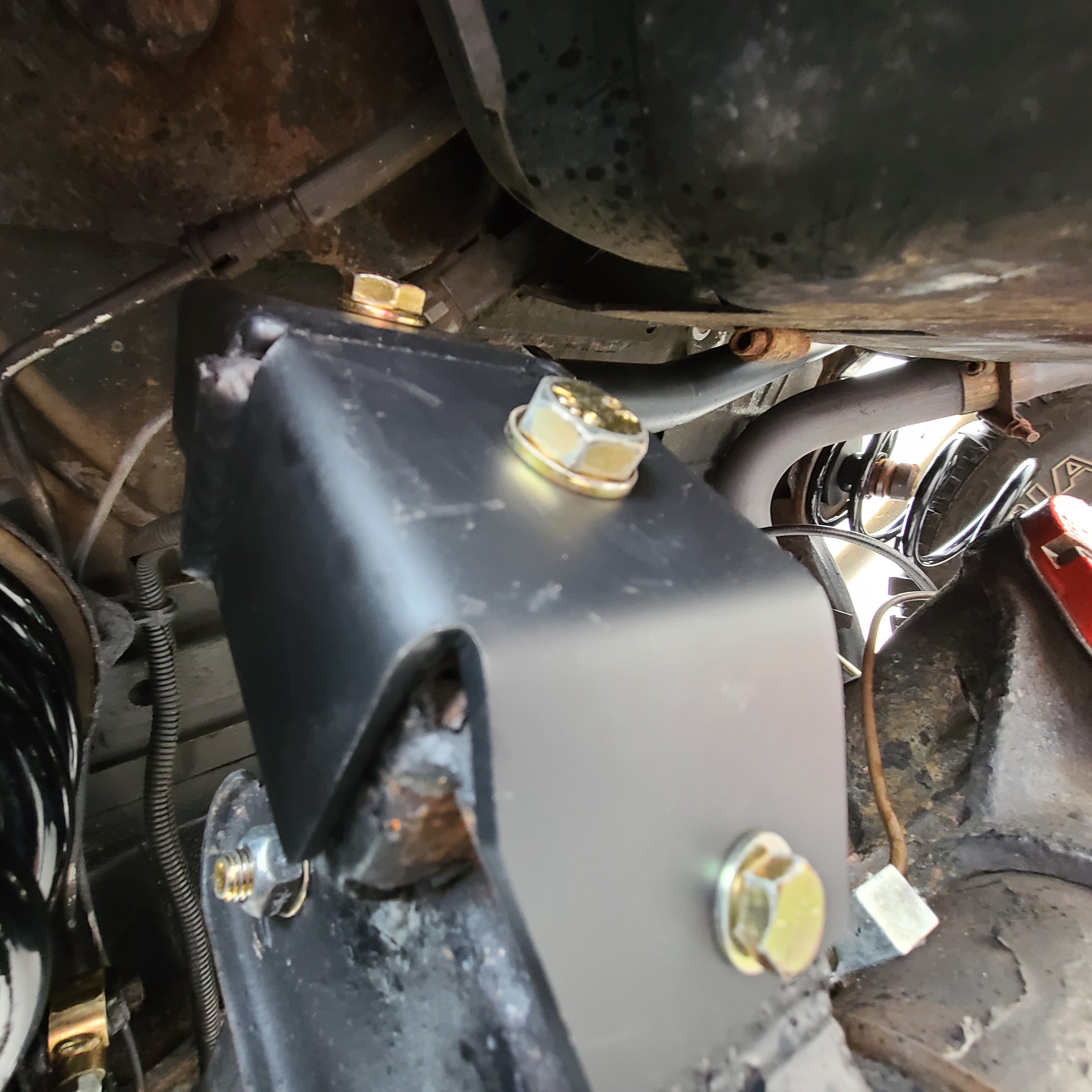

• If installing with the COR-4500500 relocation bracket: install the relocation bracket first per its installation instructions, then install this adjustable track bar to the new bracket mount location.

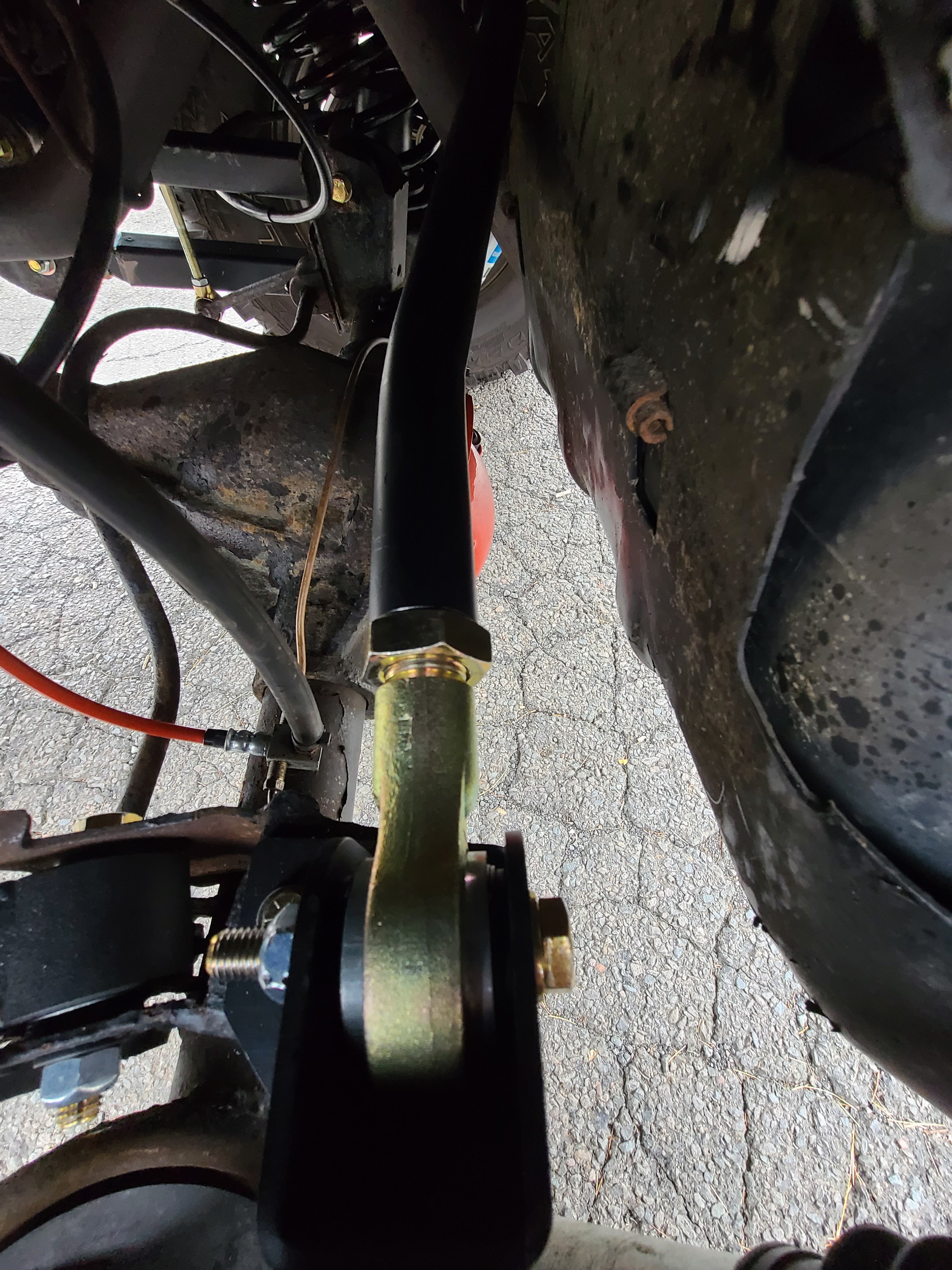

• If installing without the relocation bracket: remove the factory rear track bar and install this adjustable track bar in the factory rear track bar positions using the OEM bolts.
• Set the track bar length with the vehicle at ride height and the rear axle centered under the vehicle — adjust until the axle is centered laterally with equal clearance on both sides.
• For LJ Unlimited builds using COR-4500500: additional length and angle adjustment will be required due to the LJ's longer wheelbase — set length and angle per Clayton's installation instructions for the LJ.
• Torque all hardware to specification at ride height.
• Verify rear axle centering after installation — re-check after the first 500 miles of use.

Wheel & Tire Fitment

Compatible with standard TJ/LJ wheel and tire combinations at 4"+ of lift. Rear track bar length affects rear axle centering and tire clearance — verify equal clearance on both sides after setting the track bar length.

Engineering Question: Are you installing this track bar with the COR-4500500 rear track bar relocation bracket (SYE kit build), or as a standalone rear track bar upgrade? If you have an LJ Unlimited and are using COR-4500500, this adjustable track bar is required — the stock track bar cannot properly account for the LJ's wheelbase and driveshaft angle difference. Also confirm your lift height is 4" or more before ordering.
