Clayton Off Road Adjustable Front Track Bar for 1999-2004 Jeep Grand Cherokee WJ

Is This for You?

• You're running 3.5–6" of lift on your WJ and the front axle has shifted laterally off-center, causing steering pull, uneven tire clearance, and handling imbalance — this adjustable front track bar is designed for 3.5–6" of lift and allows you to set the exact length needed to re-center the front axle, correcting the lateral offset that factory-length front track bars cause on lifted WJ builds.
• You want a Johnny Joint adjuster and a bent-design 1-3/8" x 5/16" DOM track bar with maximum clearance for the WJ front axle — the Johnny Joint adjuster provides high-articulation, low-friction movement at the adjustable end. The bent design provides maximum clearance for the WJ front axle and differential cover at all suspension travel positions.
• You understand this installation requires drilling out the factory track bar mount location to accept the larger 9/16" Grade 8 HD bolt included with the kit — the WJ factory track bar mount uses a smaller bolt diameter. This kit includes a 9/16" Grade 8 bolt and HD bushing that require drilling out the factory mount hole to the correct diameter before installation. This is a straightforward drill operation, not a fabrication step.

The Result

• Adjustable front track bar for 3.5–6" of lift — 1-3/8" x 5/16" DOM tubing, bent design for maximum clearance, Johnny Joint adjuster. Re-centers the front axle after lift on the WJ platform.
• Johnny Joint adjuster for high-articulation, low-friction movement. Includes 9/16" Grade 8 HD bolt and HD bushing — requires drilling out factory mount hole to accept the larger bolt diameter.
• Lifetime warranty. Made in the USA. Compatible with OEM and aftermarket lift kits in the 3.5–6" range.

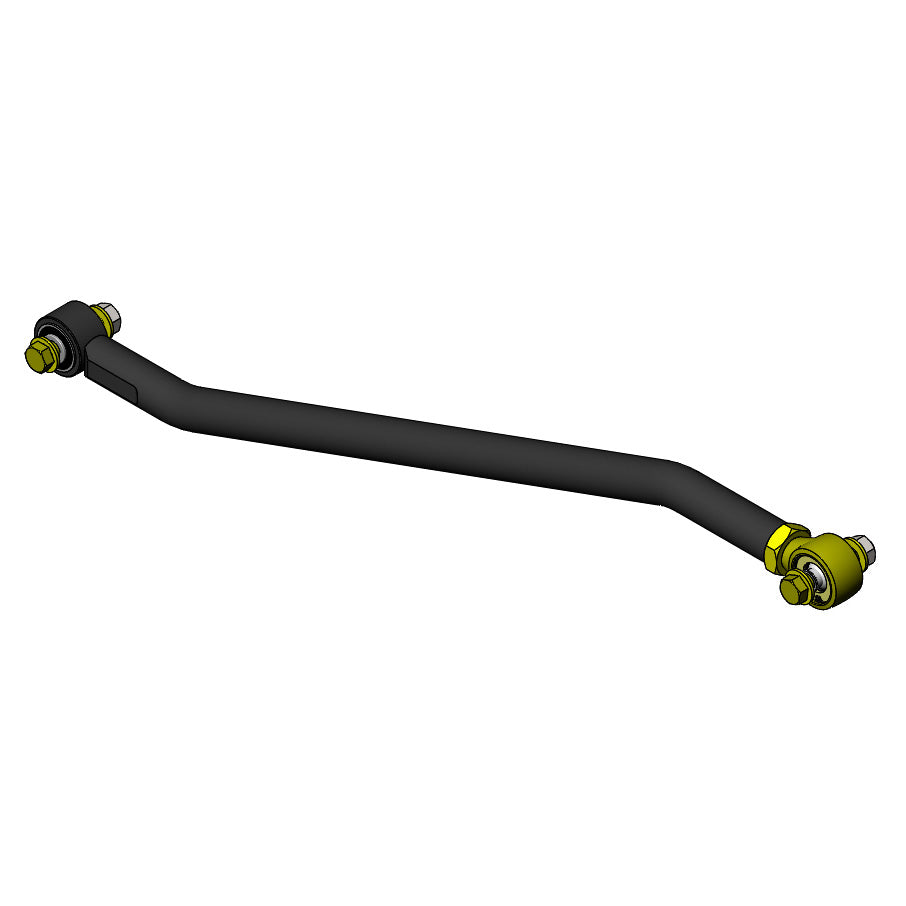

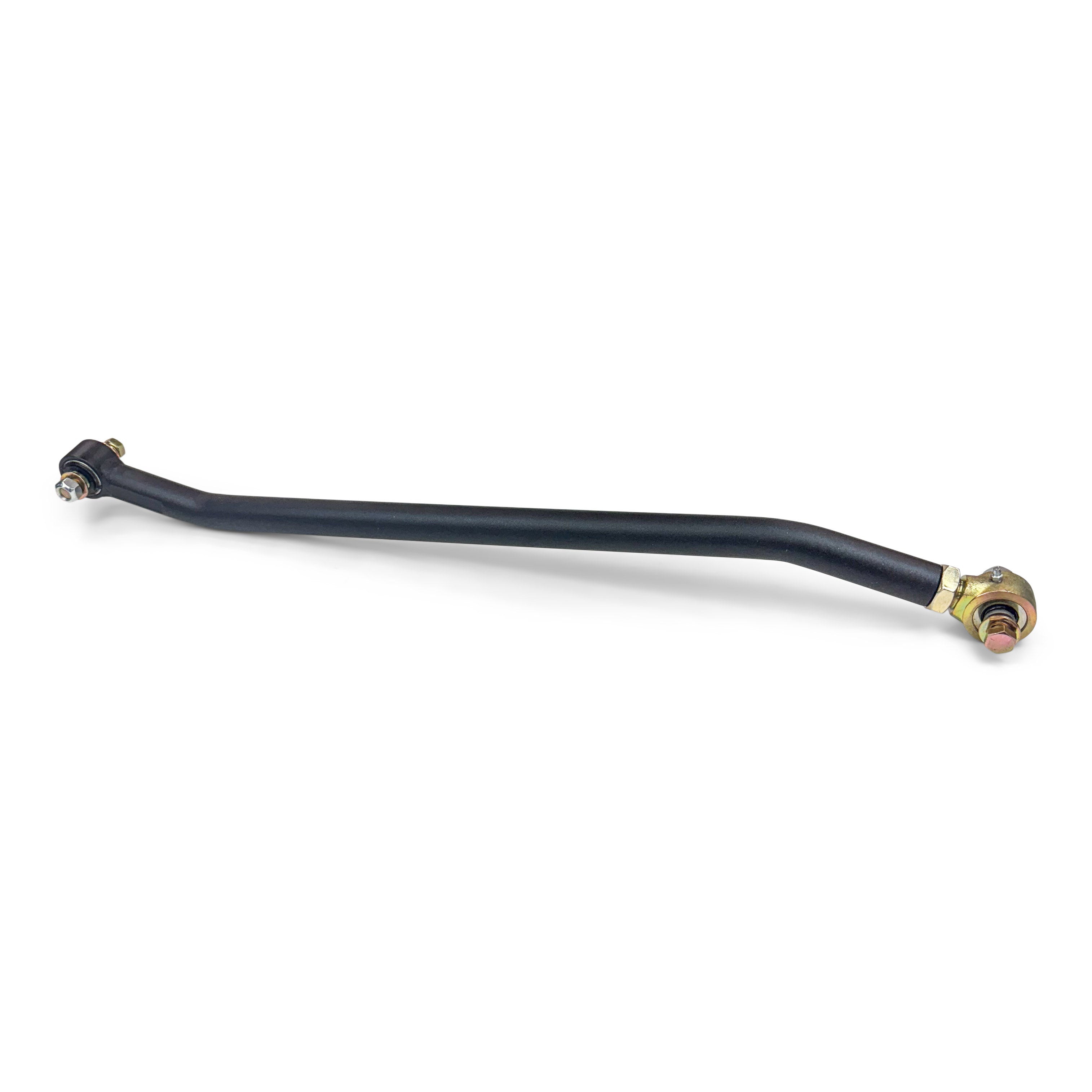

The COR-4506200 is Clayton Off Road's adjustable front track bar for the 1999–2004 Jeep Grand Cherokee WJ, designed for builds running 3.5–6" of lift. When the WJ is lifted, the factory front track bar — a fixed-length bar — pulls the front axle laterally off-center, causing steering pull, uneven tire clearance, and handling imbalance. This adjustable front track bar corrects the lateral offset by allowing the bar length to be set precisely for the installed lift height. The bar is constructed from 1-3/8" x 5/16" DOM tubing with a bent design for maximum clearance around the WJ front axle and differential cover. The adjuster uses a Johnny Joint for high-articulation, low-friction movement at the adjustable end. The kit includes a 9/16" Grade 8 HD bolt and HD bushing — the WJ factory track bar mount uses a smaller bolt diameter, so the factory mount hole must be drilled out to accept the larger 9/16" bolt before installation. This is a straightforward drill operation included in the installation instructions. Lifetime warranty. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 1999–2004 Jeep Grand Cherokee WJ — All Trims — Front Track Bar, Adjustable, 3.5" to 6" Lift
❌ Does NOT fit Jeep Grand Cherokee ZJ (1993–1998) — different front track bar geometry
❌ Does NOT fit Jeep Grand Cherokee WK (2005–2010) — different front suspension architecture
❌ Does NOT fit Jeep Wrangler TJ/LJ/JK/JL/JT — different platform and front suspension architecture
❌ Not recommended for lifts below 3.5" or above 6"

Installation & Fabrication Notes

• Factory mount hole must be drilled out to accept the 9/16" Grade 8 HD bolt before installation. The WJ factory front track bar mount uses a smaller bolt diameter — drill the factory mount hole to the correct diameter per Clayton's installation instructions before installing the track bar.
• Install the included 9/16" Grade 8 HD bolt and HD bushing in the drilled factory mount location.
• Remove the factory front track bar from the frame mount.
• Install this adjustable track bar in the factory front track bar positions.
• Set the track bar length with the vehicle at ride height and the front axle centered under the vehicle — adjust until the axle is centered laterally with equal clearance on both sides.
• Torque all hardware to specification at ride height.
• Verify front axle centering and tire clearance after installation.
• After centering the front axle, verify steering wheel centering and have the front alignment checked.

Wheel & Tire Fitment

Compatible with standard WJ wheel and tire combinations at 3.5–6" of lift. Front track bar length affects front axle centering, tire clearance, and steering wheel centering — verify equal clearance on both sides and steering wheel position after setting the track bar length.

Engineering Question: What is your current lift height on the WJ? This front track bar is designed for 3.5–6" of lift. Note that installation requires drilling out the factory front track bar mount hole to accept the included 9/16" Grade 8 HD bolt — confirm you have a drill and the correct bit size per Clayton's installation instructions before ordering. After installation, have the front alignment checked.
