Clayton Off Road Adjustable Front Track Bar with OE-Height Bracket for 1984-2001 Jeep Cherokee XJ and 1993-1998 Grand Cherokee ZJ

Is This for You?

• You're running 3–6" of lift on your XJ or ZJ and need an adjustable front track bar with a double-shear bracket that maintains OEM track bar height — no drop pitman arm required — this kit uses a 1/4" OE-height bracket that keeps the track bar at the factory height position while putting the bar in double shear for superior strength. At 3–6" of lift, the OE-height bracket allows you to run a stock pitman arm. For 6–8" of lift where a drop bracket and drop pitman arm are needed, see COR-4500512.
• You want a greaseable 2.5" forged Johnny Joint at the frame end and a GIIRO dual-durometer bushing at the axle end, with a double-shear bracket design that eliminates joint over-flex — the greaseable 2.5" forged Johnny Joint at the frame end provides high-articulation, low-friction movement with the ability to regrease the joint for long-term maintenance. The GIIRO bushing at the axle end is maintenance-free and NVH-isolating. The double-shear bracket design puts the axle-end bolt in double shear, eliminating the risk of over-flexing the joint under lateral load.
• You understand this installation requires drilling the factory axle mount hole for the 9/16" Grade 8 HD bolt, and that adding welds to the bracket is strongly recommended for superior strength — the 9/16" Grade 8 bolt and flanged tab require drilling the factory axle track bar mount hole. The bracket bolts to the OEM frame location — adding a few small welds is strongly recommended for added strength over a bolt-only installation.

The Result

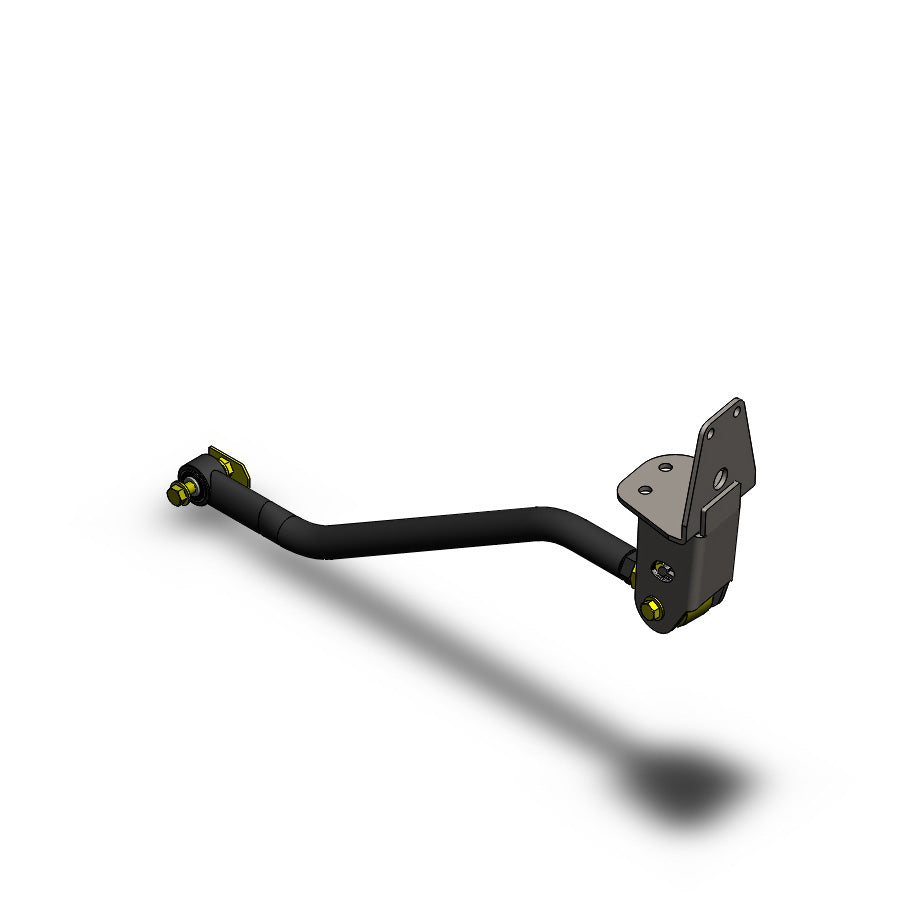

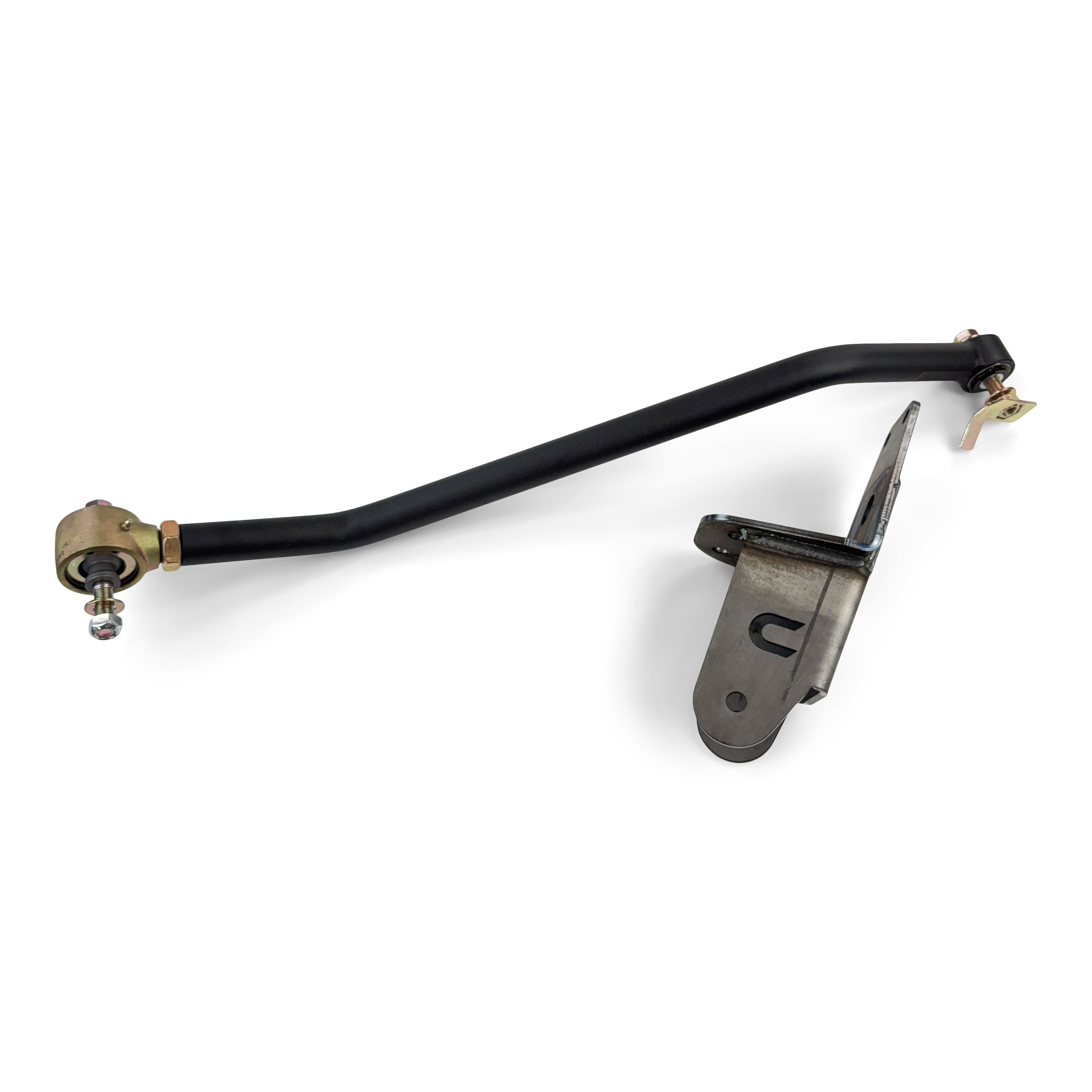

• Adjustable front track bar with OE-height double-shear bracket for 3–6" of lift — 1-3/8" x 5/16" DOM tubing, greaseable 2.5" forged Johnny Joint at frame end, GIIRO dual-durometer bushing at axle end, 1/4" OE-height double-shear bracket. Stock pitman arm compatible. Re-centers front axle at 3–6" of lift on XJ and ZJ builds.
• Double-shear bracket design — puts axle-end bolt in double shear, eliminating joint over-flex. 9/16" Grade 8 HD bolt and flanged tab included. Powder coated black. Center-to-center: min 31-1/8", max 32-3/16".
• Drilling required (axle mount). Welds on bracket strongly recommended. Stock pitman arm compatible at 3–6" of lift. Lifetime warranty. Made in the USA.

The COR-4500502 is Clayton Off Road's adjustable front track bar with OE-height bracket for the 1984–2001 Jeep Cherokee XJ and 1993–1998 Jeep Grand Cherokee ZJ, designed for builds running 3–6" of lift. Unlike the drop bracket version (COR-4500512, designed for 6–8" of lift), this kit uses a 1/4" bracket that maintains the OEM track bar height position. At 3–6" of lift, the OE-height bracket provides the double-shear strength advantage without requiring a drop pitman arm — the stock pitman arm is compatible at this lift range. The bracket bolts to the OEM frame location — adding a few small welds is strongly recommended for superior strength over a bolt-only installation. The double-shear bracket design puts the axle-end bolt in double shear, eliminating the risk of over-flexing the joint under lateral load. The track bar uses a greaseable 2.5" forged Johnny Joint at the frame end for high-articulation, low-friction movement with long-term maintainability, and a GIIRO dual-durometer bushing pressed into a machined housing at the axle end for maintenance-free, NVH-isolating performance. The factory axle track bar mount hole must be drilled out to accept the included 9/16" Grade 8 HD bolt and flanged tab. Track bar comes powder coated black. Center-to-center adjustment range: min 31-1/8", max 32-3/16". Lifetime warranty. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 1984–2001 Jeep Cherokee XJ — All Trims — Front Track Bar with OE-Height Bracket, 3" to 6" Lift
✅ Fits 1993–1998 Jeep Grand Cherokee ZJ — All Trims — Front Track Bar with OE-Height Bracket, 3" to 6" Lift
❌ Does NOT fit Jeep Grand Cherokee WJ (1999–2004) — different front track bar geometry; see COR-4506200
❌ Does NOT fit Jeep Wrangler TJ/LJ/JK/JL/JT — different front suspension architecture
❌ Not recommended for lifts above 6" — for 6–8" of lift, use the drop bracket version COR-4500512 with a drop pitman arm

Installation & Fabrication Notes

• Drilling required: Drill out the factory front axle track bar mount hole to accept the 9/16" Grade 8 HD bolt per Clayton's installation instructions before installing the track bar.

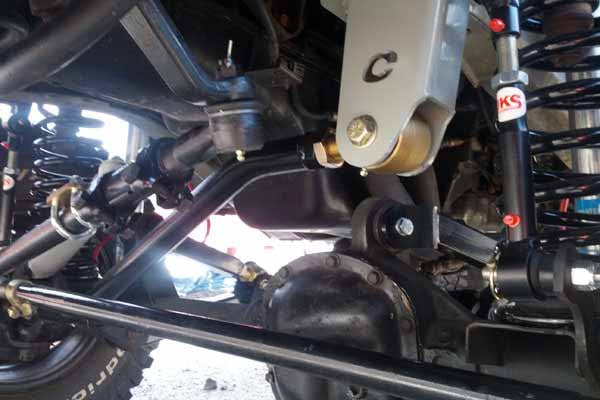

• Welds on bracket strongly recommended: The 1/4" OE-height bracket bolts to the OEM frame track bar mount location. Adding a few small welds to the bracket is strongly recommended for superior strength over a bolt-only installation.
• Install the bracket to the OEM frame location, verify alignment and position, then add welds per Clayton's installation instructions.
• Install the 9/16" Grade 8 HD bolt and flanged tab in the drilled axle mount location.
• Install the adjustable track bar between the bracket and the axle mount.
• Set the track bar length with the vehicle at ride height and the front axle centered under the vehicle — adjust within the 31-1/8" to 32-3/16" center-to-center range until the axle is centered laterally.
• Stock pitman arm is compatible at 3–6" of lift — no drop pitman arm required at this lift range.
• Torque all hardware to specification at ride height.
• Verify front axle centering and tire clearance after installation.
• After centering the front axle, verify steering wheel centering and have the front alignment checked.

Wheel & Tire Fitment

Compatible with standard XJ and ZJ wheel and tire combinations at 3–6" of lift. Front track bar length and bracket position affect front axle centering, tire clearance, and steering wheel centering — verify equal clearance on both sides and steering wheel position after installation.

Engineering Question: What is your current lift height on the XJ or ZJ? This OE-height bracket version is designed for 3–6" of lift and is compatible with a stock pitman arm. If you're running 6–8" of lift, order the drop bracket version COR-4500512 instead — it lowers the track bar mount and requires a drop pitman arm. Also confirm you have a drill for the axle mount hole before ordering. After installation, have the front alignment checked.
