Clayton Off Road Adjustable Front Track Bar for 2007-2018 Jeep Wrangler JK

Is This for You?

• You've lifted your JK and the front axle has shifted laterally off-center, causing steering pull, uneven tire clearance, and handling imbalance — this adjustable front track bar is designed for 0–5"+ of lift and allows you to set the exact length needed to re-center the front axle, correcting the lateral offset that factory-length front track bars cause on lifted builds.
• You need a front track bar with a differential cover clearance bend for maximum compatibility with the JK front axle — this track bar includes a differential cover clearance bend that provides clearance around the JK front differential cover, ensuring proper fitment without contact at any suspension travel position.
• You want a bolt-in front track bar with forged GIIRO joints, 1-3/8" x 5/16" DOM tubing, and a lifetime warranty — made in the USA — installs using OEM bolts with no cutting or drilling required. The forged GIIRO adjuster provides maintenance-free, dual-durometer NVH isolation while allowing full articulation. Lifetime warranty. Made in the USA. For the JK rear adjustable track bar, see COR-4508110.

The Result

• Adjustable front track bar for 0–5"+ of lift — 1-3/8" x 5/16" DOM tubing, differential cover clearance bend, forged GIIRO adjuster. Re-centers the front axle after lift and provides differential cover clearance on the JK front axle.

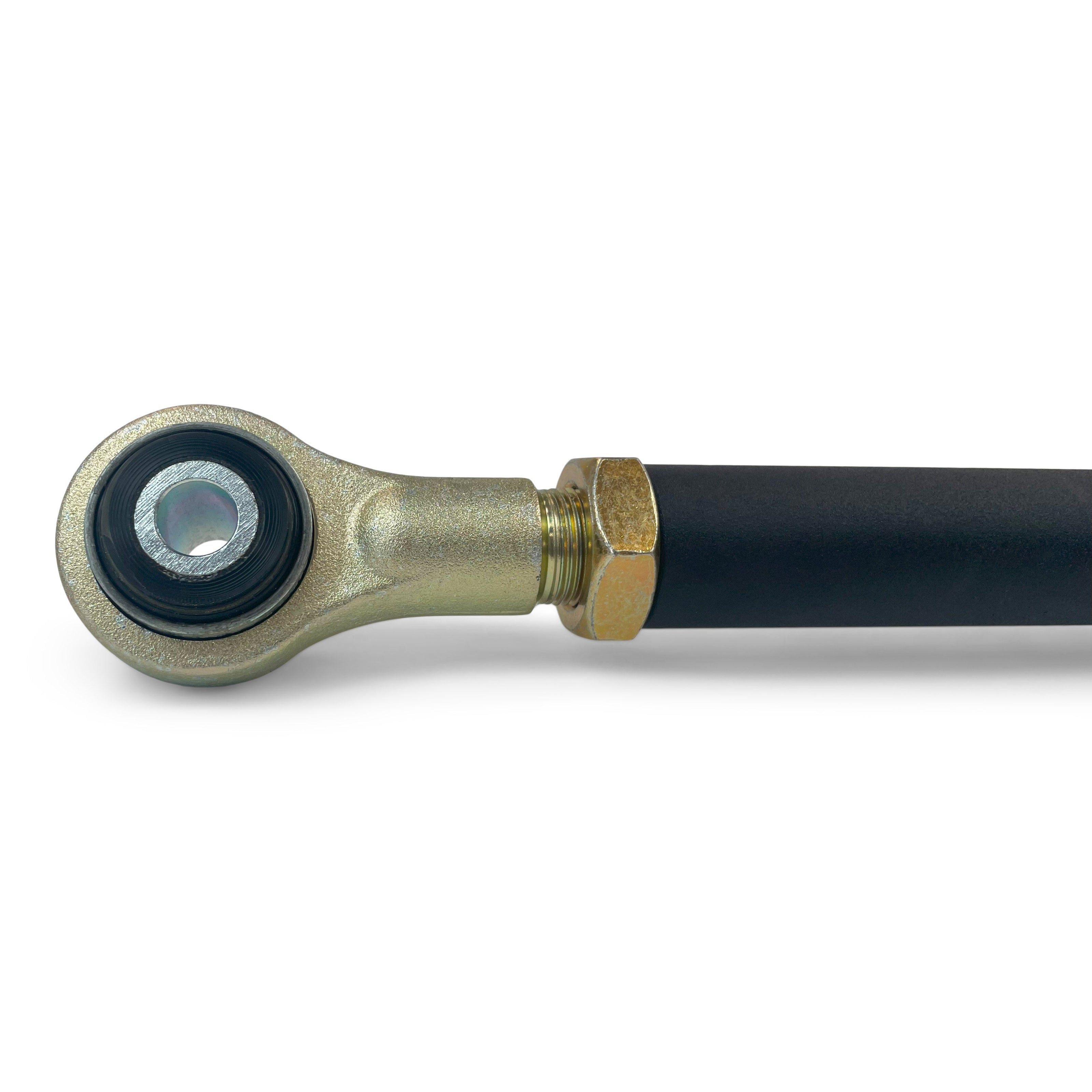

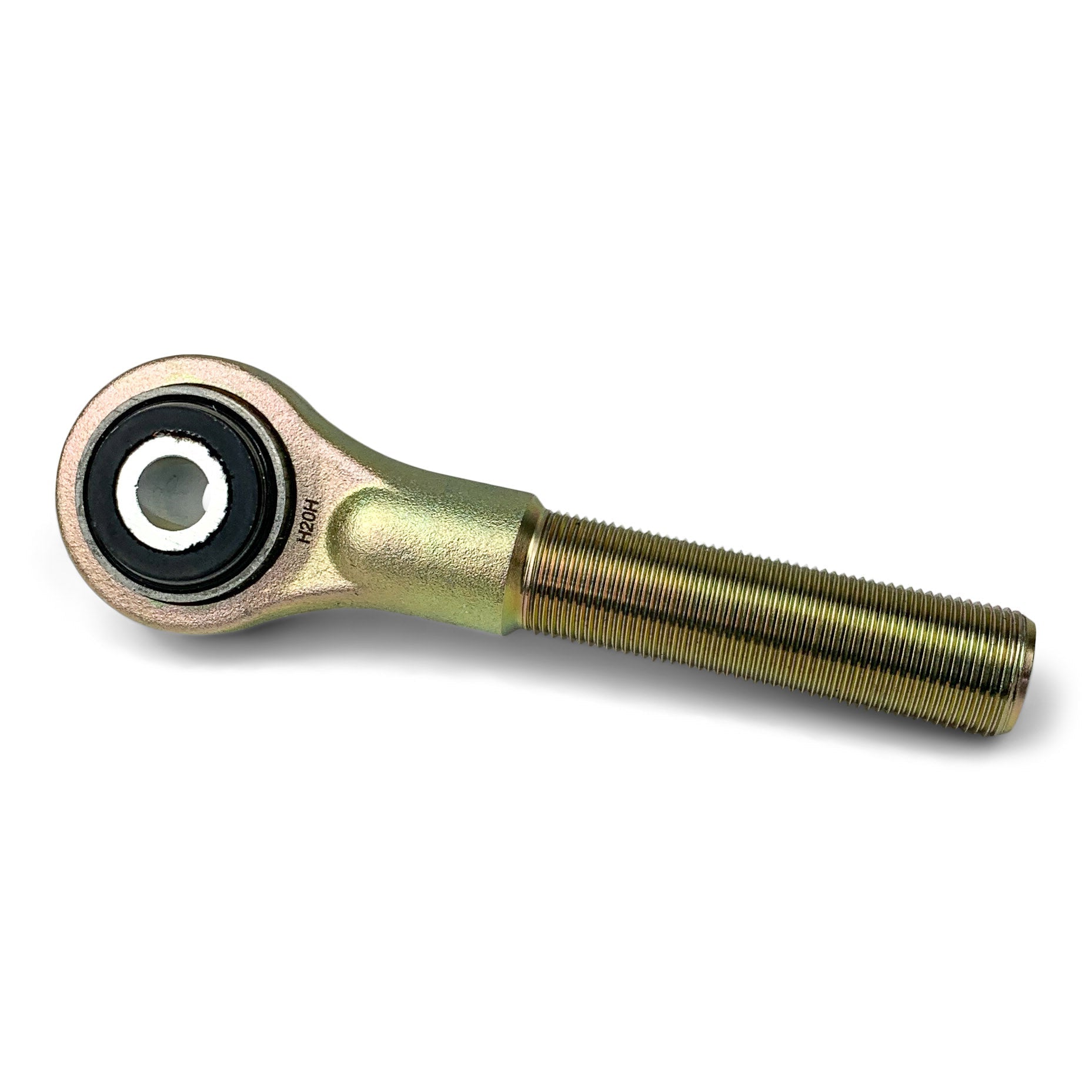

• Forged GIIRO dual-durometer bushing adjuster — maintenance-free, NVH-isolating, self-centering. Bolt-in installation using OEM bolts — no cutting or drilling required.
• Lifetime warranty. Made in the USA. Compatible with OEM and aftermarket lift kits within the 0–5"+ adjustment range. For the JK rear adjustable track bar, see COR-4508110.

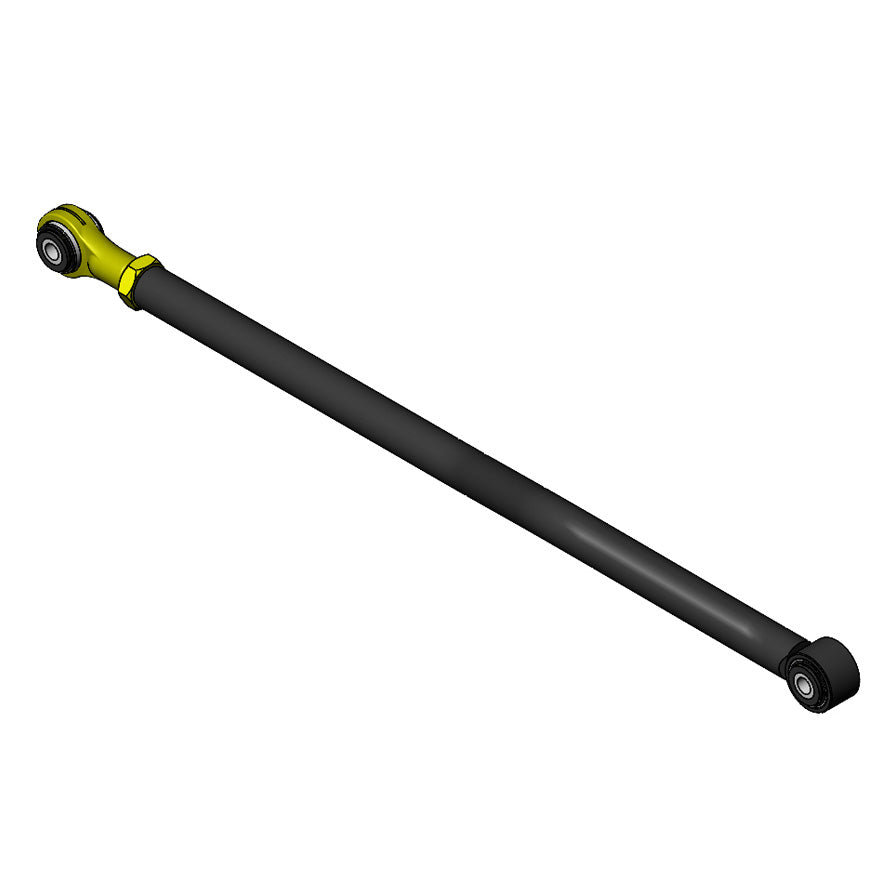

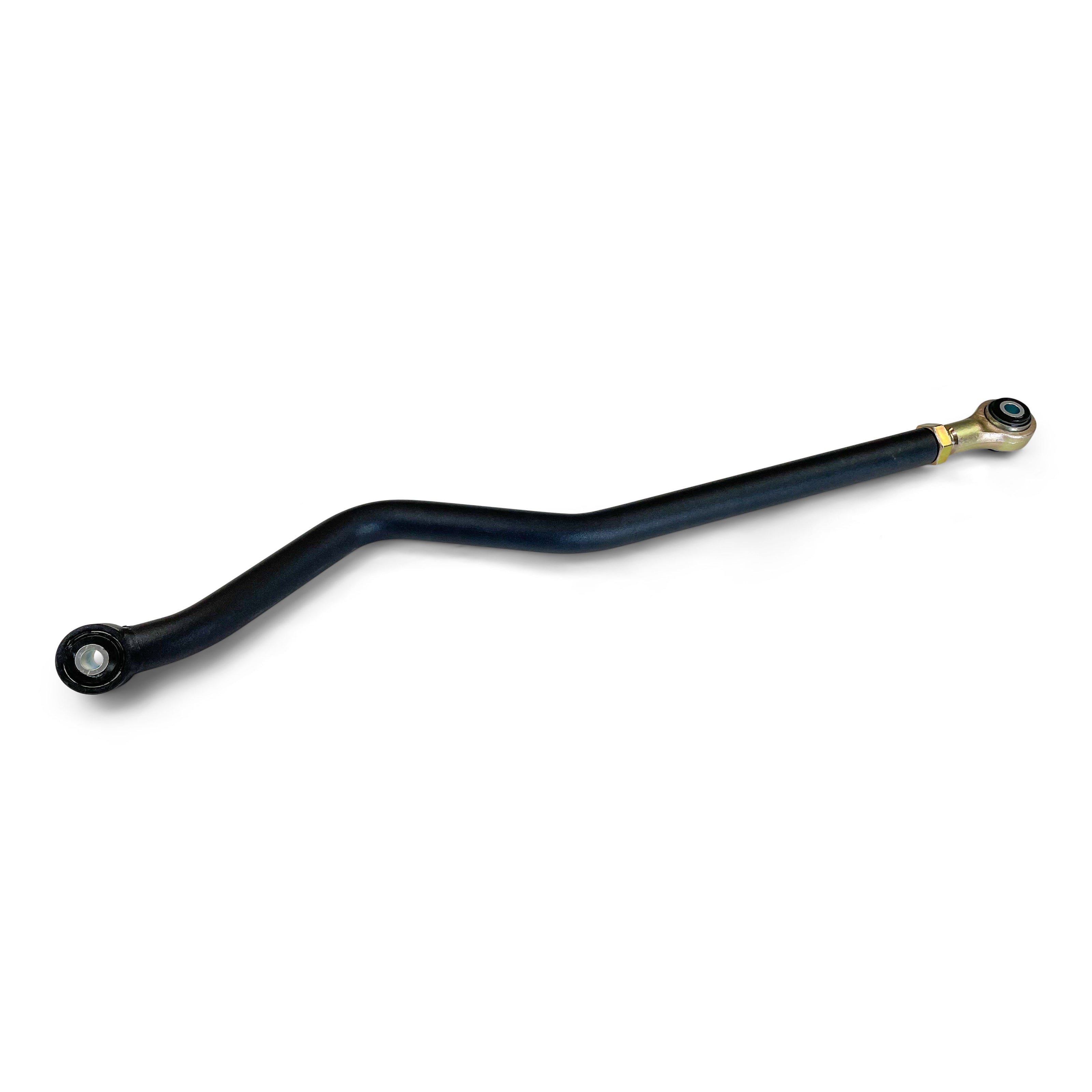

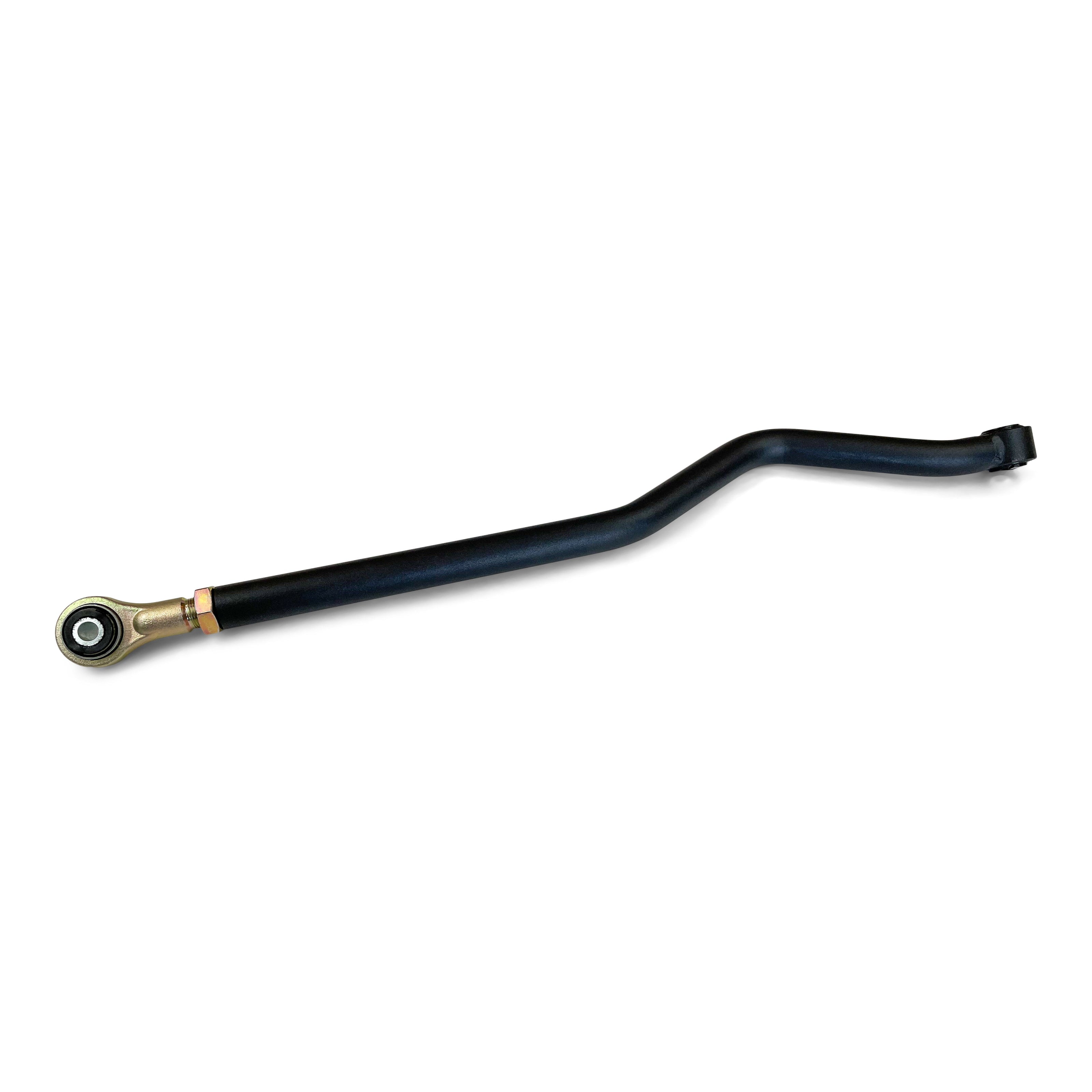

The COR-4508100 is Clayton Off Road's adjustable front track bar for the 2007–2018 Jeep Wrangler JK. When the JK is lifted, the factory front track bar — a fixed-length bar — pulls the front axle laterally off-center toward the driver side, causing steering pull, uneven tire clearance, and handling imbalance. This adjustable front track bar corrects the lateral offset by allowing the bar length to be set precisely for the installed lift height, re-centering the front axle under the vehicle. The bar is constructed from 1-3/8" x 5/16" DOM tubing and includes a differential cover clearance bend that provides clearance around the JK front differential cover at all suspension travel positions. The adjuster uses a forged GIIRO dual-durometer bushing — maintenance-free, NVH-isolating, and self-centering. Installs using OEM bolts with no cutting or drilling required. Designed for 0–5"+ of lift. Lifetime warranty. Made in the USA. For the JK rear adjustable track bar, see COR-4508110.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 2007–2018 Jeep Wrangler JK (2-Door and 4-Door) — All Trims — Front Track Bar, Adjustable, 0" to 5"+ Lift
❌ Does NOT fit Jeep Wrangler JL (2018–2026) — different front track bar geometry
❌ Does NOT fit Jeep Gladiator JT (2020–2026) — different front track bar geometry
❌ Does NOT fit Jeep Wrangler TJ/LJ (1997–2006) — different front suspension architecture

Installation & Fabrication Notes

• No cutting or drilling required — bolt-in installation using OEM front track bar bolts.
• Remove the factory front track bar from both the frame mount and axle mount.
• Install this adjustable track bar in the factory front track bar positions using the OEM bolts.
• Set the track bar length with the vehicle at ride height and the front axle centered under the vehicle — adjust until the axle is centered laterally with equal clearance on both sides.
• Torque all hardware to specification at ride height.
• Verify front axle centering and tire clearance after installation — re-check after the first 500 miles of use.
• The differential cover clearance bend is designed for the JK front axle differential cover — verify clearance with aftermarket differential covers before installation.
• After centering the front axle, verify steering wheel centering and have the front alignment checked.

Wheel & Tire Fitment

Compatible with standard JK wheel and tire combinations at 0–5"+ of lift. Front track bar length affects front axle centering, tire clearance, and steering wheel centering — verify equal clearance on both sides and steering wheel position after setting the track bar length.

Engineering Question: What is your current lift height on the JK? This front track bar is designed for 0–5"+ of lift. After installing and centering the front axle, have the front alignment checked — adjusting the front track bar length changes the front axle lateral position and will affect steering wheel centering and alignment. Also confirm your vehicle is a 2007–2018 Jeep Wrangler JK — this bar does not fit the JL, JT, or TJ/LJ platforms.
