Clayton Off Road 2-Piece Skid Plate for 2004-2006 Jeep Wrangler LJ Unlimited

⚠️ RUBICON MODELS: Requires a 1" body lift. Clayton optional compressor mount recommended.

⚠️ SHIPS BARE METAL — 130 LB: Surface rust and cosmetic scratches during shipping are normal and are not considered damage. Not eligible for return, replacement, or compensation for cosmetic issues. Contact Clayton for a freight pallet quote — strongly recommended at this weight.

Is This for You?

• You have a 2004–2006 Jeep Wrangler LJ Unlimited — stock, short arm lift, or Clayton long arm kit — and want the most substantial bolt-on underbody skid plate available for the LJ platform — this 2-piece skid plate fits any LJ Unlimited regardless of suspension configuration: stock, short arm lift, or Clayton long arm kit. No cross member restrictions. At 130 lbs and gaining approximately 1.5" of clearance over the stock LJ skid plate, this is the definitive underbody protection solution for the LJ.
• You want a 2-piece cradle-and-skid design that allows drivetrain service without removing the entire skid plate — the system consists of a 3/16" laser-cut cradle that bolts to the OEM location and picks up the transmission mount, and a 1/4" flat skid plate that attaches to the cradle using countersunk Allen head bolts. The cradle design allows you to remove the flat skid plate for drivetrain service without disturbing the cradle or its mounting points — a significant serviceability advantage over a single-piece skid plate.

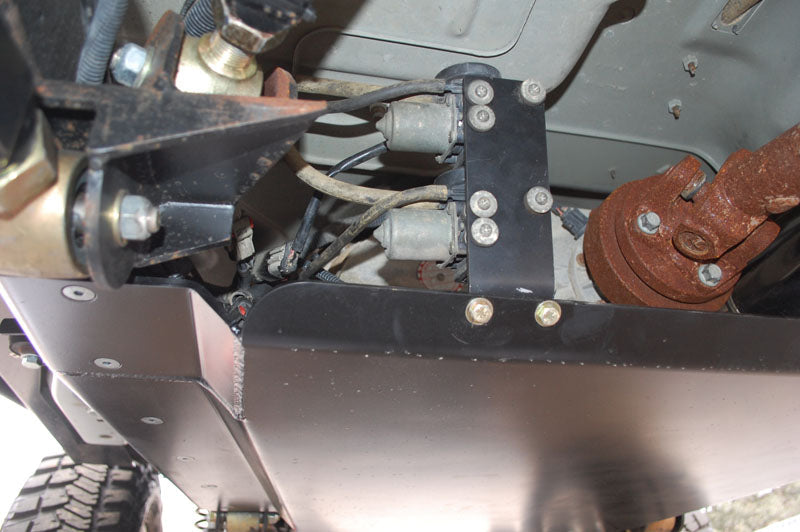

• You have a Rubicon LJ and understand a 1" body lift is required, and that the optional Clayton compressor mount is recommended — Rubicon models require a 1" body lift for this skid plate to fit. Clayton's optional compressor mount is also recommended for Rubicon builds. Non-Rubicon LJ models do not require a body lift. This skid plate ships bare metal at 130 lbs — freight pallet shipping is strongly recommended to minimize cosmetic shipping damage.

The Result

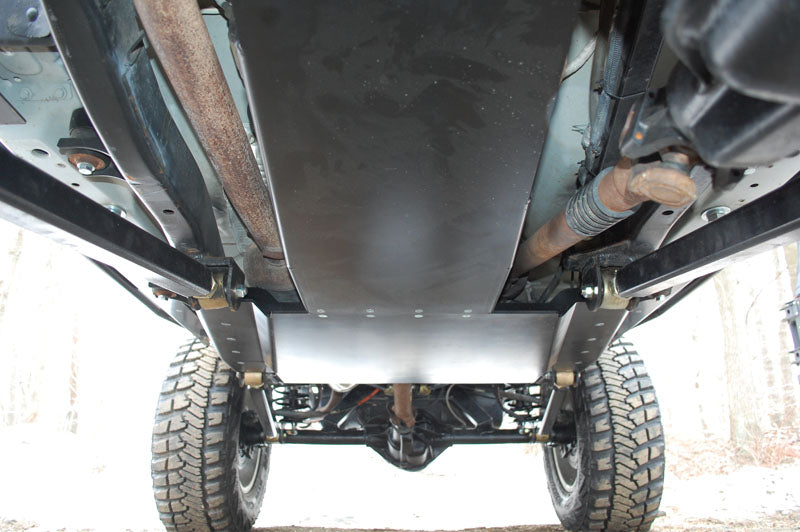

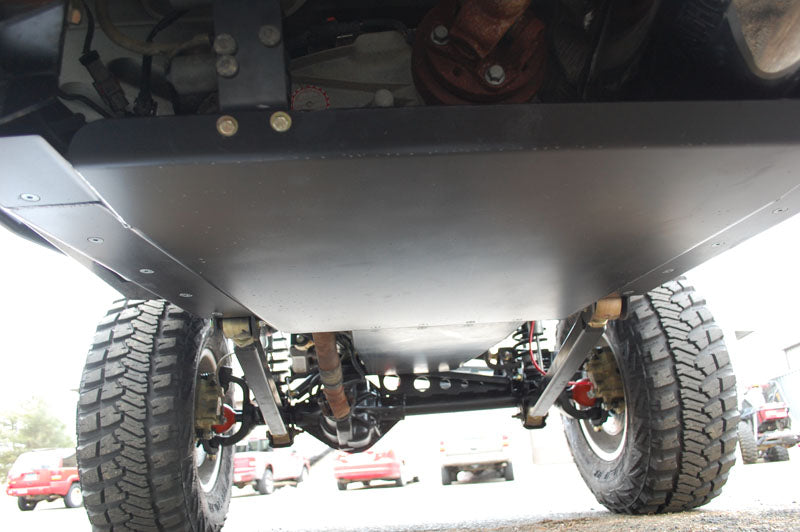

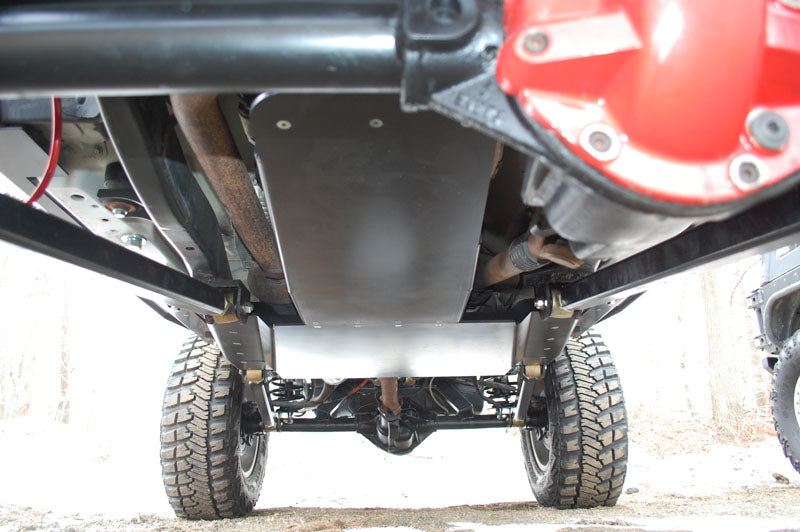

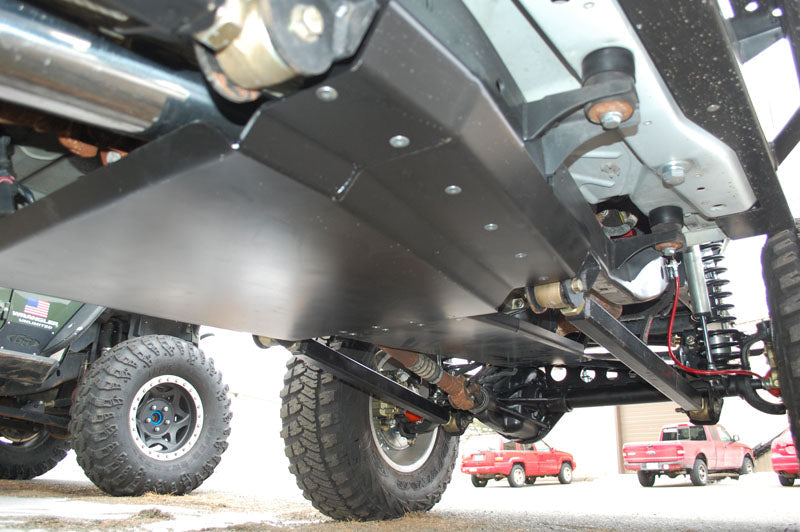

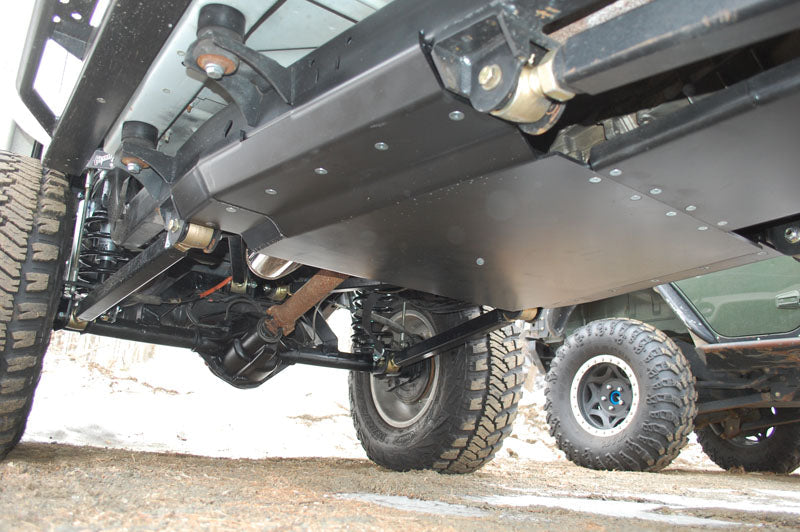

• 2-piece bolt-on skid plate for 2004–2006 Jeep Wrangler LJ Unlimited — fits stock, short arm, or Clayton long arm. 130 lbs. Gains approximately 1.5" of clearance over the stock LJ skid plate.

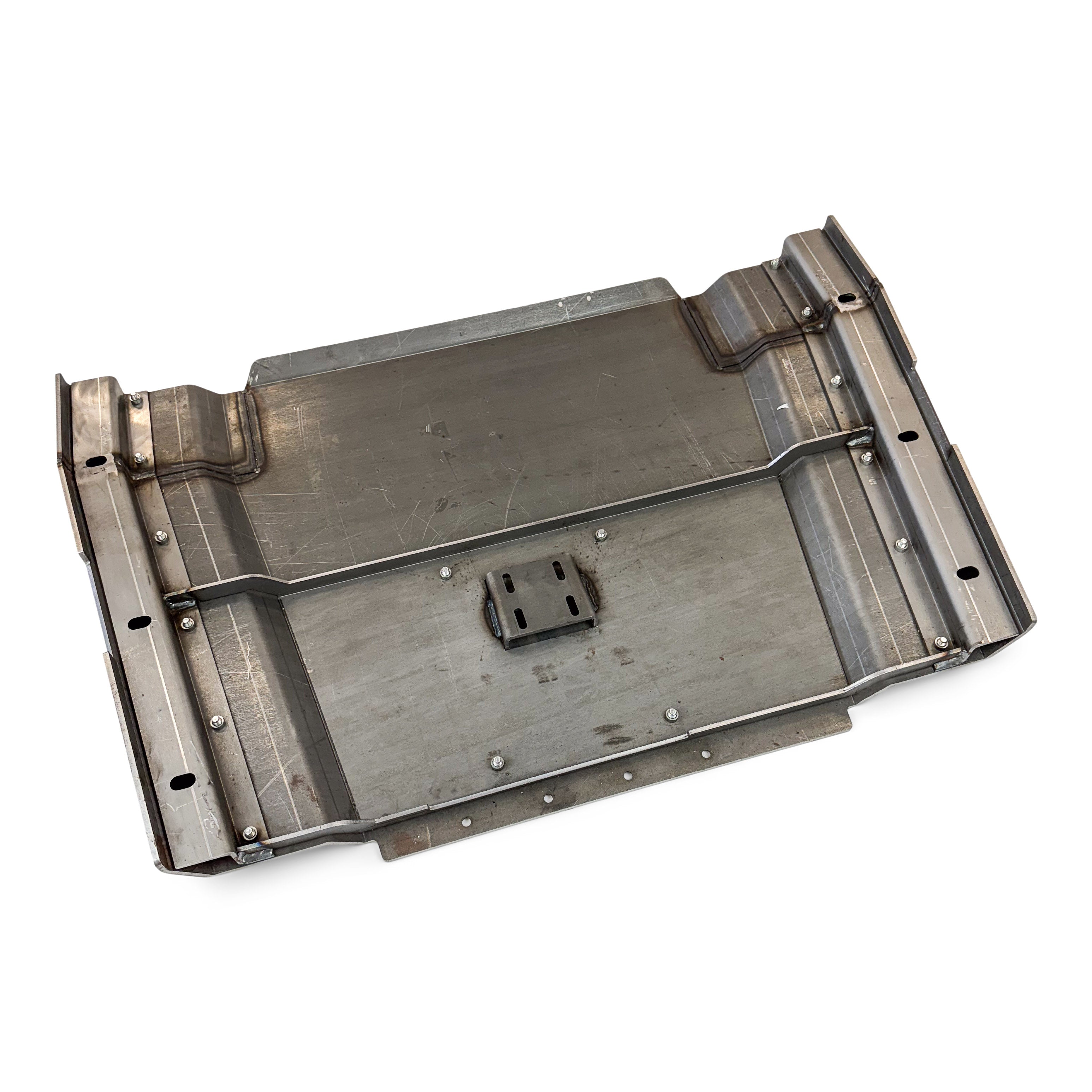

• 3/16" laser-cut cradle bolts to OEM location and picks up transmission mount. 1/4" flat skid plate attaches to cradle via countersunk Allen head bolts. Cradle design allows drivetrain service without removing the entire skid plate.
• Rubicon models: 1" body lift required, optional compressor mount recommended. Ships bare metal. Freight pallet shipping strongly recommended at 130 lbs.

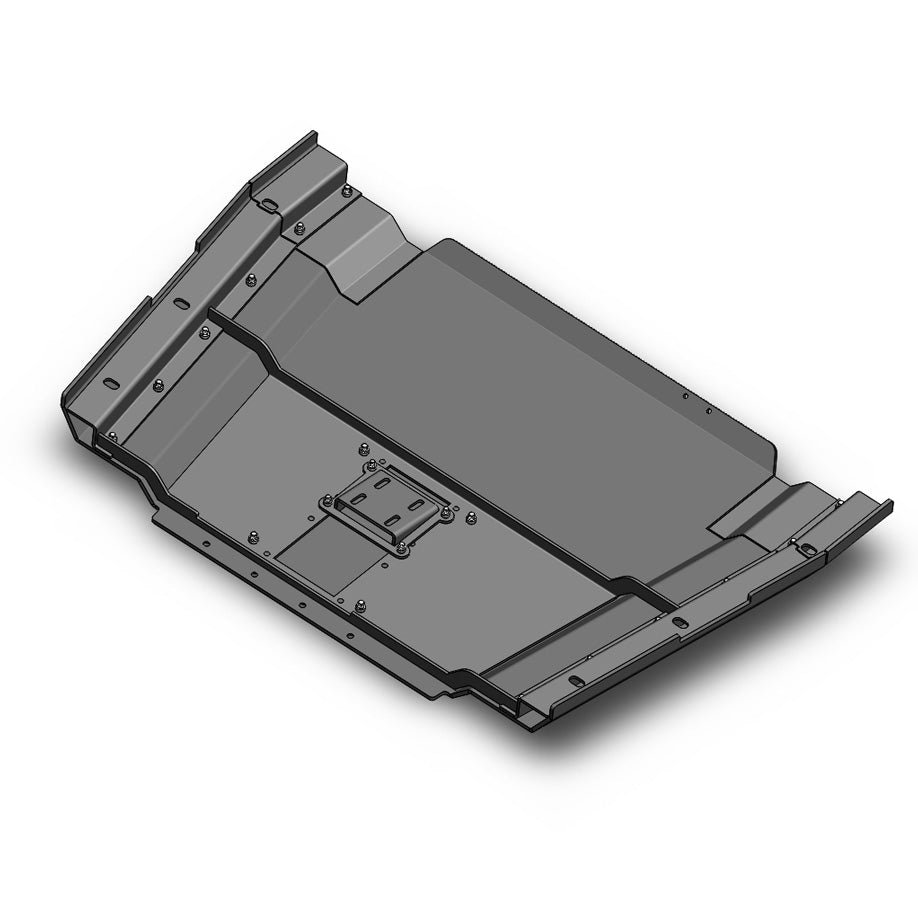

The COR-4107100 is Clayton Off Road's 2-piece skid plate for the 2004–2006 Jeep Wrangler LJ Unlimited. At 130 lbs, this is the most substantial bolt-on underbody skid plate available for the LJ platform. The system fits any LJ Unlimited regardless of suspension configuration — stock, short arm lift, or Clayton long arm kit — with no cross member restrictions. The 2-piece design consists of a 3/16" laser-cut cradle and a 1/4" flat skid plate. The cradle bolts to the OEM location and picks up the transmission mount, adding structural strength to the skid plate system. The 1/4" flat skid plate is completely flat and attaches to the cradle using countersunk Allen head bolts. The cradle design allows the flat skid plate to be removed for drivetrain service without disturbing the cradle or its mounting points. The skid plate gains approximately 1.5" of clearance over the stock LJ skid plate. Rubicon models require a 1" body lift for fitment — non-Rubicon LJ models do not require a body lift. Clayton's optional compressor mount is recommended for Rubicon builds. This skid plate ships bare metal at 130 lbs — freight pallet shipping is strongly recommended to minimize cosmetic shipping damage. Surface rust and cosmetic scratches during shipping are a normal result of bare metal shipping and are not considered damage, and are not eligible for return, replacement, or compensation.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 2004–2006 Jeep Wrangler LJ Unlimited — All Trims — Stock, Short Arm, or Clayton Long Arm
✅ Fits 2005–2006 Jeep Wrangler LJ Unlimited Rubicon — Requires 1" Body Lift — Optional Compressor Mount Recommended
❌ Does NOT fit Jeep Wrangler TJ (2-Door, 1997–2006) — different underbody geometry
❌ Does NOT fit Jeep Wrangler JK (2007–2018) — different underbody architecture
❌ Rubicon models require 1" body lift — will not fit Rubicon without body lift

Installation & Fabrication Notes

• No cutting or welding required — bolt-on installation.
• This skid plate ships bare metal at 130 lbs — freight pallet shipping is strongly recommended. Prime, paint, or apply your preferred finish before or after installation to prevent rust.
• Rubicon models: Install a 1" body lift before installing this skid plate. Install the optional Clayton compressor mount if applicable.
• Install the 3/16" cradle to the OEM underbody location, picking up the transmission mount, per Clayton's installation instructions.
• Attach the 1/4" flat skid plate to the cradle using the countersunk Allen head bolts per Clayton's installation instructions.
• Torque all hardware to specification.
• For drivetrain service: remove the countersunk Allen head bolts to detach the flat skid plate from the cradle without disturbing the cradle mounting points.

Wheel & Tire Fitment

Compatible with standard LJ Unlimited wheel and tire combinations. This 2-piece skid plate gains approximately 1.5" of clearance over the stock LJ skid plate, improving underbody clearance for larger tire fitments.

Engineering Question: Is your LJ a Rubicon model? Rubicon models require a 1" body lift for this skid plate to fit — non-Rubicon LJ models do not require a body lift. Also confirm your suspension configuration (stock, short arm, or Clayton long arm) — this skid plate fits all three. At 130 lbs, freight pallet shipping is strongly recommended — contact Clayton for a freight quote before ordering if you want to avoid cosmetic shipping damage.
