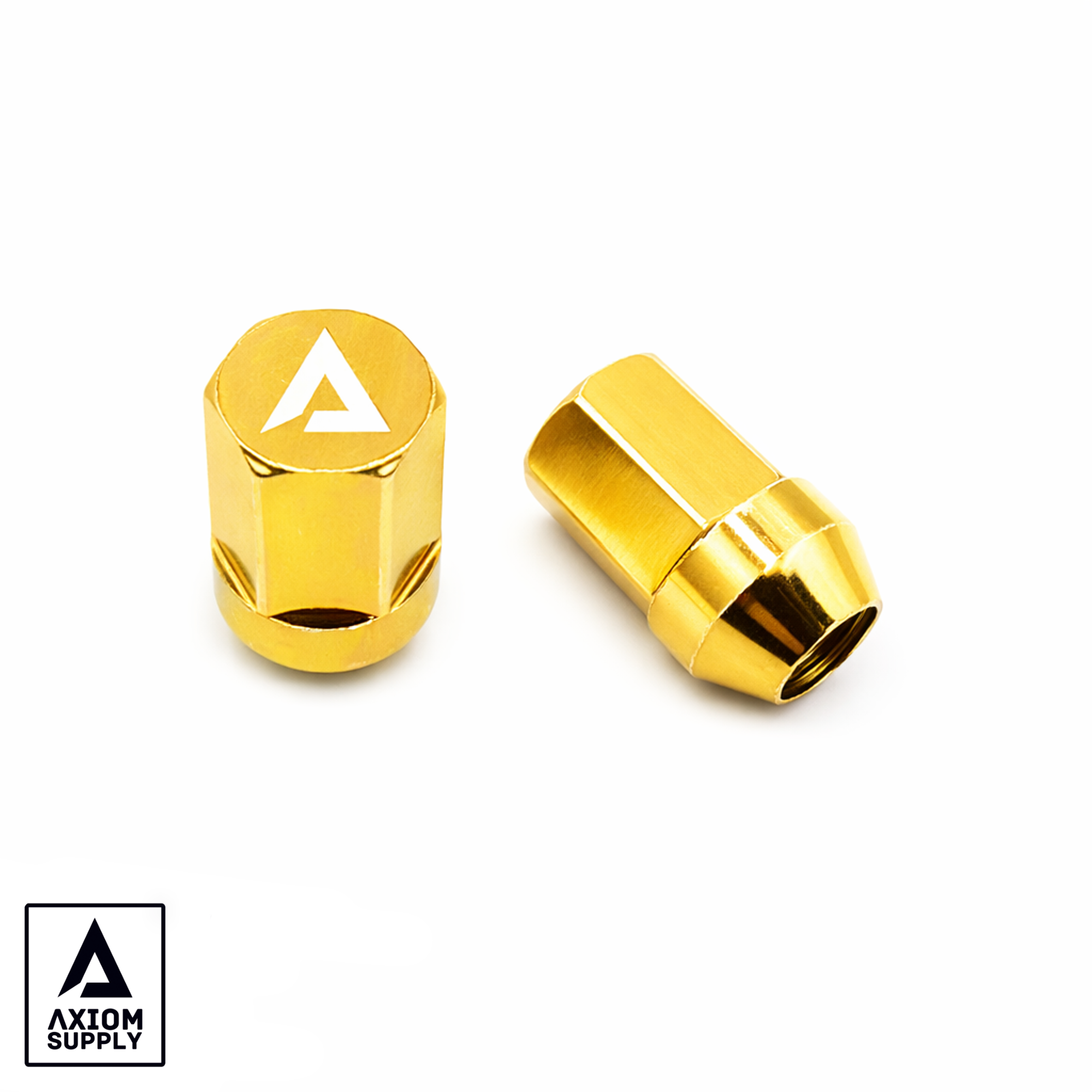

Axiom HD Chromoly Lug Nut | M12x1.5 | UTV Wheel Hardware

Axiom Heavy Duty Chromoly Lug Nut | M12x1.5 Thread | UTV Wheel Hardware

The Axiom Heavy Duty Chromoly Lug Nut (SKU: AXLG1) is a high-strength replacement lug nut for UTV wheels using M12x1.5 thread pitch. Chromoly steel construction provides greater tensile strength and fatigue resistance than standard carbon steel lug nuts, making it well-suited for off-road, high-vibration, and repeated torque-cycle applications. Sold individually — order the quantity needed for your application.

Verified Fitment (OFAS Standard)

Universal fit — compatible with any UTV wheel hub using M12x1.5 thread pitch. Confirm thread pitch and seat type before ordering.

Does NOT fit: M10, M14, or other thread diameters. Does not fit M12x1.25 thread pitch — confirm pitch is 1.5 before ordering. Seat type must match wheel seat (conical/tapered, ball/radius, or flat — verify before installation).

Technical Specifications

• SKU: AXLG1
• Thread: M12x1.5
• Material: Chromoly steel — higher tensile strength than standard carbon steel
• Quantity: Single lug nut (order quantity as needed)
• Application: UTV wheel hardware — off-road, high-vibration environments
• Weight: 1.2 lbs

Installation Notes

• Thread confirmation required: Verify thread pitch is M12x1.5 before installation. M12x1.25 is a common alternative pitch — do not cross-thread. Installing the wrong pitch will damage the hub stud.
• Seat type confirmation: Confirm lug nut seat type matches your wheel (conical/tapered 60°, ball/radius, or flat with washer). Mismatched seat types will not clamp correctly and can cause wheel loosening or stud damage.
• Torque specs: Torque to manufacturer specification for your UTV hub and wheel combination. Typical UTV M12x1.5 lug nut torque range is 35–45 ft-lbs — verify in your UTV service manual. Do not use an impact wrench without a torque stick.
• Inspection interval: Check lug nut torque after first off-road use and at regular service intervals. Vibration and impact loads can loosen hardware over time.
• Chromoly note: Chromoly lug nuts should not be used with aluminum wheel seats without confirming compatibility — hardness differential can cause galling on soft aluminum seat surfaces.

Installation Warning

Do not install on M12x1.25 or any non-M12x1.5 threaded studs — cross-threading will damage the hub stud and require stud replacement. Confirm seat type matches your wheel before installation — mismatched seats will not clamp correctly. Always torque to specification — over-torquing chromoly lug nuts can stretch or shear studs. Once installed, the unit is non-returnable.

What is your UTV make and model, wheel thread pitch (M12x1.5 or M12x1.25), and seat type (conical, ball, or flat) — confirm before ordering?
