BDS 6-Inch Radius Arm Lift Kit | FOX 2.0 Shocks | Ram 2500 4WD Diesel 2014-2018

BDS 6-Inch Radius Arm Lift Kit | FOX 2.0 Shocks | Ram 2500 4WD Diesel 2014–2018 | SKU: 2100FS

Is This for You?

This kit is for the 2014–2018 Ram 2500 4WD diesel owner who wants maximum front lift — 6 inches — at the FOX 2.0 price point. This is the DS-generation Ram 2500 diesel platform. If you have a 2019 or newer Ram 2500, stop here — that is the DT platform, order SKU 1680FS. If you want FOX 2.5 PE shocks instead of FOX 2.0, see SKU 2100FPE. If you need 4 inches instead of 6, see SKU 1762FPE (FOX 2.5 PE) or SKU 1762FS (FOX 2.0).

The Result

6 inches of front lift with corrected caster, reduced bushing bind, and FOX 2.0 damping on the DS-generation Ram 2500 diesel platform. The truck clears larger tires, sits aggressive, and maintains consistent geometry under diesel towing loads. FOX 2.0 shocks deliver improved damping over factory at this lift height.

Verified Fitment (OFAS Standard)

• Ram 2500 4WD Diesel: 2014–2018

Does NOT fit: Ram 2500 2019 or newer — different platform (DT), order SKU 1680FS. Does not fit Ram 2500 2013 or earlier. Does not fit Ram 2500 gas — order SKU 1763FPE for 2014–2018 Ram 2500 4WD gas. Does not fit Ram 2500 2WD. Does not fit Ram 3500 or Ram 1500.

System Specifications

• SKU: 2100FS
• Brand: BDS Suspension
• Lift Height: 6 inches (front)
• Suspension Type: Radius arm upgrade — heavy-duty BDS arms
• Shocks: FOX 2.0 Performance Series — diesel-tuned
• Application: Ram 2500 4WD Diesel 2014–2018
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

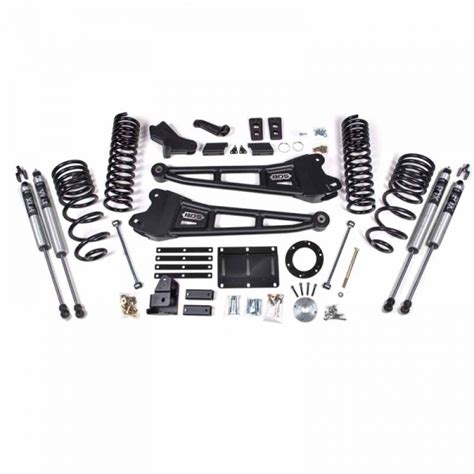

Master Kit Components

• Heavy-duty BDS radius arms — pair
• Diesel-tuned front coil springs
• FOX 2.0 Performance Series shocks
• Track bar correction bracket
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: 6-inch radius arm lift on a diesel platform requires a qualified suspension shop.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Driveline inspection mandatory: At 6-inch lift, inspect driveshaft angles and U-joint operating angles after installation.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.
• Break-in period: Allow FOX shocks to break in per FOX recommendations before aggressive off-road use.

Wheel & Tire Fitment

At 6-inch front lift on the Ram 2500 diesel platform, typical fitment runs 37–40-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering. Oversized tires may require trimming or additional modifications at this lift height.

Installation Warning

Application-specific. Confirm 2014–2018 Ram 2500 4WD diesel before ordering. Does NOT fit 2019+ Ram 2500 — order SKU 1680FS. Does not fit gas — order SKU 1763FPE. Does not fit 2WD or Ram 3500. Driveline inspection mandatory at 6-inch lift. This product is non-returnable once installed.

Is your Ram 2500 a 2014–2018 DS-generation or 2019+ DT-generation? Gas or diesel? Do you need 6 inches or 4 inches of lift? Do you want FOX 2.0 or FOX 2.5 PE (SKU 2100FPE)? Submit your year, engine, drivetrain, and target lift height via the contact form and we’ll confirm the correct SKU before it ships.
