BDS 5-Inch 4-Link FOX 2.5 Performance Elite Coil-Over Conversion | Ford F-250/F-350 Super Duty 4WD Diesel 2020-2022
0Low stock
0In stock, ready to ship
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
BDS 5-Inch 4-Link FOX 2.5 Performance Elite Coil-Over Conversion | Ford F-250 / F-350 Super Duty 4WD Diesel 2020–2022 | SRW | SKU: 1972FPE
Is This for You?
This kit is for the 2020–2022 Ford F-250 or F-350 SRW 4WD diesel owner who wants 5 inches of front lift via a true 4-link coil-over conversion at the FOX 2.5 Performance Elite level. This is a premium, high-modification kit — not a bolt-on leveling kit. SRW only — does not fit DRW. If you want 6 inches instead of 5, see SKU 1987FPE (F-350 DRW diesel). Confirm model year is 2020–2022 before ordering.
The Result
5 inches of front lift via a true 4-link coil-over conversion on the 2020–2022 Super Duty diesel platform — corrected geometry, eliminated factory radius arm bind, improved articulation, and FOX 2.5 PE coil-over damping with external reservoir. The truck sits aggressive, clears larger tires, and maintains consistent geometry under diesel towing loads.
Verified Fitment (OFAS Standard)
- Ford F-250 Super Duty 4WD Diesel SRW: 2020–2022
- Ford F-350 Super Duty 4WD Diesel SRW: 2020–2022
Does NOT fit: F-250/F-350 DRW (Dually) — different kit required. Does not fit gas models. Does not fit 4WD 2019 or earlier. Does not fit 2023 or newer without confirmation. Does not fit F-150. Does not fit F-450 or F-550.
System Specifications
- SKU: 1972FPE
- Brand: BDS Suspension
- Lift Height: 5 inches (front)
- Suspension Type: 4-link coil-over conversion
- Shocks: FOX 2.5 Performance Elite — external reservoir coil-overs
- Application: Ford F-250/F-350 SRW 4WD Diesel 2020–2022
- Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

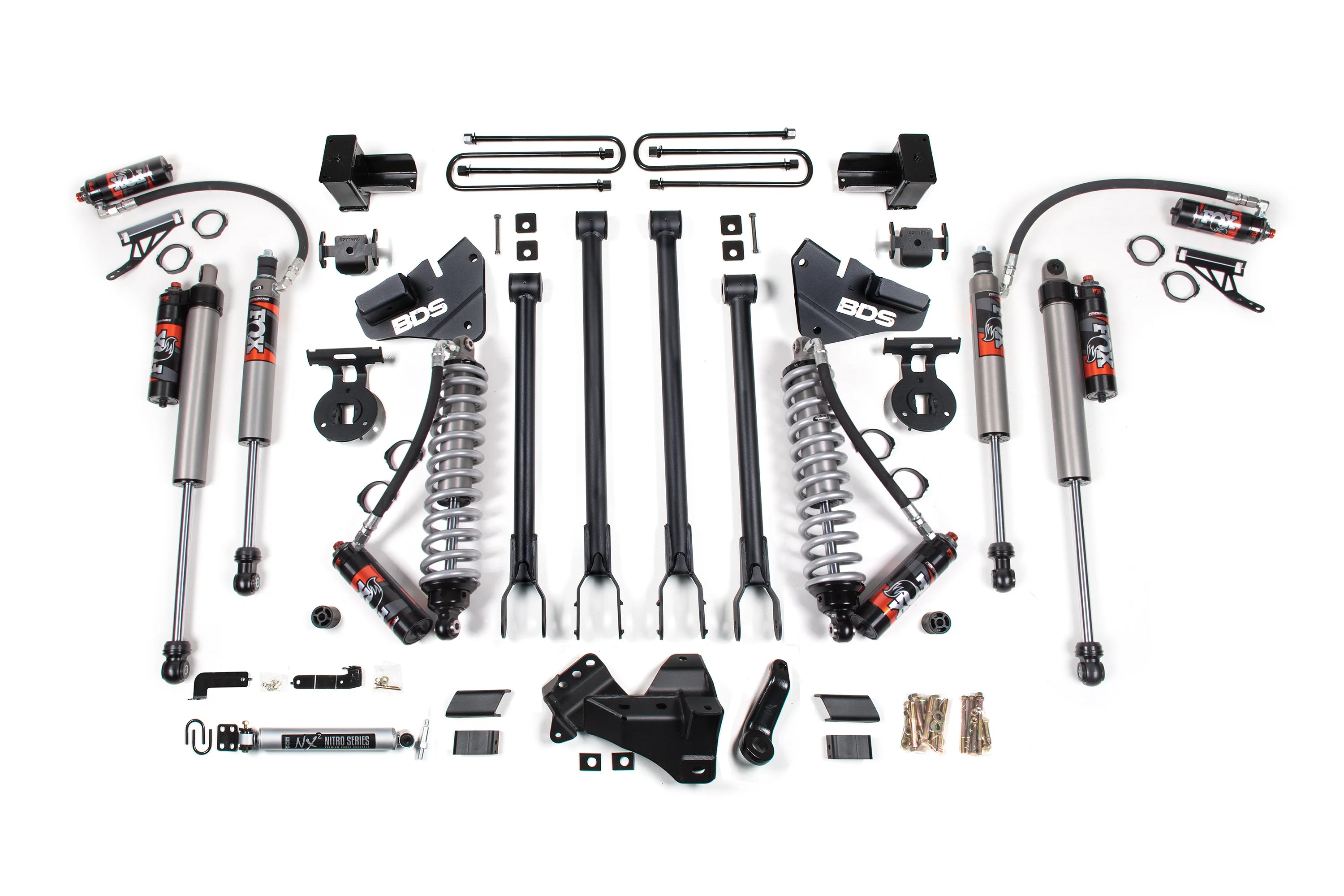

Master Kit Components
- 4-link front suspension conversion components
- FOX 2.5 Performance Elite coil-overs — external reservoir
- Track bar correction bracket
- All required installation hardware
Installation & Fabrication Notes
- Professional installation required: 4-link coil-over conversion on a Super Duty diesel platform requires a qualified suspension shop with Super Duty experience.
- Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
- Driveline inspection mandatory: At 5-inch lift, inspect driveshaft angles and U-joint operating angles after installation.
- Reservoir routing: Follow BDS and FOX installation instructions for reservoir placement — avoid pinch points and heat sources.
- Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.
Wheel & Tire Fitment
At 5-inch front lift on the Super Duty diesel platform, typical fitment runs 37–40-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.
Installation Warning
Application-specific. Confirm 2020–2022 Ford F-250/F-350 SRW 4WD diesel before ordering. DRW — different kit. Does not fit gas, 2019 and earlier, or 2023 and newer without confirmation. This product is non-returnable once installed.
Is your Super Duty a 2020–2022 4WD diesel SRW? Do you want 5 inches (this kit) or 6 inches (SKU 1987FPE for F-350 DRW diesel)? SRW or DRW? Submit your year, model, engine, drivetrain, and wheel config via the contact form and we’ll confirm the correct SKU before it ships.
