BDS 5.5-Inch Radius Arm Lift Kit | Rear Air Ride | FOX 2.0 Shocks | Ram 3500 4WD Gas 2019-2026

BDS 5.5-Inch Radius Arm Lift Kit | Rear Air Ride | FOX 2.0 Shocks | Ram 3500 4WD Gas 2019–2026 | SKU: 1726FS

Is This for You?

This kit is for the 2019–2026 Ram 3500 4WD gas owner with factory rear air ride suspension who wants 5.5 inches of front lift via radius arm upgrade with FOX 2.0 damping. This kit is air ride-specific — it includes the brackets required to integrate with the factory rear air ride system and preserve load-leveling functionality. If your Ram 3500 does NOT have factory rear air ride, order SKU 1686FPE (no overload, FOX 2.5 PE) or SKU 1687FPE (with overload, FOX 2.5 PE). If you want 4 inches of lift with air ride instead of 5.5 inches, see SKU 1723FS. If your Ram 3500 is diesel with air ride, see SKU 1724FS.

The Result

5.5 inches of front lift with corrected caster, reduced bushing bind, and FOX 2.0 damping on the Ram 3500 gas platform — with factory rear air ride integration. The factory load-leveling function is preserved at lifted height via air ride-specific rear brackets. The truck sits aggressive, clears larger tires, and maintains consistent geometry under towing and hauling loads.

Verified Fitment (OFAS Standard)

• Ram 3500 4WD Gas: 2019–2026 — with factory rear air ride suspension

Does NOT fit: Ram 3500 without factory rear air ride — order SKU 1686FPE or 1687FPE. Does not fit Ram 3500 diesel with air ride — order SKU 1724FS. Does not fit Ram 3500 2WD. Does not fit Ram 3500 2018 or earlier. Does not fit Ram 2500 or Ram 1500.

System Specifications

• SKU: 1726FS
• Brand: BDS Suspension
• Lift Height: 5.5 inches (front)
• Suspension Type: Radius arm upgrade — heavy-duty BDS arms, air ride compatible
• Rear: Air ride-specific brackets — preserves factory load-leveling functionality
• Shocks: FOX 2.0 Performance Series — gas-tuned
• Application: Ram 3500 4WD Gas 2019–2026 — with factory rear air ride
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

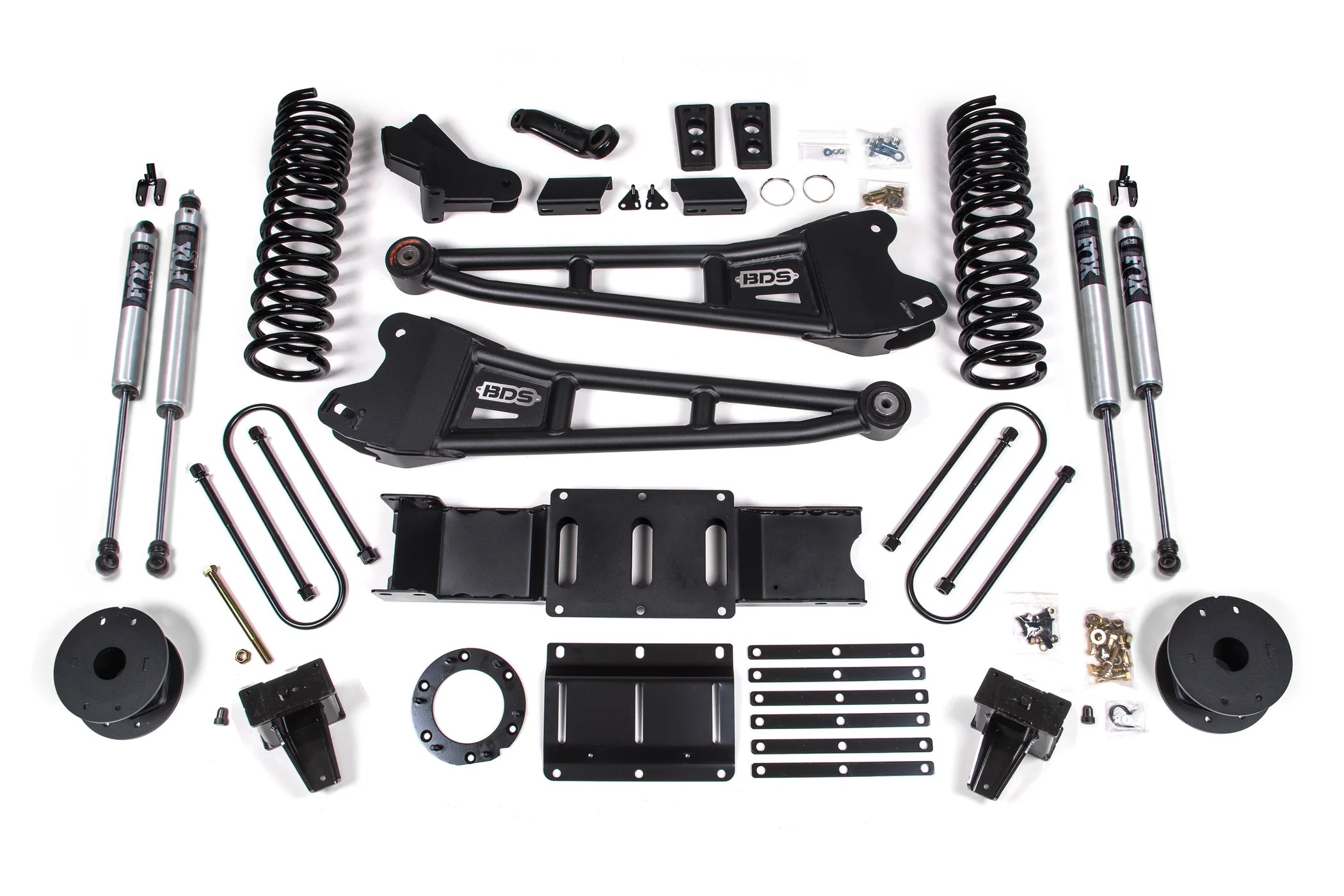

Master Kit Components

• Heavy-duty BDS radius arms — pair
• Gas-tuned front coil springs
• Rear air ride-specific brackets
• FOX 2.0 Performance Series shocks
• Track bar correction bracket
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: Radius arm lift with air ride integration requires a qualified suspension shop experienced with Ram air ride systems.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Air ride system verification: Verify factory air ride load-leveling function after installation. If air ride does not function correctly, do not drive — contact your installer.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.
• Break-in period: Allow FOX shocks to break in per FOX recommendations before aggressive off-road use.

Wheel & Tire Fitment

At 5.5-inch front lift on the Ram 3500 gas platform, typical fitment runs 35–38-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.

Installation Warning

Application-specific. Confirm 2019–2026 Ram 3500 4WD gas WITH factory rear air ride before ordering. Without air ride — order SKU 1686FPE or 1687FPE. Diesel with air ride — order SKU 1724FS. Does not fit 2WD or 2018 and earlier Ram 3500. Air ride system verification mandatory after installation. This product is non-returnable once installed.

Does your Ram 3500 have factory rear air ride suspension? Gas or diesel? Do you want 5.5 inches of lift (this kit) or 4 inches (SKU 1723FS)? Those details determine which kit ships. Submit your year, engine, drivetrain, and rear suspension config via the contact form and we’ll confirm the correct SKU before it ships.
