BDS 5.5-Inch 4-Link Lift Kit | Rear Air Ride | FOX 2.0 Shocks | Ram 3500 4WD Gas 2019-2026

BDS 5.5-Inch 4-Link Lift Kit | Rear Air Ride | FOX 2.0 Shocks | Ram 3500 4WD Gas 2019–2026 | SKU: 1734FS

Is This for You?

This kit is for the 2019–2026 Ram 3500 4WD gas owner with factory rear air ride suspension who wants 5.5 inches of front lift via a 4-link conversion with FOX 2.0 damping. This kit is air ride-specific — it includes the brackets and components required to work with the factory rear air ride system. If your Ram 3500 does NOT have factory rear air ride, this is the wrong kit — see SKU 1686FPE (5.5-inch, FOX 2.5 PE, no air ride) or SKU 1687FPE (with overload leaf).

The Result

5.5 inches of front lift via a 4-link conversion on the Ram 3500 gas platform — corrected geometry, eliminated radius arm bind, improved articulation, and FOX 2.0 damping. The factory rear air ride system is retained and integrated with air ride-specific brackets. The truck sits aggressive, clears larger tires, and maintains consistent geometry under towing and hauling loads.

Verified Fitment (OFAS Standard)

• Ram 3500 4WD Gas: 2019–2026 — with factory rear air ride suspension

Does NOT fit: Ram 3500 without factory rear air ride — order SKU 1686FPE or 1687FPE. Does not fit Ram 3500 diesel — different kit required. Does not fit Ram 3500 2WD. Does not fit Ram 3500 2018 or earlier. Does not fit Ram 2500 — see SKU 1739FS for 2019–2026 Ram 2500 4WD gas with air ride. Does not fit Ram 1500.

System Specifications

• SKU: 1734FS
• Brand: BDS Suspension
• Lift Height: 5.5 inches (front)
• Suspension Type: 4-link conversion — air ride compatible
• Shocks: FOX 2.0 Performance Series — gas-tuned
• Application: Ram 3500 4WD Gas 2019–2026 — with factory rear air ride
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

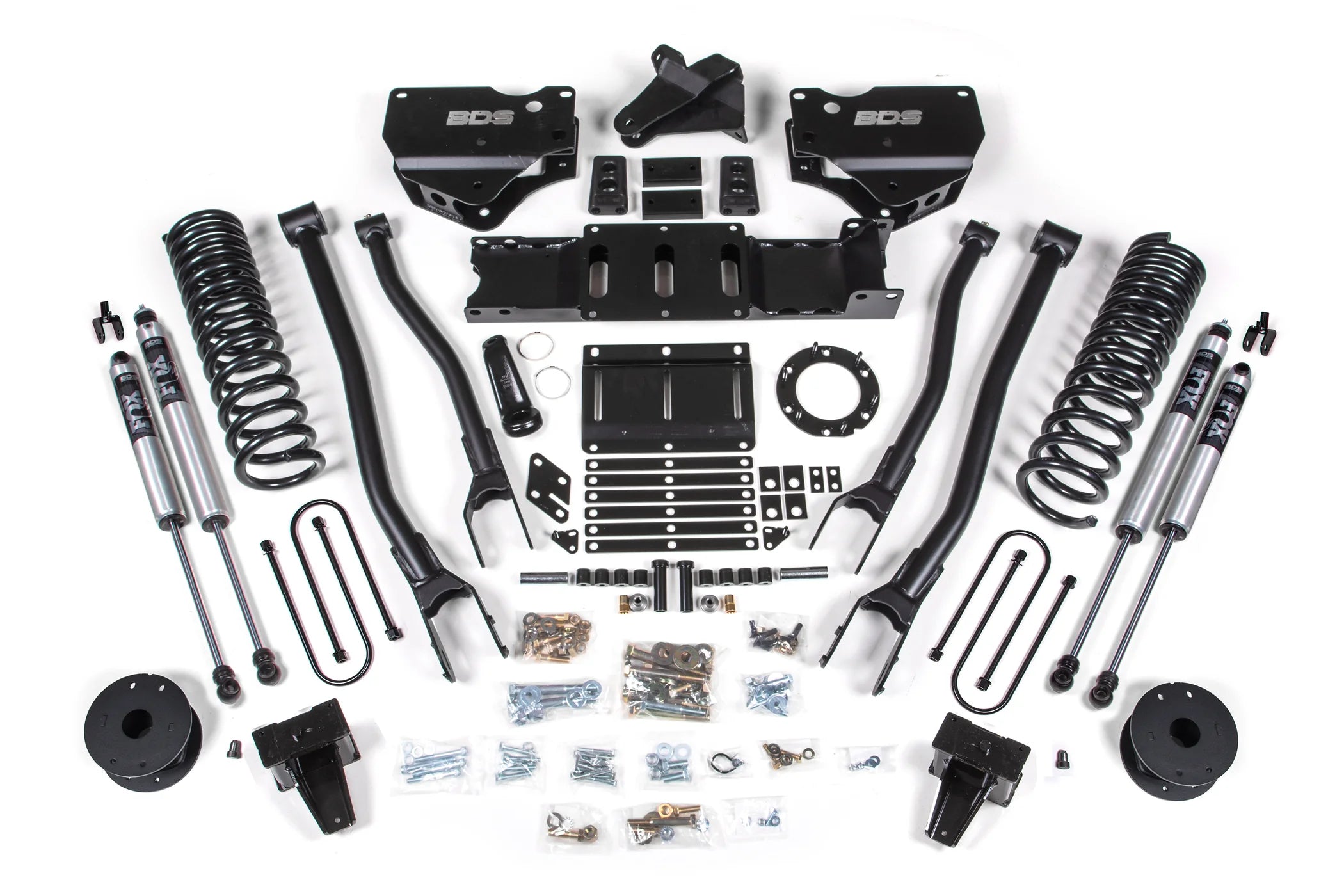

Master Kit Components

• 4-link front suspension conversion components
• Gas-tuned front coil springs
• FOX 2.0 Performance Series shocks
• Factory rear air ride integration brackets
• Track bar correction bracket
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: 4-link conversion with air ride integration requires a qualified suspension shop experienced with Ram air ride systems.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Air ride system: Factory rear air ride is retained — confirm air ride bracket installation per BDS instructions before pressurizing system.
• Driveline inspection: Inspect driveshaft angles and U-joint operating angles after installation.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.

Wheel & Tire Fitment

At 5.5-inch front lift on the Ram 3500 gas platform, typical fitment runs 35–38-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.

Installation Warning

Application-specific. Confirm 2019–2026 Ram 3500 4WD gas WITH factory rear air ride before ordering. Without air ride — order SKU 1686FPE or 1687FPE. Does not fit diesel, 2WD, or 2018 and earlier Ram 3500. This product is non-returnable once installed.

Does your Ram 3500 have factory rear air ride suspension? Gas or diesel? 2019–2026? Those three details determine which kit ships. Submit your year, engine, drivetrain, and rear suspension config via the contact form and we’ll confirm the correct SKU before it ships.
