BDS 5.5-Inch 4-Link Lift Kit | Rear Air Ride | FOX 2.0 Shocks | Ram 2500 4WD Gas 2019-2026

BDS 5.5-Inch 4-Link Lift Kit | Rear Air Ride | FOX 2.0 Shocks | Ram 2500 4WD Gas 2019–2026 | SKU: 1739FS

Is This for You?

This kit is for the 2019–2026 Ram 2500 4WD gas owner with factory rear air ride suspension who wants 5.5 inches of front lift via a 4-link conversion with FOX 2.0 damping. This kit is air ride-specific — it includes the brackets required to integrate with the factory rear air ride system and preserve load-leveling functionality. If your Ram 2500 does NOT have factory rear air ride, order SKU 1681FS (5.5-inch radius arm, FOX 2.0) or SKU 1699FS (4-inch radius arm, FOX 2.0) instead. If you have a 2014–2018 Ram 2500 with air ride, stop here — that is the DS platform, order SKU 1630FS.

The Result

5.5 inches of front lift via a 4-link conversion on the DT-generation Ram 2500 gas platform — corrected geometry, eliminated radius arm bind, improved articulation, and FOX 2.0 damping. The factory rear air ride system is retained and integrated with air ride-specific brackets. The truck sits aggressive, clears larger tires, and maintains consistent geometry under towing and hauling loads.

Verified Fitment (OFAS Standard)

• Ram 2500 4WD Gas: 2019–2026 — with factory rear air ride suspension

Does NOT fit: Ram 2500 without factory rear air ride — order SKU 1681FS or 1699FS. Does not fit Ram 2500 diesel. Does not fit Ram 2500 2WD. Does not fit Ram 2500 2018 or earlier — different platform, order SKU 1630FS. Does not fit Ram 3500 or Ram 1500.

System Specifications

• SKU: 1739FS
• Brand: BDS Suspension
• Lift Height: 5.5 inches (front)
• Suspension Type: 4-link conversion — air ride compatible
• Rear: Air ride-specific brackets — preserves factory load-leveling functionality
• Shocks: FOX 2.0 Performance Series — gas-tuned
• Application: Ram 2500 4WD Gas 2019–2026 — with factory rear air ride
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

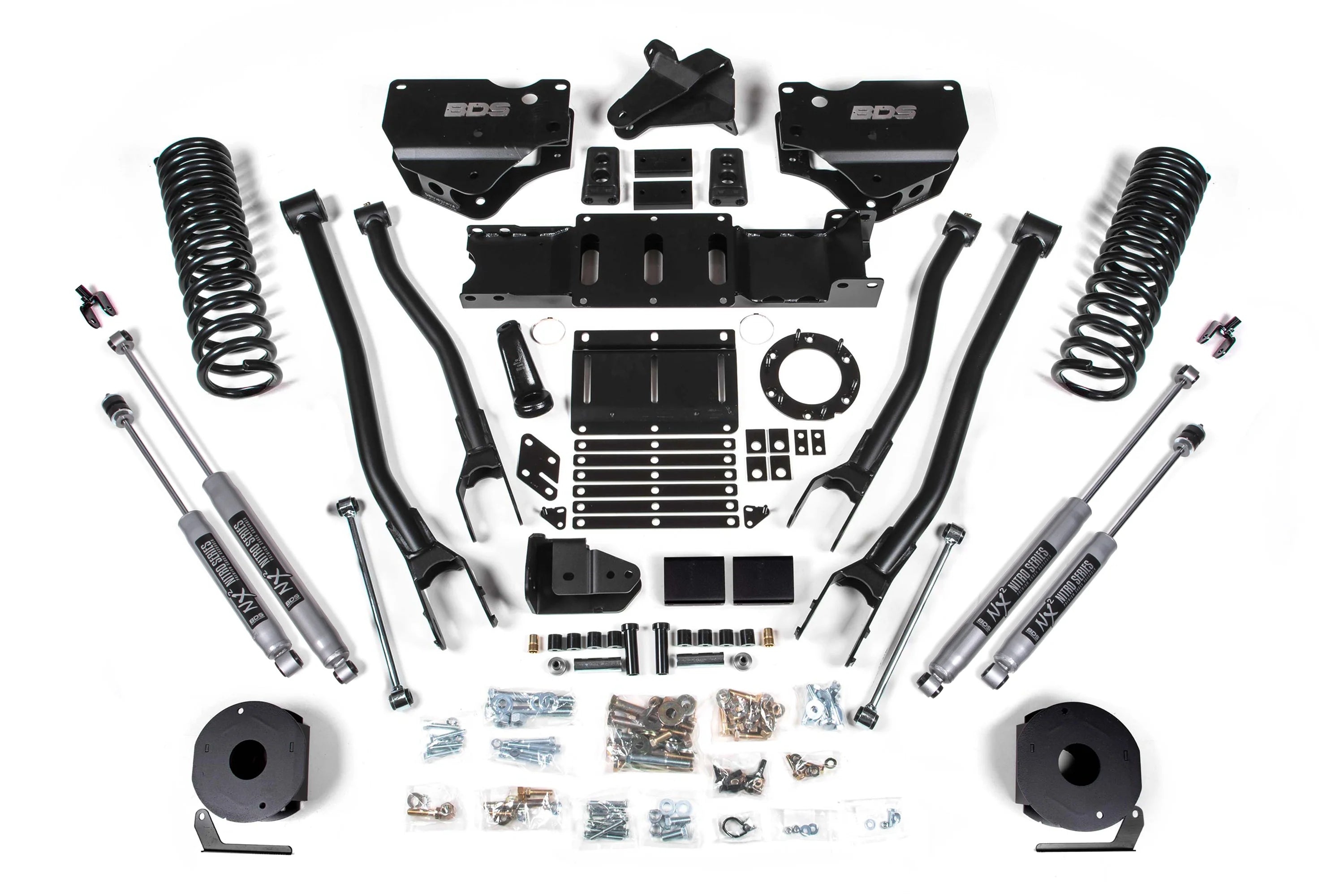

Master Kit Components

• 4-link front suspension conversion components
• Gas-tuned front coil springs
• Rear air ride-specific brackets
• FOX 2.0 Performance Series shocks
• Track bar correction bracket
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: 4-link conversion with air ride integration requires a qualified suspension shop experienced with Ram air ride systems.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Air ride system verification: Verify factory air ride load-leveling function after installation. If air ride does not function correctly, do not drive — contact your installer.
• Driveline inspection: Inspect driveshaft angles and U-joint operating angles after installation.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.

Wheel & Tire Fitment

At 5.5-inch front lift on the Ram 2500 gas platform, typical fitment runs 35–37-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.

Installation Warning

Application-specific. Confirm 2019–2026 Ram 2500 4WD gas WITH factory rear air ride before ordering. Without air ride — order SKU 1681FS or 1699FS. 2014–2018 Ram 2500 with air ride — order SKU 1630FS. Does not fit diesel, 2WD, or Ram 3500. Air ride system verification mandatory after installation. This product is non-returnable once installed.

Does your Ram 2500 have factory rear air ride suspension? Is it a 2019–2026 DT-generation or 2014–2018 DS-generation? Gas or diesel? Those details determine which kit ships. Submit your year, engine, drivetrain, and rear suspension config via the contact form and we’ll confirm the correct SKU before it ships.
