BDS 5.5-Inch Lift Kit | FOX 2.0 Shocks | Leaf Springs | Ram 3500 4WD Gas 2013-2018

BDS 5.5-Inch Lift Kit | FOX 2.0 Shocks | Leaf Springs | Ram 3500 4WD Gas 2013–2018 | SKU: 1619FS

Is This for You?

This kit is for the 2013–2018 Ram 3500 4WD gas owner who wants 5.5 inches of front and rear lift via a coil spring and leaf spring system with FOX 2.0 damping. This is the DS-generation Ram 3500 gas platform. If you have a 2019 or newer Ram 3500, stop here — that is the DT platform, order SKU 1686FPE (no overload) or SKU 1687FPE (with overload). If you want FOX 2.5 PE shocks with radius arms instead of leaf springs, see SKU 2105FPE.

The Result

5.5 inches of front lift via gas-tuned coil springs and geometry-correct radius arm brackets, with matched rear lift via replacement leaf springs — all on the DS-generation Ram 3500 gas platform. The truck sits level and aggressive, clears larger tires, and maintains consistent geometry under towing and hauling loads. FOX 2.0 shocks deliver improved damping over factory at this lift height.

Verified Fitment (OFAS Standard)

• Ram 3500 4WD Gas: 2013–2018

Does NOT fit: Ram 3500 2019 or newer — different platform (DT), order SKU 1686FPE or 1687FPE. Does not fit Ram 3500 2012 or earlier. Does not fit Ram 3500 diesel. Does not fit Ram 3500 2WD. Does not fit Ram 2500 or Ram 1500.

System Specifications

• SKU: 1619FS
• Brand: BDS Suspension
• Front Lift Height: 5.5 inches — gas-tuned coil springs + geometry-correct radius arm brackets
• Rear Lift Height: Matched via replacement leaf springs
• Shocks: FOX 2.0 Performance Series
• Application: Ram 3500 4WD Gas 2013–2018
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

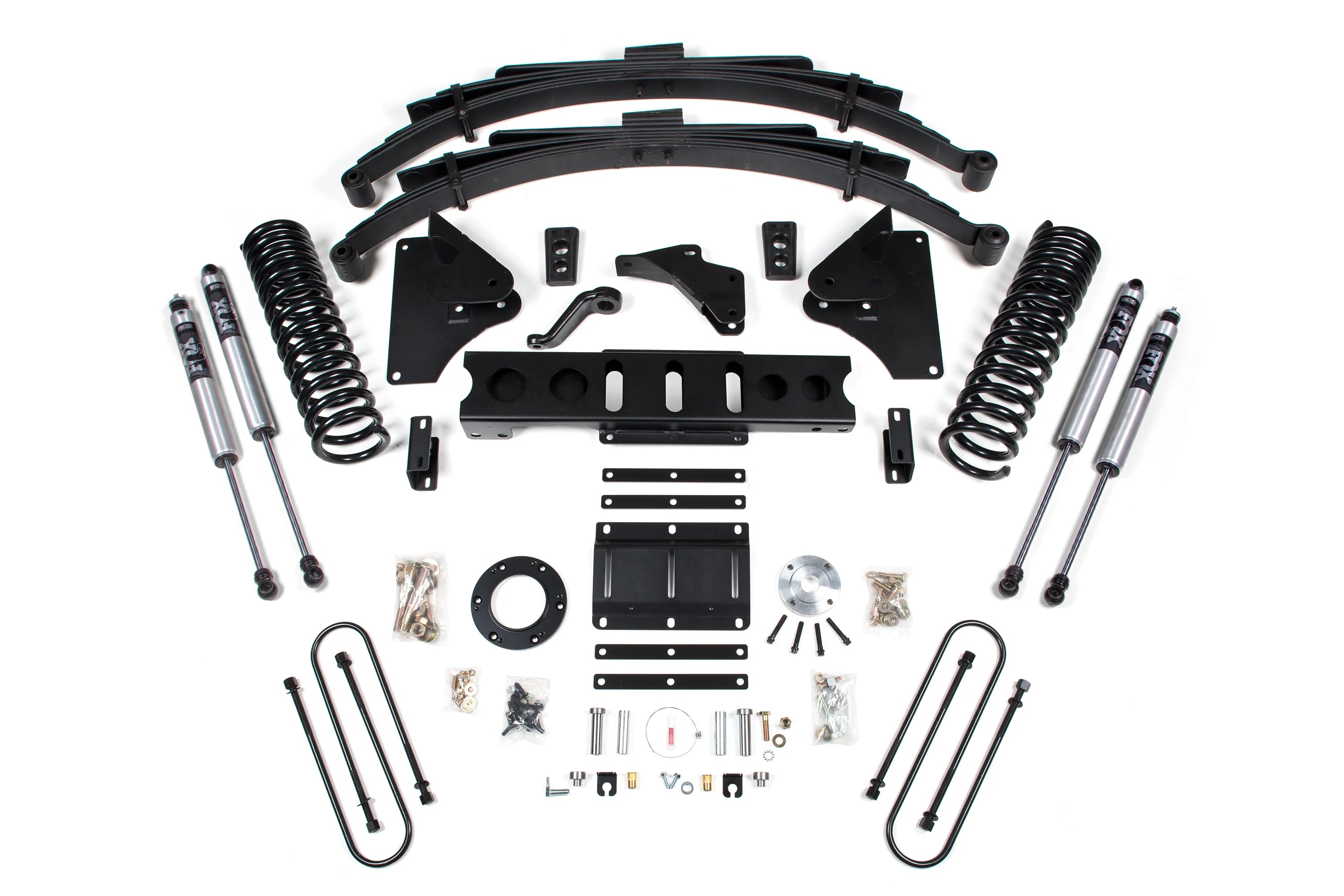

Master Kit Components

• Gas-tuned front coil springs
• Geometry-correct radius arm brackets
• Replacement rear leaf springs
• FOX 2.0 Performance Series shocks
• Track bar correction bracket
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: Suspension lift with leaf spring replacement requires a qualified suspension shop.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Leaf spring break-in: Allow new leaf springs to settle per BDS recommendations before aggressive off-road use.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.

Wheel & Tire Fitment

At 5.5-inch front lift on the Ram 3500 gas platform, typical fitment runs 35–38-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.

Installation Warning

Application-specific. Confirm 2013–2018 Ram 3500 4WD gas before ordering. Does NOT fit 2019+ Ram 3500 — different platform. Does not fit diesel, 2WD, or Ram 2500. This product is non-returnable once installed.

Is your Ram 3500 a 2013–2018 DS-generation or 2019+ DT-generation? Do you want FOX 2.0 with leaf springs or FOX 2.5 PE with radius arms (SKU 2105FPE)? Submit your year, engine, drivetrain, and target lift height via the contact form and we’ll confirm the right kit.
