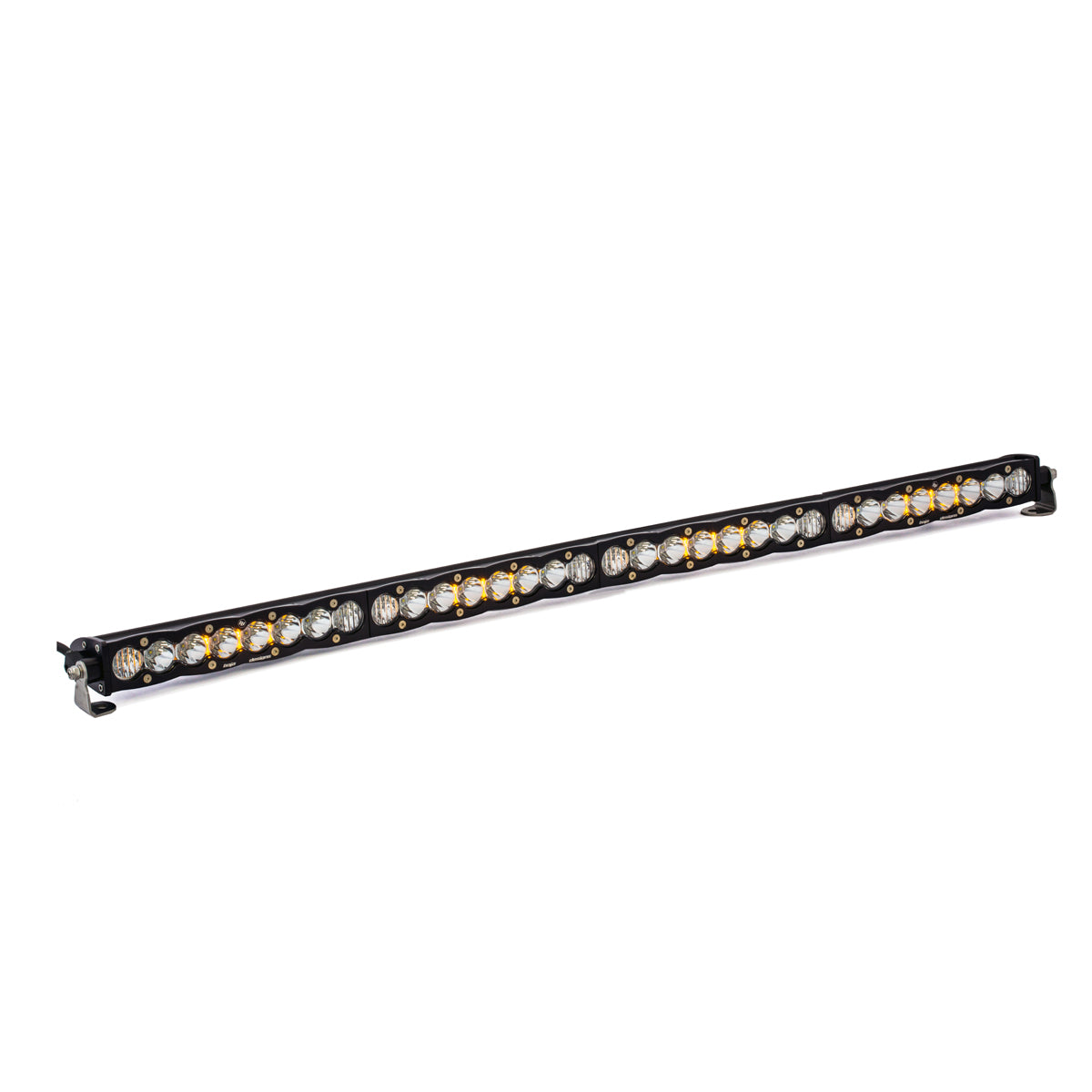

Baja Designs 40in S8 LED Light Bar | Driving/Combo | Amber Backlight

Baja Designs S8 40-Inch LED Light Bar | Driving/Combo Pattern | Amber Backlight | SKU: 704003

Is This for You?

This bar is for the driver who needs maximum white primary output for high-speed trail, desert, and road use, with an independently controlled amber backlight for running light or marker use. If you operate primarily in dust, fog, or sand and need full amber output from every LED, order the S8 Full Amber version (SKU: 704013) instead. If you want the best all-around 40-inch bar for mixed conditions with white primary output and amber accent capability, this is the correct SKU.

The Result

The S8 Driving/Combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread — the best all-around pattern for high-speed trail, desert, and road use where both forward reach and peripheral coverage are needed. The integrated amber backlight is a secondary LED strip wired independently from the main white LEDs, providing running light, marker, or accent function without affecting primary output. IP69K-rated construction — waterproof, dust-tight, pressure wash safe. This is Baja Designs’ top-tier light bar series.

S8 Pattern Comparison

• Driving/Combo (SKU: 704003 — this listing): Balanced long-range forward throw with wide spread — best all-around for trail, desert, and road
• Spot: Maximum long-range throw — narrow beam, best for high-speed desert and open terrain
• Flood: Maximum wide-angle spread — best for slow-speed trail and work environments
• Full Amber (SKU: 704013): All primary LEDs output amber — dedicated dust, fog, and desert use. No white output.

Technical Specifications

• SKU: 704003
• Series: S8 — Baja Designs top-tier light bar
• Length: 40 inches
• Pattern: Driving/Combo — balanced long-range forward throw with wide-angle spread
• Primary Output: White/Clear — maximum output in clear conditions
• Backlight: Amber — integrated secondary LED strip, independently controlled
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Weight: 13 lbs
• Mount: Universal — vehicle-specific or universal brackets sold separately
• Wiring Harness: Sold separately — required for installation

Installation Notes

• Bar length clearance: Confirm your mounting location accommodates 40 inches of bar length and the S8 mounting tab spacing before ordering. Measure your roof rack, bumper, or chase rack opening before purchasing — a 40-inch bar cannot be returned once mounting holes are drilled.
• Mounting bracket required: No brackets included. Order vehicle-specific or universal S8 mounting brackets separately. Confirm bracket compatibility with S8 mounting tab dimensions.
• Dual-circuit wiring: The amber backlight and main white LEDs are wired independently. A relay harness supporting dual-circuit wiring is required for independent control of both functions. Do not wire without a relay harness.
• Aim before final torque: Set beam angle before torquing mount hardware. Driving/combo pattern should be aimed to balance forward reach and peripheral spread for your mounting height and application.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations — verify compliance before use on public roads.

Engineering Question: What is your primary operating environment and mounting location — roof rack, bumper, or chase rack — and do you need independent amber backlight control? Confirm your rack or bumper accommodates 40 inches and that your wiring harness supports dual-circuit control before ordering.
