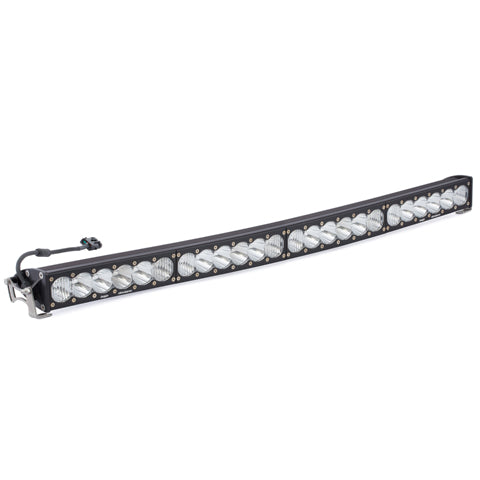

Baja Designs OnX6 Arc 40 Inch Curved LED Light Bar | Driving/Combo Pattern | Universal

Baja Designs OnX6 Arc 40 Inch Curved LED Light Bar | Driving/Combo Pattern | Universal | SKU: BAJ524003

The Baja Designs OnX6 Arc (SKU: BAJ524003) is a 40-inch curved LED light bar in a driving/combo optic pattern. The “Arc” designation indicates a curved bar profile — distinct from straight light bars. The curved profile is designed for mounting applications where the bar follows the vehicle’s roofline, windshield frame, or bumper contour — providing a more integrated, lower-profile appearance than a straight bar in curved mounting positions. The OnX6 Arc is a premium curved bar in the Baja Designs lineup. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread. Universal mount — no vehicle-specific brackets included. Wiring harness sold separately. Confirm your mounting location accommodates a curved 40-inch bar profile before ordering.

Application

Universal mount — compatible with any vehicle, truck, or equipment with a mounting solution that accommodates the OnX6 Arc 40-inch curved bar profile. Typical applications include windshield frame mounts, roofline mounts, and curved bumper bar positions where a straight bar would not follow the vehicle contour. Confirm your mounting solution accommodates the Arc curved profile and 40-inch bar length before ordering. No vehicle-specific brackets included. Wiring harness sold separately — contact OFAS at 903-347-3875 to confirm the correct harness PN for the OnX6 Arc 40-inch bar.

Arc Curved vs. Straight Bar — Which to Choose

• OnX6 Arc 40-Inch Curved (BAJ524003, this listing): Curved bar profile — follows roofline, windshield frame, or bumper contour. Best for mounting positions where a straight bar would not fit flush or would protrude above the roofline. Premium curved bar option.
• S8 40-Inch Straight — Clear (BAJ704003): Straight bar profile — standard flat mounting on roof rack, chase rack, or flat bumper bar. Best for flat mounting surfaces where bar profile is not a constraint.
• S8 40-Inch Straight — Amber (BAJ704013): Straight bar, amber lens — for dust and fog environments on flat mounting surfaces.
• S8 20-Inch Straight (BAJ702003): Straight bar, mid-length — for bumper, grille guard, and mid-width roof rack applications.
• OnX6 10-Inch Straight (BAJ451003): Straight bar, compact — for bumper, grille, and UTV cage applications.

Technical Specifications

• SKU: BAJ524003
• Brand: Baja Designs
• Series: OnX6 Arc — curved light bar
• Length: 40 inches — curved profile
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Weight: 15 lbs
• Mount: Universal — vehicle-specific or universal brackets sold separately
• Wiring Harness: Sold separately — confirm PN with OFAS

Installation Notes

• Curved profile confirmation: Confirm your mounting location accommodates the OnX6 Arc curved bar profile before ordering. The Arc curved profile is not interchangeable with straight bar mounts — confirm bracket compatibility with the Arc curvature.
• Harness confirmation required: Contact OFAS at 903-347-3875 to confirm the correct wiring harness PN for the OnX6 Arc 40-inch bar before ordering.
• Mounting bracket required: No brackets included — order universal or vehicle-specific Arc-compatible mounting brackets separately. Confirm bracket compatibility with the Arc curved profile and 40-inch bar length.
• Mount structural rating: At 15 lbs, confirm your roof rack, windshield frame mount, or bumper bar is structurally rated for the OnX6 Arc load and vibration forces at speed.
• Aim before final torque: Aim the bar at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Auxiliary lighting use on public roads is subject to state and local regulations. Verify compliance before use on public roads.

Installation Warning

Do not use straight bar mounts — Arc curved profile requires Arc-compatible brackets. Do not wire without correct harness — contact OFAS to confirm harness PN. Confirm mount structural rating for 15 lbs. Ensure connectors are fully sealed. Auxiliary lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle and mounting location — need a straight bar instead of curved? See BAJ704003 (S8 40-inch clear) or BAJ704013 (S8 40-inch amber). Contact OFAS at 903-347-3875 to confirm Arc bracket compatibility and harness PN before ordering.
