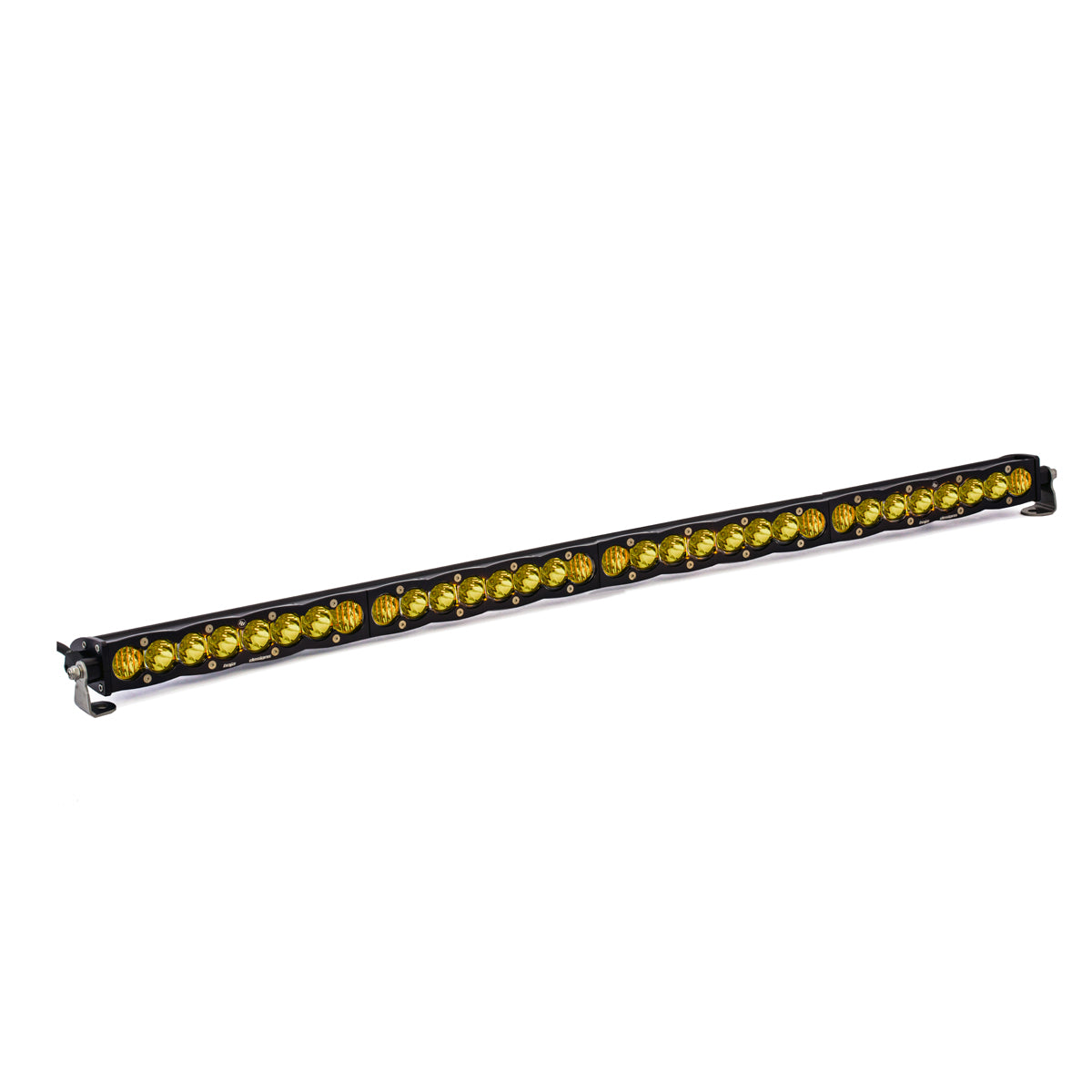

Baja Designs 40in S8 Amber LED Light Bar | Driving/Combo | Universal

Baja Designs S8 40-Inch Amber LED Light Bar | Driving/Combo Pattern | SKU: 704013

Is This for You?

This bar is for the driver who operates in dust, fog, sand, or precipitation and needs full amber output across the entire bar — not a clear bar with an amber accent strip. If your primary environment is clear conditions and you want maximum white output with an amber running light, order the S8 Clear + Amber Backlight version instead. If you need a 40-inch bar that outputs amber from every primary LED for dedicated low-visibility use, this is the correct SKU.

The Result

The S8 Amber filters blue light wavelengths that scatter in dust, fog, sand, and rain — reducing glare and improving contrast and depth perception in low-visibility conditions. The driving/combo optic pattern delivers a balanced combination of long-range forward throw and wide-angle spread, all in full amber output. IP69K-rated construction means the bar is waterproof, dust-tight, and pressure wash safe. This is Baja Designs’ top-tier light bar series — maximum output within the amber spectrum, premium optics, no compromises.

Amber Bar vs. Clear Bar with Amber Backlight — Critical Distinction

• S8 Clear + Amber Backlight: Primary LEDs output white/clear light — maximum output in clear conditions. Amber backlight is a secondary LED strip for running light or accent use only. Best for mixed-condition use where white output is the primary need.
• S8 Full Amber (SKU: 704013 ): All primary LEDs output amber light. No white output. Best for dedicated dust, fog, desert racing, and low-visibility environments where full amber output across the entire bar is the priority.

Technical Specifications

• SKU: 704013
• Series: S8 — Baja Designs top-tier light bar
• Length: 40 inches
• Pattern: Driving/Combo — long-range forward throw with wide-angle spread
• LED Output: Full amber — all primary LEDs output amber light. Zero white output.
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Weight: 13 lbs
• Mount: Universal — vehicle-specific or universal brackets sold separately
• Wiring Harness: Sold separately — required for installation

Installation Notes

• Bar length clearance: Confirm your mounting location accommodates 40 inches of bar length and the S8 mounting tab spacing before ordering. Measure your roof rack, bumper, or chase rack opening before purchasing — a 40-inch bar cannot be returned once mounting holes are drilled.
• Mounting bracket required: No brackets included. Order vehicle-specific or universal S8 mounting brackets separately. Confirm bracket compatibility with S8 mounting tab dimensions.
• Wiring harness required: A relay harness is required. Do not wire without a relay harness. Confirm harness is rated for the S8 amber bar’s draw before ordering.
• Aim before final torque: Set beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Amber auxiliary lighting may have different legal status than white lights in your jurisdiction — verify compliance before use on public roads.

Engineering Question: What is your primary operating environment — dust, fog, desert, or mixed conditions — and what mounting location and bracket solution are you running? Full amber output is purpose-built for low-visibility environments; in clear conditions, amber output is lower than an equivalent clear bar — confirm your use case before ordering.
