BDS 4-Inch 4-Link Lift Kit | NX2 Nitro Shocks | Ram 3500 4WD Gas 2019-2026 | With Factory Rear Overload Leaf

BDS 4-Inch 4-Link Lift Kit | NX2 Nitro Shocks | Ram 3500 4WD Gas 2019–2026 | With Factory Rear Overload Leaf | SKU: 1679H

Is This for You?

This kit is for the 2019–2026 Ram 3500 4WD gas owner with the factory rear overload leaf spring who wants 4 inches of front lift at the NX2 Nitro entry-level price point. If you want FOX 2.0 instead, order SKU 1679FS. If you want FOX 2.5 PE, order SKU 1679FPE. If your Ram 3500 does NOT have the factory rear overload leaf, order SKU 1677FS (FOX 2.0) or SKU 1677FPE (FOX 2.5 PE) instead. If your Ram 3500 has factory rear air ride, order SKU 1723FS.

The Result

4 inches of front lift via a true 4-link conversion on the Ram 3500 gas platform — corrected geometry, eliminated radius arm bind, improved articulation, and NX2 Nitro damping at the lowest price point in the BDS Ram 3500 4-link lineup. The truck sits aggressive, clears larger tires, and maintains consistent geometry under towing and hauling loads with the overload leaf rear suspension intact.

Verified Fitment (OFAS Standard)

• Ram 3500 4WD Gas: 2019–2026 — with factory rear overload leaf spring

Does NOT fit: Ram 3500 without factory rear overload leaf — order SKU 1677FS or 1677FPE. Does not fit Ram 3500 diesel. Does not fit Ram 3500 2WD. Does not fit Ram 3500 2018 or earlier. Does not fit Ram 3500 with factory rear air ride — order SKU 1723FS. Does not fit Ram 2500 or Ram 1500.

System Specifications

• SKU: 1679H
• Brand: BDS Suspension
• Lift Height: 4 inches (front)
• Suspension Type: 4-link conversion — gas-tuned
• Shocks: NX2 Nitro — entry-level
• Application: Ram 3500 4WD Gas 2019–2026 — with factory rear overload leaf
• Warranty: BDS No-Fine-Print Warranty

Shock Tier Guide — Same Kit, Three Shock Options

• NX2 Nitro (SKU 1679H, this listing): Entry-level shock tier — lowest price point
• FOX 2.0 Performance Series (SKU 1679FS): Mid-tier — improved damping, heat resistance, ride quality
• FOX 2.5 Performance Elite (SKU 1679FPE): Premium tier — external reservoir, advanced valving, maximum heat management

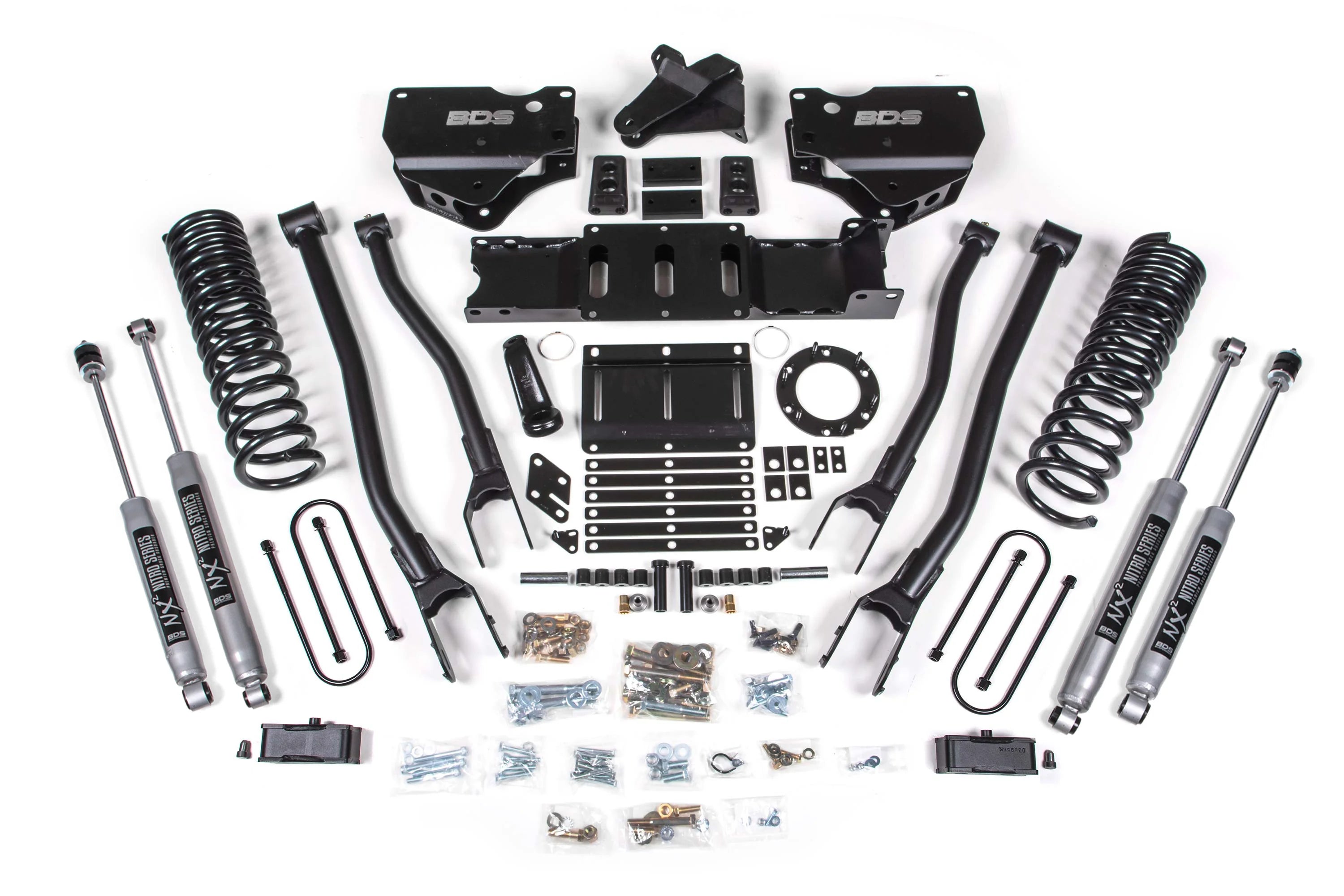

Master Kit Components

• 4-link front suspension conversion components
• Gas-tuned front coil springs
• NX2 Nitro shocks
• Track bar correction bracket
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: 4-link conversion requires a qualified suspension shop.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.

Wheel & Tire Fitment

At 4-inch front lift on the Ram 3500 gas platform, typical fitment runs 35–37-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.

Installation Warning

Application-specific. Confirm 2019–2026 Ram 3500 4WD gas WITH factory rear overload leaf before ordering. Without overload leaf — order SKU 1677FS or 1677FPE. Does not fit diesel, 2WD, air ride, or 2018 and earlier Ram 3500. This product is non-returnable once installed.

Does your Ram 3500 have the factory rear overload leaf spring? Gas or diesel? Do you want NX2 Nitro (this kit, lowest price), FOX 2.0 (SKU 1679FS), or FOX 2.5 PE (SKU 1679FPE)? Submit your year, engine, drivetrain, and rear suspension config via the contact form and we’ll confirm the correct SKU before it ships.
