BDS 4-Inch 4-Link Lift Kit | FOX 2.5 Performance Elite | Ram 3500 4WD Gas 2019-2026 | With Factory Rear Overload Leaf

BDS 4-Inch 4-Link Lift Kit | FOX 2.5 Performance Elite | Ram 3500 4WD Gas 2019–2026 | With Factory Rear Overload Leaf | SKU: 1677FPE

The BDS 4-Inch 4-Link Lift Kit is a complete front lift system for 2019–2026 Ram 3500 4WD gas models with factory rear overload leaf springs, paired with FOX 2.5 Performance Elite external reservoir shocks. The 4-link front suspension conversion corrects geometry, eliminates radius arm bind, and improves articulation at 4-inch lift height. Gas-tuned coil springs are engineered for the Ram 3500 gas platform’s front-end weight distribution. If your Ram 3500 does NOT have factory rear overload leaf springs, order SKU 1676FPE.

Verified Fitment (OFAS Standard)

• Ram 3500 4WD Gas: 2019–2026 — with factory rear overload leaf springs

Does NOT fit: Ram 3500 without factory rear overload leaf — order SKU 1676FPE. Does not fit Ram 3500 diesel — different kit required. Does not fit Ram 3500 2WD. Does not fit Ram 3500 2018 or earlier. Does not fit Ram 2500 or Ram 1500.

Technical Specifications

• SKU: 1677FPE
• Brand: BDS Suspension
• Lift Height: 4 inches (front)
• Suspension Type: 4-link front conversion
• Shocks: FOX 2.5 Performance Elite — external reservoir, gas-tuned
• Application: Ram 3500 4WD Gas 2019–2026 — with factory rear overload leaf
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

Overload Leaf Configuration — Critical Fitment Gate

The 2019–2026 Ram 3500 4WD gas was produced with and without factory rear overload leaf springs. BDS engineers separate kits for each configuration. Confirm your rear suspension configuration before ordering.

• With factory rear overload leaf (SKU 1677FPE — this listing)
• Without factory rear overload leaf — order SKU 1676FPE

4-Link Conversion — Why It Matters

• Geometry correction: Corrects front suspension geometry at 4-inch lift height
• Eliminates radius arm bind: 4-link design removes the bind inherent in the factory radius arm setup at lifted height
• Improved articulation: Greater suspension travel and articulation vs. radius arm conversion
• Caster correction: Maintains proper caster angle at 4-inch lift

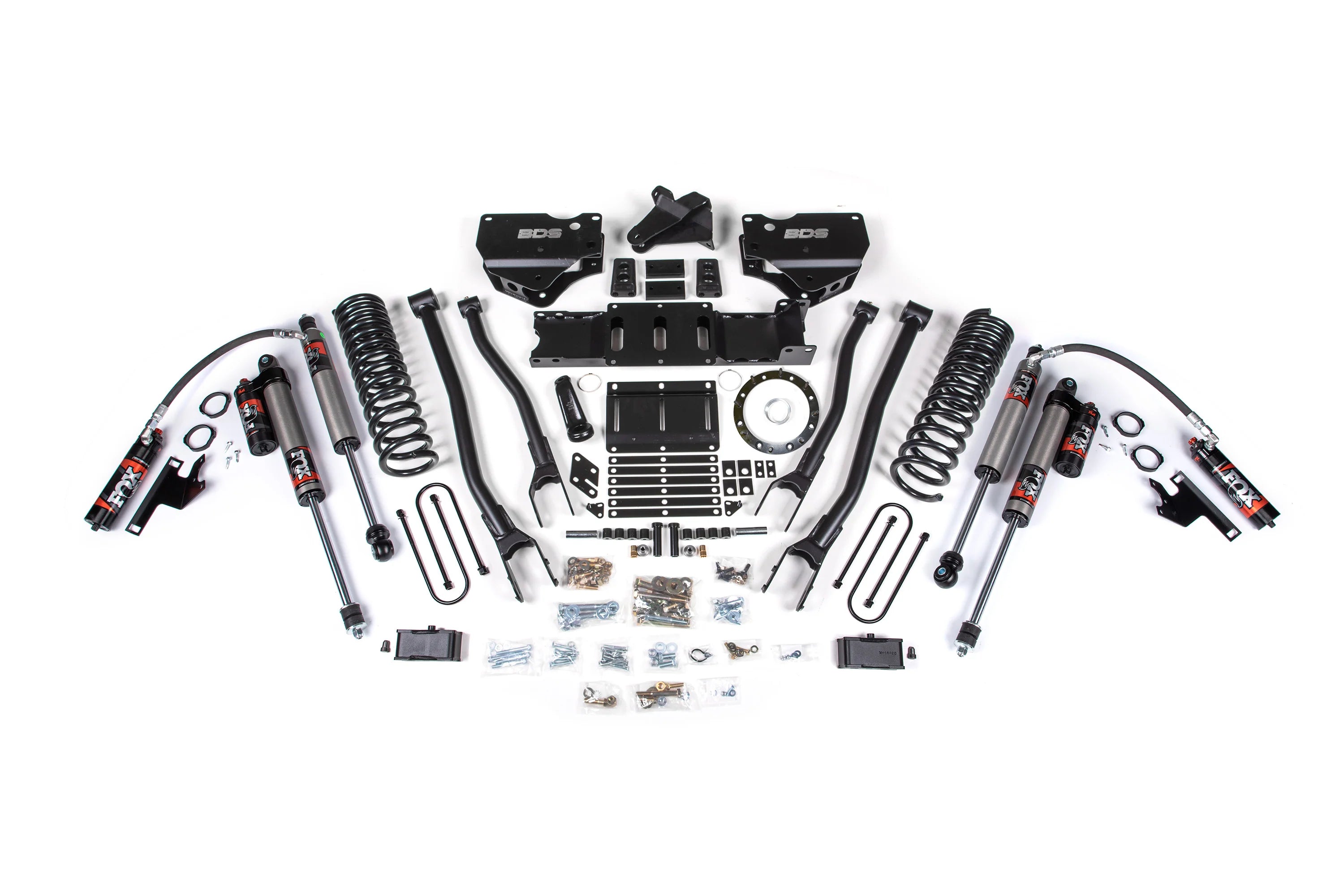

Kit Contents

• 4-link front suspension conversion components
• Gas-tuned front coil springs
• FOX 2.5 Performance Elite shocks with external reservoirs
• All required installation hardware

Installation Notes

• Professional installation required: 4-link conversion requires a qualified suspension shop.
• Alignment mandatory: Full front-end alignment required after installation.
• Driveline inspection: Inspect driveshaft angles and U-joint operating angles after installation.
• External reservoir routing: Follow BDS and FOX instructions for reservoir placement.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions.

Installation Warning

Application-specific. Confirm 2019–2026 Ram 3500 4WD gas WITH factory rear overload leaf before ordering. Without overload leaf — order SKU 1676FPE. Does not fit diesel, 2WD, or 2018 and earlier Ram 3500. Does not fit Ram 2500. This product is non-returnable once installed.

Engineering Question? Submit your Year / Make / Model / engine / drivetrain / rear suspension config via the contact form and an OFAS fitment specialist will respond with a verified recommendation.
