BDS 4-Inch Lift Kit | FOX 2.0 Shocks | Leaf Springs | Ram 2500 Power Wagon 4WD Gas 2009-2013

BDS 4-Inch Lift Kit | FOX 2.0 Shocks | Leaf Springs | Ram 2500 Power Wagon 4WD Gas 2009–2013 | SKU: 1770FS

Is This for You?

This kit is for the 2009–2013 Ram 2500 Power Wagon 4WD gas owner who wants 4 inches of front and rear lift with FOX 2.0 damping. This kit is Power Wagon-specific — it is engineered for the Dana 60 front axle and factory electronic sway bar disconnect system. It is NOT interchangeable with standard Ram 2500 lift kits. If you have a 2008 Power Wagon, stop here — order SKU 1767FS. If you have a 2005–2007 Power Wagon, order SKU 1764FS. If you have a 2014 or newer Power Wagon, a different kit is required.

The Result

4 inches of front lift via Power Wagon-specific coil springs and geometry-correct radius arm brackets, with matched rear lift via replacement leaf springs — all engineered for the 2009–2013 Power Wagon’s Dana 60 front axle geometry. The truck clears larger tires, sits level, and maintains consistent geometry. The factory electronic sway bar disconnect system is preserved. FOX 2.0 shocks deliver improved damping over factory at this lift height.

Verified Fitment (OFAS Standard)

• Ram 2500 Power Wagon 4WD Gas: 2009–2013

Does NOT fit: Ram 2500 Power Wagon 2008 — order SKU 1767FS. Does not fit Ram 2500 Power Wagon 2005–2007 — order SKU 1764FS. Does not fit Ram 2500 Power Wagon 2014 or newer — different platform. Does not fit standard Ram 2500 without Power Wagon package. Does not fit Ram 3500 or Ram 1500.

System Specifications

• SKU: 1770FS
• Brand: BDS Suspension
• Front Lift Height: 4 inches — Power Wagon-specific coil springs + geometry-correct radius arm brackets
• Rear Lift Height: Matched via replacement leaf springs
• Shocks: FOX 2.0 Performance Series
• Application: Ram 2500 Power Wagon 4WD Gas 2009–2013
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

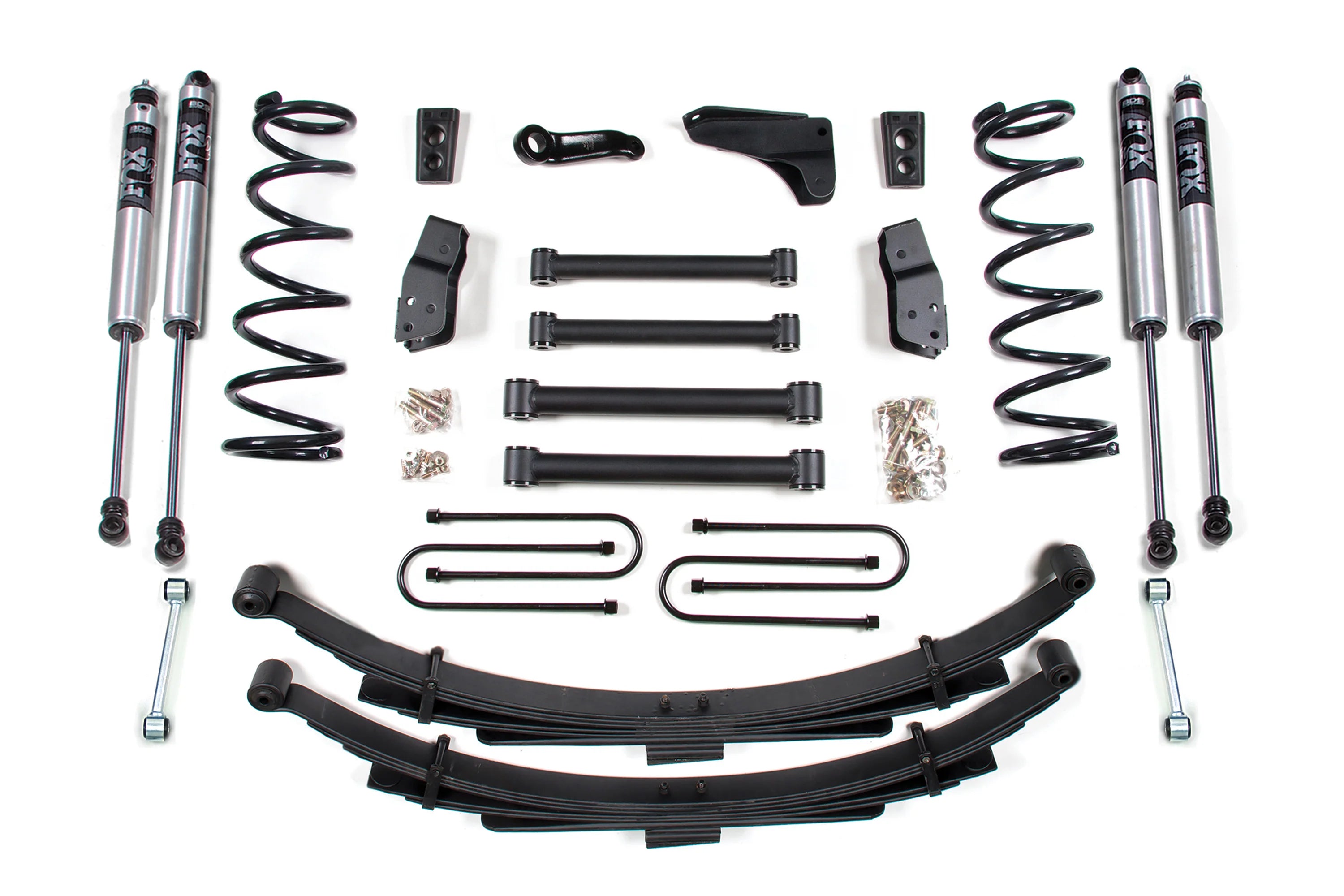

Master Kit Components

• Power Wagon-specific front coil springs — 2009–2013-specific
• Geometry-correct radius arm brackets — Dana 60-specific
• Replacement rear leaf springs
• FOX 2.0 Performance Series shocks
• Track bar correction bracket
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: Power Wagon-specific lift requires a qualified suspension shop familiar with the Dana 60 front axle and Power Wagon sway bar disconnect system.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Sway bar disconnect verification: Verify factory electronic sway bar disconnect system function after installation.
• Leaf spring break-in: Allow new leaf springs to settle per BDS recommendations before aggressive off-road use.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.

Wheel & Tire Fitment

At 4-inch lift on the Power Wagon platform, typical fitment runs 35–37-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.

Installation Warning

Application-specific. Confirm 2009–2013 Ram 2500 Power Wagon 4WD gas before ordering. 2008 Power Wagon — order SKU 1767FS. 2005–2007 Power Wagon — order SKU 1764FS. Not compatible with standard Ram 2500 without Power Wagon package. This product is non-returnable once installed.

Is your Power Wagon a 2009–2013, a 2008, or a 2005–2007? Each generation requires a different kit. Submit your exact model year and confirm the Power Wagon package is present via the contact form and we’ll confirm the correct SKU before it ships.
