BDS 4-Inch Lift Kit | FOX 2.0 Shocks | Leaf Springs + 3.5-Inch Axle | Ram 2500 Power Wagon 4WD 2005-2007

BDS 4-Inch Lift Kit | FOX 2.0 Performance Series Shocks | Leaf Springs + 3.5-Inch Axle Block | Ram 2500 Power Wagon 4WD 2005–2007 | SKU: BDS1764FS

The BDS 4-Inch Lift Kit (SKU: BDS1764FS) is a complete front and rear lift system engineered specifically for the 2005–2007 Ram 2500 Power Wagon 4WD, paired with FOX 2.0 Performance Series shocks. This kit is Power Wagon-specific — it is not interchangeable with standard Ram 2500 lift kits. The Power Wagon uses a unique Dana 60 front axle, factory disconnecting sway bar, and different suspension geometry that requires dedicated lift components. The front system delivers a 4-inch lift using Power Wagon-specific coil springs and geometry-correct radius arm brackets. The rear system uses replacement leaf springs and a 3.5-inch axle block. Contact OFAS at 903-347-3875 to confirm standard Ram 2500 2005–2007 compatibility before ordering for a non-Power Wagon truck.

Verified Fitment (OFAS Standard)

• Ram 2500 Power Wagon 4WD: 2005–2007

Does NOT fit: Standard Ram 2500 2005–2007 without Power Wagon package — contact OFAS at 903-347-3875 to confirm standard Ram 2500 compatibility. Does not fit Ram 2500 Power Wagon 2004 or earlier. Does not fit Ram 2500 Power Wagon 2008 or newer — different platform. Does not fit Ram 3500. Does not fit Ram 1500 or Ram 1500 Classic. Confirm model year and Power Wagon package before ordering.

Power Wagon — Why It Requires a Dedicated Kit

The Ram 2500 Power Wagon is not a standard Ram 2500. The Power Wagon uses unique suspension components that require dedicated lift kit engineering:

• Dana 60 front axle: The Power Wagon uses a Dana 60 front solid axle with locking hubs — different from the standard Ram 2500 front axle. Lift kit components must be engineered for the Dana 60 geometry.
• Factory disconnecting sway bar: The Power Wagon’s factory electronic sway bar disconnect system requires lift kit components that do not interfere with sway bar operation.
• Power Wagon-specific coil springs: Coil springs are tuned for the Power Wagon’s unique front axle weight, geometry, and suspension travel characteristics.
• Geometry-correct radius arm brackets: Engineered for the Power Wagon’s specific caster and radius arm geometry at 4-inch lift height.

Two Critical Fitment Gates

• Power Wagon package required: This kit is engineered for the Ram 2500 Power Wagon. Contact OFAS at 903-347-3875 to confirm compatibility for standard Ram 2500 2005–2007 without the Power Wagon package.
• 4WD only: Power Wagon is 4WD only — this kit is for 4WD models.

Front and Rear Lift System

• Front — 4-inch coil lift: Power Wagon-specific coil springs + geometry-correct radius arm brackets — engineered for Dana 60 front axle geometry
• Rear — Leaf springs + 3.5-inch axle block: Replacement rear leaf springs and 3.5-inch axle blocks match the front lift height while maintaining rear load capacity and proper stance
• Track bar correction: Maintains proper axle centering at lifted height

FOX 2.0 Performance Series Shocks

• Improved damping: Significantly improved damping over factory shocks at lifted height
• Heat resistance: 2.0-inch shock body for improved heat dissipation during towing and off-road use
• Ride quality: Tuned for Ram 2500 Power Wagon platform
• FOX warranty: 1-year limited warranty

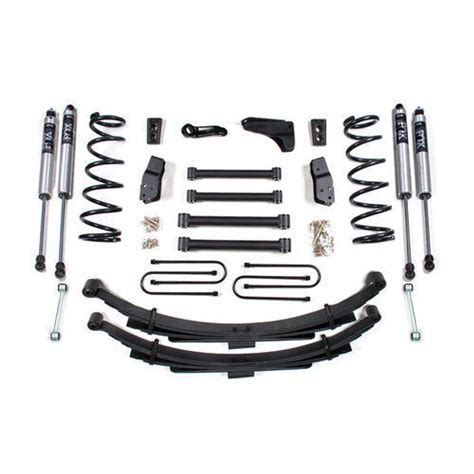

What’s Included

• Power Wagon-specific front coil springs
• Geometry-correct radius arm brackets
• Track bar correction bracket
• Rear replacement leaf springs
• 3.5-inch rear axle blocks
• FOX 2.0 Performance Series shocks
• All required hardware and installation hardware

Technical Specifications

• SKU: BDS1764FS
• Brand: BDS Suspension
• Lift Height: 4 inches (front) / matched rear via leaf springs + 3.5-inch axle block
• Front System: Power Wagon-specific coil springs + geometry-correct radius arm brackets
• Rear System: Replacement leaf springs + 3.5-inch axle blocks
• Shocks: FOX 2.0 Performance Series
• Application: Ram 2500 Power Wagon 4WD 2005–2007
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty on shocks

Installation Notes

• Professional installation required: Power Wagon-specific suspension lift requires professional installation by a qualified suspension shop familiar with the Dana 60 front axle and Power Wagon sway bar disconnect system.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Sway bar disconnect verification: Verify factory electronic sway bar disconnect system function after installation. Contact OFAS at 903-347-3875 if sway bar disconnect does not function correctly after installation.
• Torque specs: All fasteners must be torqued to BDS specifications per installation instructions.
• Tire sizing: Contact OFAS at 903-347-3875 to confirm maximum tire size before ordering wheels and tires.

Installation Warning

Professional installation required. Alignment mandatory. Sway bar disconnect verification required after installation. Power Wagon-specific kit — not interchangeable with standard Ram 2500 lift kits. Does not fit 2004 or earlier or 2008 or newer Power Wagon. Does not fit Ram 3500.

Have you confirmed your Ram 2500 is a 2005–2007 Power Wagon 4WD model — standard Ram 2500 without Power Wagon package? Contact OFAS at 903-347-3875 to confirm compatibility before ordering.
