BDS 3-Inch Lift Kit | FOX 2.5 Performance Elite Coil-Overs | Ford F-150 4WD 2014-2020

BDS 3-Inch Lift Kit | FOX 2.5 Performance Elite Coil-Overs | Ford F-150 4WD 2014–2020 | SKU: 1588FPE

Is This for You?

This kit is for the 2014–2020 Ford F-150 4WD owner who wants 3 inches of front lift with premium FOX 2.5 Performance Elite coil-over damping. This covers the 13th-generation F-150 (2015–2020) and the 12th-generation (2014). If you have a 2021 or newer F-150, stop here — that is the 14th-generation platform and requires a different kit. If you want FOX 2.0 coil-overs at a lower price point, see SKU 1588FS.

The Result

3 inches of front lift with geometry-correct components and FOX 2.5 Performance Elite coil-over damping on the F-150 4WD platform. The truck clears larger tires, sits aggressive, and maintains consistent geometry. The FOX 2.5 PE coil-overs replace both the factory strut and spring as a single integrated unit — delivering improved damping control and ride quality at 3-inch lift height.

Verified Fitment (OFAS Standard)

• Ford F-150 4WD: 2014–2020

Does NOT fit: F-150 2021 or newer — different platform. Does not fit F-150 2013 or earlier. Does not fit F-150 2WD/RWD. Does not fit F-250 or F-350 — different platform. Does not fit Raptor — different suspension architecture.

System Specifications

• SKU: 1588FPE
• Brand: BDS Suspension
• Lift Height: 3 inches (front)
• System Type: FOX 2.5 Performance Elite coil-overs — replaces factory strut and spring
• Application: Ford F-150 4WD 2014–2020
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty

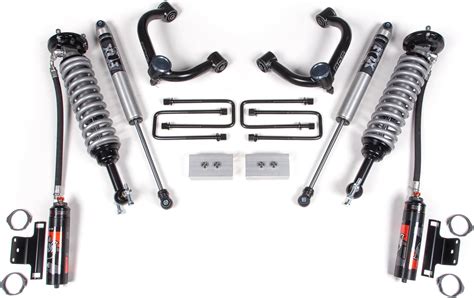

Master Kit Components

• FOX 2.5 Performance Elite coil-overs with external reservoirs — pair (front)
• BDS geometry-correct lift components
• All required installation hardware

Installation & Fabrication Notes

• Professional installation required: Coil-over installation requires a qualified suspension shop.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• External reservoir routing: Follow BDS and FOX instructions for reservoir placement — avoid pinch points and heat sources.
• Torque specs: Torque all fasteners to BDS specification per included installation instructions. Do not estimate.
• Break-in period: Allow FOX 2.5 PE coil-overs to break in per FOX recommendations before aggressive off-road use.

Wheel & Tire Fitment

At 3-inch front lift on the F-150 4WD platform, typical fitment runs 33–35-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel/tire supplier before ordering.

Installation Warning

Application-specific. Confirm 2014–2020 Ford F-150 4WD before ordering. Does NOT fit 2021+ F-150 — different platform. Does not fit 2WD, F-250, F-350, or Raptor. This product is non-returnable once installed.

Is your F-150 a 2014–2020 4WD? Do you want FOX 2.5 PE coil-overs or FOX 2.0 at a lower price point (SKU 1588FS)? Submit your year, drivetrain, and target tire size via the contact form and we’ll confirm the right kit for your build.
