BDS 3.5-Inch Lift Kit | FOX 2.0 Performance | Cast Aluminum Knuckle | Ford Ranger 4WD 2019-2023

BDS 3.5-Inch Lift Kit | FOX 2.0 Performance Shocks | Cast Aluminum Knuckle | Ford Ranger 4WD 2019–2023 | SKU: BDS1545FS

The BDS 3.5-Inch Lift Kit (SKU: BDS1545FS) is a 3.5-inch front lift system for 2019–2023 Ford Ranger 4WD models equipped with cast aluminum front knuckles, featuring FOX 2.0 Performance Series shocks. This kit is engineered for the 2019–2023 Ford Ranger platform — the 5th generation Ranger returned to the North American market. BDS geometry-correct components maintain proper CV angles and steering geometry at 3.5-inch lift height.

Important: BDS1545FS and BDS1545FSL are both FOX 2.0 cast aluminum knuckle kits for the 2019–2023 Ford Ranger 4WD. These two SKUs have a significant price difference. Contact OFAS at 903-347-3875 before ordering to confirm which kit is correct for your specific Ranger configuration. Do not order based on price difference alone.

Verified Fitment (OFAS Standard)

• Ford Ranger 4WD: 2019–2023 — cast aluminum knuckle models

Does NOT fit: Ford Ranger with cast steel knuckles — order BDS1906FS or BDS1906FSL for cast steel. Does not fit Ford Ranger RWD/2WD. Does not fit Ford Ranger 2024 or newer — different platform. Does not fit Ford Ranger 2018 or earlier. Does not fit Ford F-150 or F-250. Confirm model year, drivetrain, and knuckle type before ordering.

One Critical Fitment Gate

• 4WD only: The 2019–2023 Ford Ranger is available in both 4WD and RWD/2WD. This kit is for 4WD models only.

BDS1545FS vs. BDS1545FSL — Confirm Before Ordering

Both BDS1545FS and BDS1545FSL are FOX 2.0 Performance Series kits for the 2019–2023 Ford Ranger 4WD with cast aluminum knuckles. These SKUs have a significant price difference. The specific distinction between these two configurations has not been independently confirmed by OFAS. Contact OFAS at 903-347-3875 before ordering either kit to confirm which is correct for your specific Ranger build and configuration.

Shock Tier Guide — 2019–2023 Ford Ranger 4WD Cast Aluminum Knuckle

• FOX 2.0 Performance Series (BDS1545FS, this listing): Improved damping and heat management vs. NX2 Nitro — confirm vs. BDS1545FSL with OFAS before ordering
• FOX 2.0 Performance Series (BDS1545FSL): Different configuration from BDS1545FS — confirm with OFAS before ordering
• NX2 Nitro (BDS1545H): Entry-level twin-tube shock — lowest price point

Contact OFAS at 903-347-3875 to confirm which kit and shock tier is correct for your application.

Cast Aluminum vs. Cast Steel Knuckle — Which Kit

The 2019–2023 Ford Ranger 4WD was produced with two different front knuckle materials. Confirm your knuckle type before ordering.

• Cast aluminum knuckle — fits (BDS1545FS, this listing)
• Cast steel knuckle — does NOT fit — order BDS1906FSL or BDS1906FS for cast steel knuckle models

If you are unsure which knuckle type your Ranger has, contact OFAS at 903-347-3875 before ordering.

FOX 2.0 Performance Series Shocks

• Improved damping: Significantly improved damping control vs. NX2 Nitro twin-tube shocks
• Heat management: 2.0-inch body for improved heat dissipation
• Ride quality: Tuned for 2019–2023 Ford Ranger 4WD platform at 3.5-inch lift height
• FOX warranty: 1-year limited warranty

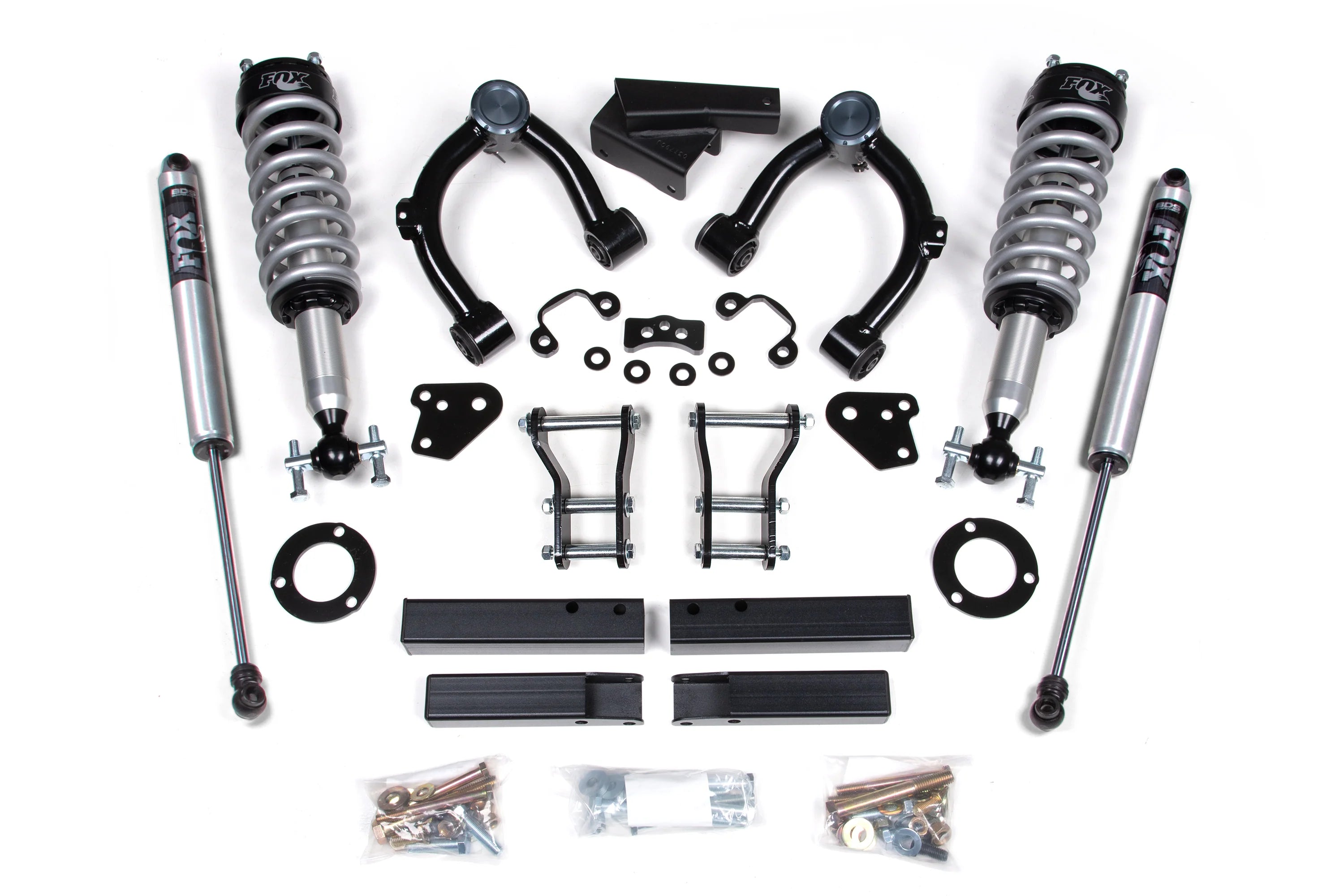

What’s Included

• FOX 2.0 Performance Series shocks
• Cast aluminum knuckles
• BDS geometry-correct lift components
• All required hardware and installation hardware

Technical Specifications

• SKU: BDS1545FS
• Brand: BDS Suspension
• Lift Height: 3.5 inches (front)
• Shocks: FOX 2.0 Performance Series
• Knuckle: Cast aluminum
• Application: Ford Ranger 4WD 2019–2023 — cast aluminum knuckle models
• Warranty: BDS No-Fine-Print Warranty + FOX 1-year limited warranty on shocks

Installation Notes

• Professional installation required: Knuckle replacement requires professional installation by a qualified suspension shop.
• Alignment mandatory: Full front-end alignment required after installation. Do not drive on public roads before alignment is completed.
• Confirm correct SKU before ordering: Contact OFAS at 903-347-3875 to confirm BDS1545FS vs. BDS1545FSL for your specific Ranger configuration before ordering.
• Knuckle type confirmation: Confirm cast aluminum knuckle configuration before installation. Contact OFAS at 903-347-3875 if unsure.
• Torque specs: All fasteners must be torqued to BDS specifications per installation instructions.
• Tire sizing: Contact OFAS at 903-347-3875 to confirm maximum tire size before ordering wheels and tires.

Installation Warning

Professional installation required. Alignment mandatory. Confirm BDS1545FS vs. BDS1545FSL with OFAS before ordering. Does not fit cast steel knuckle models. Does not fit RWD/2WD Ranger. Does not fit 2024 or newer Ranger. Does not fit 2018 or earlier Ranger.

Contact OFAS at 903-347-3875 before ordering to confirm BDS1545FS vs. BDS1545FSL for your 2019–2023 Ranger 4WD cast aluminum knuckle configuration. Do not order based on price difference alone.
