The Engineering of the Rear: Why Leaf Spring Rates and Shackle Geometry Define Your Lifted Truck’s Real-World Capability

Most suspension "experts" spend 90% of their time on front-end geometry—caster, scrub radius, and coilover valving. However, the rear of your truck dictates your payload safety, towing stability, and high-speed tracking. If your lifted truck "walks" over bumps or squats excessively under a light trailer, the failure is in your rear suspension architecture.

The industry standard for budget lifts is the Lift Block. While blocks achieve height, they increase the distance between the axle and the leaf spring.

• The Problem: This increased "leverage arm" leads to Axle Wrap. Under high torque, the axle attempts to rotate, twisting the leaf springs into an "S" shape. This causes wheel hop and premature U-joint failure.



• The Solution: A full replacement leaf pack, such as the Carli Suspension 2017-2024 Ford HD Leaf Spring Kit, uses a progressive spring rate to achieve lift. This keeps the axle physically closer to the spring's main leaf, drastically reducing wrap and providing a linear "spring curve" for better small-bump compliance.

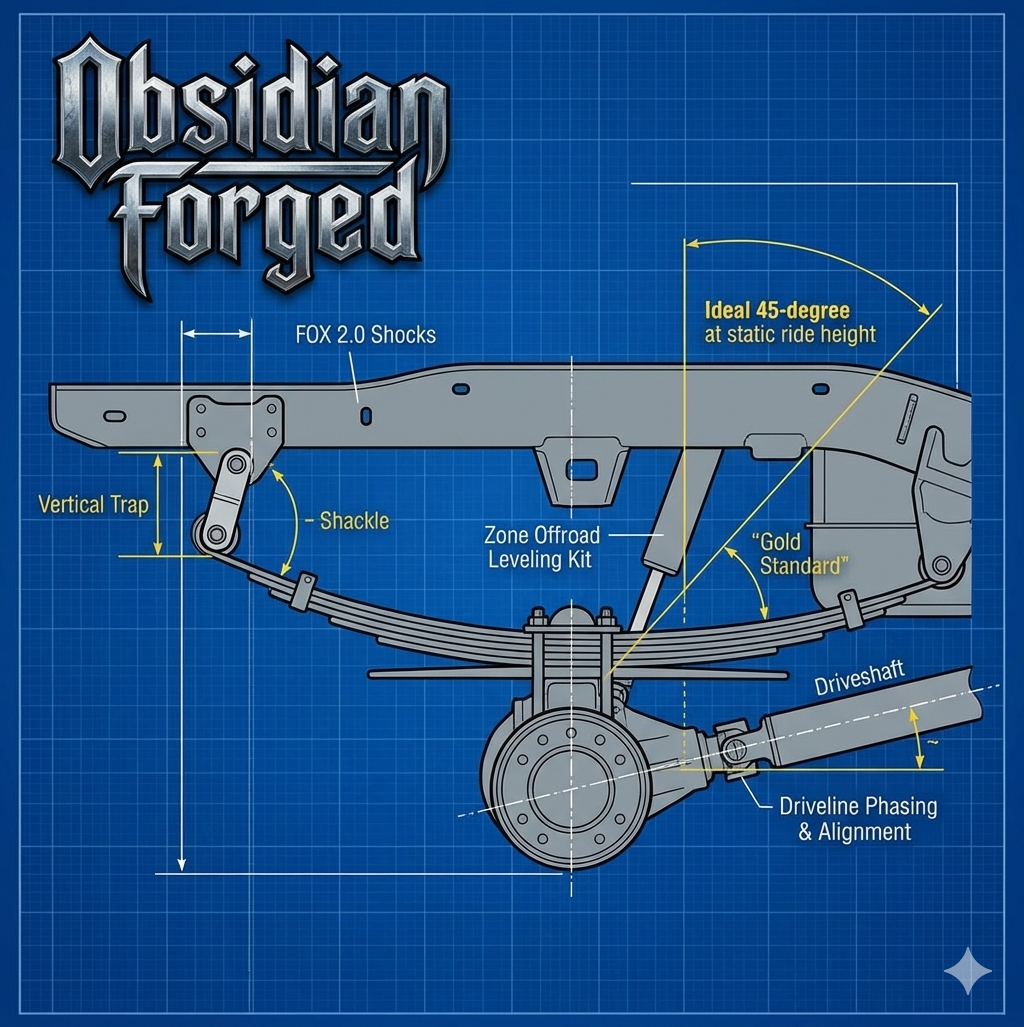

A leaf spring changes length as it compresses. The Shackle allows for this movement.

• The "Vertical" Trap: Many lift kits result in a near-vertical shackle angle at ride height. This creates a "harsh" ride because the spring cannot easily flatten out over bumps.



• The Ideal Setup: A 45-degree shackle angle at static ride height is the "Gold Standard." Comprehensive systems like the 5.5-Inch Lift Kit for Ram 3500 (13-18) with FOX 2.0 Shocks are engineered with full replacement leaf springs to maintain this pivot geometry, ensuring your high-performance shocks can actually cycle through their travel.

Lifting the rear changes the operating angle of your driveshaft. Even a mild lift requires precision to prevent high-frequency vibrations.

• Maintenance of Geometry: When refreshing an older platform with a Zone Offroad 2.5-Inch Leaf Spring Leveling Kit (00-04 Ford F-250/350), ensuring your centering pins and U-bolts are properly seated is critical to preventing the "axle walk" that ruins driveline phasing.
