What a 4"–6" Lift Actually Does for Your Truck

A 4"–6" lift kit changes far more than ride height. It affects suspension geometry, steering feel, tire clearance, and the overall stance of your truck. This range is the sweet spot for owners who want a commanding look, real off‑road capability, and the ability to run 35–37" tires without major trimming. Choosing the right kit isn’t about height alone—it’s about matching the system to how you drive, what you tow, and the terrain you see most.


How Lift Height Affects Tire Size and Fitment

The most common reason truck owners choose a 4"–6" lift is to clear larger tires. Here’s how lift height changes your options:

  • 4" Lift — Ideal for 33–35" tires with minimal trimming. Keeps center of gravity lower and maintains closer‑to‑factory handling.

  • 5" Lift — A middle ground for 35s with more aggressive offsets. Better clearance at full lock and full compression.

  • 6" Lift — The go‑to height for 35–37" tires. Provides the most room for articulation, turning radius, and off‑road travel.

Wheel offset matters just as much as lift height. Aggressive negative offsets push the tire outward, increasing scrub radius and requiring more clearance. A properly engineered lift kit accounts for this with corrected steering geometry and improved control‑arm angles.


Key Components That Separate a Good Lift Kit from a Bad One

Not all lift kits are created equal. The difference between a smooth, controlled ride and a harsh, unstable one comes down to the components included.

Steering Geometry Correction

A proper 4"–6" lift must correct:

  • Caster for highway stability

  • Camber for tire wear

  • Toe for steering response

Cheap kits skip this, leaving the truck wandering at speed.

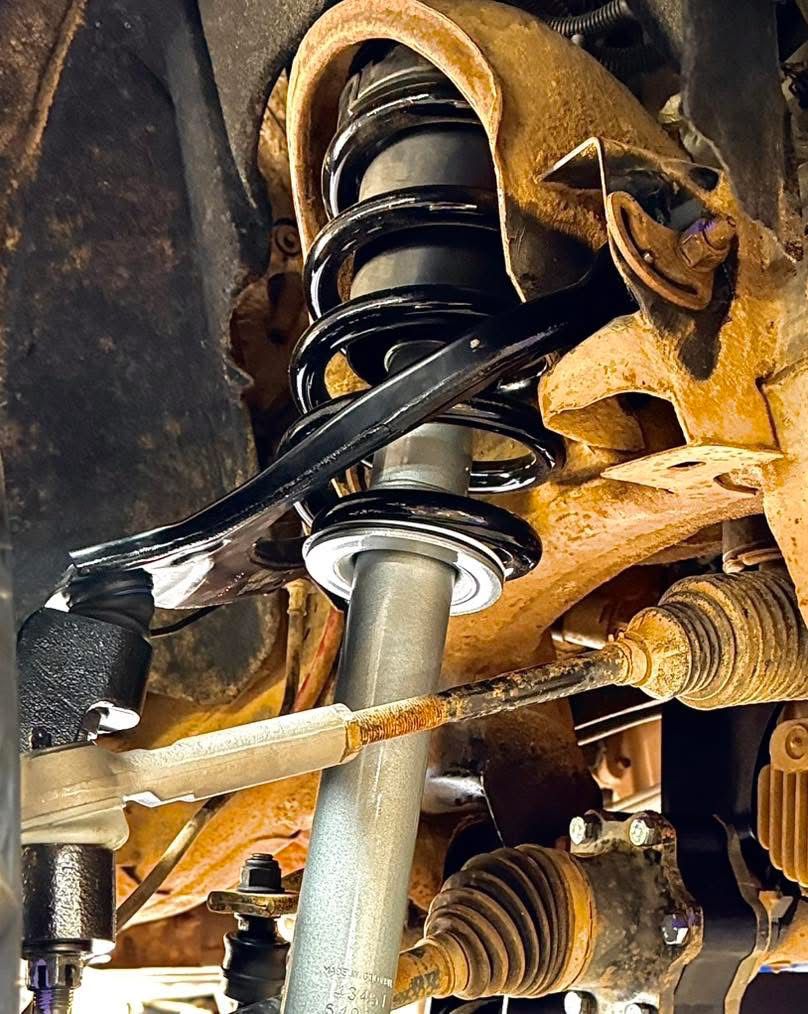

Upper Control Arms

Factory UCAs max out quickly once you lift a truck. High‑angle or uniball UCAs restore caster, prevent ball‑joint bind, and increase droop travel.

Differential Drop or Knuckles

IFS trucks need corrected CV angles to avoid premature wear. High‑quality kits include:

  • Drop brackets

  • Extended knuckles

  • CV angle correction

Rear Lift Options

Depending on the truck, rear lift can be achieved with:

  • Blocks

  • Add‑a‑leafs

  • Replacement leaf packs

  • Coil spacers

  • Air‑ride brackets

Replacement leaf packs or add‑a‑leafs provide the best ride quality and load handling.

Shock or Coilover Options

Your shock choice determines how the truck feels on the road:

  • Twin‑tube shocks — Budget‑friendly, softer ride

  • Monotube shocks — Better control and heat dissipation

  • Coilovers — Maximum performance, adjustability, and ride quality


Choosing the Right Lift Based on How You Use Your Truck

Daily Driver

A 4"–5" lift with high‑angle UCAs and monotube shocks gives the best balance of comfort and control. Keeps the truck stable at highway speeds and easy to park.

Towing and Hauling

A 4" lift with upgraded rear leaf packs or air‑ride brackets maintains load capacity and prevents sag. Choose shocks tuned for weight control.

Off‑Road / Trail Use

A 5"–6" lift with:

  • Uniball UCAs

  • Monotube or reservoir shocks

  • Corrected steering geometry

…delivers maximum articulation and durability.

Show Truck / Aggressive Stance

A 6" lift with 35–37" tires and negative‑offset wheels creates the most dramatic look. Choose boxed or billet UCAs for strength and appearance.


How to Know Which Lift Height Is Right for You

Choose a 4" Lift if you want:

  • Better stance without going extreme

  • 33–35" tires

  • Lower center of gravity

  • Easier towing and daily driving

Choose a 5" Lift if you want:

  • 35" tires with more clearance

  • A balanced look and ride

  • More room for aggressive wheel offsets

Choose a 6" Lift if you want:

  • 35–37" tires

  • Maximum clearance and articulation

  • A commanding, lifted stance

  • The most off‑road capability


Common Mistakes When Choosing a Lift Kit

  • Ignoring UCAs — The #1 cause of poor alignment and wandering.

  • Choosing the wrong wheel offset — Causes rubbing even with a tall lift.

  • Buying a “spacer‑only” kit — Doesn’t correct geometry and ruins ride quality.

  • Skipping shocks — Stock shocks can’t handle the new travel range.

  • Not planning for future upgrades — Tires, wheels, and UCAs should be part of the plan.


What to Look for in a High‑Quality 4"–6" Lift Kit

A premium kit includes:

  • Corrected steering knuckles

  • Differential drop brackets

  • High‑angle UCAs

  • Rear lift components matched to the truck

  • Monotube or reservoir shocks

  • Brake‑line extensions

  • Sway‑bar and bump‑stop relocation

  • Hardware that matches OEM strength or better

Brands like BDS, Zone, Cognito, Icon, and ReadyLIFT engineer their kits around proper geometry—not just height.


Final Thoughts

Choosing the right 4"–6" lift kit comes down to more than just how tall you want your truck. The right system improves stability, steering feel, tire clearance, and long‑term durability. Whether you daily drive, tow, or hit trails, a properly engineered lift kit transforms how your truck handles on and off the road.
