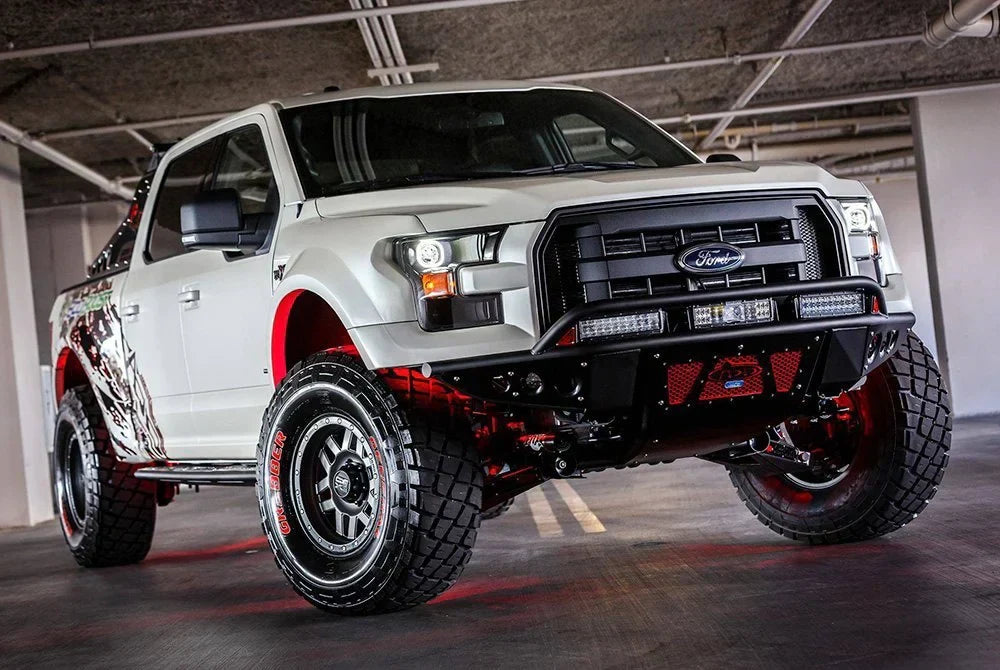

Common Ford Truck Fitment Issues After Lifting
Ford trucks are some of the most capable platforms on the road, but they are also geometry-sensitive. Small changes to ride height, tire size, wheel offset, or suspension travel can create steering, ride, rubbing, and driveline problems that were not there at stock height.
That does not mean the truck was built wrong. It means the suspension is now operating outside the range Ford designed it around.
This guide covers seven common Ford fitment issues on F-150 and Super Duty trucks, why they happen, what they feel like, and what parts usually fix them.
Ford Fitment Problems At A Glance
| Problem | Common Platform | Main Cause | Typical Fix |
|---|---|---|---|
| Caster loss | F-150 | Front leveling changes control arm and knuckle geometry | Corrected upper control arms and alignment |
| Axle shift | F-250 / F-350 | Lift height changes track bar arc | Adjustable track bar and drop bracket |
| Steering wander / death wobble | Super Duty | Tire leverage, worn linkage, track bar deflection | Drag link, tie rod, track bar, stabilizer |
| Coil bucket contact | F-150 | UCA contacts frame pocket at droop | Clearance-specific upper control arms |
| Shock fade | F-150 / Super Duty | Factory shocks overheat under load | Monotube or reservoir shocks |
| Tire rubbing | F-150 | Offset and tire size exceed wheel-well clearance | Correct offset, trimming, lift/level review |
| Driveshaft vibration | Super Duty | Pinion angle and driveshaft angle change after lift | Carrier bearing drop, tapered blocks, or shims |
1. Caster Loss After Leveling an F-150
Why it happens
The Ford F-150 uses independent front suspension. The factory upper control arms and ball-joint angles are designed around the stock ride height.
When the front end is raised with a leveling kit, the steering knuckle moves into a different operating angle. This can reduce positive caster.
Caster is the forward or rearward tilt of the steering axis when viewed from the side. Positive caster helps the truck track straight and return the steering wheel to center after a turn.
When caster drops too far, the truck starts to feel loose.
What it feels like
| Symptom | What The Driver Notices |
| Wandering | The truck drifts and needs constant steering correction |
| Poor return-to-center | Steering does not naturally settle after a turn |
| Vague center feel | The wheel feels loose around center |
| Crosswind sensitivity | The truck feels pushed around on the highway |
| Fatigue | Long highway drives feel more active than before |
What fixes it
Aftermarket upper control arms with corrected geometry help restore alignment range at the new ride height.
For many leveled F-150 builds, the fix is:
| Fix | Why It Helps |
| Corrected upper control arms | Improves ball joint angle and caster range |
| Proper alignment | Restores straight-line stability |
| Quality shocks | Controls motion after geometry is corrected |
| Correct wheel offset | Reduces scrub radius and tire leverage |
2021–2026 F-150 sensor warning
Late-model F-150 trims may use factory suspension sensors, headlight auto-leveling hardware, or electronically controlled damping equipment depending on configuration.
Before ordering upper control arms or leveling components for a 2021–2026 F-150, verify whether the truck has:
| Feature | Why It Matters |
| CCD / electronic damping | Some parts may require sensor relocation |
| Headlight auto-leveling | Incorrect bracket handling can affect headlight aim |
| Tremor / high-trim suspension equipment | Fitment may differ from base trims |
| Factory lift or off-road package | Standard leveling assumptions may not apply |
Do not order F-150 upper control arms by year alone. Confirm trim, suspension package, and sensor configuration first.
2. Axle Shift on Ford Super Duty Trucks
Why it happens
Ford Super Duty trucks use a solid front axle located laterally by a track bar.
When the truck is lifted, the frame moves higher above the axle. Since the track bar swings through an arc, added lift height can pull the front axle off-center.
The result is visible axle shift.
What it looks like
| Symptom | What It Means |
| Driver-side tire sticks out farther | Axle has shifted laterally |
| Passenger-side tire sits tucked | Axle is no longer centered |
| Steering wheel is off-center | Drag link and track bar geometry changed |
| Truck dog-tracks | Front axle and chassis are not aligned correctly |
| Uneven tire wear | Steering and axle geometry are out of spec |
What fixes it
A lifted Super Duty usually needs the axle re-centered.
| Fix | Why It Helps |
| Adjustable track bar | Lets the axle be centered at the new ride height |
| Track bar drop bracket | Corrects track bar angle on taller lifts |
| Full alignment | Sets toe and centers the steering wheel |
| Drag link adjustment | Restores steering wheel position |
For lifts around 2.5 inches or taller, track bar angle matters. A centered axle with a poor track bar angle can still create bump steer.
3. Steering Wander and Death Wobble on Super Duty Platforms
Why it happens
Super Duty trucks carry heavy front-end weight, especially diesel models. Add lift height, wider wheels, negative offset, and larger tires, and the leverage on the steering system increases fast.
Factory steering linkage, track bar joints, worn bushings, loose hardware, and poor alignment can allow the front tires to fight each other. Once that movement feeds back through the steering system, the truck can develop severe oscillation.
That is commonly called death wobble.
What it feels like
| Symptom | What The Driver Notices |
| Loose center feel | Steering moves before the tires respond |
| Highway wander | Truck drifts across ruts and road crowns |
| Violent shake after bumps | Front end oscillates after potholes or expansion joints |
| Steering wheel shake | Wheel moves rapidly side to side |
| Stops only after slowing down | Oscillation does not self-correct immediately |
What fixes it
Death wobble is rarely fixed by one part alone. It usually requires a full front-end review.
| Component | Why It Matters |
| Drag link | Transfers steering input accurately |
| Tie rod | Keeps both front tires working together |
| Track bar | Holds axle position under side load |
| Steering stabilizer | Helps control chatter, but does not fix bad geometry alone |
| Ball joints | Worn joints allow movement under load |
| Alignment | Incorrect caster or toe can trigger instability |
| Wheel and tire setup | Heavy tires and negative offset increase leverage |
A steering stabilizer can reduce symptoms, but it should not be treated as the root fix. The root fix is removing looseness, correcting geometry, and matching the steering system to the tire and lift setup.
4. Coil Bucket Contact on Leveled F-150s
Why it happens
Some F-150 leveling setups increase droop travel or change the upper control arm angle enough that the factory arm contacts the coil bucket or frame pocket.
This is common when the truck is leveled without enough clearance built into the upper control arm design.
What it sounds like
| Symptom | Likely Cause |
| Metallic clunk from front suspension | UCA contacting coil bucket or frame pocket |
| Noise over dips | Suspension is topping out or unloading |
| Torn ball joint boot | Ball joint operating at a poor angle |
| Harsh front-end feel | Travel is being limited mechanically |
What fixes it
Clearance-specific upper control arms are usually the right fix.
| Fix | Why It Helps |
| Tubular or boxed aftermarket UCAs | Improves clearance around coil bucket |
| Corrected ball joint angle | Reduces stress at leveled ride height |
| Proper shock/strut setup | Prevents uncontrolled top-out |
| Alignment after install | Confirms corrected geometry |
Cheap leveling kits can make the truck sit right but cycle poorly. Clearance matters as much as ride height.
5. Shock Fade Under Heavy Load
Why it happens
Factory shocks are built for stock tire size, stock weight, and normal daily driving. Once the truck has larger tires, heavier wheels, towing loads, armor, or off-road use, the shocks cycle harder and generate more heat.
When shock oil overheats and aerates, damping fades. The truck starts to feel loose, floaty, or uncontrolled.
What it feels like
| Symptom | What It Means |
| Truck feels good at first, worse later | Shock fade after heat buildup |
| Excessive bounce | Shock cannot control spring movement |
| Wallowing under load | Damping is not strong enough |
| Poor control on rough roads | Shock overheats or lacks valving control |
| Ride improves after cooling | Heat-related fade is likely |
What fixes it
Better shock design and valving.
| Shock Upgrade | Why It Helps |
| Monotube shocks | Better heat control and consistent damping |
| Remote reservoir shocks | More oil volume and better heat dissipation |
| Vehicle-specific valving | Better control for weight, tire size, and use case |
| Matched lift-height shocks | Prevents overextension or bottoming |
For towing, off-road use, and heavy wheels/tires, shock quality matters more than appearance.
6. Tire Rubbing After Leveling an F-150
Why it happens
A leveling kit raises the front of the truck, but it does not make the wheel well larger.
On F-150 platforms, tire clearance is affected heavily by wheel width, offset, backspacing, tire diameter, tire width, crash bars, liners, and suspension travel.
The wrong wheel can rub even with the right lift.
Where rubbing usually happens
| Rubbing Area | Common Cause |
| Crash bars | Tire swings into lower fender structure |
| Inner liner | Tire shoulder contacts plastic liner |
| Upper control arm | Wheel backspacing is too high or tire is too wide |
| Rear cab corner area | Offset pushes tire through a wider turning arc |
| Front bumper edge | Tire diameter and offset exceed clearance |
What fixes it
| Fix | Why It Helps |
| Correct wheel offset | Controls tire swing during steering |
| Proper tire size | Keeps tire inside the usable clearance envelope |
| Lift/level matched to tire goal | Prevents over-tiring the setup |
| Minor trimming | Creates clearance where needed |
| UCA clearance review | Prevents inside tire contact |
Aggressive negative offset looks good, but it increases scrub radius and can make rubbing worse.
For many leveled F-150 builds, the best wheel setup is not the most negative offset. It is the offset that clears while keeping steering geometry controlled.
7. Driveshaft Vibration After Lifting a Super Duty
Why it happens
Lifting a Super Duty changes driveline angles. When the rear pinion angle, driveshaft angle, or carrier bearing position moves outside the ideal operating range, vibration can show up under acceleration or at highway speed.
This is especially important on trucks with two-piece driveshafts or taller rear lift setups.
What it feels like
| Symptom | Likely Cause |
| Vibration under acceleration | Pinion angle or driveshaft operating angle issue |
| Hum at 55–70 mph | Driveline angle mismatch |
| Shudder from a stop | U-joint angle is out of range |
| Premature U-joint wear | Driveline geometry not corrected |
| Transfer case or rear-end stress | Vibration ignored too long |
What fixes it
| Fix | Why It Helps |
| Carrier bearing drop kit | Corrects two-piece driveshaft angle |
| Tapered rear lift blocks | Helps restore pinion angle |
| Pinion angle shims | Fine-tunes driveline alignment |
| Correct lift block selection | Prevents axle wrap and geometry problems |
| Professional driveline inspection | Confirms the true vibration source |
Do not stack rear lift blocks. Stacked blocks can increase axle wrap and create unsafe driveline behavior.
The Pattern Across All Seven Problems
Most Ford lift problems come back to one issue:
The truck is operating outside its original geometry.
A lift kit, leveling kit, wheel change, or tire upgrade changes leverage, angles, travel, and load. If the supporting parts do not correct those changes, the symptoms show up as wander, rubbing, clunking, shock fade, axle shift, or vibration.
The fix is not guessing. The fix is matching the right components to the actual problem.
Ford Fitment Checklist Before Ordering
| Information Needed | Why It Matters |
| Year and model | F-150, F-250, F-350, Bronco, Expedition, and Ranger use different platforms |
| Trim | Tremor, Raptor, FX4, Platinum, Lariat, King Ranch, and other trims may affect fitment |
| Engine | EcoBoost, gas V8, Power Stroke diesel, and hybrid setups can affect weight and clearance |
| Drivetrain | 2WD and 4WD fitment can differ |
| Current lift height | Determines control arm, shock, track bar, and driveline needs |
| Wheel specs | Diameter, width, offset, and backspacing control clearance |
| Tire size | Diameter and width affect rubbing and gearing |
| Existing mods | Bumpers, spacers, control arms, shocks, and steering upgrades change fitment |
Recommended Product Paths
| If Your Ford Has This Problem | Start Here |
| F-150 wanders after leveling | Upper control arms, alignment, shocks |
| Super Duty axle is off-center | Adjustable track bar and track bar bracket |
| Super Duty has death wobble | Drag link, tie rod, track bar, stabilizer, ball joints |
| F-150 clunks over dips | Clearance upper control arms and shock review |
| Truck fades under load | Monotube or reservoir shocks |
| F-150 rubs after leveling | Wheel offset review, tire size review, trimming if needed |
| Super Duty vibrates after lift | Carrier bearing drop, tapered blocks, pinion angle review |
Related Guides
Why Your Lifted Truck Still Rides Rough — Shock Valving Explained
Wheel Offset Explained: Stop Guessing. Start Fitting.
Caster Angle Explained for Lifted Trucks
Do You Need Upper Control Arms With a Leveling Kit?
Shop Ford Suspension & Steering
Use these product paths if you already know the problem you are trying to solve:
| Collection | Best For |
| Ford Suspension | Lift kits, leveling kits, shocks, control arms |
| Ford Steering | Drag links, tie rods, stabilizers, track bars |
| Ford Wheels | Offset-specific wheel fitment and tire clearance planning |
| Ford Lighting | Work, towing, rural, and trail visibility |
| Ford Parts & Accessories | Full Ford platform upgrade path |
Obsidian Take
Ford trucks respond well to the right lift, wheel, tire, and steering setup. They respond badly to guesswork.
If your F-150 started wandering after a level, the answer is probably not “get used to it.” If your Super Duty axle shifted after a lift, the answer is not an alignment alone. If your truck has death wobble, the answer is not a cheap stabilizer slapped over loose geometry.
Fix the mechanical cause first. Then tune the ride.
For fitment help, send your year, model, trim, engine, current lift height, wheel specs, tire size, and the issue you are trying to fix to Obsidian Forged Auto Supply before ordering.
Technical Support
469-407-7538
Support@obsidianforgedautosupply.com
