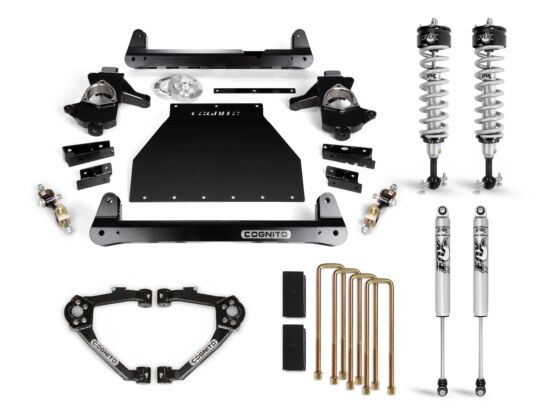

Cognito 6-Inch Performance Lift Kit With Fox PS IFP 2.0 Shocks | 2007–2018 Silverado/Sierra 1500 2WD/4WD
999Low stock
999In stock, ready to ship
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
Is This for You?
- You're on a 2007–2018 Silverado or Sierra 1500 — 2WD or 4WD — and want 6" of lift with Fox PS IFP 2.0 shocks included — the maximum lift available for this platform in a complete, geometry-corrected bolt-on system before fabrication-level modifications become necessary.
- You understand that 6" of lift on this platform requires more aggressive geometry correction than a 4" kit — CV axle angles, driveshaft angles, and UCA travel are all at or near their designed limits at 6", and every component in this kit is spec'd for that specific lift height, not adapted from a 4" configuration.
- You want Fox PS IFP 2.0 shocks front and rear with position-sensitive valving — on-road compliance and progressive compression resistance under off-road loading, without the aeration and fade that twin-tube shocks produce under repeated impacts at this travel range.
The Result
- 6" front and rear lift — 35" tire clearance with the included upper control arms, differential drop, and geometry correction hardware.
- Fox PS IFP 2.0 shocks front and rear — IFP eliminates aeration, position-sensitive valving delivers compliance on-road and progressive stiffening under compression off-road.
- Complete kit: UCAs, differential drop, brake line extensions, and all hardware included — geometry corrected specifically for 6" of lift, not a 4" kit with taller spacers.
At 6" of lift on the GMT900 and K2XX Silverado/Sierra 1500 platform, the CV axle operating angle on 4WD models approaches the outer limit of the factory CV joint's designed range. The differential drop hardware included in this kit is critical — it lowers the front differential to reduce the CV axle angle at the new ride height, extending CV joint service life and eliminating the vibration that an uncorrected CV angle produces under load. The upper control arms at 6" of lift must accommodate a greater range of travel than at 4" — the Cognito UCAs in this kit are engineered specifically for 6" geometry, not the same arms used in the 4" kit. The Fox PS IFP 2.0 shock uses an Internal Floating Piston to physically separate the oil and gas charges, eliminating aeration under aggressive cycling. The position-sensitive valving adds bypass ports at specific stroke positions: compliant initial stroke for on-road use, progressively stiffer rate approaching full compression to resist harsh bottom-out under high-speed off-road impacts. At 6" of lift with the increased suspension travel this kit provides, the position-sensitive tuning is more relevant than at 4" — the shock is cycling through a wider range of stroke positions under normal use, and the PS valving ensures the damping rate is appropriate at each point in that range. This kit covers both the GMT900 (2007–2013) and K2XX (2014–2018) platform generations across 2WD and 4WD configurations.
Audit Table
| Spec | Detail |
|---|---|
| Part Number | 210-P0960 |
| Lift Height | 6" Front & Rear |
| Max Tire | 35" |
| Front Shocks | Fox PS IFP 2.0 — Position Sensitive, Internal Floating Piston |
| Rear Shocks | Fox PS IFP 2.0 |
| Upper Control Arms | Cognito Fabricated — 6" Geometry Specific, Included |
| Differential Drop | Included (4WD) — Required for CV Angle Correction at 6" |
| Brake Line Extensions | Included |
| Drivetrain | 2WD & 4WD Compatible |
| Platform Coverage | GMT900 (2007–2013) & K2XX (2014–2018) |
| Shipping Weight | 320 lbs |
Verified Fitment
✔ 2007–2018 Chevy Silverado 1500 — 2WD & 4WD
✔ 2007–2018 GMC Sierra 1500 — 2WD & 4WD
✘ Does NOT fit: 2019–2026 Silverado/Sierra 1500 — T1XX platform; different suspension architecture
✘ Does NOT fit: 2006 and earlier Silverado/Sierra 1500 — different platform
✘ Does NOT fit: Silverado/Sierra 1500 with factory MagneRide suspension — verify suspension type before ordering
✘ Does NOT fit: Silverado/Sierra 2500HD or 3500HD — incompatible platform; see 110-P0778
✘ Does NOT fit: Colorado/Canyon — incompatible platform
Installation Notes
- Upper control arms (included) are 6"-geometry specific and required. Do not substitute 4" UCAs — travel range and ball joint angles differ between lift heights.
- 4WD models: differential drop hardware (included) is mandatory at 6" of lift. CV axle angle without the drop will accelerate joint wear and produce driveline vibration.
- Brake line extensions (included) must be installed — factory lines do not have sufficient slack at 6" of lift.
- Full front-end alignment mandatory post-installation. UCA geometry change at 6" affects caster and camber more significantly than at 4".
- Torque all fasteners to Cognito specification. Re-torque all suspension fasteners at 500-mile break-in interval.
- Verify model year generation (GMT900 vs. K2XX) when reviewing installation documentation — component details may vary between generations.
⚠️ LTL Freight Notice: This item ships via freight carrier due to size and weight (320 lbs). Residential delivery is included. Freight carrier will contact you to schedule delivery.
Engineering Question: Are you on a 2007–2018 GMT900 or K2XX Silverado/Sierra 1500, running 2WD or 4WD, and have you confirmed your truck does not have factory MagneRide suspension? At 6" of lift, CV angle correction via the differential drop is mandatory on 4WD models — confirm your drivetrain and full suspension configuration before ordering.
