Carli Suspension Pintop 3.25 System | 2014–2022 Ram 2500 Diesel 4WD

Is This for You?

• You're on a 2014–2022 Ram 2500 Cummins 4WD SRW and you want 3.25" of front lift with King 2.5" Remote Reservoir shocks — and you want the Pintop upper mount configuration that eliminates the factory coil bucket entirely rather than working around it.
• You understand the Pintop system requires a fabricated upper mount — the pin-top design replaces the factory upper coil perch with a machined billet mount, allowing the King 2.5" shock body to install without coil bucket modification or boring.
• You are on a Cummins diesel SRW — spring rates and shock valving are calibrated for Cummins diesel front axle weight. Gas-engine Ram 2500 and DRW configurations are not compatible with this system.

The Result

• 3.25" front lift with King 2.5" Remote Reservoir shocks — Carli-tuned valving for Cummins diesel platform weight on the 2014–2022 DJ/D2 Ram 2500.
• Pintop upper mount eliminates factory coil bucket geometry constraints — clean installation without coil bucket boring or modification.

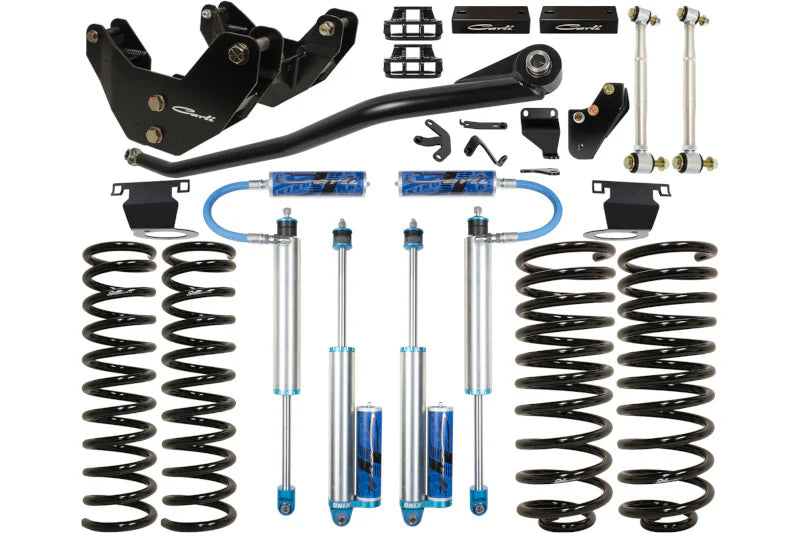

• Complete system including front coil springs, rear shocks, adjustable track bar, and extended brake lines — all components matched to the 3.25" lift geometry.

The Pintop system differs from a standard coilover installation in one critical way: the upper mount. A standard coilover installs into the factory coil bucket, which constrains the shock body diameter and requires boring on some platforms to clear larger shock bodies. The Carli Pintop replaces the factory upper coil perch with a machined billet pin-top mount — the shock installs via a pin through the upper mount rather than sitting in a coil bucket, eliminating the bucket geometry constraint entirely. This allows the King 2.5" Remote Reservoir shock body to install cleanly without modification to the factory spring perch. The King 2.5" Remote Reservoir shock provides more oil volume than a standard 2.0" unit, raising the thermal ceiling before fade onset under sustained towing and hauling loads on the Cummins platform. Carli's valving specification for this system is mapped to the spring rate curve of the included front coil springs and calibrated for Cummins diesel front axle weight — running this system on a gas-engine Ram 2500 will produce an oversprung front end. The 2014–2022 application window covers the DJ/D2 platform Ram 2500; the 2023+ Ram 2500 moved to a revised platform architecture and is not covered by this SKU.

Audit Table

Verified Fitment

✔ 2014–2022 Ram 2500 4WD — Cummins Diesel SRW

✘ Does NOT fit: Ram 2500 Gas engines — spring rates and shock valving calibrated for Cummins diesel front axle weight
✘ Does NOT fit: Ram 2500 2WD models
✘ Does NOT fit: 2023–2026 Ram 2500 — revised platform architecture; different suspension geometry
✘ Does NOT fit: 2013 and earlier Ram 2500 — different suspension platform
✘ Does NOT fit: Ram 3500 DRW (Dually) — incompatible front suspension geometry
✘ Does NOT fit: Ram 1500 — incompatible platform

Installation Notes

• Pintop upper mount replaces the factory upper coil perch. Professional installation required — upper mount installation involves removing the factory coil bucket hardware.
• Full front-end alignment mandatory post-installation. Caster correction required at 3.25" lift — verify final alignment specs with installer.
• Extended brake lines must be installed with the front shocks — factory lines do not have sufficient slack at full droop with the new lift height.
• Adjustable track bar: set bar length to center axle under chassis before final torque. Re-torque at 500-mile break-in interval.
• Torque all fasteners to Carli specification. Re-torque all suspension fasteners at 500-mile break-in interval.

⚠️ LTL Freight Notice: This item ships via freight carrier due to size and weight (250 lbs). Residential delivery is included. Freight carrier will contact you to schedule delivery.

Engineering Question: Are you on a 2014–2022 Ram 2500 Cummins 4WD SRW, and have you confirmed your installer is familiar with the Pintop upper mount installation procedure? This system replaces the factory upper coil perch — confirm your model year, engine, and drivetrain configuration before ordering. If you are on a 2023+ Ram 2500, this SKU does not fit.
