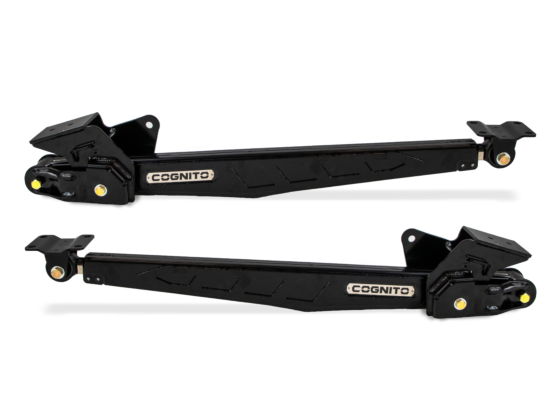

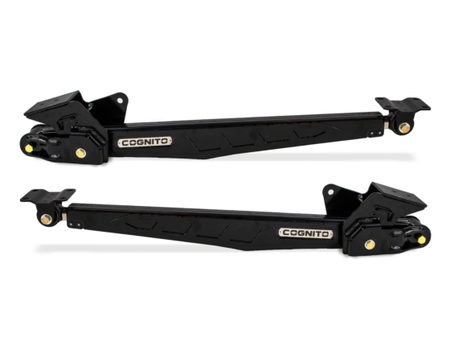

Cognito SM Series LDG Traction Bar Kit | 2019-2025 Silverado/Sierra 1500 2WD/4WD 0-7" Lift

The Obsidian Vision

On a lifted or leveled 2019–2025 Silverado or Sierra 1500, rear axle wrap is the torque management problem that the factory leaf spring pack was never engineered to solve at elevated ride heights — and the consequences under hard acceleration and towing manifest as wheel hop, driveline vibration, and the progressive degradation of u-joint and driveshaft integrity that follows every hard pull. The Cognito SM Series Limited Dynamic Geometry (LDG) Traction Bar Kit resolves that problem with a USA-made, heavy-duty boxed sheet-metal traction bar system engineered to resist axle wrap across 0 to 7 inches of rear lift without restricting suspension travel through the full droop and compression arc. Precision adjustability through the LDG design allows the owner to set traction bar preload quickly and accurately for any lift height within the operating range, delivering a system that holds driveline geometry under the sustained torque loads of the T1 1500 platform at maximum tow capacity — with the Cognito signature semi-gloss black powder coat finish and large rod ends with split adjuster nuts that set it apart from every bracket-and-rod solution on the market. Made in the USA.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Eliminates rear axle wrap and driveline torque steer on lifted and leveled 2019–2025 Silverado/Sierra 1500 2WD/4WD applications by transferring axle torque reaction loads into the frame through a rigid boxed sheet-metal bar geometry, preventing the axle rotation that causes wheel hop under hard acceleration and towing.
• Maintains full, unrestricted suspension travel across 0 to 7 inches of rear lift via the Limited Dynamic Geometry design, which allows the traction bar to articulate with the axle through its complete droop and compression arc without binding or limiting shock absorber travel at any point in the operating range.
• Provides precise, tool-accessible preload adjustability via large rod ends and split adjuster nuts, enabling quick and accurate traction bar setup for any lift height within the 0–7 inch operating range without disassembling the system — critical for 1500 owners who vary payload and tow configurations regularly.

Cognito's SM Series construction uses heavy-duty boxed sheet-metal stampings — the same fabrication approach applied across Cognito's suspension lineup — providing the torsional rigidity required to resist the torque reaction loads generated by the T1 Silverado/Sierra 1500 platform under maximum tow rating and hard acceleration without the flex or fatigue that affects lighter tubular or stamped bracket designs. The LDG pivot geometry allows the bar to follow the axle's natural arc through the full suspension travel range without inducing bind, maintaining the anti-wrap function at every point in the travel arc rather than only at static ride height. Frame mounting brackets, axle mounting brackets, large rod ends, split adjuster nuts, and all necessary installation hardware are included. All components are powder coated semi-gloss black and manufactured in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 1500:
2019–2025 Chevrolet Silverado 1500 Custom, Custom Trail Boss, WT, RST, LT, LT Trail Boss, LTZ, High Country 2WD/4WD
2022–2025 Chevrolet Silverado 1500 ZR2 4WD
2023–2025 Chevrolet Silverado 1500 Base 2WD/4WD

✅ CONFIRMED — GMC Sierra 1500:
2019–2025 GMC Sierra 1500 Base, SLE, SLT, Elevation, AT4, Denali 2WD/4WD
2022–2025 GMC Sierra 1500 AT4X, Denali Ultimate 2WD/4WD
2022–2025 GMC Sierra 1500 Pro 2WD/4WD

❌ REQUIREMENTS:
⚠️ Fuel Tank Incompatibility: This kit is NOT compatible with S&B Fuel Tanks or Titan Fuel Tanks. The traction bar frame mounting bracket conflicts with the mounting geometry of these aftermarket auxiliary fuel tank systems. Verify your fuel tank configuration before ordering — if an S&B or Titan auxiliary fuel tank is installed, this kit cannot be used.
Designed for 0–7 inches of rear lift — verify rear lift height is within this range before ordering.
Requires rear pinion angle check post-installation to confirm driveline u-joint operating angles are within GM's specification for the installed lift height.
Requires rear alignment verification post-installation to confirm axle centering and tracking geometry.

Installation & Technical Notes

Estimated Install Time: 3-Hour DIY Install (with basic lift equipment, hand tools, and torque wrench)
Alignment Required: Pinion angle check recommended post-installation — verify driveline u-joint operating angles are within GM's specification for the installed rear lift height to prevent vibration and accelerated u-joint and driveshaft wear under tow load.
Torque Specifications: Refer to Cognito's included instruction sheet for all mounting hardware torque values — torque all fasteners with the suspension at ride height under load.
Adjuster Setup: Set traction bar preload using the large rod ends and split adjuster nuts with the vehicle at ride height and the rear suspension loaded to approximate operating weight. Adjust until light preload is achieved, then verify full suspension travel is unrestricted before final torque.
Fuel Tank Verification: Before installation, confirm no S&B or Titan auxiliary fuel tank is installed. If present, this kit cannot be installed without removing the auxiliary tank system.

Wheel & Tire Fitment

Traction bar fitment is independent of wheel and tire selection on the 2019–2025 Silverado/Sierra 1500 platform. This kit supports rear lift heights of 0–7 inches — verify that your wheel backspacing and tire diameter are compatible with your specific rear lift height and any fender modifications already completed on your build.

Our team is standing by to verify your specific fuel tank configuration, rear lift height, and towing setup before we ship. Purchase with confidence; we review every build.
