Cognito GM HD Idler Support Frame Gusset Kit | 2011-2025 Silverado/Sierra 2500HD/3500HD

The Obsidian Vision

⚠️ NOTICE: This kit requires welding for installation. Professional fabrication equipment and welding capability are required. This is not a bolt-in product.

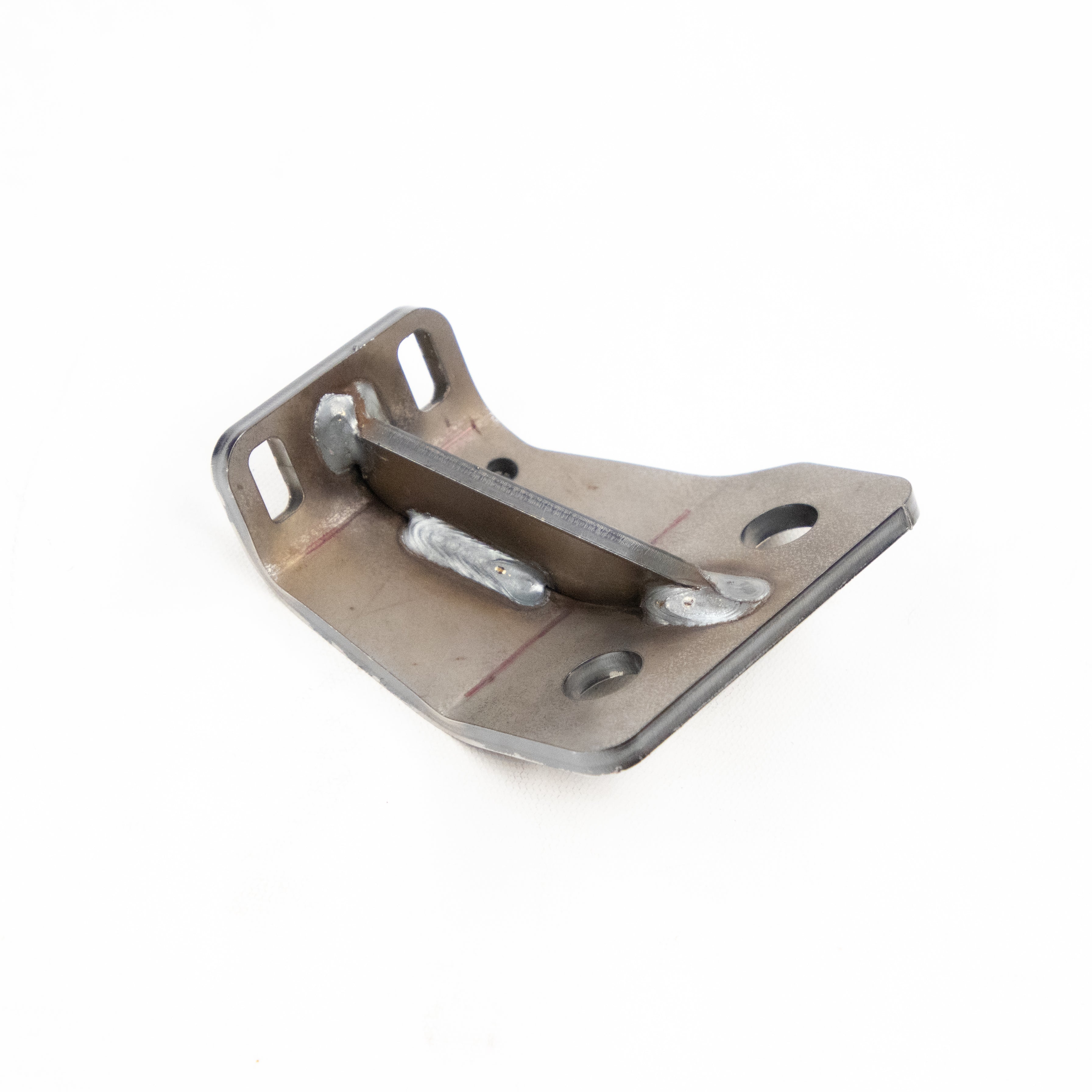

The idler arm support area of the frame on the 2011–2025 Silverado and Sierra 2500HD/3500HD is a known flex and wear point under the steering loads generated by lifted, hard-used, and heavily loaded trucks — and the Cognito GM HD Idler Support Frame Gusset Kit addresses that structural deficit directly. Constructed from 1/4-inch high-strength plate steel and precision-fit to the 2011+ GM HD frame geometry, this gusset kit reinforces the idler support area of the frame to reduce flex and wear under load, improving steering stability and durability on both factory and aftermarket idler support configurations. If you are running a Cognito PISK or any aftermarket idler arm support on a lifted or hard-used GM 2500HD/3500HD, this frame gusset is the structural foundation that makes that steering upgrade last.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Reinforces the idler arm support area of the 2011–2025 GM HD frame with 1/4-inch high-strength plate steel gussets that increase the rigidity of the frame section at the idler support mounting location — reducing the flex and deformation that occurs in this area under the steering loads generated by lifted ride heights, aggressive off-road use, and heavy towing and payload conditions.
• Improves steering stability and durability by eliminating the frame flex at the idler support mounting point that allows the idler arm to move in directions it was not designed to move — the same flex that accelerates idler arm wear, center link wear, and steering system compliance on lifted and hard-used GM HD trucks even when a quality idler arm support kit is installed.
• Integrates with both factory and aftermarket idler arm support configurations, including the Cognito Pitman and Idler Arm Support Kit (PISK) — providing the frame-level structural reinforcement that maximizes the effectiveness of the idler support upgrade by eliminating the frame flex that the support kit alone cannot address.

The idler arm support on the GM 2500HD/3500HD steering system mounts to the frame at a location that experiences significant bending and torsional loads during steering inputs, especially at elevated ride heights where tie rod angles increase and the lateral forces transmitted through the steering system to the frame mounting point are higher than at stock ride height. The factory frame section at this location is adequate for stock use but becomes a flex and wear point under the sustained elevated loads of lifted, off-road, and heavily loaded applications. The 1/4-inch high-strength plate steel gussets add material at the highest-stress locations in this frame section, increasing the section modulus and reducing the deflection under load. Compatible with both factory and aftermarket idler arm supports. Precision-fit to the 2011+ GM HD frame geometry. Requires welding for installation — professional fabrication and welding capability required.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 2500HD:
2011–2025 Chevrolet Silverado 2500HD Base, WT, LT, LTZ 2WD/4WD
2013–2018 Chevrolet Silverado 2500HD LS 2WD/4WD
2015–2025 Chevrolet Silverado 2500HD High Country 2WD/4WD
2020–2025 Chevrolet Silverado 2500HD Custom 2WD/4WD
2024–2025 Chevrolet Silverado 2500HD ZR2 4WD

✅ CONFIRMED — Chevrolet Silverado 3500HD:
2011–2025 Chevrolet Silverado 3500HD Base, WT, LT, LTZ 2WD/4WD SRW & DRW
2015–2025 Chevrolet Silverado 3500HD High Country 2WD/4WD SRW & DRW

✅ CONFIRMED — GMC Sierra 2500HD:
2011–2014 GMC Sierra 2500HD WT 2WD/4WD
2011–2022 GMC Sierra 2500HD Base 2WD/4WD
2011–2025 GMC Sierra 2500HD SLE, SLT, Denali 2WD/4WD
2020–2025 GMC Sierra 2500HD AT4 2WD/4WD
2023–2025 GMC Sierra 2500HD Pro 2WD/4WD
2024–2025 GMC Sierra 2500HD AT4X, Denali Ultimate 2WD/4WD

✅ CONFIRMED — GMC Sierra 3500HD:
2011–2014 GMC Sierra 3500HD WT 2WD/4WD SRW & DRW
2011–2022 GMC Sierra 3500HD Base 2WD/4WD SRW & DRW
2011–2023 GMC Sierra 3500HD SLT 2WD/4WD SRW & DRW
2011–2025 GMC Sierra 3500HD SLE, Denali 2WD/4WD SRW & DRW
2020–2025 GMC Sierra 3500HD AT4 2WD/4WD SRW & DRW
2023–2025 GMC Sierra 3500HD Pro 2WD/4WD SRW & DRW
2024–2025 GMC Sierra 3500HD Denali Ultimate 2WD/4WD SRW & DRW

❌ REQUIREMENTS & CRITICAL NOTICES:
⚠️ WELDING REQUIRED — PROFESSIONAL INSTALLATION ONLY: This kit requires welding to the vehicle frame for installation. A MIG or TIG welder, proper frame preparation (cleaning, grinding, and rust removal at the weld area), and professional fabrication capability are required. Do not attempt installation without proper welding equipment and experience. Improper welds on a structural frame component can compromise vehicle safety.
Requires frame surface preparation before welding — the weld area must be cleaned to bare metal, free of rust, paint, undercoating, and contamination before welding to ensure proper weld penetration and bond strength.
Requires post-weld treatment — apply weld-through primer or chassis paint to all welded areas after installation to prevent corrosion at the weld zone.
Recommended for use with the Cognito Pitman and Idler Arm Support Kit (PISK) for maximum steering system durability on lifted and hard-used GM HD applications.

Installation & Technical Notes

Estimated Install Time: Professional fabrication shop installation — allow 1–2 hours for frame preparation, gusset fitment, tacking, final welding, and post-weld treatment.
Frame Preparation: Clean the idler support area of the frame to bare metal before installation. Remove all paint, undercoating, rust, and contamination from the weld zone using a grinder and wire wheel. Bare metal contact is required for proper weld penetration and bond strength.
Welding: Tack the gusset plates in position and verify fitment before final welding. Use MIG or TIG welding with appropriate filler material for high-strength steel. Follow proper welding procedures for structural frame components — do not use flux-core wire on structural welds without verifying compatibility with the frame steel specification.
Post-Weld Treatment: After welding and cooling, apply weld-through primer or chassis paint to all welded areas and bare metal surfaces to prevent corrosion. Allow to cure before driving.
Idler Support Compatibility: Install the Cognito PISK or factory idler arm support before or after the frame gusset — the gusset is compatible with both configurations and does not require removal of the idler support for installation.

Wheel & Tire Fitment

This is a frame structural reinforcement component — wheel and tire fitment is not affected by this installation. The Cognito GM HD Idler Support Frame Gusset Kit is compatible with all wheel and tire configurations on the 2011–2025 Silverado/Sierra 2500HD/3500HD platform, including lifted and leveled applications.

Our team is standing by to verify your specific frame configuration and confirm 110-91329 is the correct gusset kit for your GM HD build. Purchase with confidence; we review every build.
