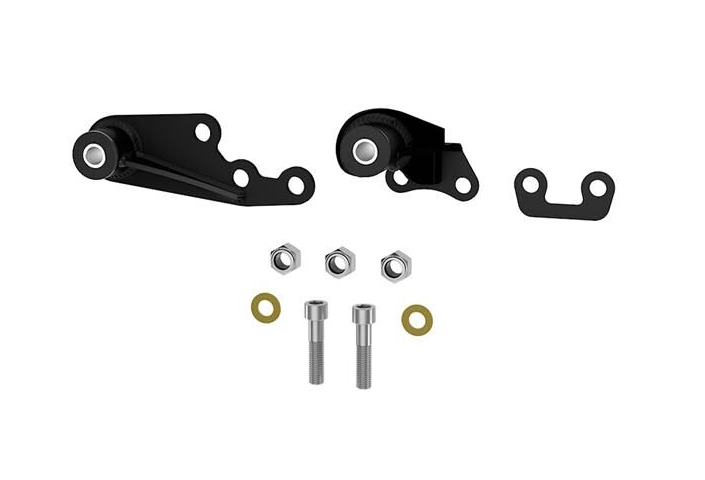

Cognito Front Differential Drop Kit | 2022-2025 Toyota Tundra 4WD

The Obsidian Vision

When a Cognito 3-inch leveling kit raises the front of a 2022–2025 Toyota Tundra 4WD, the front differential stays in its factory position while the suspension geometry above it changes — increasing the operating angle of the front CV axles beyond what the OEM tri-pod style axles were designed to sustain under sustained 4WD use. The Cognito Front Differential Drop Kit addresses that geometry change directly: a 100% bolt-on, no-cut, no-weld bracket that drops the front differential 3/4 inch, restoring the CV axle operating angles to within the range the factory axles can sustain. Semi-gloss black powder coated for corrosion resistance. If you are running a Cognito 3-inch leveling kit on a 4WD Tundra and using 4WD for anything more than very light use, this kit is the required companion. And if you are thoroughly using 4WD — trails, towing in 4WD, sustained off-road — it is also recommended to upgrade the OEM tri-pod axles to the Toyota Pro or TRD Off-Road silver or red axles, which are significantly more robust than the standard tri-pod units.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Drops the front differential 3/4 inch via a 100% bolt-on bracket with no cutting or welding required, reducing the CV axle operating angle at the 3-inch leveled ride height to within the range the OEM front CV axles can sustain under sustained 4WD use — the geometry correction that prevents the accelerated tri-pod joint wear and eventual CV axle failure that results from running the factory axles at the increased angles generated by 3 inches of front lift.
• Protects the OEM front CV axles from the accelerated wear and failure that the standard tri-pod style axles experience at elevated CV joint operating angles — the tri-pod joint design is not as robust as a constant-velocity ball-type joint at high operating angles, making the differential drop a required companion to the Cognito 3-inch leveling kit on 4WD Tundra applications where 4WD is used beyond very light duty.
• Installs as a 100% bolt-on replacement with no cutting, welding, or modification to the factory differential mounting or subframe — semi-gloss black powder coat finish provides corrosion resistance in the front differential environment.

The OEM front CV axles on the standard 2022–2025 Toyota Tundra 4WD use a tri-pod style joint that is adequate at factory ride height but becomes a wear and failure point when the CV joint operating angle increases at 3 inches of front lift. The Toyota Pro and TRD Off-Road packages use silver or red axles with a more robust joint design that handles the elevated operating angles more effectively — if your Tundra is equipped with those axles, the differential drop kit alone is sufficient for sustained 4WD use. If your Tundra has the standard tri-pod axles, the differential drop kit reduces the operating angle but upgrading to the silver or red axles is the recommended solution for thorough 4WD use. The Cognito differential drop bracket is engineered to the specific mounting geometry of the 2022–2025 Tundra front differential, providing the 3/4-inch drop required to correct CV axle angles at the Cognito 3-inch leveling kit ride height.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Toyota Tundra 4WD:
2022–2025 Toyota Tundra SR, SR5, Limited, Platinum, 1794 Edition, 1794 Limited Edition, Capstone 4WD

❌ REQUIREMENTS:
⚠️ COGNITO 3" LEVELING KIT REQUIRED: This differential drop kit is designed as a companion to the Cognito 3-inch leveling kit for the 2022–2025 Toyota Tundra 4WD. It is not a standalone lift or leveling product — install only in conjunction with the Cognito 3-inch leveling kit at the 3-inch front lift height.
⚠️ 4WD MODELS ONLY: This kit is only required on 4WD Tundra models. 2WD Tundra models do not have a front differential and do not require this kit.
⚠️ CV AXLE ADVISORY — STANDARD TRI-POD AXLES: If your Tundra is equipped with the standard OEM tri-pod style front CV axles (non-Pro, non-TRD Off-Road), it is strongly recommended to upgrade to the Toyota Pro or TRD Off-Road silver or red axles if you will be using 4WD thoroughly — trails, sustained off-road, or towing in 4WD. The differential drop kit reduces the CV axle operating angle but does not eliminate the robustness limitation of the standard tri-pod joint design at elevated angles.
Requires front alignment verification after installation to confirm the differential drop has not affected front suspension geometry settings.

Installation & Technical Notes

Estimated Install Time: Under 1 Hour DIY Install (100% bolt-on, no cutting or welding — basic hand tools and a floor jack required)
Install Sequence: Install the Cognito 3-inch leveling kit first, then install the differential drop kit before operating the vehicle in 4WD.
CV Axle Check: After installation, verify the front CV axles are not binding or over-extended at the new differential position. If the axles show any binding through the full suspension travel arc, the differential drop dimension may not be sufficient for your specific configuration — contact the OFAS team before driving in 4WD.
Axle Upgrade: If equipped with standard tri-pod OEM axles and planning thorough 4WD use, source the Toyota Pro or TRD Off-Road silver or red axles before sustained off-road or trail use.
Torque Specifications: Torque all differential drop bracket mounting hardware to the factory differential mount specification — refer to Cognito's included instruction sheet for torque values.

Wheel & Tire Fitment

This is a drivetrain geometry correction component — wheel and tire fitment is determined by the Cognito 3-inch leveling kit installed on the vehicle. Refer to the leveling kit's fitment documentation for tire size, wheel backspacing, and offset specifications applicable to your Tundra configuration at 3 inches of front lift.

Our team is standing by to verify your specific Tundra axle configuration (standard tri-pod vs. Pro/TRD silver or red) and confirm 135-91300 is the correct differential drop kit for your leveled 4WD build. Purchase with confidence; we review every build.
