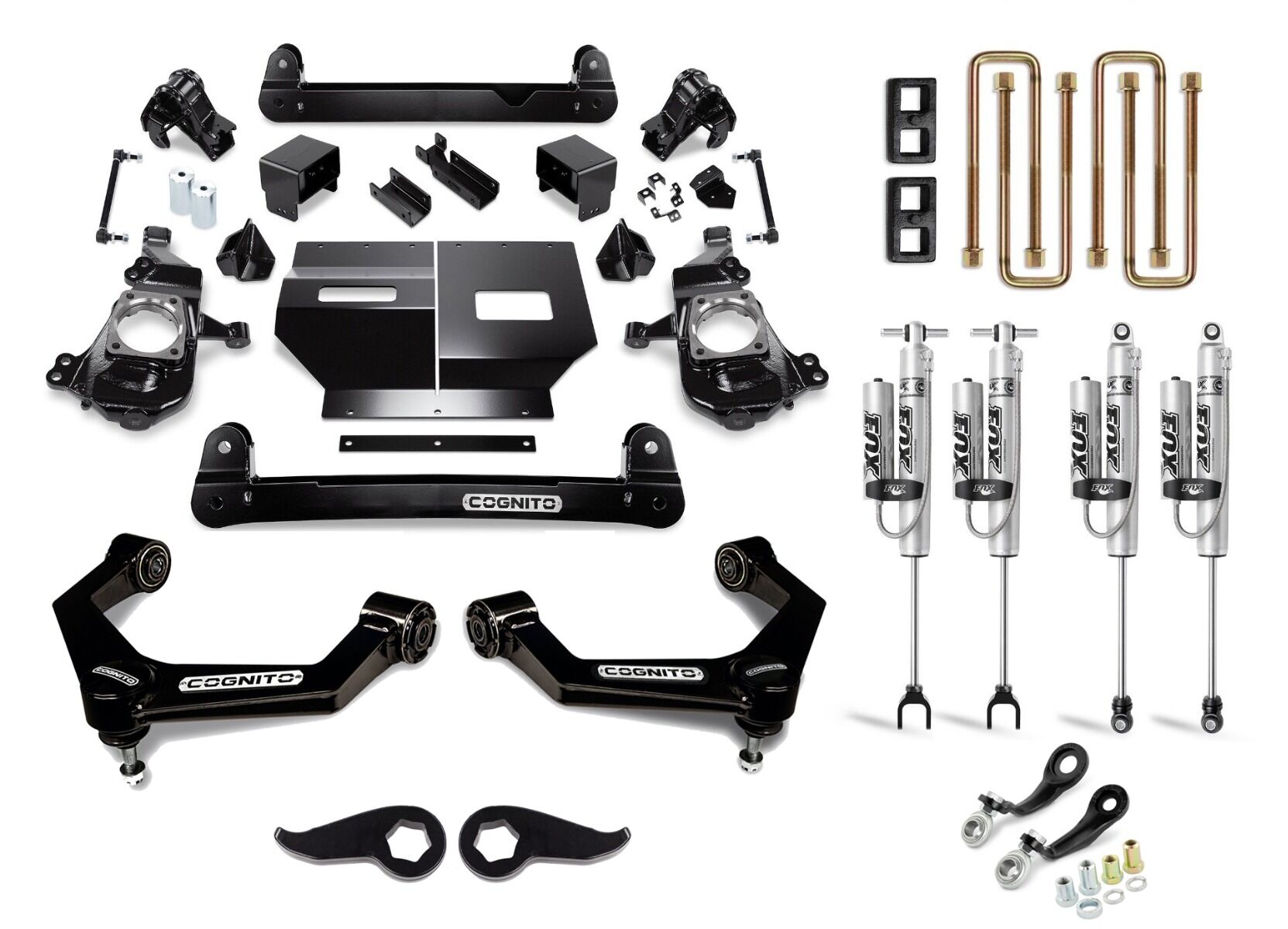

Cognito 5" Non-Torsion Bar Drop Performance Lift Kit with Fox 2.0 PSRR | 2020-2025 Silverado/Sierra 2500HD/3500HD

The Obsidian Vision

Five inches of front lift and three inches of rear lift on a 2020–2025 Silverado or Sierra 2500HD/3500HD is a meaningful suspension upgrade — but the engineering decision that separates this kit from every other 5-inch T1 heavy-duty lift system is what happens to the torsion bars. The Cognito Non-Torsion Bar Drop Front Lift Kit keeps the torsion bars tucked up in the frame rather than dropping them down, preserving the maximum ground clearance that a dropped torsion bar configuration sacrifices at the crossmember and differential — the clearance that matters most when the truck is doing the work it was built for. Paired with the Cognito SM Series Ball Joint Upper Control Arms, the patented Pitman and Idler Arm Support Kit, Fox 2.0 Performance Series Remote Reservoir shocks, and 3 inches of rear lift, this is a complete, no-guesswork system engineered and assembled in the USA — nearly all components manufactured in Bakersfield, California — that delivers superior ride quality, corrected CV axle angles, and the ground clearance advantage that the Non-Torsion Bar Drop architecture provides.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Maximizes ground clearance at the torsion bar crossmember and front differential by retaining the torsion bars in their factory tucked-up-in-frame position rather than dropping them down — the Non-Torsion Bar Drop architecture preserves the clearance that a conventional torsion bar drop kit sacrifices, which is the clearance that determines whether the truck can clear obstacles that a dropped-bar configuration cannot.
• Corrects ball joint angle, adds caster, and increases allowable droop travel for superior ride quality via the Cognito SM Series Ball Joint Upper Control Arms — boxed sheet-metal arms, welded and powder coated semi-gloss black, with pre-installed maintenance-free ball joints and pivot bushings, ready to install with no assembly required.
• Eliminates pitman and idler arm wear and steering system compliance through the patented Cognito Pitman and Idler Arm Support Kit, which addresses the root cause of GM steering system degradation at elevated tie rod angles — not a steering stabilizer that masks the symptom, but the Utility Patent-backed support kit that fixes the flaw and controls the GM pitman and idler arm steering system properly.

The Non-Torsion Bar Drop design achieves 5 inches of front lift while keeping the torsion bars in their factory frame position, maintaining the ground clearance at the crossmember and differential that a dropped-bar configuration reduces by the amount of the drop. On a lifted heavy-duty truck used for off-road, work, or towing in rough terrain, this clearance difference is the margin between clearing an obstacle and contacting it. The Fox 2.0 Performance Series Remote Reservoir shocks feature an impact-extruded aluminum body for rust resistance and increased cooling capacity, with factory-tuned precision valving that eliminates oil aeration for consistent damping performance across the full 5-inch front lift travel range. The SM Series Ball Joint UCAs add caster correction in addition to ball joint angle correction — improving straight-line stability and steering return-to-center at the elevated ride height. All Cognito components are engineered and assembled in the USA, with nearly all components manufactured in Bakersfield, California. At 400 lbs, this kit ships via LTL freight carrier with residential delivery included.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 2500HD:
2020–2025 Chevrolet Silverado 2500HD Base, Custom, WT, LT, LTZ, High Country 2WD/4WD

✅ CONFIRMED — Chevrolet Silverado 3500HD:
2020–2025 Chevrolet Silverado 3500HD Base, WT, LT, LTZ, High Country 2WD/4WD SRW & DRW

✅ CONFIRMED — GMC Sierra 2500HD:
2020–2022 GMC Sierra 2500HD Base 2WD/4WD
2020–2025 GMC Sierra 2500HD SLE, SLT, AT4, Denali 2WD/4WD
2023–2025 GMC Sierra 2500HD Pro 2WD/4WD
2024–2025 GMC Sierra 2500HD Denali Ultimate 2WD/4WD

✅ CONFIRMED — GMC Sierra 3500HD:
2020–2022 GMC Sierra 3500HD Base 2WD/4WD
2020–2025 GMC Sierra 3500HD SLE, SLT, AT4, Denali 2WD/4WD SRW & DRW
2023–2025 GMC Sierra 3500HD Pro 2WD/4WD SRW & DRW
2024–2025 GMC Sierra 3500HD Denali Ultimate 2WD/4WD SRW & DRW

❌ REQUIREMENTS:
Requires front alignment immediately post-installation — caster and camber correction is critical before any driving.
Requires driveline u-joint angle verification post-installation at 3 inches of rear lift before towing at rated capacity.
Requires ADAS recalibration if equipped with forward collision alert, lane departure warning, or adaptive cruise control.
Shipping Notice: At 400 lbs, this kit ships via LTL freight carrier. Residential delivery is included.

Installation & Technical Notes

Estimated Install Time: 13-Hour DIY Install — with a 2-post lift, comprehensive hand tools, torque wrench, and alignment appointment scheduled immediately after installation.
Alignment Required: Yes — professional front alignment is mandatory immediately after installation. The SM Series UCAs add caster correction in addition to ball joint angle correction — both must be verified and set to specification before driving.
Torque Specifications: Refer to Cognito's included instruction sheet for all component torque values — torque all fasteners with the suspension at ride height under load.
Shipping Notice: At 400 lbs, this kit ships via LTL freight carrier. Residential delivery is included. A delivery appointment will be scheduled by the carrier.

Wheel & Tire Fitment

Tire fitment at 5 inches of front lift on the 2020–2025 Silverado/Sierra 2500HD/3500HD platform varies by wheel width, offset, and fender configuration. The following configurations have been verified — all require a tie back kit unless noted:

37x12.50 on stock 20" wheel: Requires a wheel spacer of at least 1/4" (1.5" spacer recommended for appearance). Tie back kit + medium trimming required.
35" on 10" wide wheel, +18mm offset: Tie back kit + light trimming required.
35" on 10" wide wheel, 0mm offset: Tie back kit + medium trimming required.
37x12.50 on 9" wide wheel, +18mm offset: Tie back kit + light trimming required.
37x12.50 on 9" wide wheel, 0mm offset: Tie back kit + medium trimming required.
37x12.50 on 10" wide wheel, +18mm offset: Tie back kit + medium trimming required.
37x12.50 on 10" wide wheel, 0mm offset: Tie back kit + heavy trimming required.

Contact the OFAS team to verify your specific wheel and tire configuration before ordering.

Our team is standing by to verify your specific wheel offset, tire size, and trimming requirements for this Non-Torsion Bar Drop build. Purchase with confidence; we review every build.
